Orei - 8K 4-port HDMI™ Switch (Audio Extract)-BK-401A - Black & Blue
About This Item
- General
- Brand: Orei
- Model Number: BK-401A
- Product Name: OREI 8K 4-port HDMI™ Switch (Audio Extract)-BK-401A
- Color: Black & Blue
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions
- Product Height: 20.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 58 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- UPC: 850031132696

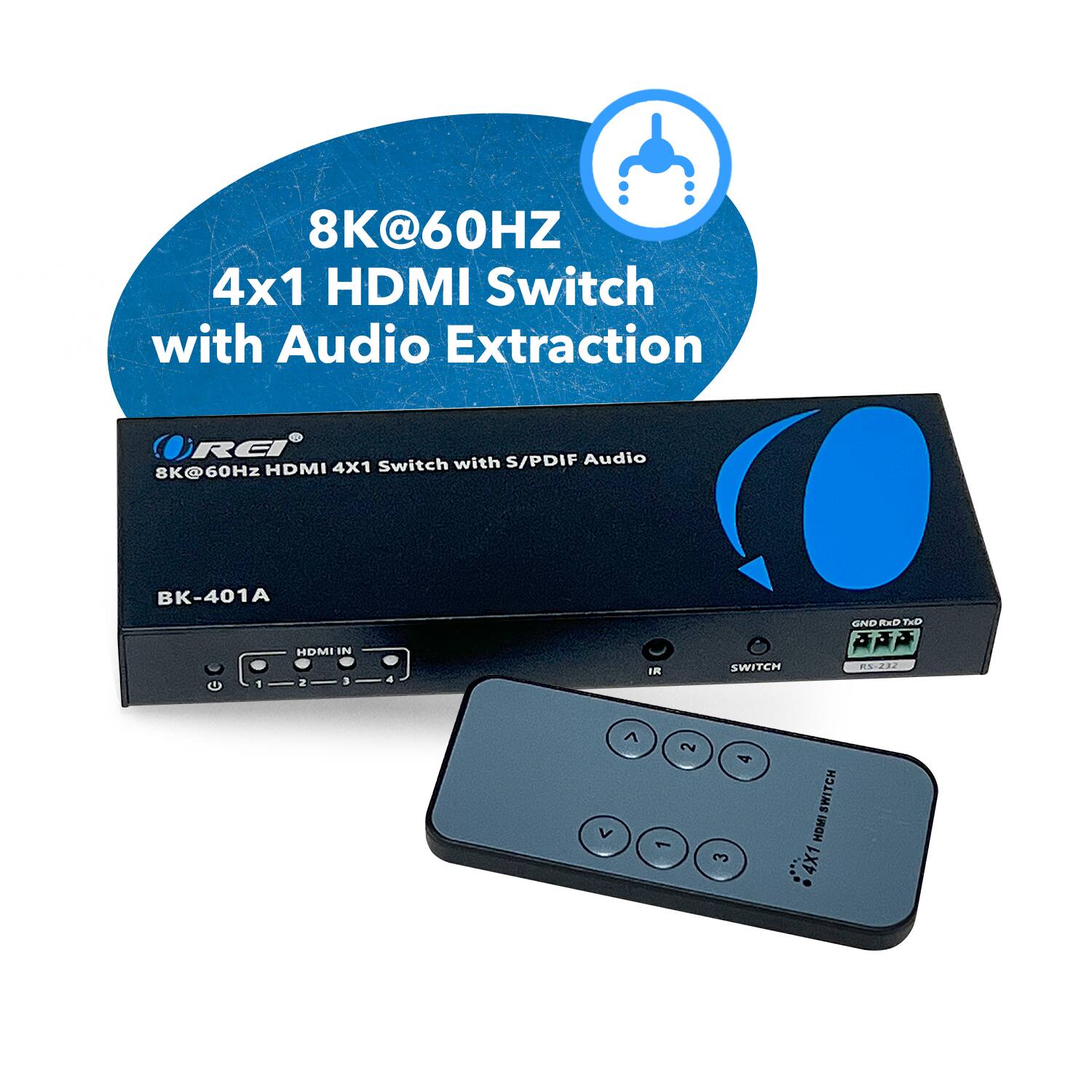

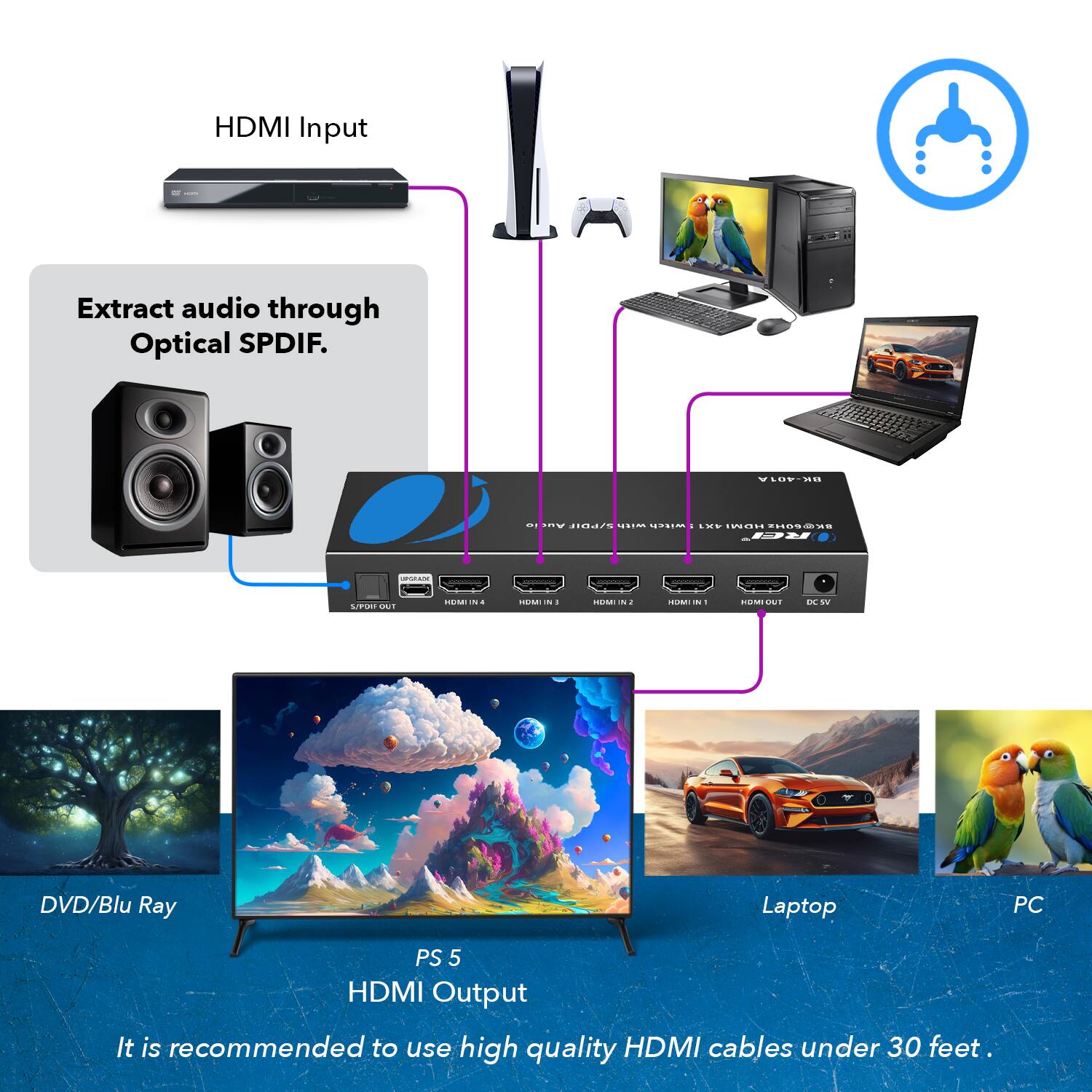

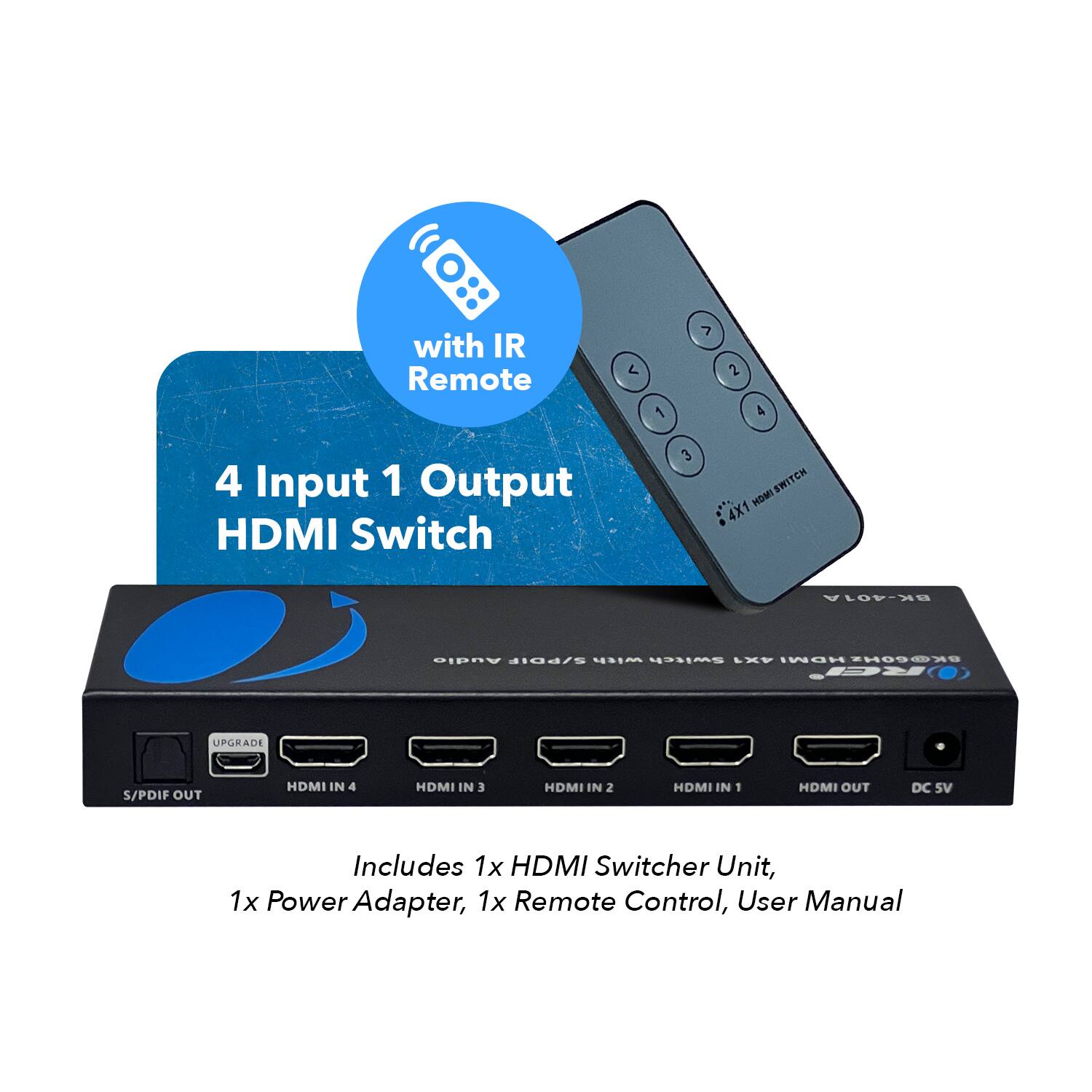

The BK-401A is an 8K HDMI switch featuring 4 HDMI inputs and 1 HDMI output, allowing you to connect multiple devices to your TV. It can also extract audio from your sources and output it via S/PDIF and L/R ports. Compliant with HDMI 2.1 and HDCP 2.3, it supports video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4. With a video bandwidth of up to 48Gbps FRL and 18Gbps TMDS, it supports HDR10+, HLG, and Dolby Vision pass-through. CEC enables control of the soundbar's volume through your TV remote. It offers advanced EDID management, a compact design, and easy plug-and-play installation, making it perfect for personal or commercial setups.
- HDMI 2.1 & HDCP 2.3 Compliant: 48Gbps FRL & 18Gbps TMDS video Bandwidth
- Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:: HDR/10/10+, Dolby Vision and HLG pass-through
- VRR, ALLM, QMS, QFT, and SBTM support: Advanced EDID Management
- HDMI 2.1 & HDCP 2.3 Compliant: 48Gbps FRL & 18Gbps TMDS video Bandwidth
- Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:: HDR/10/10+, Dolby Vision and HLG pass-through
- VRR, ALLM, QMS, QFT, and SBTM support: Advanced EDID Management
