Peerless-AV - 14x14" In-wall Box - White
Related Item
About This Item
- General
- Brand: Peerless-AV
- Model Number: IB14X14-W
- Product Name: 14x14" In-wall Box
- Color: White
- Features
- Accessory Type: In-Wall Box
- Compatibility: 14x14" In-wall Box - White
- Dimensions
- Product Height: 15 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 15 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 5 years limited
- Warranty - Labor: 5 years limited
- Other
- UPC: 735029332756
Peerless-AV’s In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
- Installation: Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock-outs: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm). Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
- Cable tie locations: Integrated cable tie locations
- UL 2416 listed: Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Installation: Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock-outs: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm). Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
- Cable tie locations: Integrated cable tie locations
- UL 2416 listed: Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Whats Included
- Peerless-AV IB14X14-W In-Wall Box
- Trim Ring
- 2 x Drywall Clamps
- 2 x Mounting Plates
- Wood Stud Mounting Hardware
- Peerless-AV IB14X14-W In-Wall Box
- Trim Ring
- 2 x Drywall Clamps
- 2 x Mounting Plates
- Wood Stud Mounting Hardware
Product Manuals
Q: Does the In-wall Box come with hardware?
A: Yes, the In-wall Box includes hardware.
Q: What is the warranty period for this In-wall Box?
A: This In-wall Box comes with a 5-year limited warranty for both parts and labor.
Q: What is the purpose of the removable trim ring on the Peerless-AV In-Wall Box?
A: The removable trim ring allows for installation before or after drywall is in place, providing flexibility during installation.
Q: Can this In-wall Box be mounted directly to drywall?
A: Yes, it can be installed between studs, to a single stud, or directly into drywall.
Q: How does the Peerless-AV In-Wall Box accommodate different conduit sizes?
A: The In-Wall Box includes knock-outs for 3/4", 1.0", 1.25", and 1.5" conduit.
Q: what is the depth of the box?
A: The depth is 3.94" - see all dimensions on page 2 here: https://docs.peerless-av.com/SELL%20SHEET-LIT1719-1-3-1.PDF
Reviews

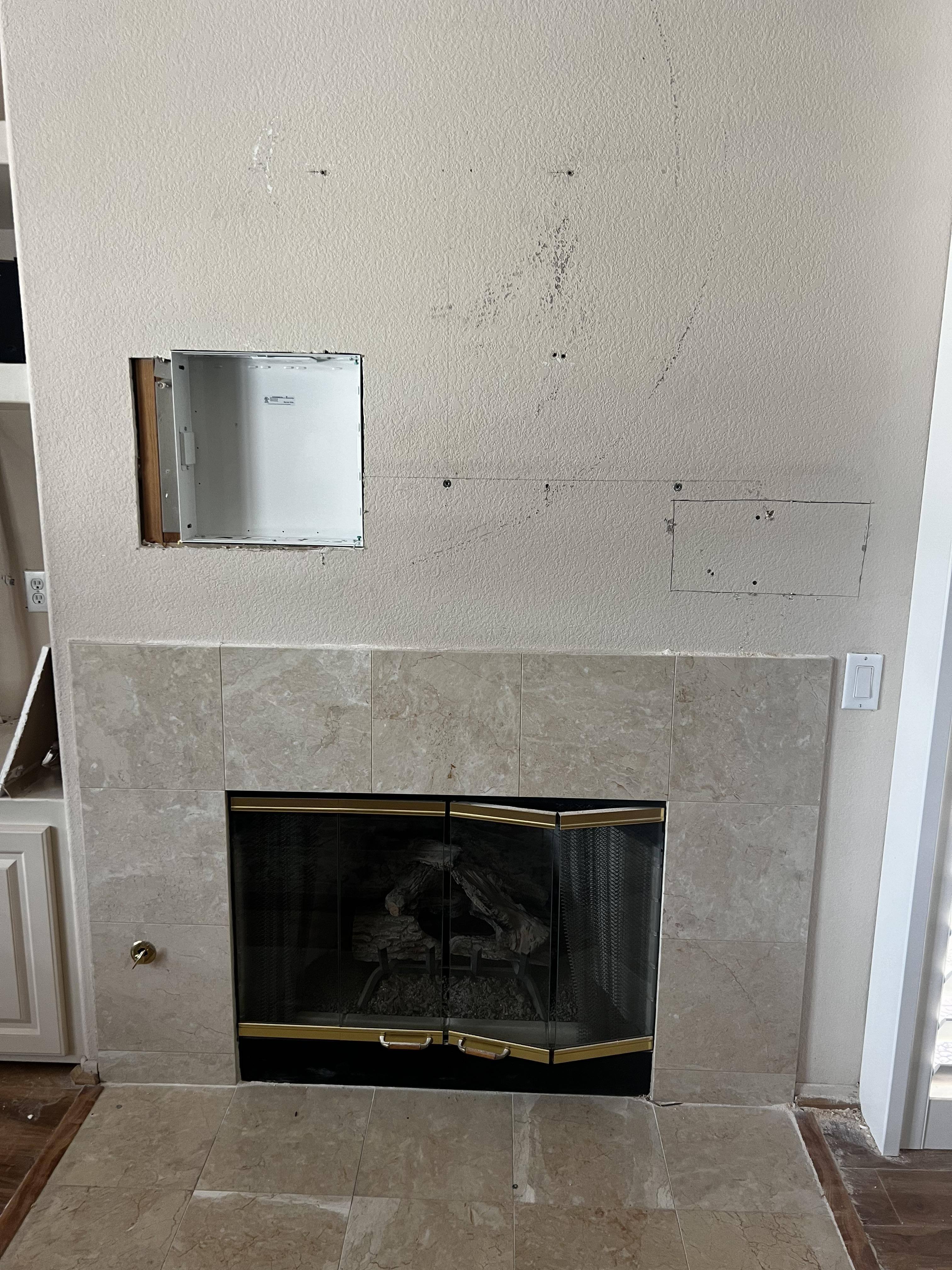

Customer Images
