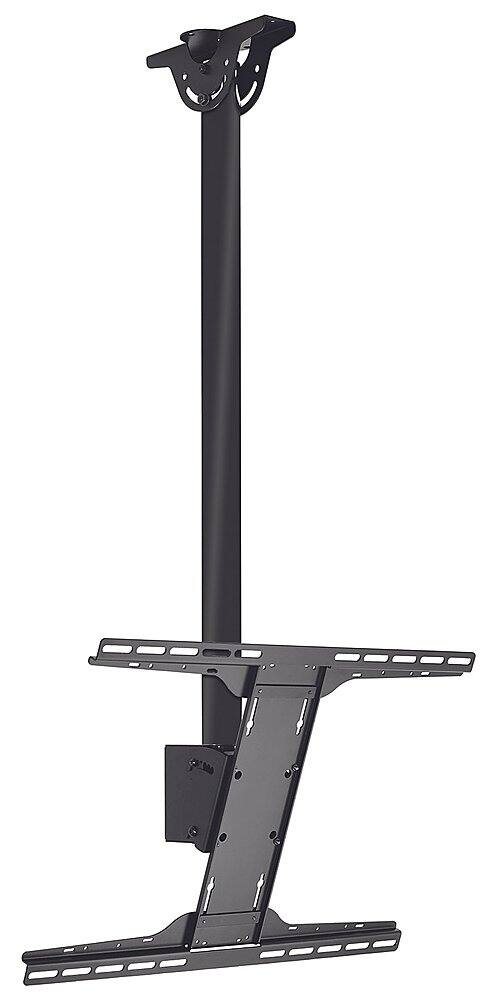

Peerless-AV - Modular Series Ceiling Kit For 39" to 75" Displays - Black
About This Item
- General
- Brand: Peerless-AV
- Model Number: MOD-FPSKIT150-B
- Product Name: Modular Series Ceiling Kit For 39" to 75" Displays
- Color: Black
- Assembly Required: No
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Adjustable Height: false
- Compatibility
- Maximum Weight Capacity: 264 pounds (The maximum load that can be supported by the product.)
- Compatibility:
Single Display Up to 5' (1.5m) Height
- Mount Location: Ceiling
- Maximum Television Size: 75 inches
- Minimum Television Size: 39 inches
- VESA Wall Mount Standard: 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 59 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 16.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 Year Limited
- Warranty - Labor: 5 Year
- Other
- UPC: 735029290131
Modular Series Ceiling Kit for up to 75'' Displays
- Kit Includes: Cathedral Ceiling Plate, 59" (1.5m) black Extension Pole, Single Display Flat Panel Mount, Large Universal Adaptor
- Integrated Cable Management: Runs through Poles with open access at both ends for ease of use
- Quick Connect Design: Includes simple hook-on feature, with +20� to -5� tilt and locks at every 5� increment
- Universal Mounting: Installs to wood joist and concrete or to truss/ pipes via U-Bolt Adaptor Accessory (MOD-AUB)
- Match Any D�cor: Extension Pole available in black or zinc plated
- Kit Includes: Cathedral Ceiling Plate, 59" (1.5m) black Extension Pole, Single Display Flat Panel Mount, Large Universal Adaptor
- Integrated Cable Management: Runs through Poles with open access at both ends for ease of use
- Quick Connect Design: Includes simple hook-on feature, with +20� to -5� tilt and locks at every 5� increment
- Universal Mounting: Installs to wood joist and concrete or to truss/ pipes via U-Bolt Adaptor Accessory (MOD-AUB)
- Match Any D�cor: Extension Pole available in black or zinc plated
Whats Included
- Cathedral Ceiling Plate
- 5' (1.5m) Black Extension Pole
- Single Display Flat Panel Mount
- Large Universal Adapter
- Owner's manual
- Cathedral Ceiling Plate
- 5' (1.5m) Black Extension Pole
- Single Display Flat Panel Mount
- Large Universal Adapter
- Owner's manual
Product Manuals
Q: What is the minimum size display that can be used with this ceiling mount?
A: The minimum television size supported by this ceiling mount is 39 inches.
Q: What type of ceiling can this mount be installed on?
A: This ceiling mount can be installed on wood joist and concrete ceilings, or on truss/pipes using a U-Bolt Adaptor Accessory (MOD-AUB).
Q: Does this ceiling mount come with a cable management system?
A: Yes, it has integrated cable management that runs through the poles with open access at both ends.
Q: What is the tilt range of the display mount?
A: This ceiling mount allows for a tilt range of +20 degrees to -5 degrees, locking at every 5-degree increment.
Q: What is the maximum weight capacity of this ceiling mount?
A: The maximum weight capacity for this ceiling mount is 264 pounds.
Q: Can the height of this ceiling mount be adjusted?
A: No, the height of this ceiling mount is not adjustable.
A: The pole is 60". However, it can be cut with a hacksaw to shorten. Shortening also requires that a 1/4" hole be drilled in the pipe. We cut it to 33" to be closer to the ceiling of our patio. Best Buy Geek Squad did the install.
Q: Does this mount work with Sony xbr43x800d LCD tv
A: This mount will not work with the xbr43x800d as it requires VESA 100x200mm.
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Compare similar products
Modular Series Ceiling Kit for up to 75'' Displays
Set up a television on a back deck or outdoor dining area with this Apollo enclosure mount. The brace is compatible with select Apollo enclosures, delivering a reliable, weatherproof base for mounting monitors and televisions. Tilt and swivel provide effortless placement for viewing. With an angled ceiling plate included, this Apollo enclosure mount works with both flat and angled ceilings to create a secure fit.

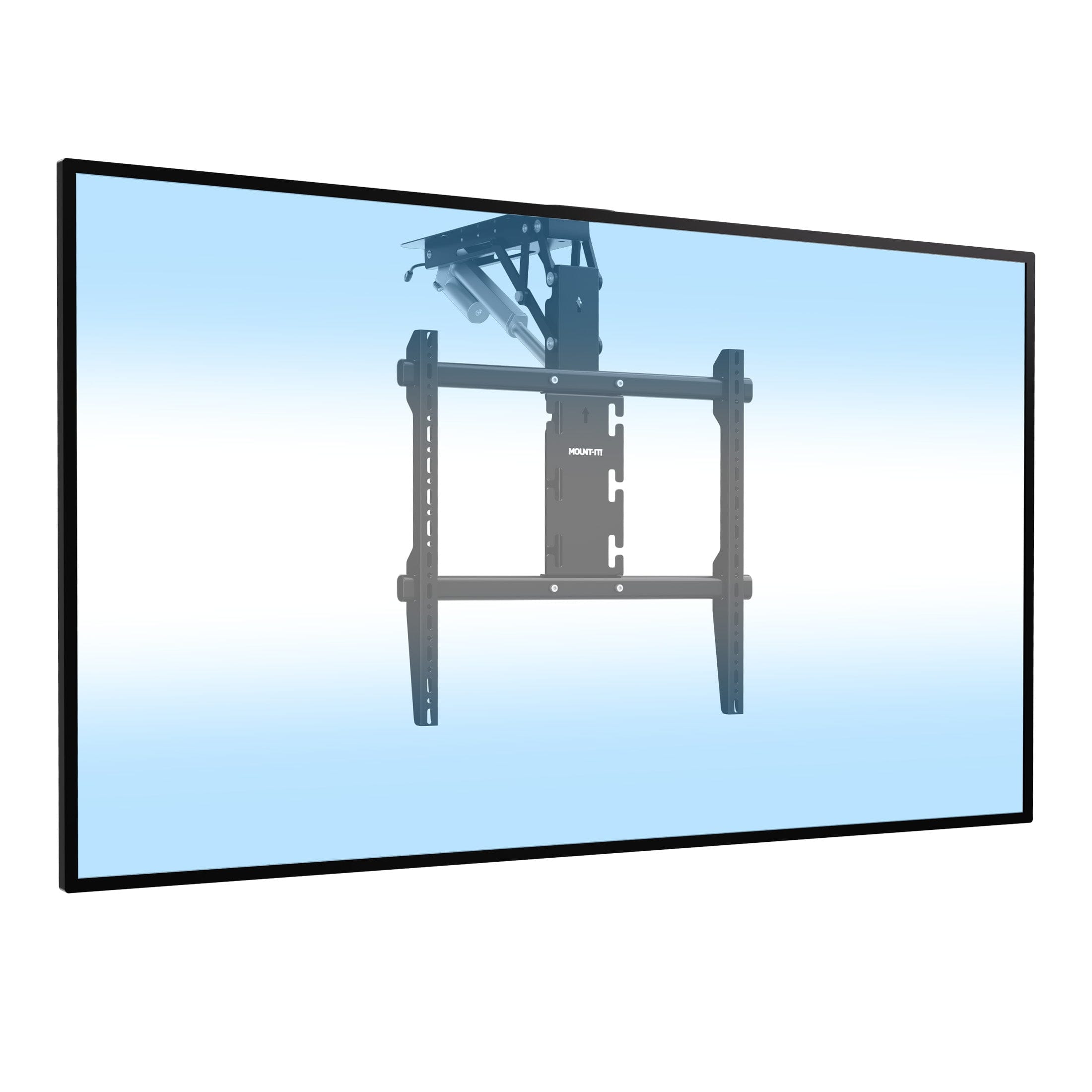

Elevate your viewing experience with our motorized TV ceiling mount, engineered to bring both functionality and style to any space. This sophisticated mount is perfect for effortlessly raising or lowering your TV with the included remote control, optimizing viewing angles and neatly tucking the TV away when not in use. Designed to support large screens ranging from 50'' to 90'' and capable of handling weights up to 88 lbs, it's the ideal solution for expansive display setups. With universal VESA compatibility from 200x200 to 600x600, it easily fits most TV models, ensuring a wide range of applications. The durable steel construction guarantees that your TV stays securely mounted, providing peace of mind in any installation. Available in elegant black or white finishes, this ceiling mount seamlessly blends with any room's decor, enhancing your space with a sleek, modern look. Whether it's used in residential homes to save space and enhance living rooms or bedrooms, in corporate boardrooms to facilitate presentations, or in commercial settings like hotels and restaurants where aesthetics and functionality are paramount, this electric TV ceiling mount offers a premium solution that combines convenience with style.
