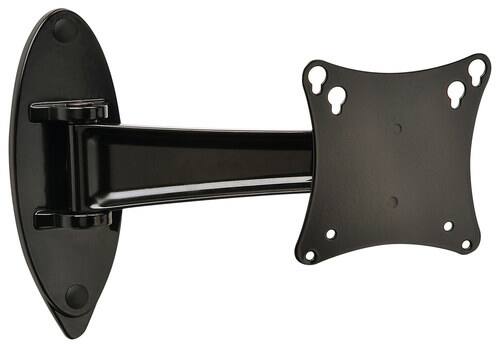

Peerless-AV - SmartMount Tilt, Swivel Display Wall Mount For Most 10" - 29" Flat Panel Displays - Black, Semi-gloss Black
Model: SP730P
SKU: 7950103
This item is no longer available in new condition. See similar items below
- General
- Brand: Peerless-AV
- Model Number: SP730P
- Product Name: SmartMount Tilt, Swivel Display Wall Mount For Most 10" - 29" Flat Panel Displays
- Color: Black, Semi-gloss Black
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Adjustable Height: false
- Compatibility
- Maximum Weight Capacity: 25 pounds (The maximum load that can be supported by the product.)
- Compatibility: SmartMount Pivoting Wall Mount for 10" to 29" Displays, 10" to 22" LCD Screens, Screens with VESA 75 or 100 Mounting Holes
- Mount Location: Wall
- Maximum Television Size: 29 inches
- Minimum Television Size: 10 inches
- VESA Wall Mount Standard: 75mm x 75mm, 100mm x 100mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 4 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4 3/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8 1/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.45 pounds (The out of box weight of the item.)
- Material
- Mount Material: Aluminum
- Warranty
- Warranty - Parts: 5 Year Limited
- Warranty - Labor: 5 Year
- Other
- UPC: 735029237365
SmartMount� Pivot Wall Mount For 10" to 29" TV's
- One-Touch� Tilt: �35� vertical tilt movement for the ideal viewing angle
- Extends up to 9.88" (251mm): Offers the perfect viewing angle
- Flexible Mounting Locations: Mounts to wood stud, concrete, cinder block or breeze block
- Integrated Cable Management: Protects, contains and conceals cables for a clean, professional installation
- Includes: All necessary wall and display attachment hardware
- One-Touch� Tilt: �35� vertical tilt movement for the ideal viewing angle
- Extends up to 9.88" (251mm): Offers the perfect viewing angle
- Flexible Mounting Locations: Mounts to wood stud, concrete, cinder block or breeze block
- Integrated Cable Management: Protects, contains and conceals cables for a clean, professional installation
- Includes: All necessary wall and display attachment hardware
Whats Included
- 1 x SmartMount Long Pivot Wall Mount
- 1 x Adapter Plate
- 2 x Cord Management Clip
- 1 x 4 mm Allen Wrench
- 1 x 3/16" Allen Wrench
- 2 x #14 x 2-1/2" Flat Head Wood Screw
- 2 x Alligator Anchor
- 4 x M5 x 10 mm Self Tapping Screw
- 4 x M4 x 0.7 x 20 mm Phillips Screw
- 4 x M4 x 0.7 x 12 mm Phillips Screw
- 1 x SmartMount Long Pivot Wall Mount
- 1 x Adapter Plate
- 2 x Cord Management Clip
- 1 x 4 mm Allen Wrench
- 1 x 3/16" Allen Wrench
- 2 x #14 x 2-1/2" Flat Head Wood Screw
- 2 x Alligator Anchor
- 4 x M5 x 10 mm Self Tapping Screw
- 4 x M4 x 0.7 x 20 mm Phillips Screw
- 4 x M4 x 0.7 x 12 mm Phillips Screw
Product Manuals
Q: How far does it extend forward in length?
A: Hello, this extends out 9.88" - see all dimensions here: https://docs.peerless-av.com/SELL%20SHEET-LIT1383-1-1.1-1.PDF
A: 2.45lb
