Perlesmith - Extend Tilt & Swivel, TV Wall Mount for 42-100″ TVs, 160lbs Capacity, Fits 16"/24" on Center Stud Widths; Model PSAT3B - Black
FREE shipping to
About This Item
- General
- Brand: Perlesmith
- Model Number: PSAT3B-01B
- Product Name: Extend Tilt & Swivel, TV Wall Mount for 42-100″ TVs, 160lbs Capacity, Fits 16"/24" on Center Stud Widths; Model PSAT3B
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion
- Pan: ±5° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: +5°/-15° (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Mounts to: Brick, Wood, Cement (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: false
- Cord Storage: false
- Number Of Shelves Included: 0
- Number of Monitors Supported: 1
- Compatibility

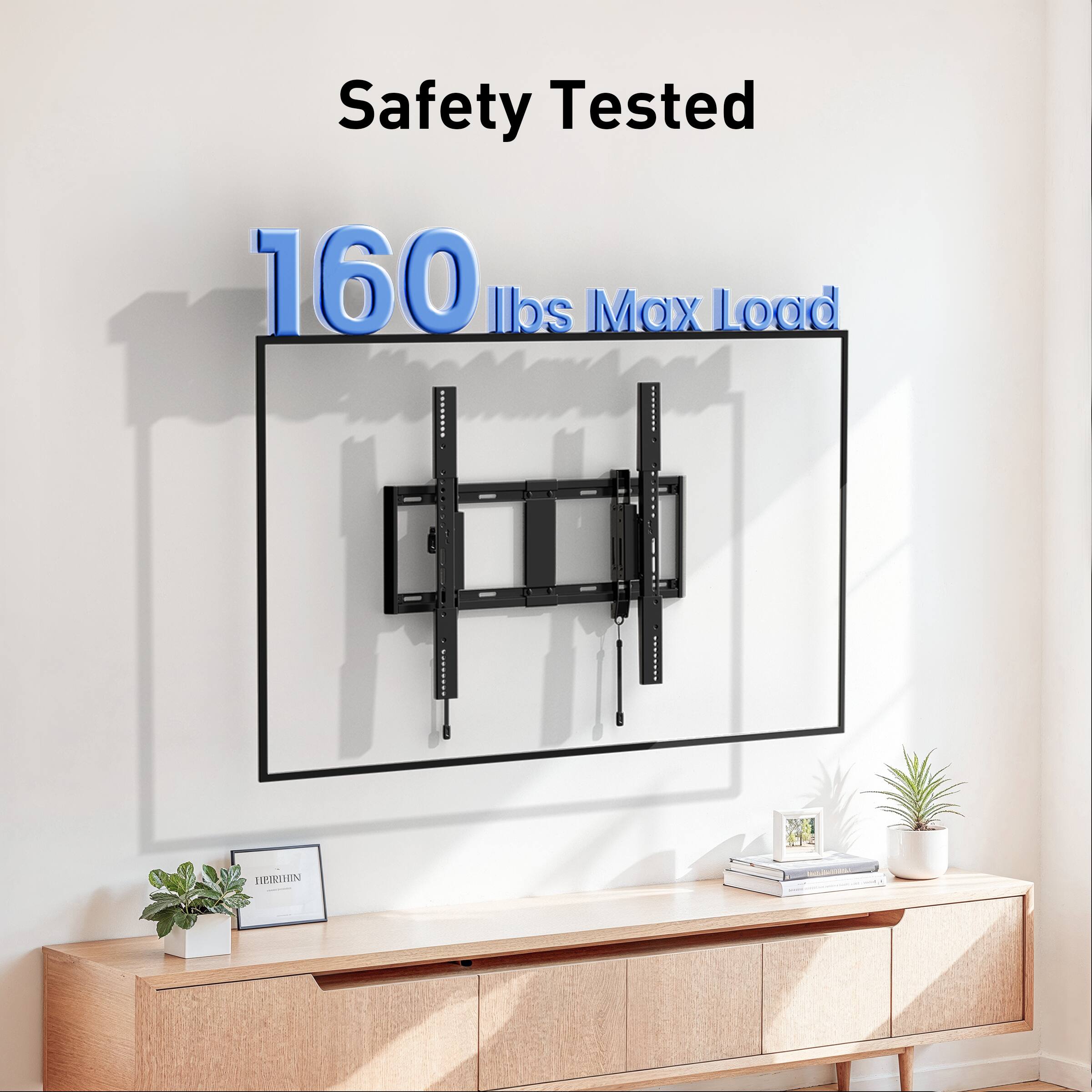

- Maximum Weight Capacity: 160 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most 42"-100" flat and curved TVs
- Mount Location: Wall
- Maximum Television Size: 100 inches
- Minimum Television Size: 42 inches
- VESA Wall Mount Standard: 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 200mm x 400mm, 300mm x 100mm, 300mm x 200mm, 300mm x 300mm, 300mm x 400mm, 400mm x 100mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 400mm x 500mm, 400mm x 600mm, 425mm x 425mm, 500mm x 100mm, 500mm x 200mm, 500mm x 300mm, 500mm x 400mm, 500mm x 500mm, 500mm x 600mm, 600mm x 100mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm, 600mm x 500mm, 600mm x 600mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 17.53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.62 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 6.5 inches
- Product Weight: 15.84 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 3.1 inches (The minimum distance from the product to the wall as the product is mounted.)
- Anchor Hole Depth: 2.5 inches
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5 limited warranty part
- Warranty - Labor: 5 year limited warranty part
- Other
- UPC: 840478852462

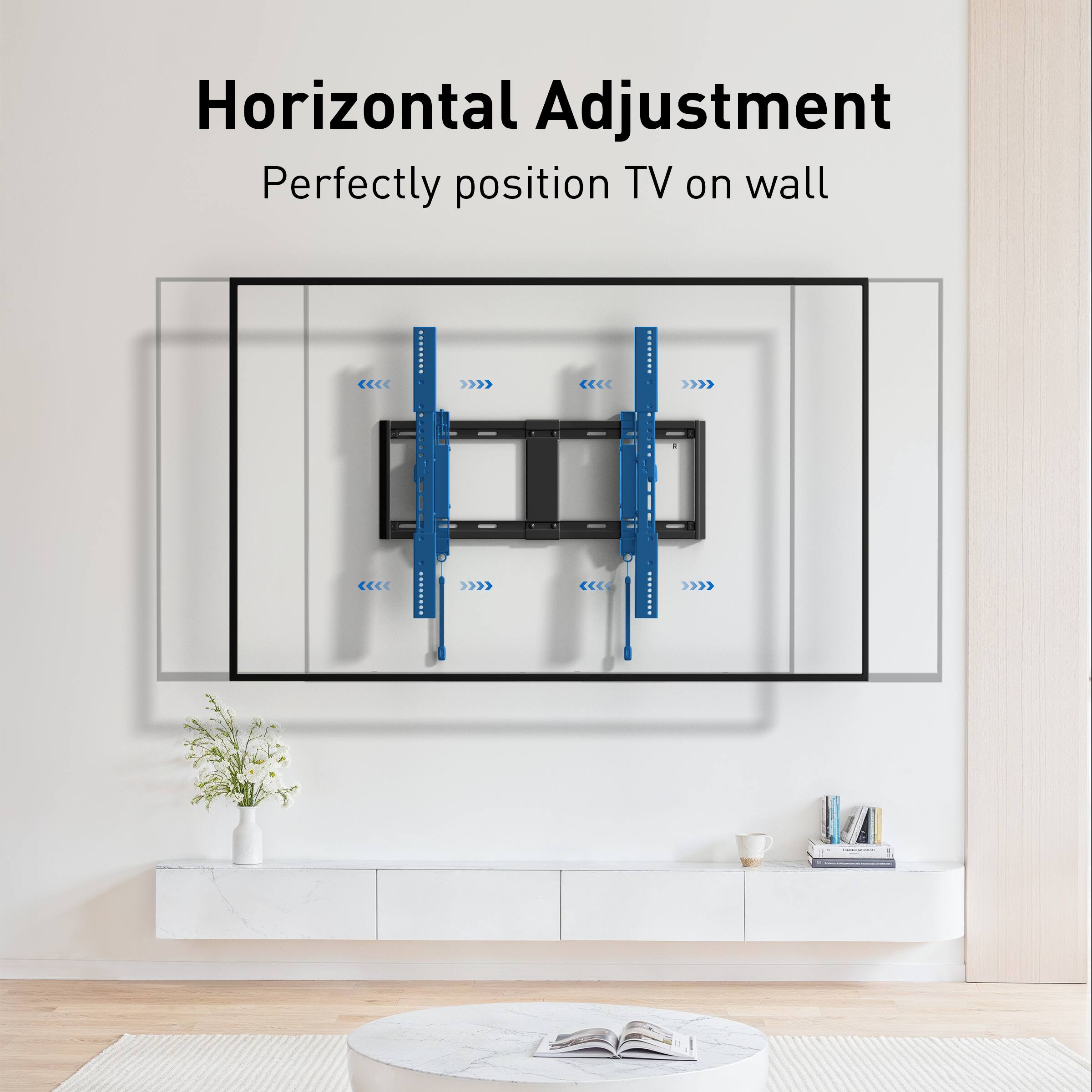

PERLESMITH Extend Tilt TV mount is designed to fit most extra larger TVs from 42" to 100", weighing up to 160 lbs. It is compatible with 16” and 24” on center wood studs, concrete, and concrete block walls, for versatile installation options. The extension ranges from 3” to 6.5”, provides space behind the TV for quick access for cable connection and ±5° of swivel. The +5°/-15° tilt helps to reduce glare and optimize your screen angle. The level adjustment of ±2° and horizontal shift allow precise TV positioning on the wall. Installation is simple and backed by trusted customer support, making it perfect for homes and offices.
- Extra Large TV Compatibility: This tilt TV wall mount is compatible with most 42" to 100" TVs with VESA patterns 200x100 to 600x600mm. Please verify the size, weight, and VESA pattern of your TV before purchase. The wall bracket can support up to 160lbs.

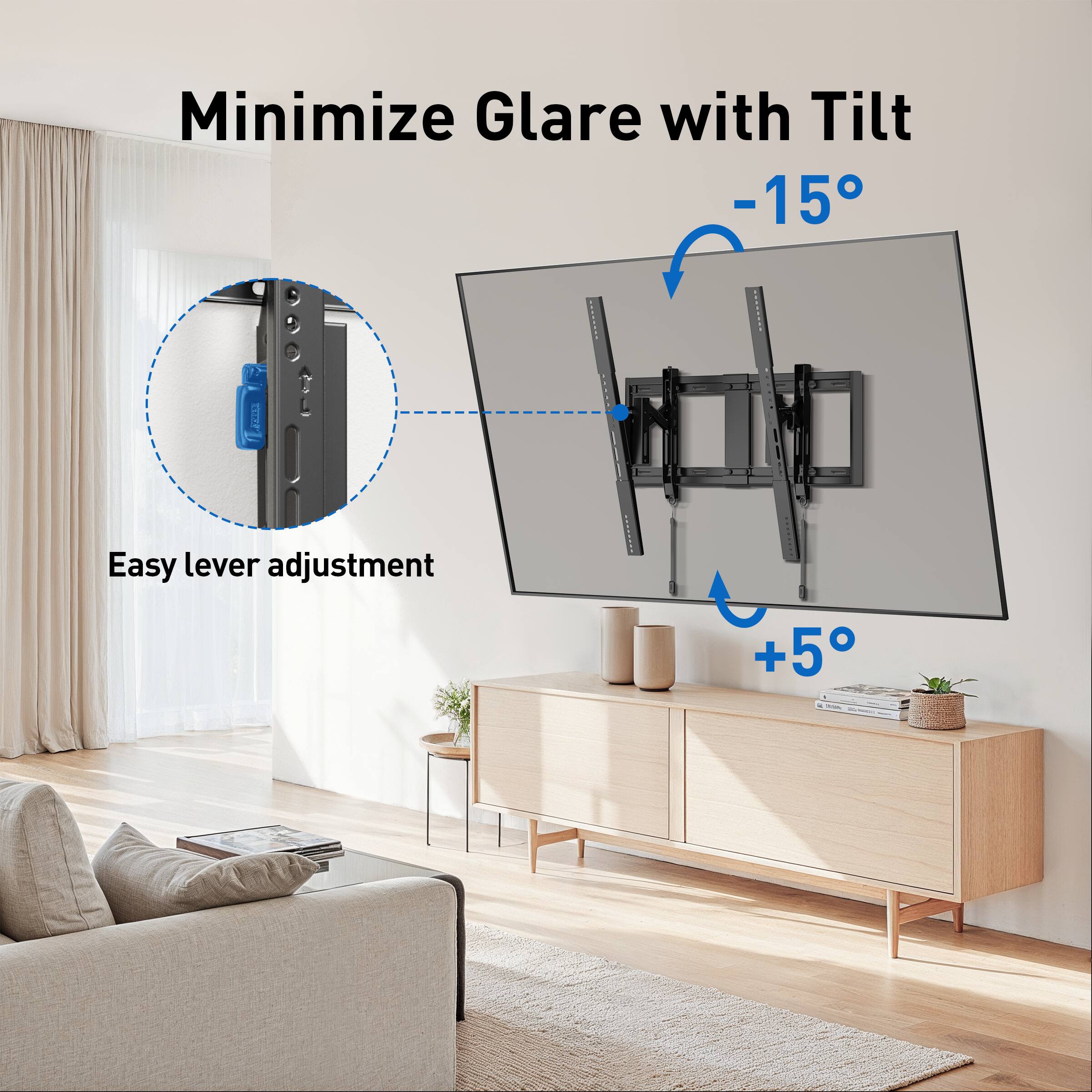

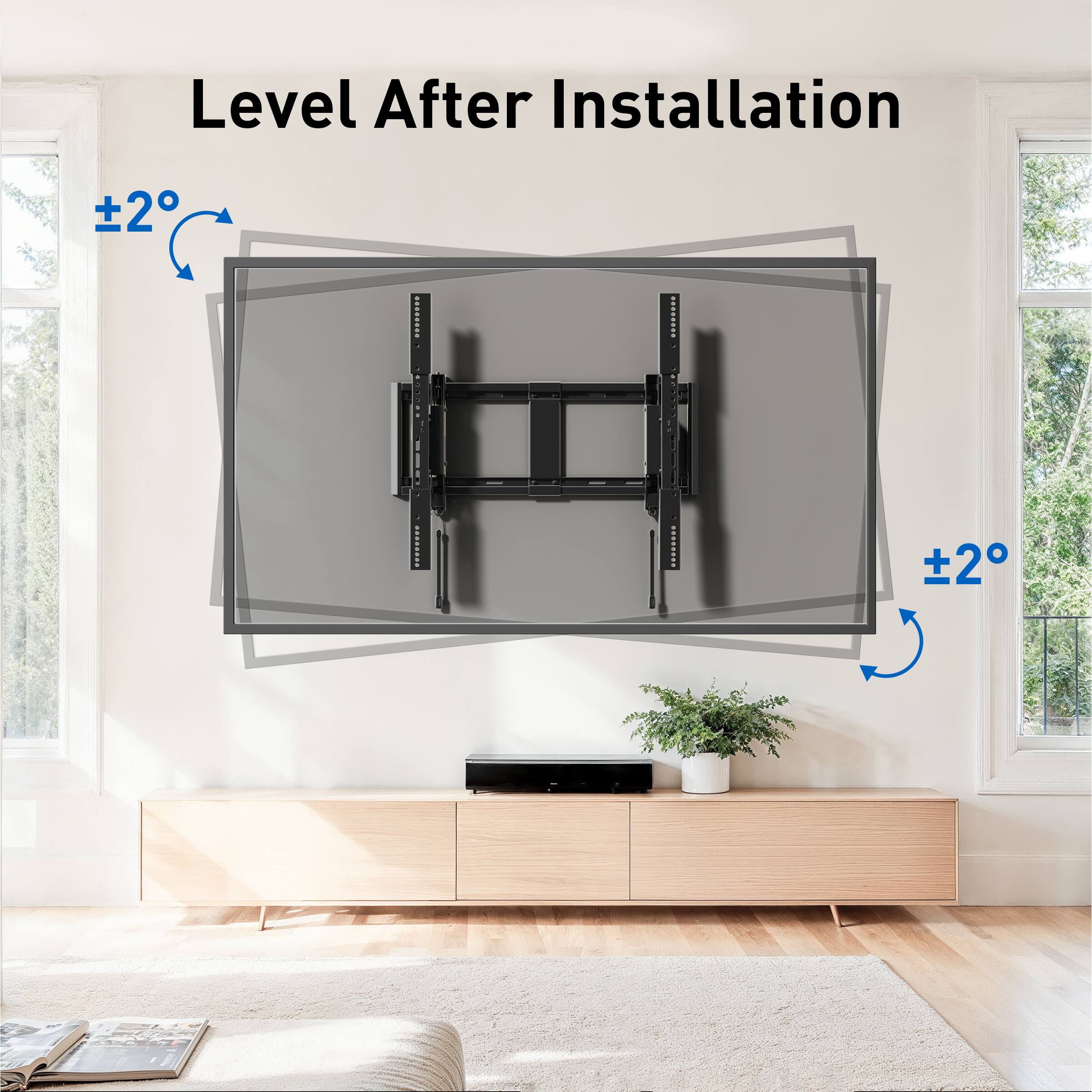

- Easy Level Adjustment: Post-installation level adjustment of ±2° ensures your TV is perfectly aligned. It swivels ±5° to improve your viewing angle, while the tilt adjusts from +5° to -15° to reduce glare and optimize screen visibility.

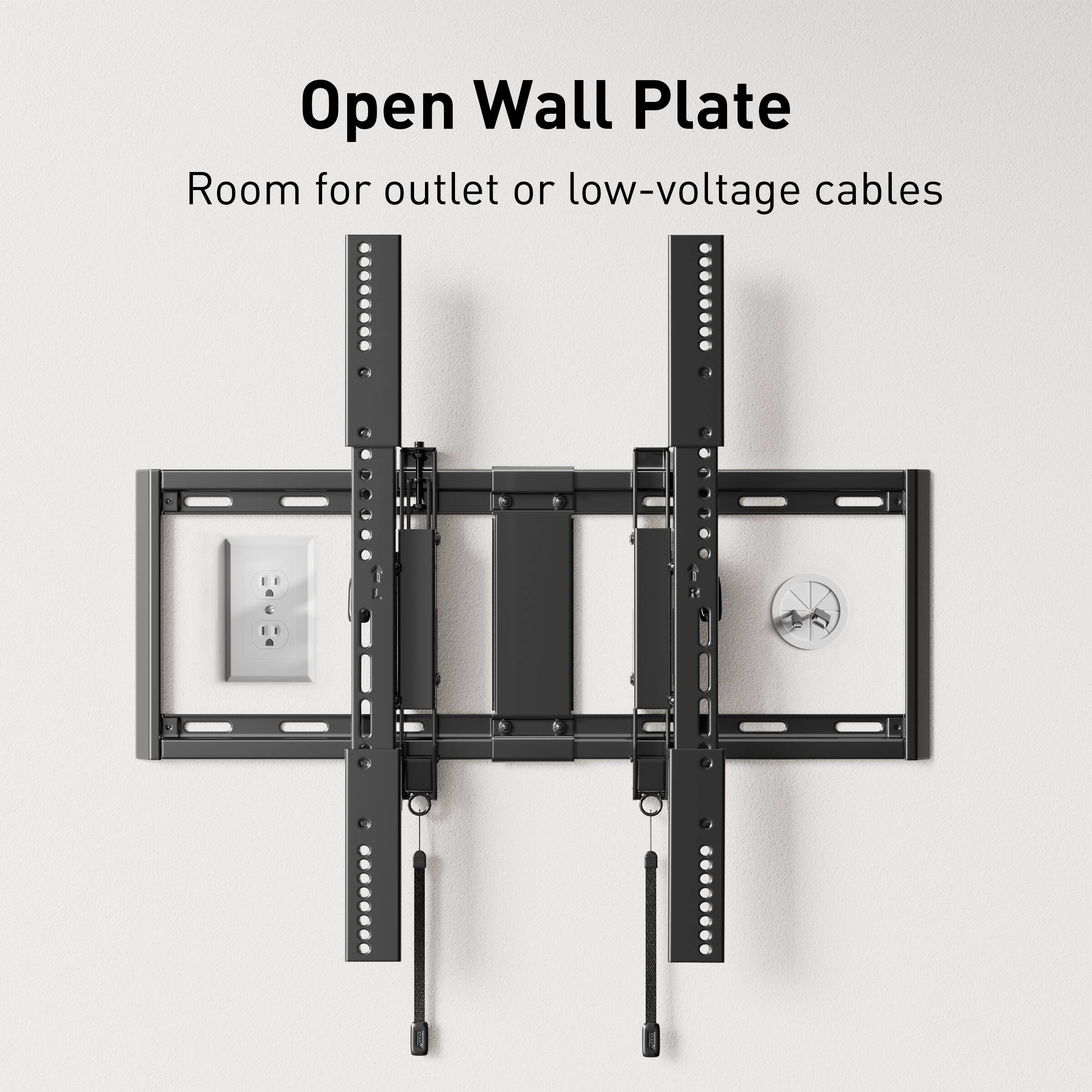

- Arm Extension: The unique articulating arms design allows you to extend your screen 6.5" for easier access to connections on the back of your TV it swivels ±5°, to improve access or placement. When retracted, the TV sits 3.1″ from the wall for a low-profile look. An open wall plate provides space behind the TV for a wall outlet.
- Wall Types: The TV mount is designed to fit 12"–24" on center wood stud spacing, concrete and concrete block installations.

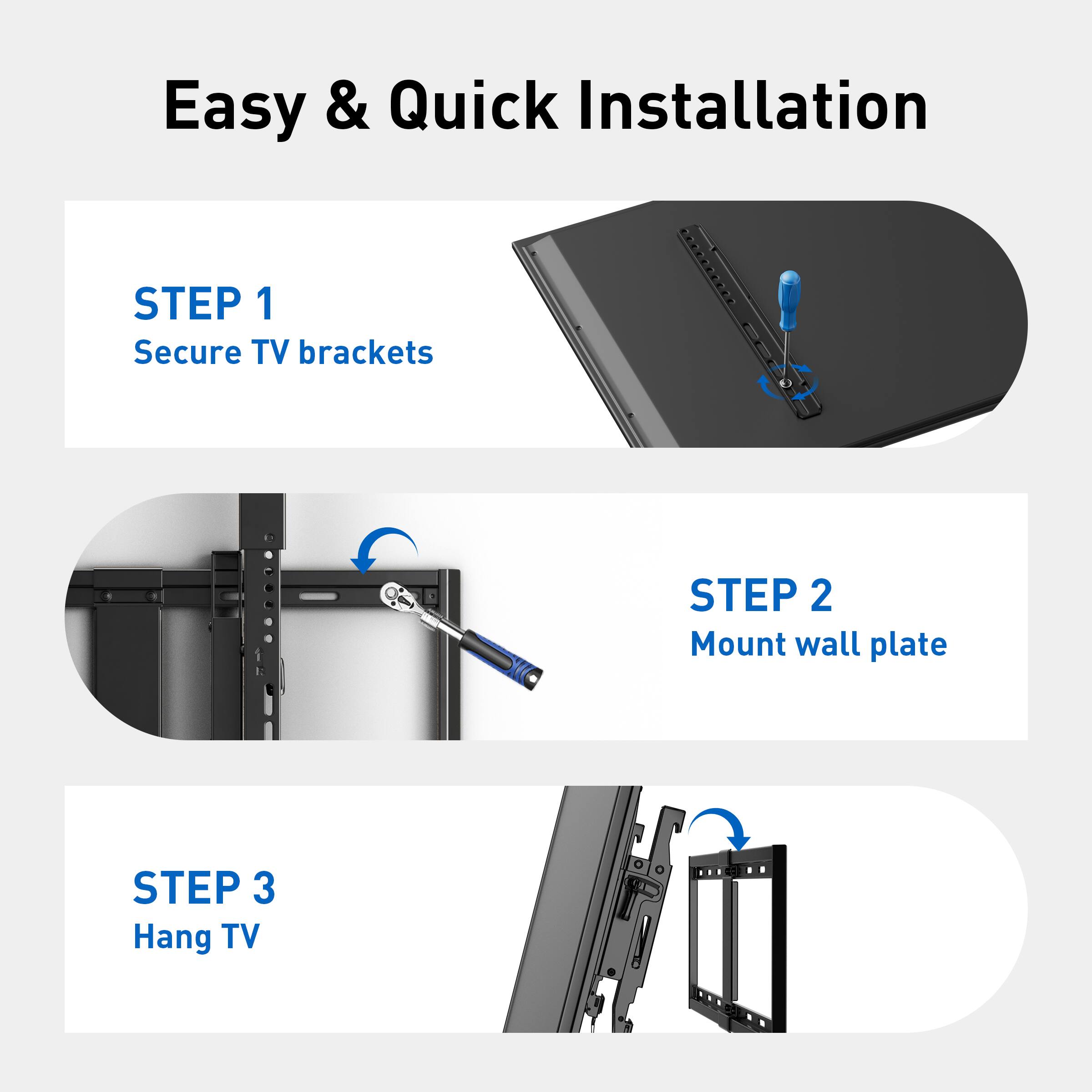

- Hassle-Free Installation: This up to 100-inch tv wall mount includes a drilling template, installation manual, hardware to mount to wood studs, solid concrete, or concrete block walls. The tv mount is not designed to mount on drywall alone. Our U.S.-based support team is here to assist with installation or product selection.
- Extra Large TV Compatibility: This tilt TV wall mount is compatible with most 42" to 100" TVs with VESA patterns 200x100 to 600x600mm. Please verify the size, weight, and VESA pattern of your TV before purchase. The wall bracket can support up to 160lbs.
- Easy Level Adjustment: Post-installation level adjustment of ±2° ensures your TV is perfectly aligned. It swivels ±5° to improve your viewing angle, while the tilt adjusts from +5° to -15° to reduce glare and optimize screen visibility.
- Arm Extension: The unique articulating arms design allows you to extend your screen 6.5" for easier access to connections on the back of your TV it swivels ±5°, to improve access or placement. When retracted, the TV sits 3.1″ from the wall for a low-profile look. An open wall plate provides space behind the TV for a wall outlet.
- Wall Types: The TV mount is designed to fit 12"–24" on center wood stud spacing, concrete and concrete block installations.
- Hassle-Free Installation: This up to 100-inch tv wall mount includes a drilling template, installation manual, hardware to mount to wood studs, solid concrete, or concrete block walls. The tv mount is not designed to mount on drywall alone. Our U.S.-based support team is here to assist with installation or product selection.
Whats Included
- TV Mount, Manual, Hardware, Mounting Template.
- TV Mount, Manual, Hardware, Mounting Template.
