Pioneer - 10" Active Sealed subwoofer w/built-in amplifier - Black
More Buying Options
Related Item
Specifications
- RMS Power300 wattsPeak Power Handling1100 wattsSensitivity112 decibelsSpeaker Size10"Speaker TypeComponentWoofer CompositionCellulose fiber
- Key Specs
- RMS Power: 300 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 112 decibels
- Speaker Size: 10"
- Speaker Type: Component
- Woofer Composition: Cellulose fiber
- Woofer Surround Material: Rubber
- General
- Brand: Pioneer
- Model Number: TS-WX1010A
- Product Name: 10" Active Sealed subwoofer w/built-in amplifier
- Color: Black
- Number Of Speakers: 2
- Audio
- RMS Power: 300 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 112 decibels
- Features
- Marine: false
- Grille Included: false
- Design
- Speaker Size: 10"
- Speaker Type: Component
- Woofer Composition: Cellulose fiber
- Woofer Surround Material: Rubber
- Dimensions
- Product Height: 16.224 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.412 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.472 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 27 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Warranty - Labor: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Other
- UPC: 884938379670
The TS-WX1010A is a powerful sealed pre-loaded subwoofer enclosure. Featuring a built-in high bandwidth, high output and low distortion 1100 W Max Class D amplifier mated to a 10" subwoofer with a urethane surround and oversized magnet structure specifically optimized for use sealed enclosures. User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel. The TS-WX1010A can be installed with the subwoofer firing rear or front for optimal bass tuning.
- Flexible Adjustment Settings - Mono: Adjustments to the built-in low pass filter featuring a precise 21-step frequency range, 0dB/ 6dB/ 12dB adjustable bass boost, gain, and input setting deliver precise adjustability to deliver high-quality sound.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
- Flexible Adjustment Settings - Mono: Adjustments to the built-in low pass filter featuring a precise 21-step frequency range, 0dB/ 6dB/ 12dB adjustable bass boost, gain, and input setting deliver precise adjustability to deliver high-quality sound.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
Whats Included
- (1) Subwoofer and built-in amplifier in sealed enclosure
- (2) Metal Mounting Brackets
- (8) Mounting Screws

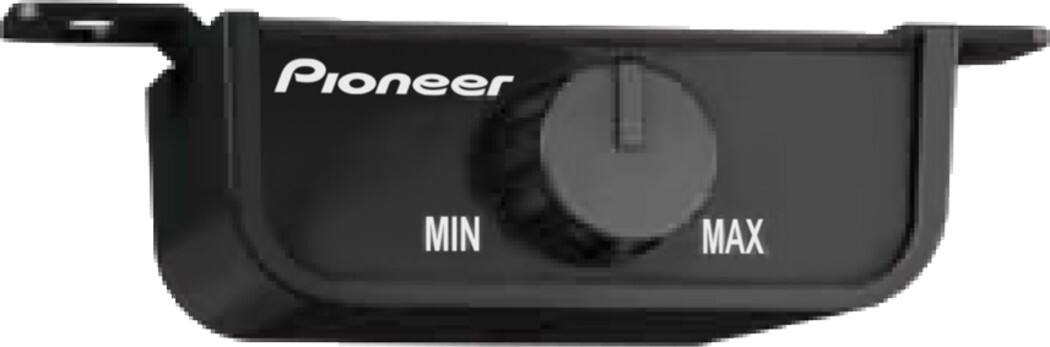

- (1) Wired Bass Boost Knob
- (1) Bass Boost Knob Cable
- (1) Wiring Harness
- Instruction Manual
- 1 Year Warranty Sheet
- (1) Subwoofer and built-in amplifier in sealed enclosure
- (2) Metal Mounting Brackets
- (8) Mounting Screws
- (1) Wired Bass Boost Knob
- (1) Bass Boost Knob Cable
- (1) Wiring Harness
- Instruction Manual
- 1 Year Warranty Sheet
Q: What size is the subwoofer?
A: This Pioneer subwoofer features a 10-inch subwoofer driver.
Q: Is this subwoofer enclosure sealed or ported?
A: The TS-WX1010A is a sealed subwoofer enclosure.
Q: What is the RMS power handling of this subwoofer?
A: This subwoofer has an RMS power handling of 300 watts.
Q: Does this Pioneer subwoofer come with a grille?
A: No, the Pioneer subwoofer does not include a grille.
Q: How much peak power can this subwoofer handle?
A: This subwoofer can handle up to 1100W of peak power.
Q: What is the frequency response range of this Pioneer subwoofer?
A: The Pioneer subwoofer has a frequency response of 20 - 125Hz.
Q: Is this speaker 2ohm or 4ohm
A: The TS-WX1010A has it's own built in amplifier. The impedance will not have an effect on your headunit. If your headunit has RCA outputs, you can connect them directly to the speaker. If your headunit does not have RCA outputs, you can use a speaker line connection. If needed, pleasecontact our Product Support at 1-800-421-1404, select option 1. You can also email us at www.pioneerelectronics.com/contactus. They will provide installation assistance.
Q: will this be compatible and fir a Nissan kicks sv 2025
A: Most vehicles will require a dash adapter and/or a wiring harness adapter kit. Please work with Best Buy’s Geek Squad. They will verify the fit and assist you with any additional accessories you may need.
Compare similar products
The TS-WX1010A is a powerful sealed pre-loaded subwoofer enclosure. Featuring a built-in high bandwidth, high output and low distortion 1100 W Max Class D amplifier mated to a 10" subwoofer with a urethane surround and oversized magnet structure specifically optimized for use sealed enclosures. User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel. The TS-WX1010A can be installed with the subwoofer firing rear or front for optimal bass tuning.
The Pioneer TS-A693FH 6" x 9" 2-way speakers can handle up to 460 W Max (95 W nominal). The woofer cone is made of Aramid Fiber reinforced polypropylene for rigidity, low-frequency responsiveness, and weather resistance. The 20mm dome tweeter adds in the high-frequency details to provide music enjoyment.
Upgrade your car audio with these KICKER CS-Series component speakers. Easy to install in most vehicles, these speakers offer titanium tweeter construction, EVC technology and woofer cones with phase plugs for flawless sound. UV-treated polypropylene cones and stainless steel mesh grills add extra durability to these tough KICKER CS-Series component speakers. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
The Pioneer TS-A653CH 6-1/2" speakers component system can handle up to 370 W Max Power (85 W Nominal). The woofer cone is made of Aramid Fiber reinforced Injected Molded Polypropylene IMPP for rigidity, low-frequency responsiveness, and weather resistance. The woofer comes with adjustable woofer brackets to use in all kinds of makes and models. Install the separate 20mm tweeters with the included tweeter mounts in an area high in your vehicle for better sound.
| Pros for Pioneer - 10" Active Sealed subwoofer w/built-in amplifier - Black | |||
|---|---|---|---|
| Sound Quality, Bass, Price, Size, Ease of use | Sound Quality, Magnet Size | Sound Quality, Ease of Installation, Bass, Price, Fit | Sound Quality, Ease of Installation, Bass |
| Cons for Pioneer - 10" Active Sealed subwoofer w/built-in amplifier - Black | |||
| There were no cons for this product— | There were no cons for this product— | Power | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers love the 10" Active Sealed subwoofer w/built-in amplifier for its excellent sound quality and impressive bass. The product's compact size is also appreciated, as it fits easily in various vehicles. Furthermore, customers find it easy to install and a great value for the price.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
I would give it 6 if I could
Installed in my 15 Cooper Countryman today, and it completely exceed all expectations. The bass amount is crazy given the size, wattage and configuration of the unit. Installation was simple, compared to other subs I have set up in the past, especially because of the ease of connection directly from the wiring harness to whatever L/R speaker wires you choose. Keeping my factory radio was a must, as it is also my speedometer, and using this method I did not even have to remove my dashboard at all! The subwoofer has a pretty wide range of bass types,and was pretty customizable from punchy and hard to low and heavy. Even though its a smaller sealed box, when you turn it up, the bass hits hard and even has moments where it has that ported feel. If your looking for really great bass( the best way to describe it would be my rear view mirror is slightly shaking but not enough to make it a distraction) at a really great price,(mine was an open box, got it for 172!) and a fairly doable diy project( 40$ in supplies and 6 hours of my morning) then this is the subwoofer for you!
Posted by Frankcantsee
- Rated 4 out of 5 stars
Not bad
Was looking to fill in the lows that my underseat subs in my x3 did not cover. This did the job. It certainly delivers for the money. If you are looking to rock the entire neighborhood this may not be for you
Posted by BillP
- Rated 5 out of 5 stars
Heavy hitting for a great price
The subwoofer actually hits really hard for being just all in one 10 inch. I would highly recommend for anyone just wanting to add some bump that doesn’t care about blowing people‘s hair back.
Posted by SamuelD
