Pioneer - 7" Android Auto and Apple CarPlay Bluetooth Digital Media (DM) Receiver - Black
More Buying Options
Specifications
- App CompatibleNoMobile Device SyncingApple CarPlay, Android AutoBluetooth EnabledYesSteering Wheel Control CompatibleYesTuner Type(s)AM/FMCD PlayerNo
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Apple CarPlay, Android Auto
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM
- CD Player: false
- Screen Size: 7 inches (Size of the screen, measured diagonally from corner to corner.)
- Selectable Color Illumination: true
- Integrated GPS: false
- Works With: Amazon Alexa, Apple Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Pioneer
- Model Number: DMH-1500NEX
- Product Name: 7" Android Auto and Apple CarPlay Bluetooth Digital Media (DM) Receiver
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Compatibility
- Mount Style: Double DIN
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Apple CarPlay, Android Auto
- Mobile Operating System Compatibility: Android, Apple iOS
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Number of Camera Inputs: 2
- Steering Wheel Control Compatible: true
- Original Equipment Manufacturer (OEM) Integration: iDatalink Maestro RR (The aftermarket solution for linking to the Original Equipment Manufacturer’s (OEM) hardware or software, sometimes requiring an additional interface.)
- Works With: Amazon Alexa, Apple Home (Compatible with or able to be connected to other smart devices or applications.)
- Tuner
- Tuner Type(s): AM/FM
- Number Of Station Presets: 24
- Satellite Radio: SiriusXM Ready
- Receivers With HD Radio: false
- Players
- CD Player: false
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- Built-In Microphone: TRUE
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
- Display
- Screen Size: 7 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Type: LED-LCD
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Resistive
- Selectable Color Illumination: true
- Faceplate Style: Fixed
- GPS
- Integrated GPS: false
- Dimensions
- Product Height: 6.36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.04 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.821 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 884938426527

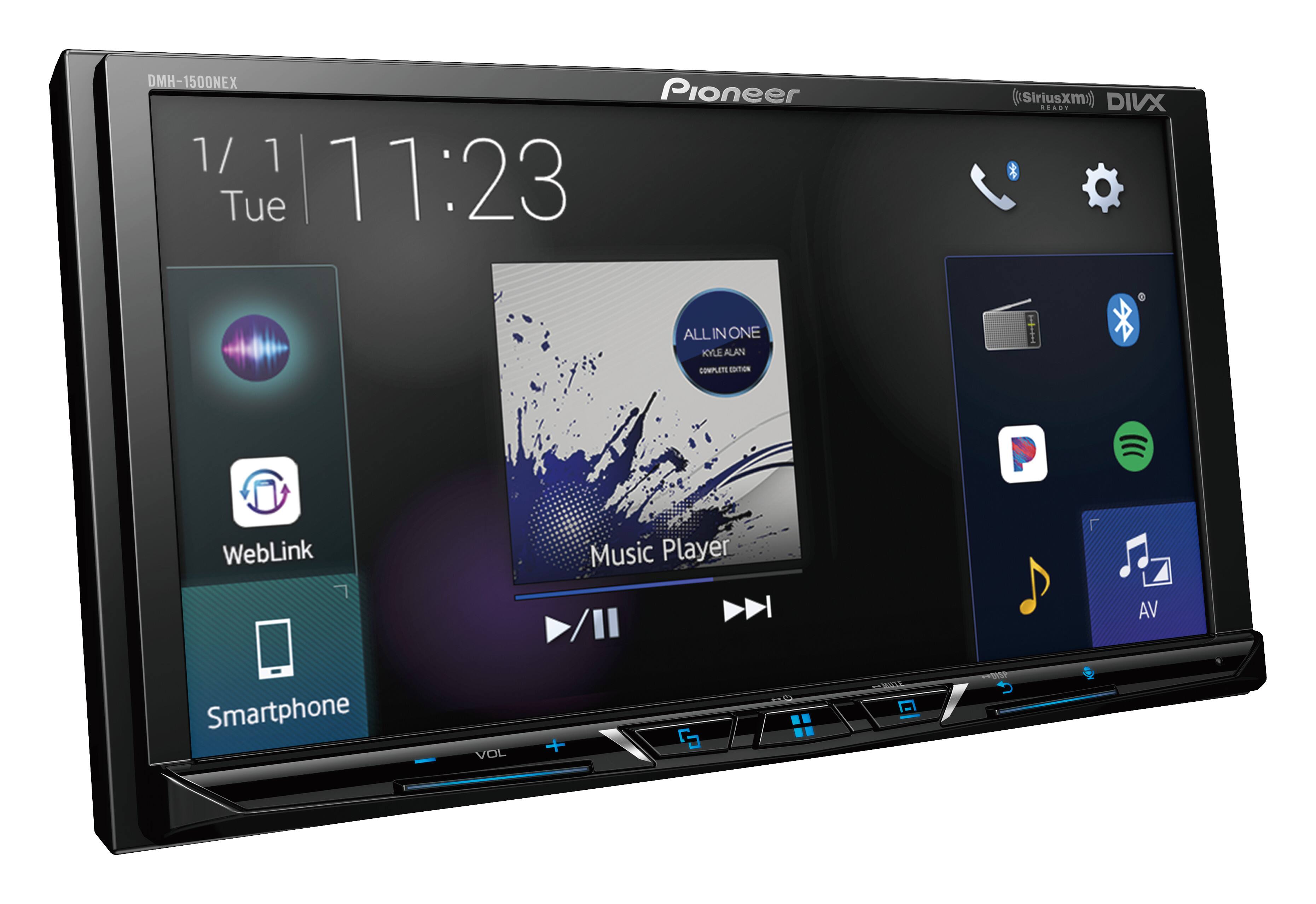

The Pioneer DMH-1500NEX 7" digital multimedia receiver features an impressive range of music sources, hands-free calling, music streaming, and a host of sound sculpting tools to your dash. Compatibility with both Apple CarPlay and Android Auto provide access to the latest smartphone integration services. The DMH-1500NEX even provides access to Amazon Alexa when Paired with Pioneer Vozsis App.
- 6.8 Inch WVGA Touchscreen (Capacitive): Upgrade your ride with a capacitive WVGA touchscreen Display with built-in LED backlight, color customization, an illumination timer, dimmer setting, and brightness control.
- Apple CarPlay (Wired): A smarter, safer way to use your iPhone while you drive. You can get directions, make calls, send, and receive messages, and enjoy your favorite music all on the built-in display.

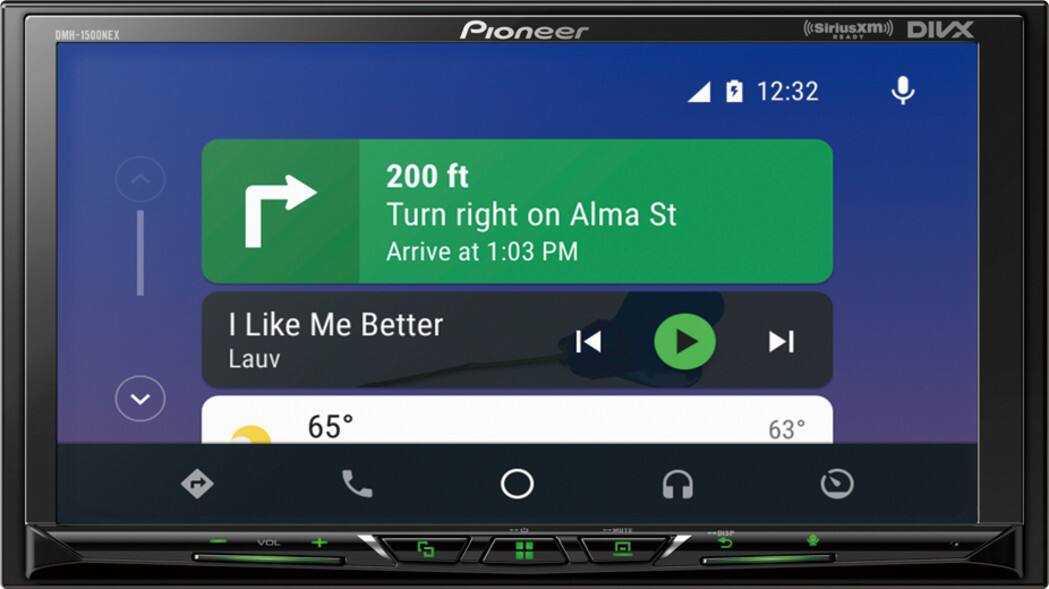

- Android Auto (Wired): A simpler, safer way to use your phone in the car. Get all your favorite maps, media, and messaging apps on your car display. To use Android Auto, you need a compatible Android smartphone with an active data plan.
- Weblink Smartphone Interface (Wired): WebLink enables smartphone app projection from many popular Android and iOS devices to in-vehicle touch displays.
- Pioneer Vozsis with Alexa app: Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app.
- Bluetooth: Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth devices.
- Siri Eyes Free - touchscreen: Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers.
- SiriusXM Ready: This receiver is SiriusXM- Ready gets you over 140 channels, including commercial-free music, sports, news, comedy and much more. Tuner sold separately, SiriusXM subscription required.
- Back up camera input (2-camera): Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
- Wired Remote Input: This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons.
- iDataLink Maestro (RR & RR2): iDatalink Maestro RR and RR2 (both sold separately), preserves factory features such as climate control, performance gauges and vehicle information such as tire pressure and diagnostics. Features vary by vehicle.
- FLAC: Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
- Pioneer Advanced Sound Retriever: Immerse yourself in enhanced audio quality with the Advanced Sound Retriever feature. Innovative technology intelligently restores audio details lost during compression, resulting in clearer, more dynamic sound reproduction.
- Flexible Audio Output Management: The Pioneer Standard (2-Way) / Network (3-Way) function allows you to divide the audio signal into different frequency bands. You can then make precise adjustments with low-pass, high-pass, and band-pass filters.
- Audio Equalizer: The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired.
- Time alignment: This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position.
- 6.8 Inch WVGA Touchscreen (Capacitive): Upgrade your ride with a capacitive WVGA touchscreen Display with built-in LED backlight, color customization, an illumination timer, dimmer setting, and brightness control.
- Apple CarPlay (Wired): A smarter, safer way to use your iPhone while you drive. You can get directions, make calls, send, and receive messages, and enjoy your favorite music all on the built-in display.
- Android Auto (Wired): A simpler, safer way to use your phone in the car. Get all your favorite maps, media, and messaging apps on your car display. To use Android Auto, you need a compatible Android smartphone with an active data plan.
- Weblink Smartphone Interface (Wired): WebLink enables smartphone app projection from many popular Android and iOS devices to in-vehicle touch displays.
- Pioneer Vozsis with Alexa app: Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app.
- Bluetooth: Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth devices.
- Siri Eyes Free - touchscreen: Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers.
- SiriusXM Ready: This receiver is SiriusXM- Ready gets you over 140 channels, including commercial-free music, sports, news, comedy and much more. Tuner sold separately, SiriusXM subscription required.
- Back up camera input (2-camera): Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
- Wired Remote Input: This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons.
- iDataLink Maestro (RR & RR2): iDatalink Maestro RR and RR2 (both sold separately), preserves factory features such as climate control, performance gauges and vehicle information such as tire pressure and diagnostics. Features vary by vehicle.
- FLAC: Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
- Pioneer Advanced Sound Retriever: Immerse yourself in enhanced audio quality with the Advanced Sound Retriever feature. Innovative technology intelligently restores audio details lost during compression, resulting in clearer, more dynamic sound reproduction.
- Flexible Audio Output Management: The Pioneer Standard (2-Way) / Network (3-Way) function allows you to divide the audio signal into different frequency bands. You can then make precise adjustments with low-pass, high-pass, and band-pass filters.
- Audio Equalizer: The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired.
- Time alignment: This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position.
Whats Included
- Digital media receiver w/ fixed 7" touchscreen monitor (10A fuse)
- Wiring harness
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- (12) Installation Screws
- Installation Manual
- Quick Start Guide
- 1 Year Warranty Sheet
- Digital media receiver w/ fixed 7" touchscreen monitor (10A fuse)
- Wiring harness
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- (12) Installation Screws
- Installation Manual
- Quick Start Guide
- 1 Year Warranty Sheet
Q: Does this receiver work with Amazon Alexa?
A: Yes, this receiver works with Amazon Alexa when used with the Pioneer Vozsis app.
Q: How many watts per channel does this receiver have?
A: This receiver has 50 watts per channel.
Q: Can I connect a backup camera to this receiver?
A: Yes, you can connect up to two backup cameras to this receiver.
Q: What is the screen size of this Pioneer receiver?
A: This Pioneer receiver has a 7-inch screen.
Q: Does this Pioneer receiver have a CD player?
A: No, this receiver does not have a CD player.
Q: does this have an input for rear view camera
A: Yes, this Pioneer digital multimedia receiver supports front and rear-view camera input for easy navigation.
Q: Does this item include installation cost?
A: They install for free but be warned you will have to pay extra for the required hardware and wiring harnesses needed to install it in your vehicle properly..
A: Bluetooth is connected wireless and without any cords. For apple car play or android auto you need to have your phone plugged into the USB port with the corresponding cable.
Compare similar products
The Pioneer DMH-1500NEX 7" digital multimedia receiver features an impressive range of music sources, hands-free calling, music streaming, and a host of sound sculpting tools to your dash. Compatibility with both Apple CarPlay and Android Auto provide access to the latest smartphone integration services. The DMH-1500NEX even provides access to Amazon Alexa when Paired with Pioneer Vozsis App.
The JVC KW-M590BT is a state-of-the-art car stereo system designed to elevate your in-car entertainment experience. At its core is a stunning 6.8-inch high-resolution capacitive touchscreen that delivers sharper, more vibrant visuals, making it easier to navigate menus and access your music library with just a light touch. This advanced display ensures a more responsive and accurate touch experience, without the need for pressure, while offering enhanced durability and resistance to wear and tear. Beyond its impressive screen, the KW-M590BT comes equipped with built-in Bluetooth technology for seamless wireless audio streaming and hands-free calling. It's also fully compatible with Apple CarPlay and Android Auto, allowing you to access your smartphone's features—such as navigation, messaging, and streaming services—directly from the stereo's display. For audiophiles, the KW-M590BT includes a 13-band EQ and digital time alignment, enabling precise sound tuning for an optimal listening experience. With its sleek design, high-resolution display, and advanced functionality, the JVC KW-M590BT is the perfect addition to any car audio setup.
The DMH-W3000NEX 6.8-inch display offers cutting-edge connectivity solutions tailored for today's smartphone-centric lifestyle. Featuring a capacitive touchscreen display on a 2-DIN L-Shaped Chassis, it ensures flexible installation for seamless integration into your vehicle's dash. Key features include built-in Bluetooth, Android Auto, Apple CarPlay, Weblink and Amazon Alexa and SiriusXM-Ready.

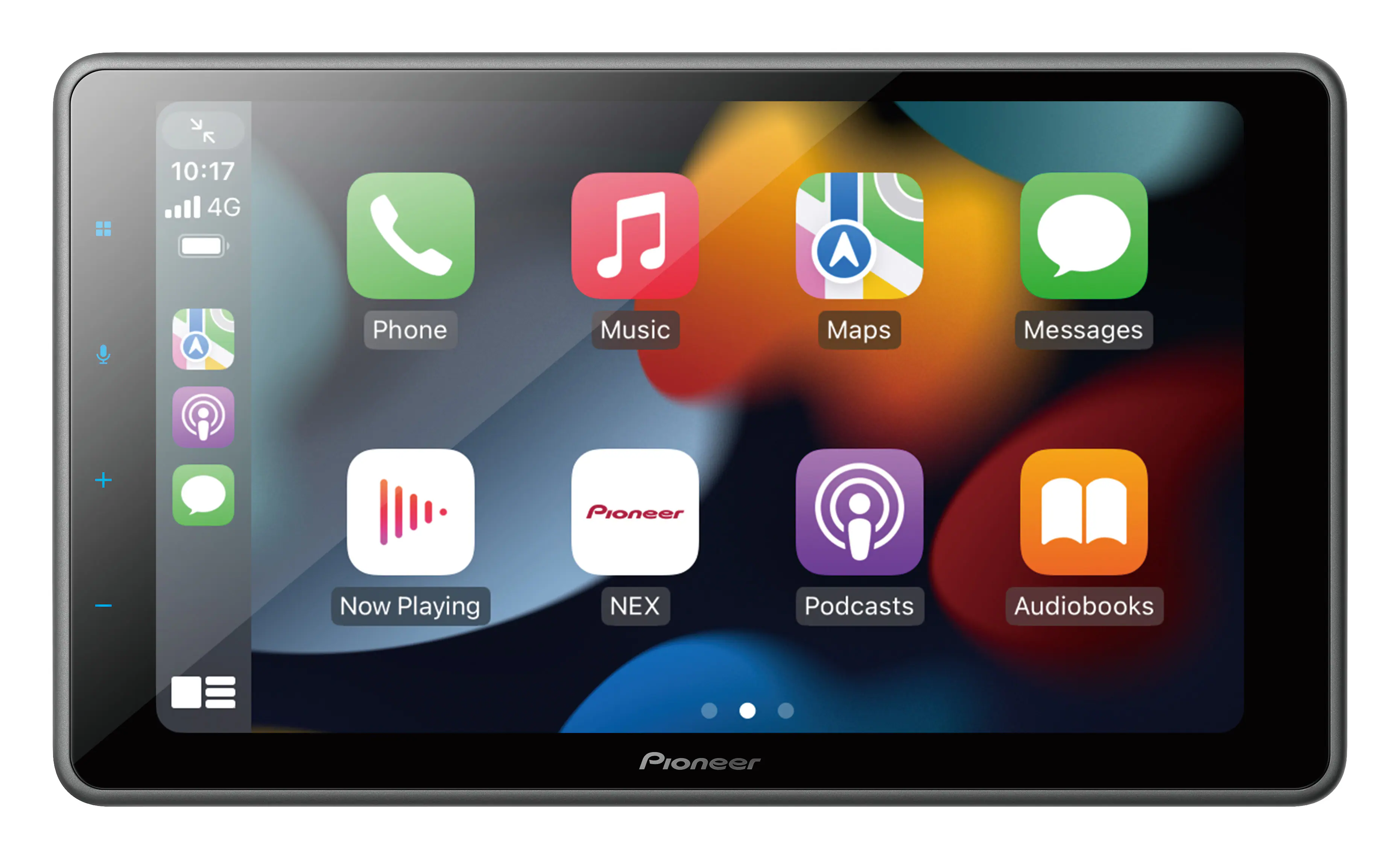

The DMH-WT3800NEX 9-inch display has the latest connectivity solutions designed especially for todays smartphone driven lifestyle. This receiver highlights a Capacitive floating touchscreen display attached to a 1-DIN Chassis, allowing installation flexibility to ensure the best fit and usability for your vehicles dash. Features include built-in Bluetooth, Android Auto, Apple CarPlay, and WebLink compatibility.
| Pros for Pioneer - 7" Android Auto and Apple CarPlay Bluetooth Digital Media (DM) Receiver - Black | |||
|---|---|---|---|
| Sound Quality, Apple CarPlay, Ease of use, Installation, Backup Camera | Connectivity, Overall Performance, Ease of Use, Screen Quality, CarPlay | Sound Quality, Apple CarPlay, Connectivity, Ease of use, Installation | There were no pros for this product— |
| Cons for Pioneer - 7" Android Auto and Apple CarPlay Bluetooth Digital Media (DM) Receiver - Black | |||
| Radio | Volume Control, Rear Camera | Volume Control, Glare | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers often highlight the convenience of Apple CarPlay and Android Auto, praising the ease of use and seamless integration with their smartphones. They also appreciate the excellent sound quality, user-friendly interface, and affordable price point. While some customers have concerns about the lack of HD radio and occasional radio issues, the overall positive feedback suggests that this product meets the expectations of many users.

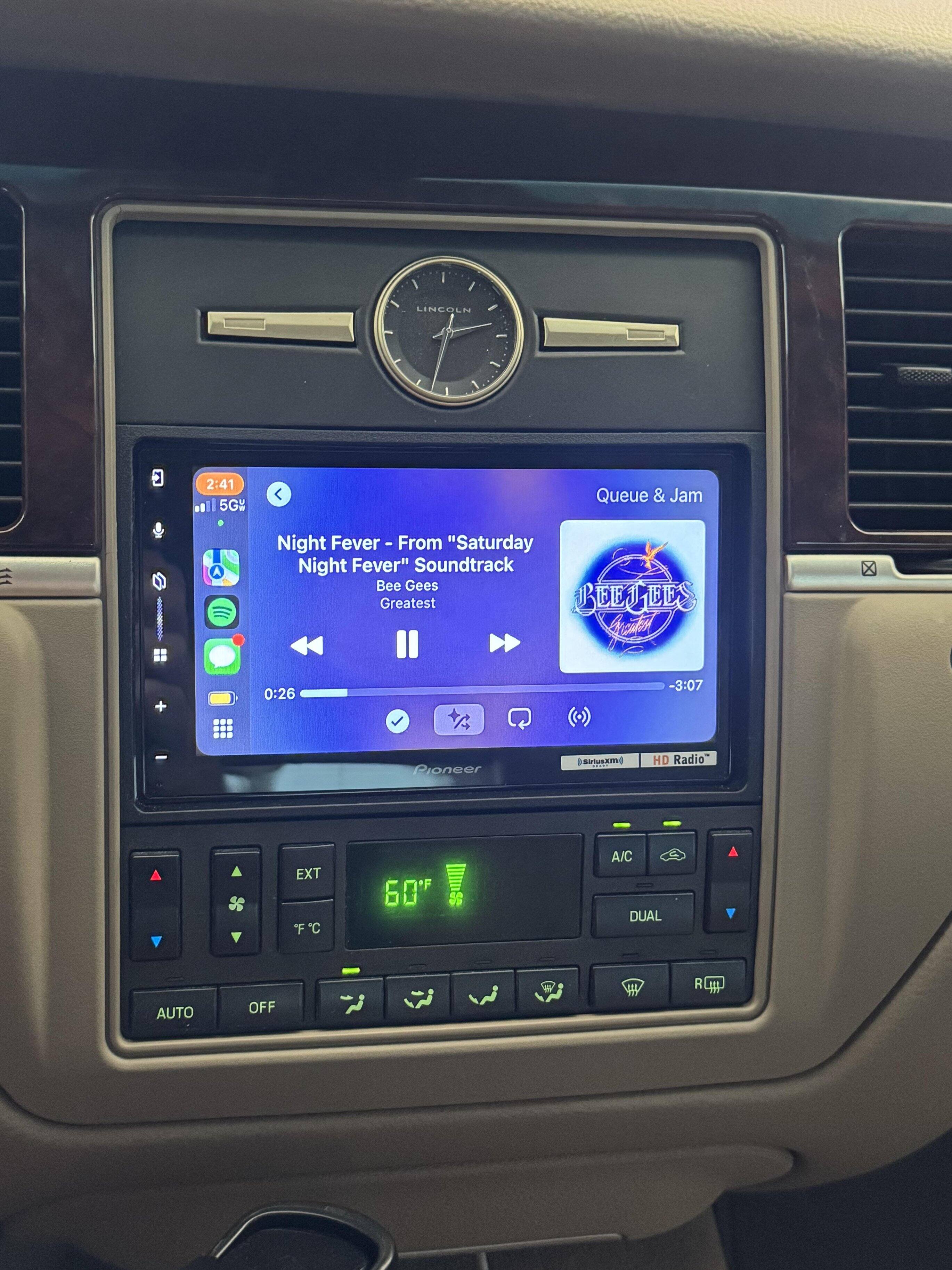

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Would Buy Again.
Installation was included in the purchase, but I didn't want to wait for the installation date, so I installed it myself. It was my first time installing something like this, but it was overall pretty simple once I learned the basics. The system is awesome. The screen is ok, and it gets hard to see sometimes if the sun is shining directly on it, but that's the only time I have a hard time seeing it. The audio quality is great, and I love using Android Auto. The screen is responsive and big enough to see the while driving. Very happy with this purchase.
Posted by KyleR
- Rated 5 out of 5 stars
Great Everything
I had originally purchased a head in unit online only to discover I had purchased the wrong one. I had purchased one with wired Apple CarPlay, and I wanted one that was wireless. I went to the store to make the exchange and the salesman found one that was open box That would have been a $200 difference from what I have purchased. I bought it and a few days later, had the install appointment. I drop the car off, went and had a sandwich and before I knew it, the install was finished. Needless to say, the install was perfect, I am enjoying my new stereo and highly recommend Best Buy to anyone looking to upgrade their car stereo.
Posted by GreggG
- Rated 5 out of 5 stars
Wow! BEST BUY did it again! Free installation also
This is a GREAT head unit! Very affordable and the android auto function is crazy nice. What more could you expect? An affordable quality system back by the Pioneer name. BEST BUY OFFERS FREE INSTALLATION----GUESS WHAT??? IT IS FREE! NO TRICKS BEST BUY is a great company and really honored the FREE INSTALLATION CLAIM! The geek squad really did a nice job. DEVIN was my tech and he was so professional! Thanks Best Buy and Devin with the geek squad. Kennesaw Ga location. I WILL BE BACK !!
Posted by supertrooper252
