Pioneer - Quantum Ultra 4-Zone 36,000 BTU 22.5 SEER Ductless Wi-Fi Enabled Mini Split Heat Pump with 16 ft., Lines - White
Reviews coming soon
Specifications
- Recommended Room Size1800 square feetBTU Cooling Rating35000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate153 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 1800 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 35000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 153 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio (EER2): 12 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time. EER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Seasonal Energy Efficiency Ratio (SEER2): 22.5 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is. SEER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: WYT040GLSI24M4
- Product Name: Quantum Ultra 4-Zone 36,000 BTU 22.5 SEER Ductless Wi-Fi Enabled Mini Split Heat Pump with 16 ft., Lines
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 7.63 x 12 x 32.25
- Outdoor Unit Dimensions: 18.38 x 33.5 x 42.25
- Cord Length: 100 inches
- BTU Rating
- Recommended Room Size: 1800 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 35000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 36000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 153 cubic feet per minute
- Maximum Noise Level: 30 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio (EER2): 12 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time. EER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER2): 22.5 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is. SEER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Amperage: 12.7 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183989
Pioneer brand multi split heat pump system, complete set. System components include: 1-multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5-versions; for 2, 3, 4, and 5 zones.

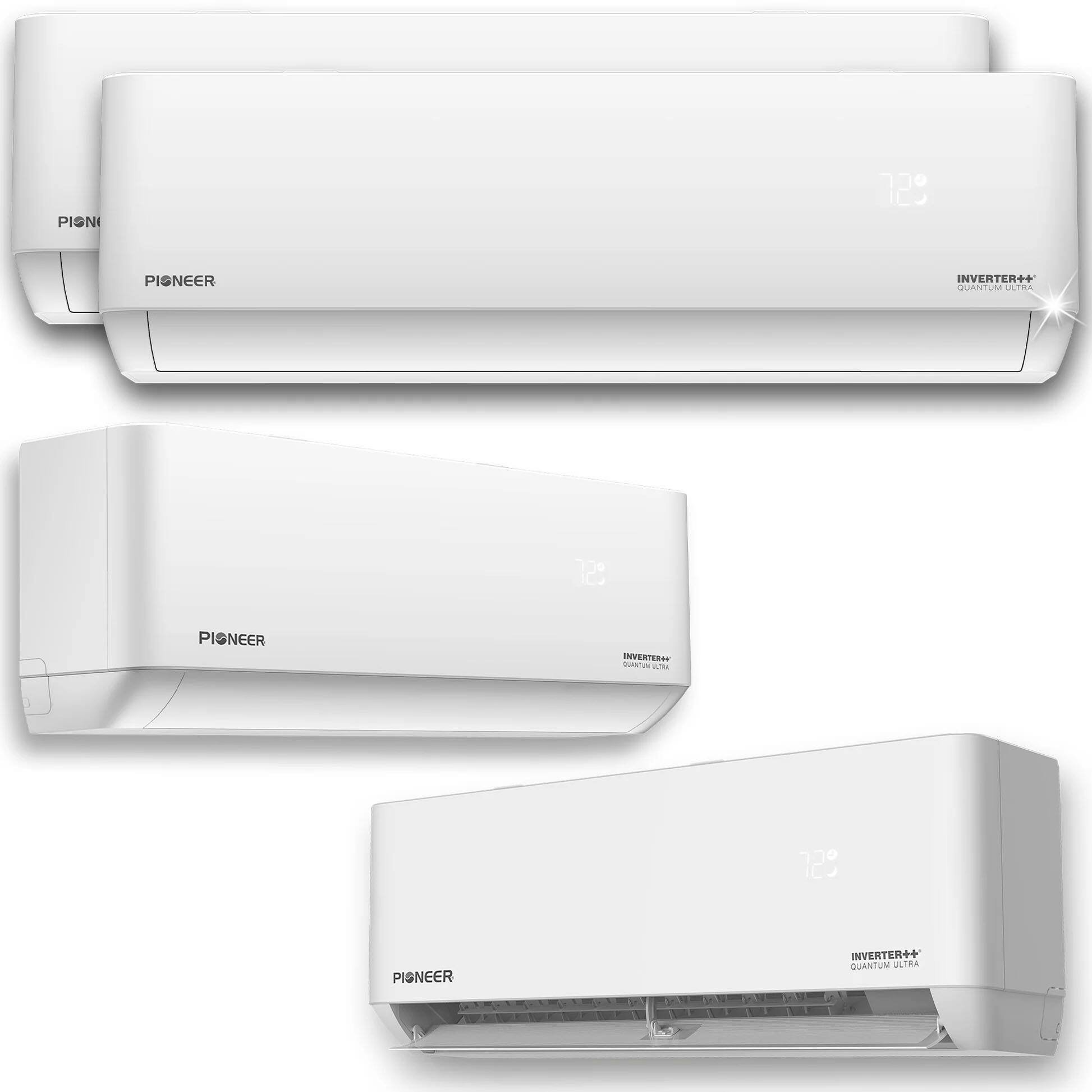

- High-Efficiency Cooling & Heating: Ultra-high efficiency inverter++ quad-zone heat pump system with (4) 9,000 BTU indoor units and 35,000 BTU condenser (range 5,500–41,000) delivering 22.5 SEER2 / 12.0 EER2 cooling and 36,000 BTU heating (range 5,500–41,000) with 9.5 HSPF2 / 3.5 COP2 for powerful year-round comfort.

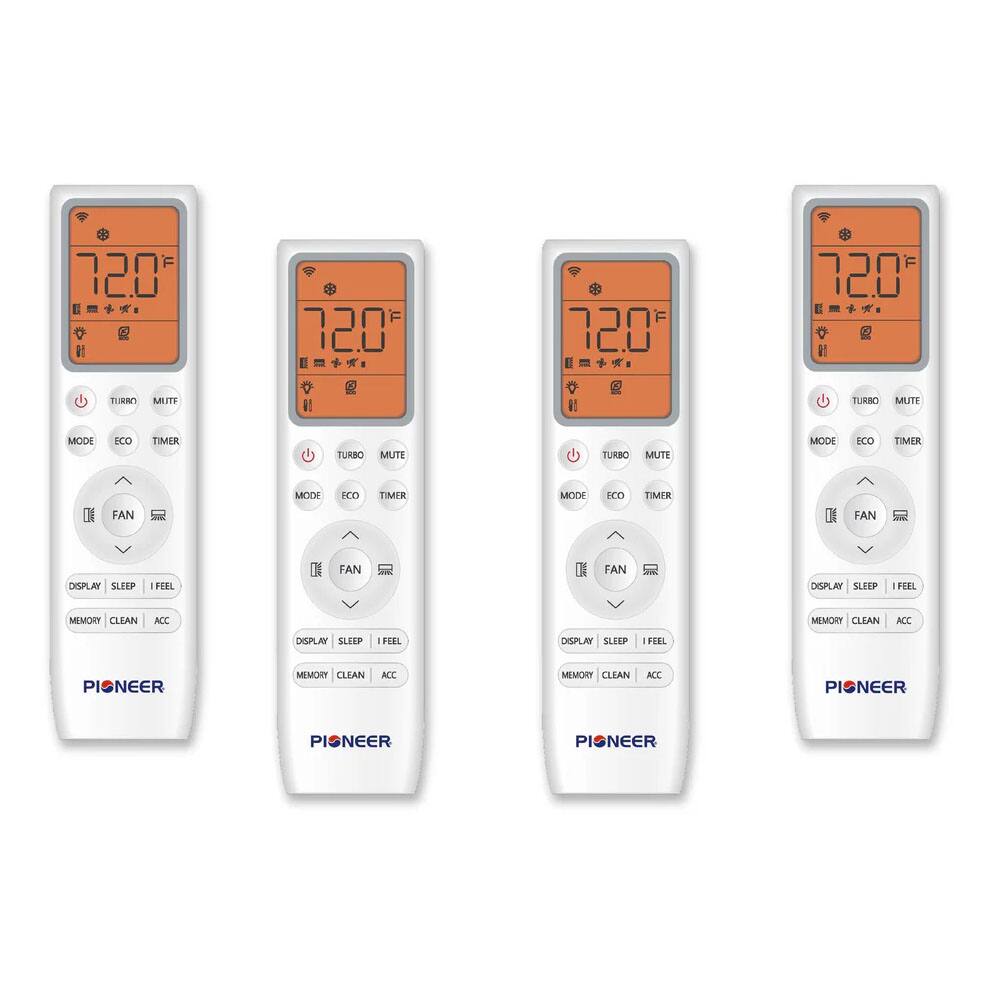

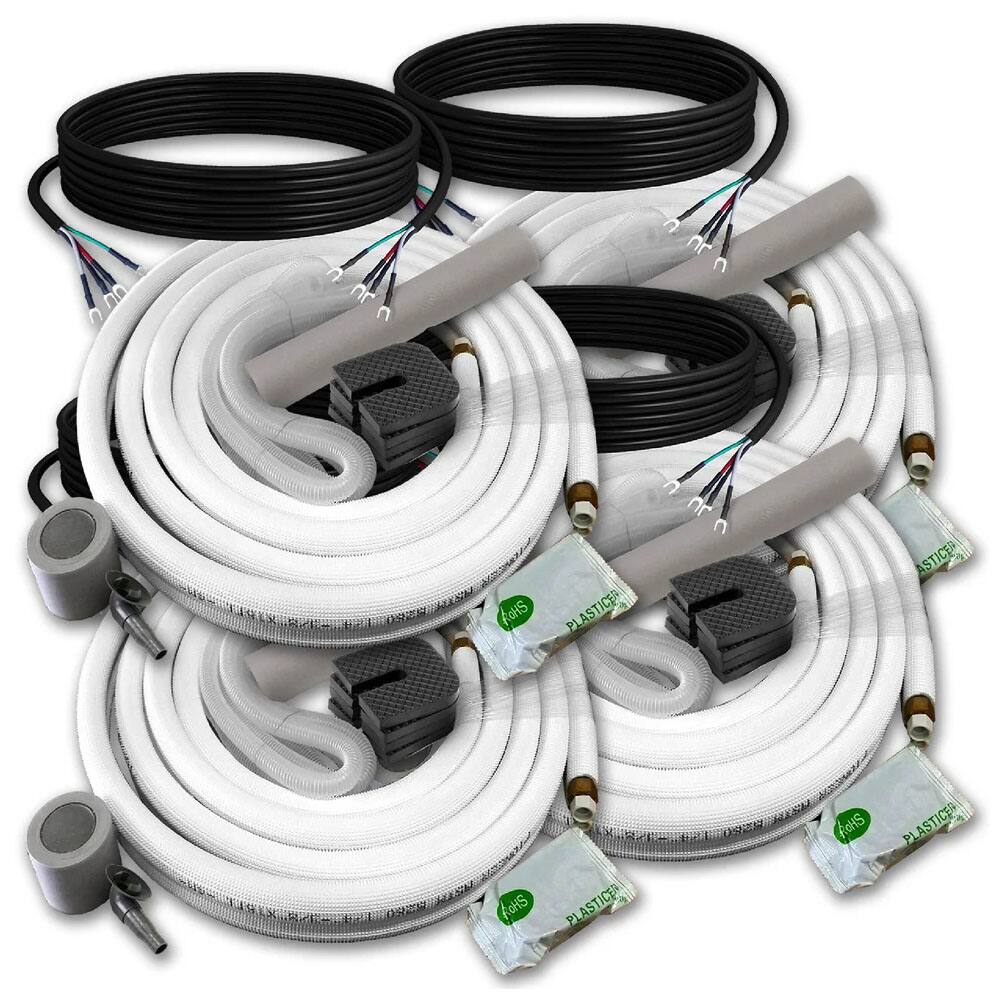

- Complete System Included: Indoor fan coil units, outdoor condenser, wireless remote controller with Wi-Fi, pre-charged insulated flared line set (supports up to 100 ft total length), and all required installation accessories.
- Advanced Inverter Technology: Built with pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and quiet, reliable operation.
- User-Friendly Controls & Versatile Operation: Wi-Fi enabled system with wireless remote access, dual-zone temperature control, and ultra-low ambient heating performance down to -13°F outdoor temperatures.
- Certified & Energy-Safe: Energy Star certified and ETL/AHRI/DOE approved; operates on 208–230V, 60Hz, 1-phase power, uses eco-friendly R454B refrigerant, and includes dedicated support hotline for installation, troubleshooting, warranty, and parts assistance.
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
