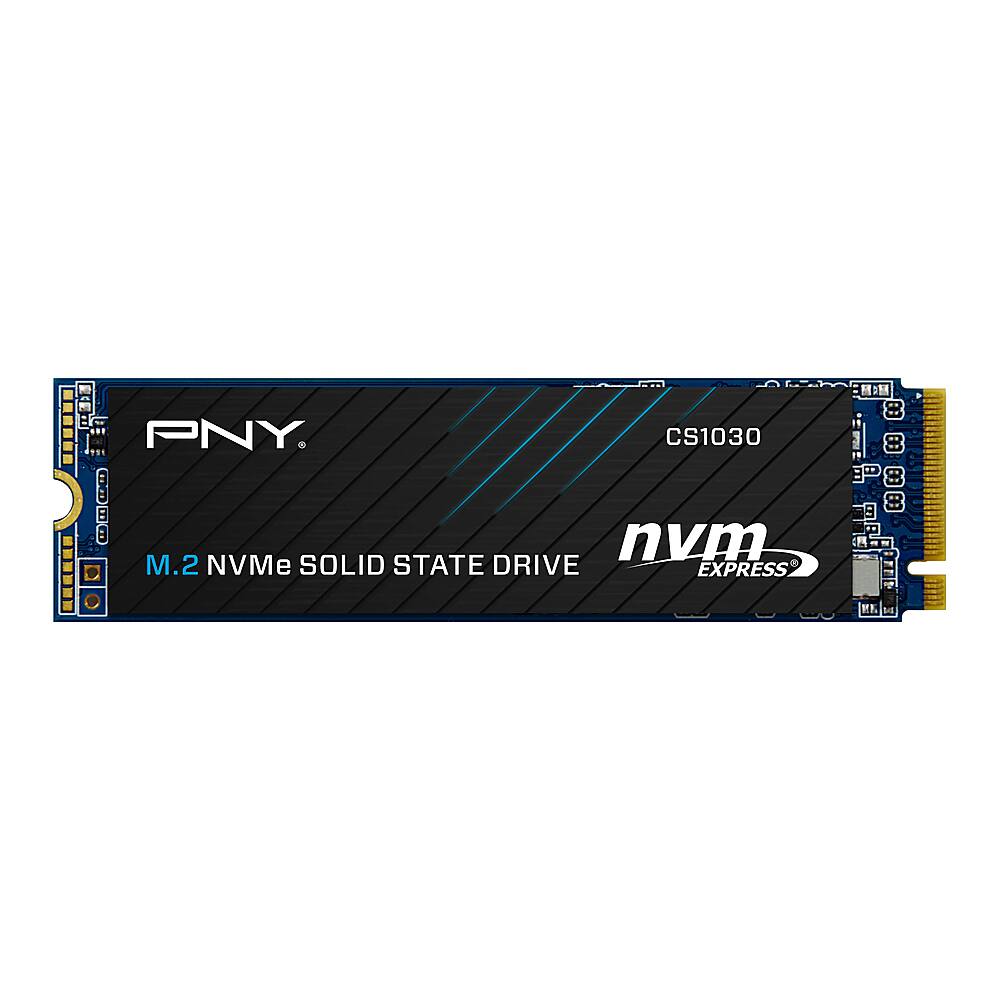

PNY - CS1030 1TB Internal SSD PCIe NVMe Gen 3 x4
Model: M280CS1030-1TB-RB
SKU: 6463136
This item is no longer available in new condition. See similar items below
- Key Specs
- Storage Capacity: 1000 gigabytes (Measured in megabytes (MB), gigabytes (GB) and terabytes (TB), this is the amount available for storing files, music, movies, photos and more. The total includes the capacity of the hard disk drive and solid state drive if both are included on the computer.)
- Storage Drive Type: SSD (Traditional, mechanical hard disk drives are the most common type of storage because they're relatively inexpensive and offer huge capacities. However, they also generate both noise and heat. Solid state drives, also known as SSDs, are many times faster than hard disk drives and have no moving parts to wear out, but typically offer less capacity for the same price.)
- Maximum Read Speed: 2100 megabytes per second (The greatest speed at which the device can read information; for example, opening files.)
- Maximum Write Speed: 1700 megabytes per second (The greatest speed at which the device can write information; for example, saving files.)
- Form Factor: M.2 2280
- Interface(s): PCIe Gen 3 x4 (Refers to the types of connections that devices use to interact and communicate with each other.)
- General
- Brand: PNY
- Model Number: M280CS1030-1TB-RB
- Product Name: CS1030 1TB Internal SSD PCIe NVMe Gen 3 x4
- Capacity
- Storage Capacity: 1000 gigabytes (Measured in megabytes (MB), gigabytes (GB) and terabytes (TB), this is the amount available for storing files, music, movies, photos and more. The total includes the capacity of the hard disk drive and solid state drive if both are included on the computer.)
- Performance
- Storage Drive Type: SSD (Traditional, mechanical hard disk drives are the most common type of storage because they're relatively inexpensive and offer huge capacities. However, they also generate both noise and heat. Solid state drives, also known as SSDs, are many times faster than hard disk drives and have no moving parts to wear out, but typically offer less capacity for the same price.)
- Maximum Read Speed: 2100 megabytes per second (The greatest speed at which the device can read information; for example, opening files.)
- Maximum Write Speed: 1700 megabytes per second (The greatest speed at which the device can write information; for example, saving files.)
- SSD Endurance: 240 terabytes (The total amount of data that the solid-state drive (SSD) is able to write before it wears out, as specified by the manufacturer. Endurance is limited because the flash on a SSD has a finite number of cycles that it can complete.)
- Compatibility
- Internal Or External: Internal
- Product Compatibility: Desktop computers, Laptop computers
- Form Factor: M.2 2280
- Interface(s): PCIe Gen 3 x4 (Refers to the types of connections that devices use to interact and communicate with each other.)
- Operating System Compatibility: Linux, Mac, Windows
- Features
- Usage: Everyday computing, Gaming
- Memory
- NAND Flash Memory Type: 3D NAND (Single Level Cell (SLC) stores 1 bit of data per memory cell; Multi Level Cell (MLC) stores 2 bits per cell, Triple Level Cell (TLC) 3 bits, and Quad Level Cell (QLC) 4 bits. Vertical NAND (V-NAND) or 3D NAND stores more data by layering cells vertically. Similarly, there are 3D MLC, 3D TLC and 3D QLC stacked cells.)
- Dimensions
- Product Height: 0.16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.87 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.23 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 Year
- Warranty - Labor: 5 Year
- Other
- UPC: 751492641638
The PNY CS1030 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) or hard traditional hard drive in an NVMe enabled desktop or laptop computer. The CS1030 drive is designed to be an upgrade from conventional SATA based storage to take advantage of the high bandwidth of the NVMe interface to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 4 times faster than with SATA based storage. With no moving parts, the PNY CS1030 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5 year warranty.
- NVMe: Mainstream NVMe upgrade from a SATA based solid state drive (SSD) in NVMe enabled laptop or desktop computers for super-fast OS boot times and application loads
- Interface: The NVMe PCIe Gen3 x4 interface delivers exceptional performance of up to 2,100MB/s seq. read and 1,700MB/s seq. write speeds
- Enhanced Bandwith: The enhanced bandwidth of the NVMe interface allows for high performance and low latency, making it superior to SATA based SSD’s and HDD’s
- Performance: Premium performance and ultra low power consumption ideal for demanding applications and improving battery life in laptops
- Warranty and Tech Support: Competitive 5 Year Warranty backed by 24/7 US based technical support
- NVMe: Mainstream NVMe upgrade from a SATA based solid state drive (SSD) in NVMe enabled laptop or desktop computers for super-fast OS boot times and application loads
- Interface: The NVMe PCIe Gen3 x4 interface delivers exceptional performance of up to 2,100MB/s seq. read and 1,700MB/s seq. write speeds
- Enhanced Bandwith: The enhanced bandwidth of the NVMe interface allows for high performance and low latency, making it superior to SATA based SSD’s and HDD’s
- Performance: Premium performance and ultra low power consumption ideal for demanding applications and improving battery life in laptops
- Warranty and Tech Support: Competitive 5 Year Warranty backed by 24/7 US based technical support
Whats Included
- PNY CS1030 1TB Internal SSD PCIe Gen 3 x4 NVMe
- PNY CS1030 1TB Internal SSD PCIe Gen 3 x4 NVMe
Product Manuals
A: It depends on the type of M.2 Slot. But if it is a normal NVMe slot, it should be fine. And yes you can use this Gen 3 drive instead of your Gen 4.
A: Al through it would fit into the PS5's slot, the PS5 will not accept a Gen 3 NVMe drive.
A: It lacks a DRAM Cache.
Q: If I get this at Best BUy, will you install it?
A: Geek Squad might for a cost.
Q: Does this come with the screw needed to add this to a laptop?
A: It does not.
Q: Will this fit MacBook Pro 2012 retina?
A: 2012 MacBook Pro only has a slot M.2 SATA 2280, Not M.2 NVMe SSDs.
