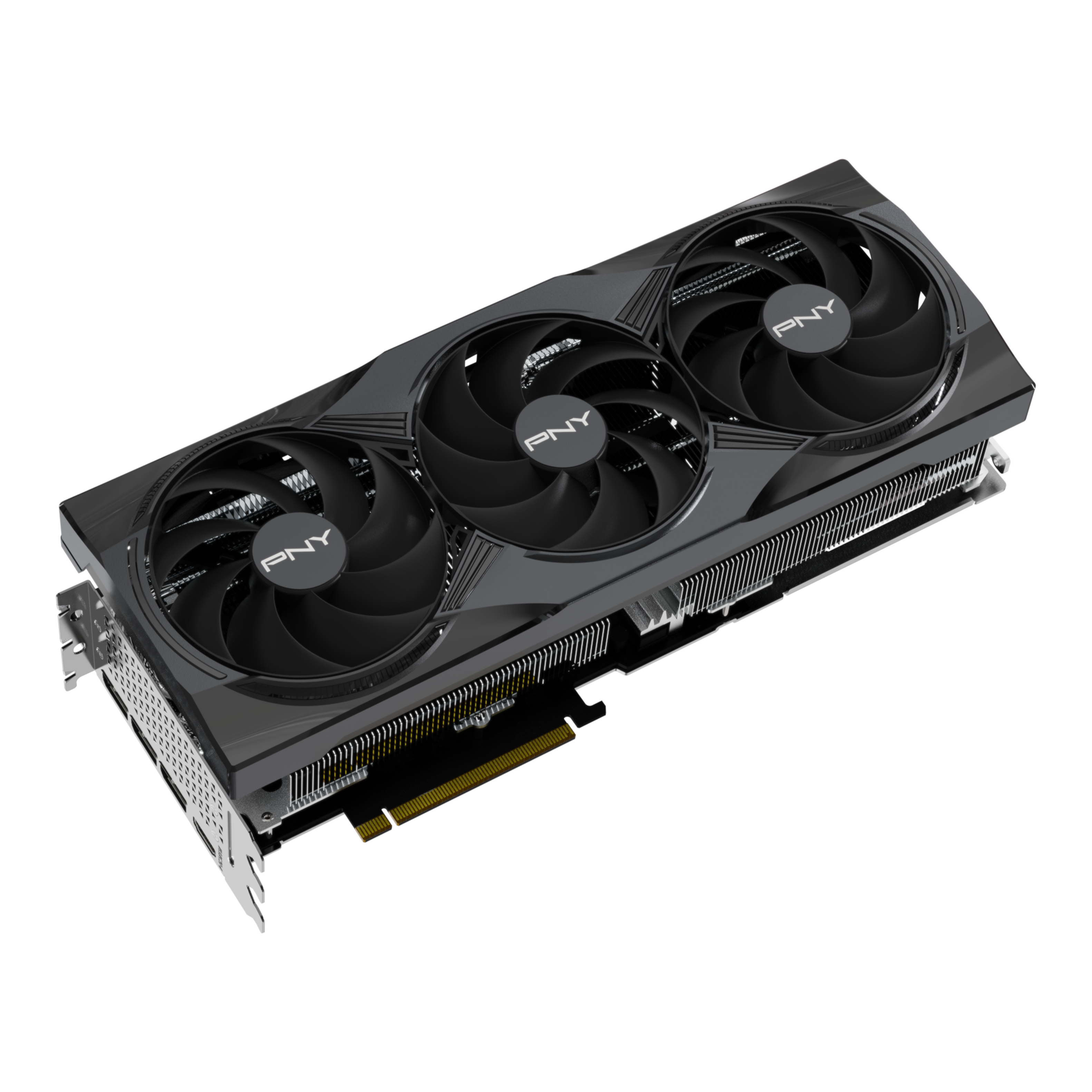

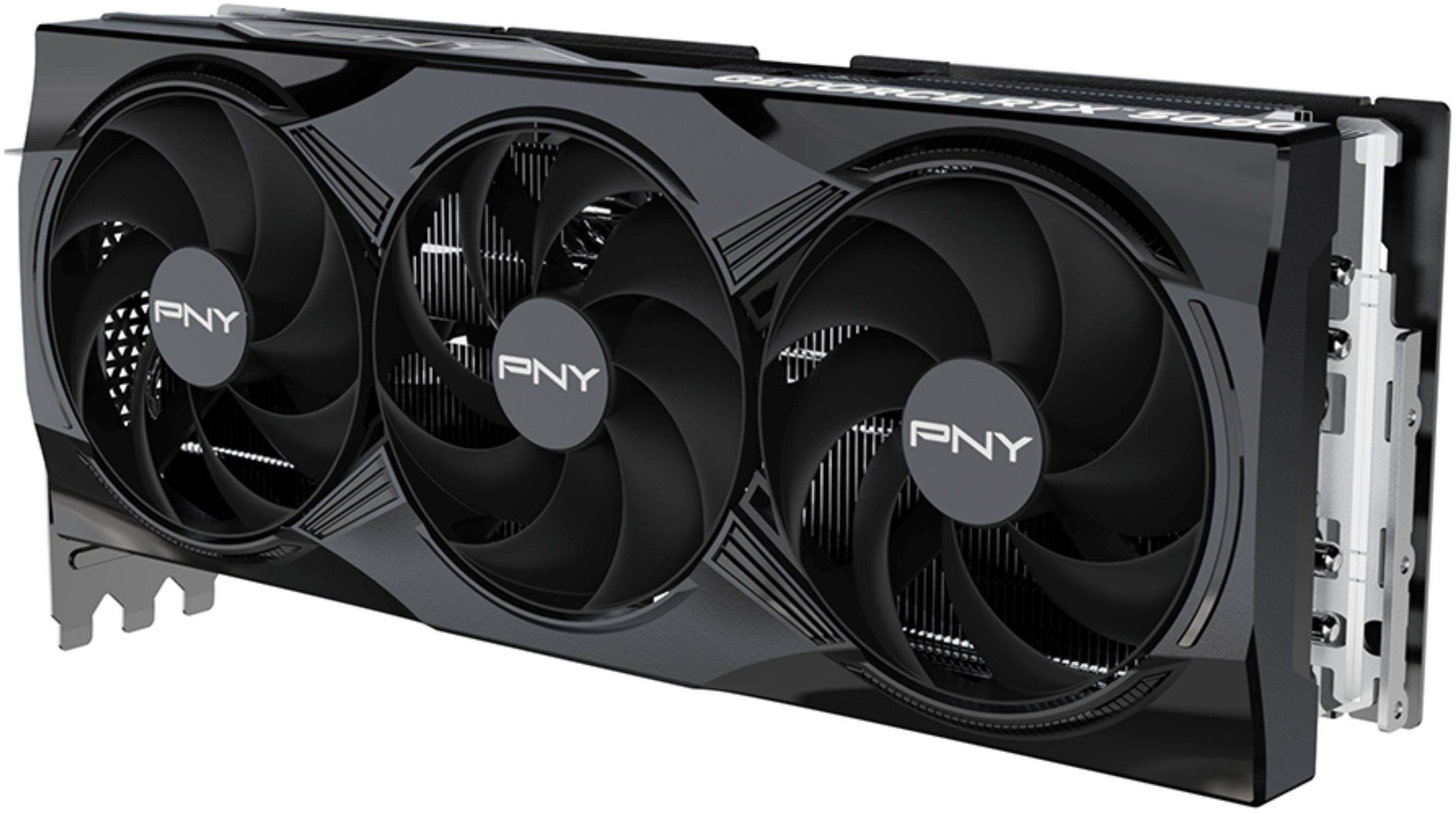

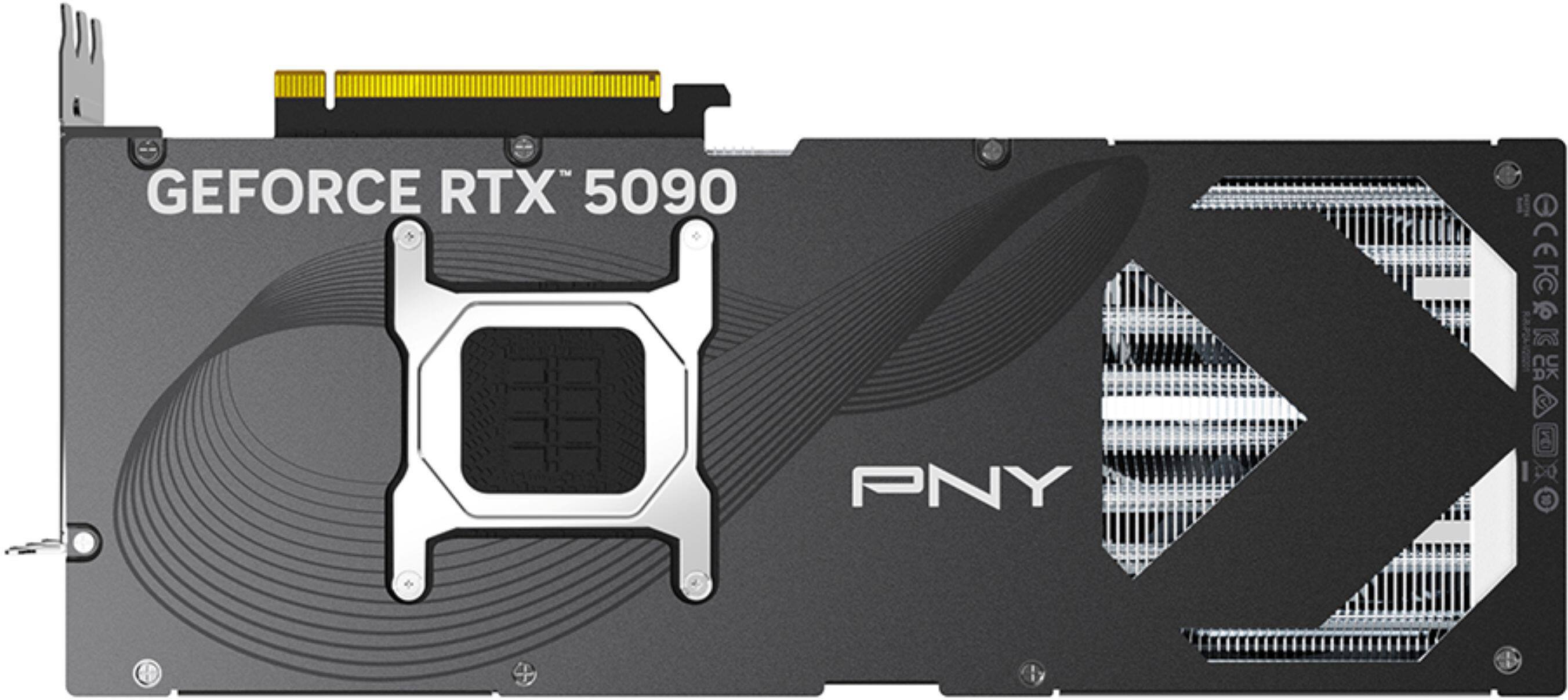

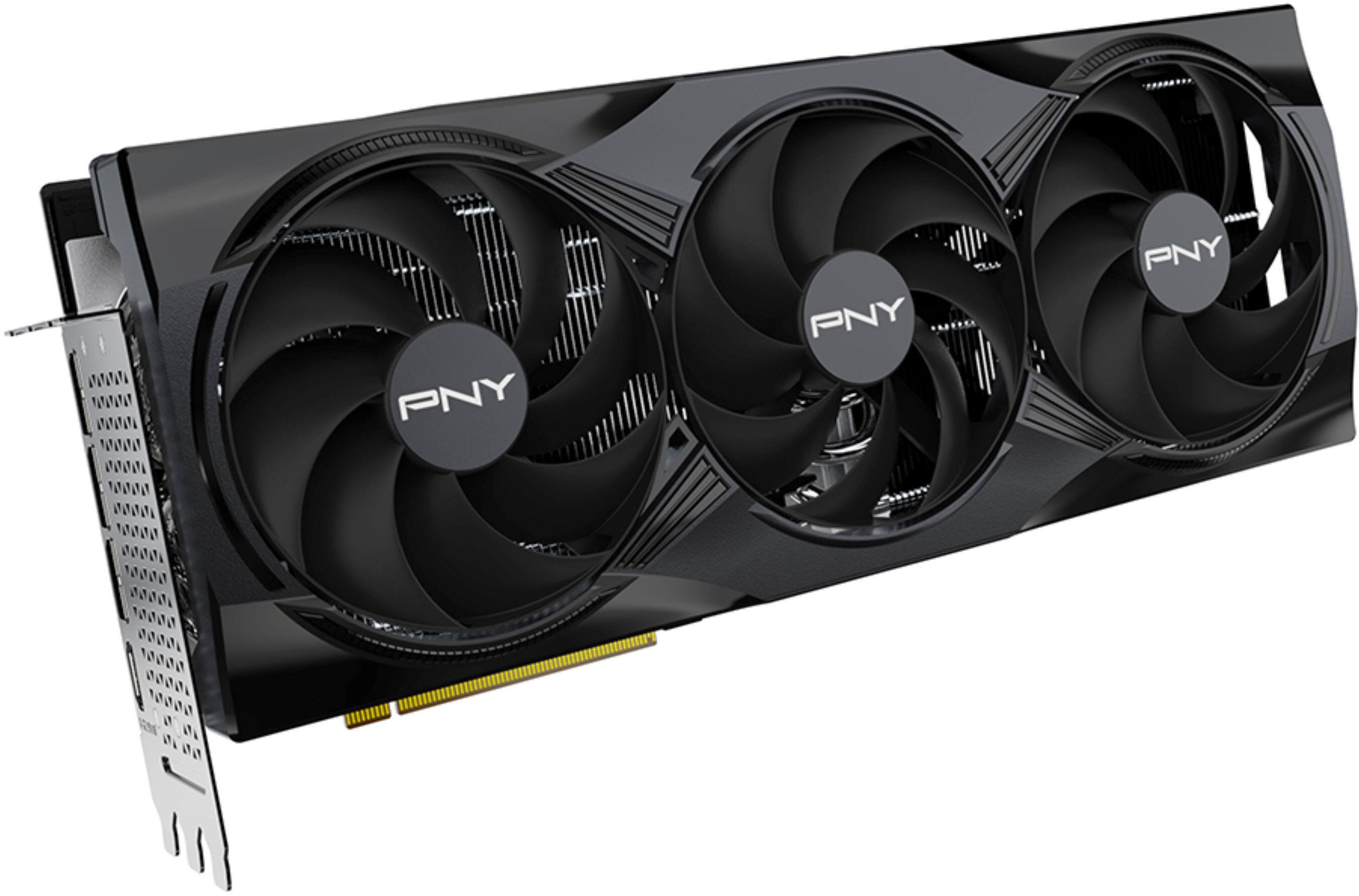

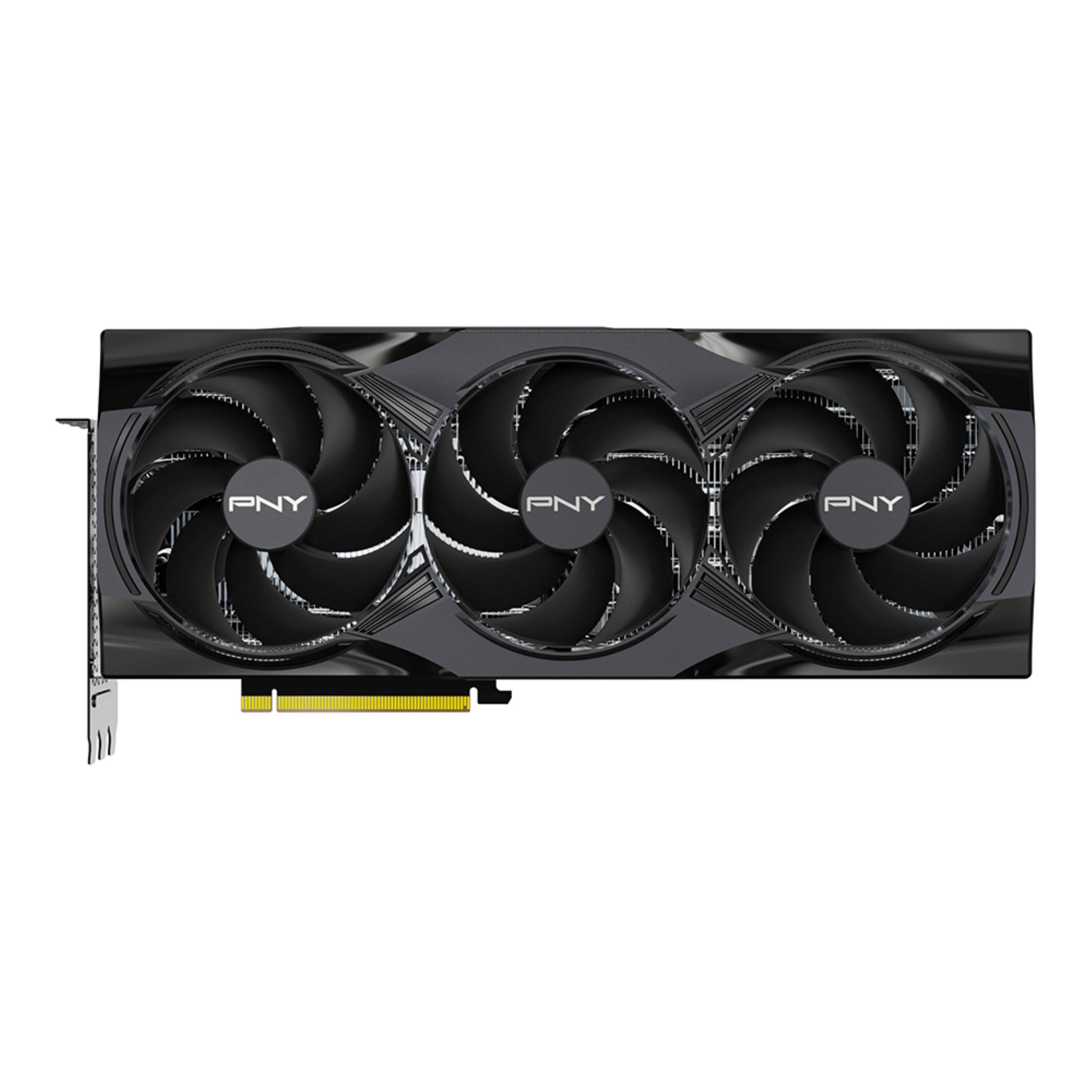

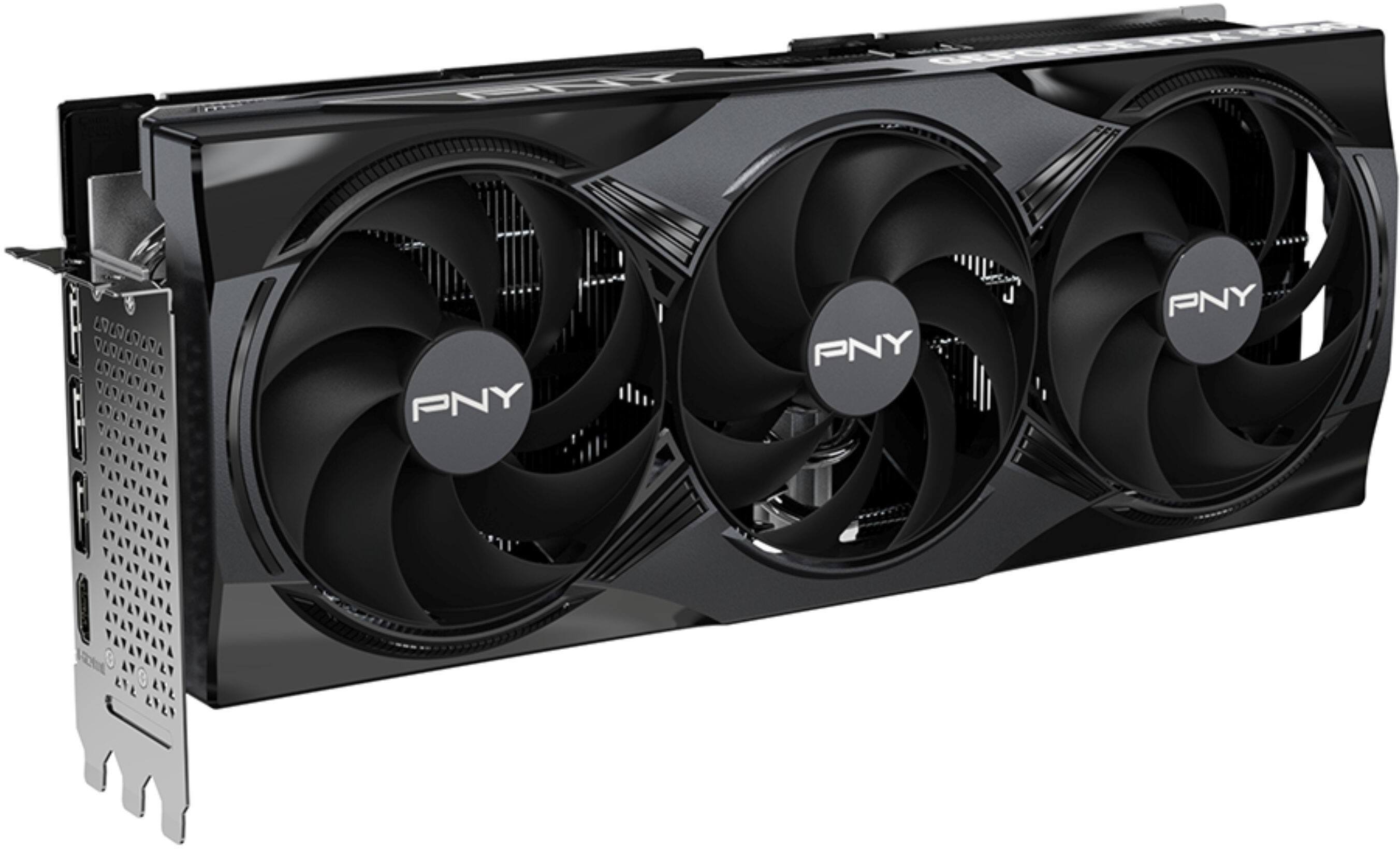

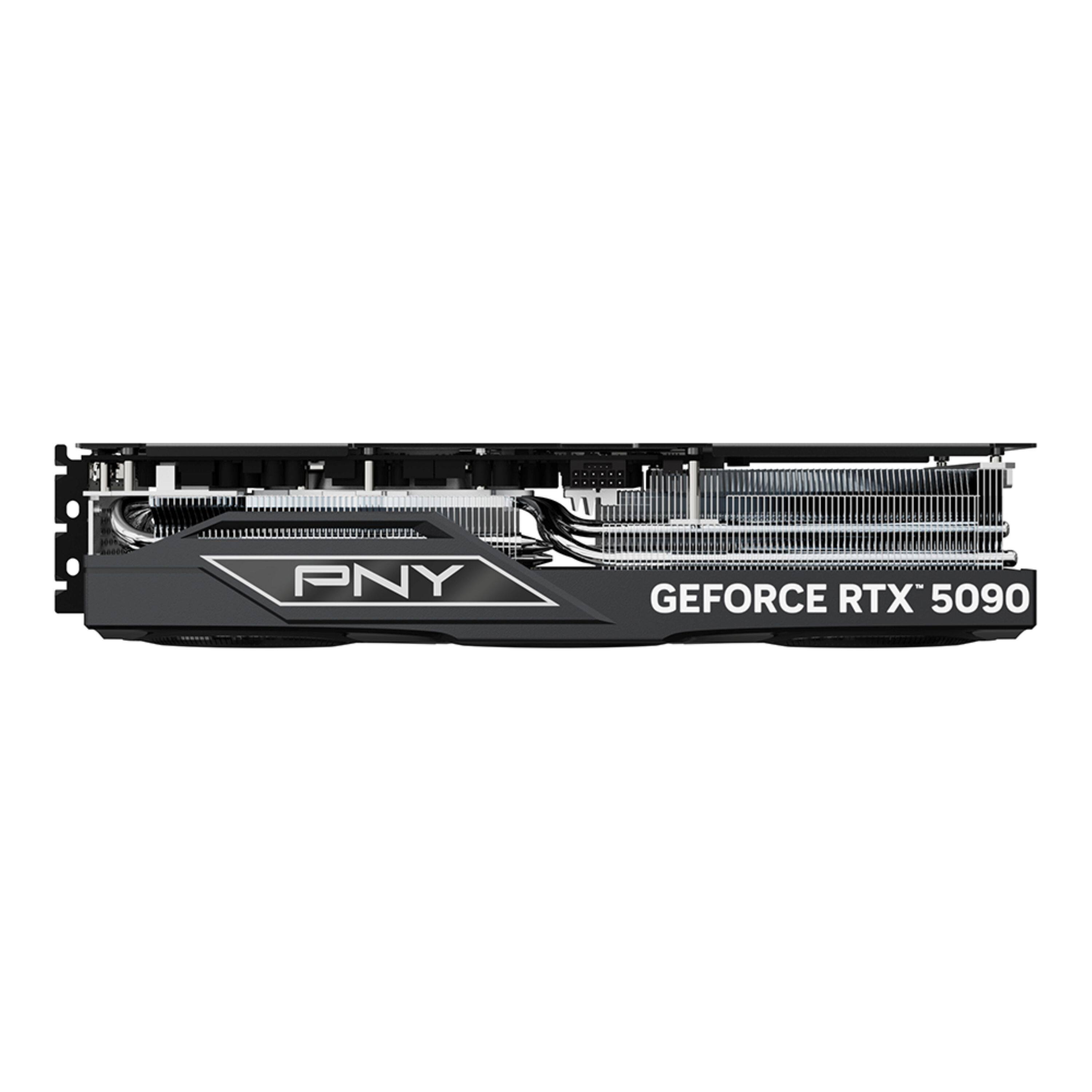

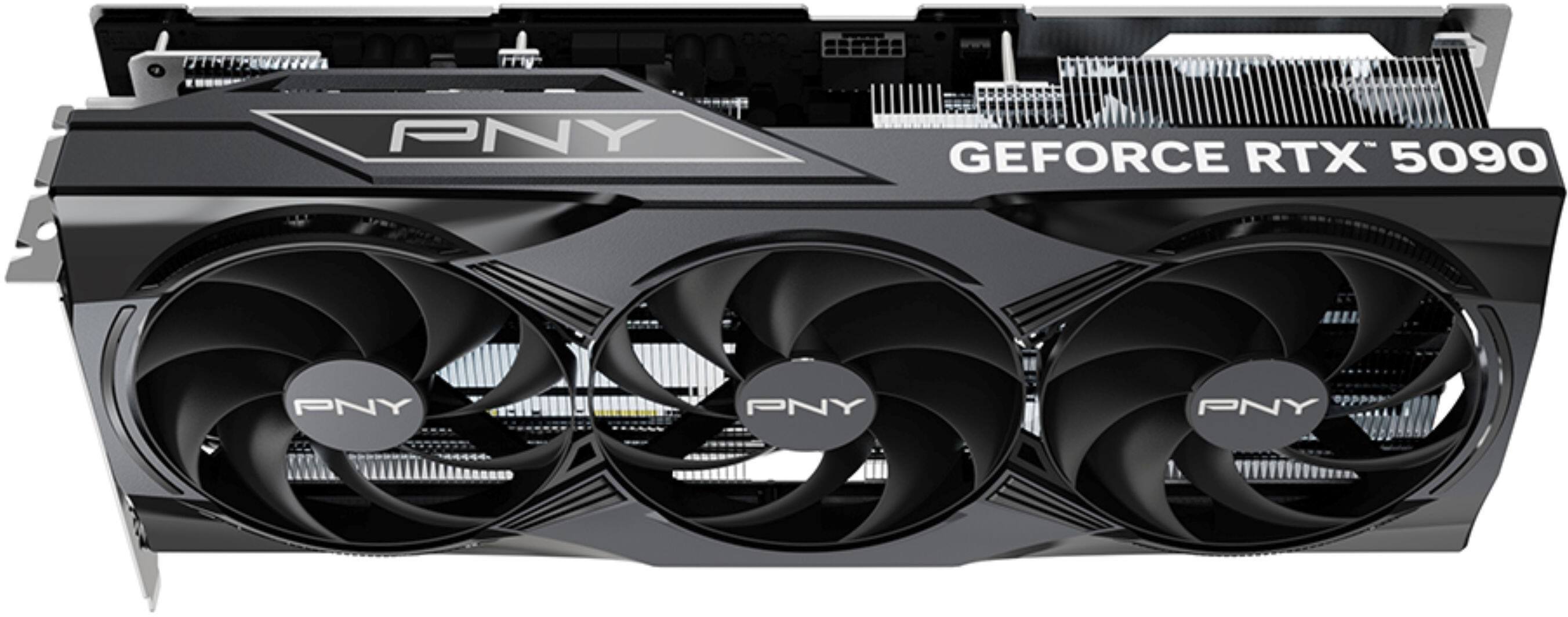

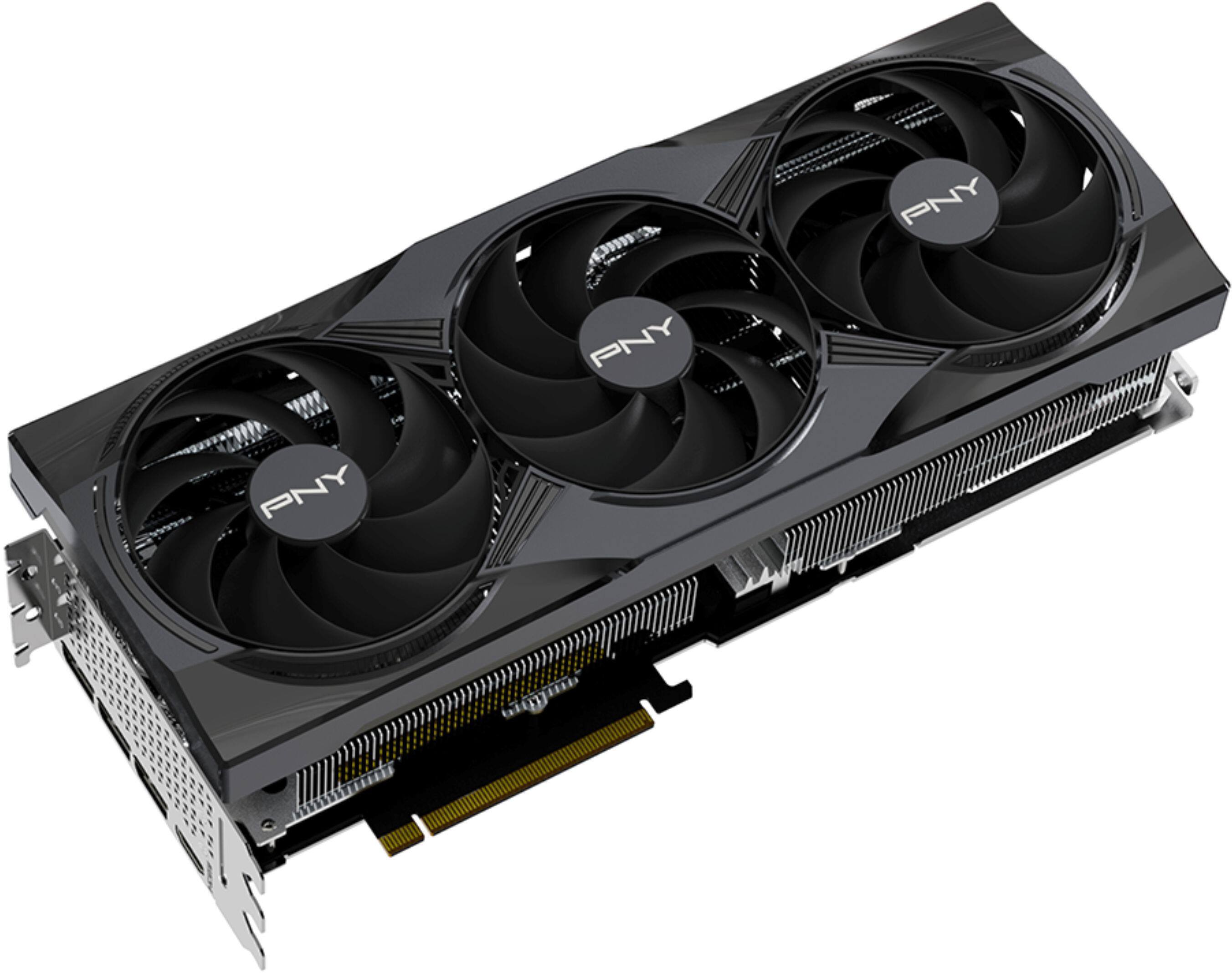

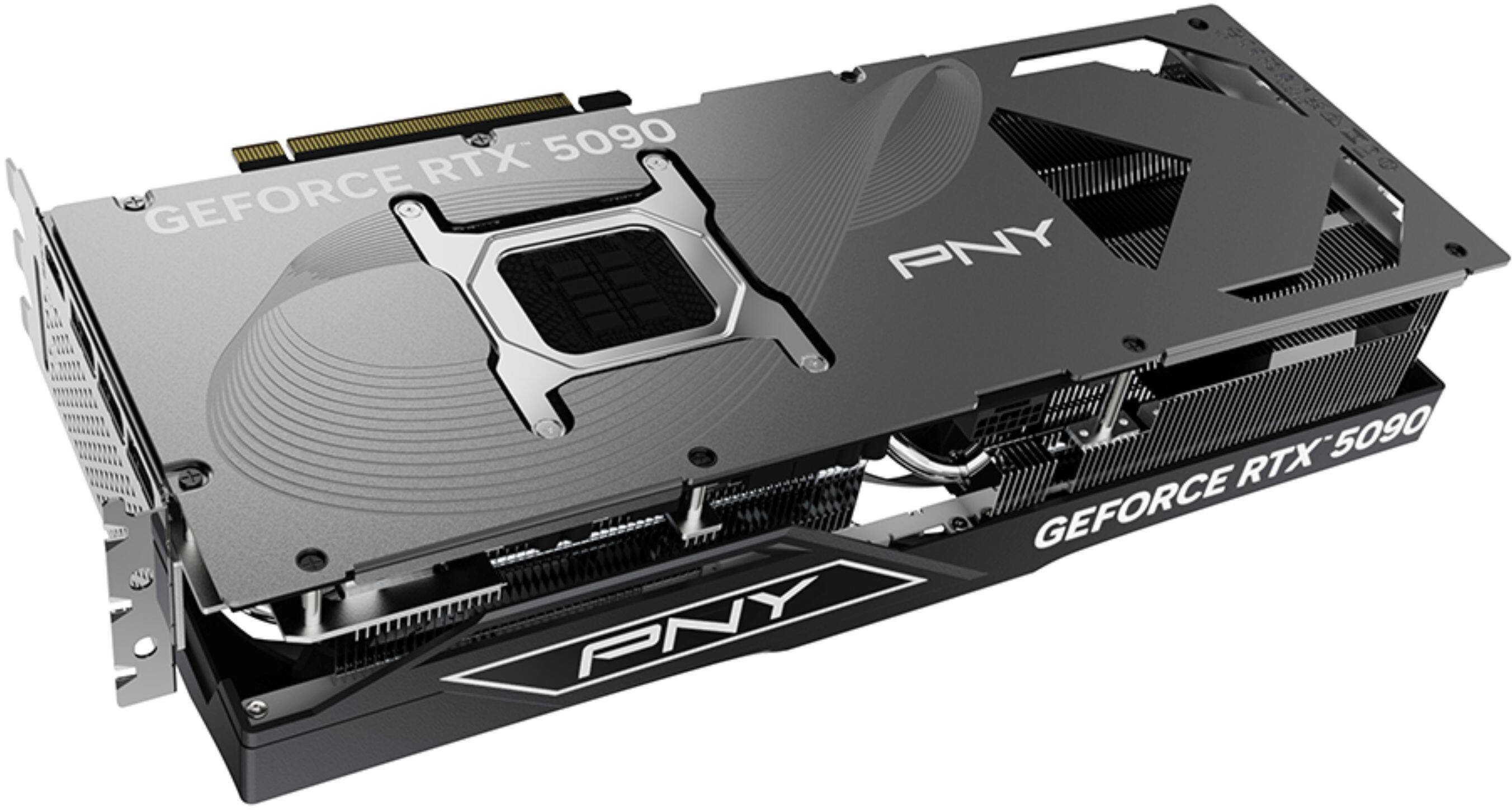

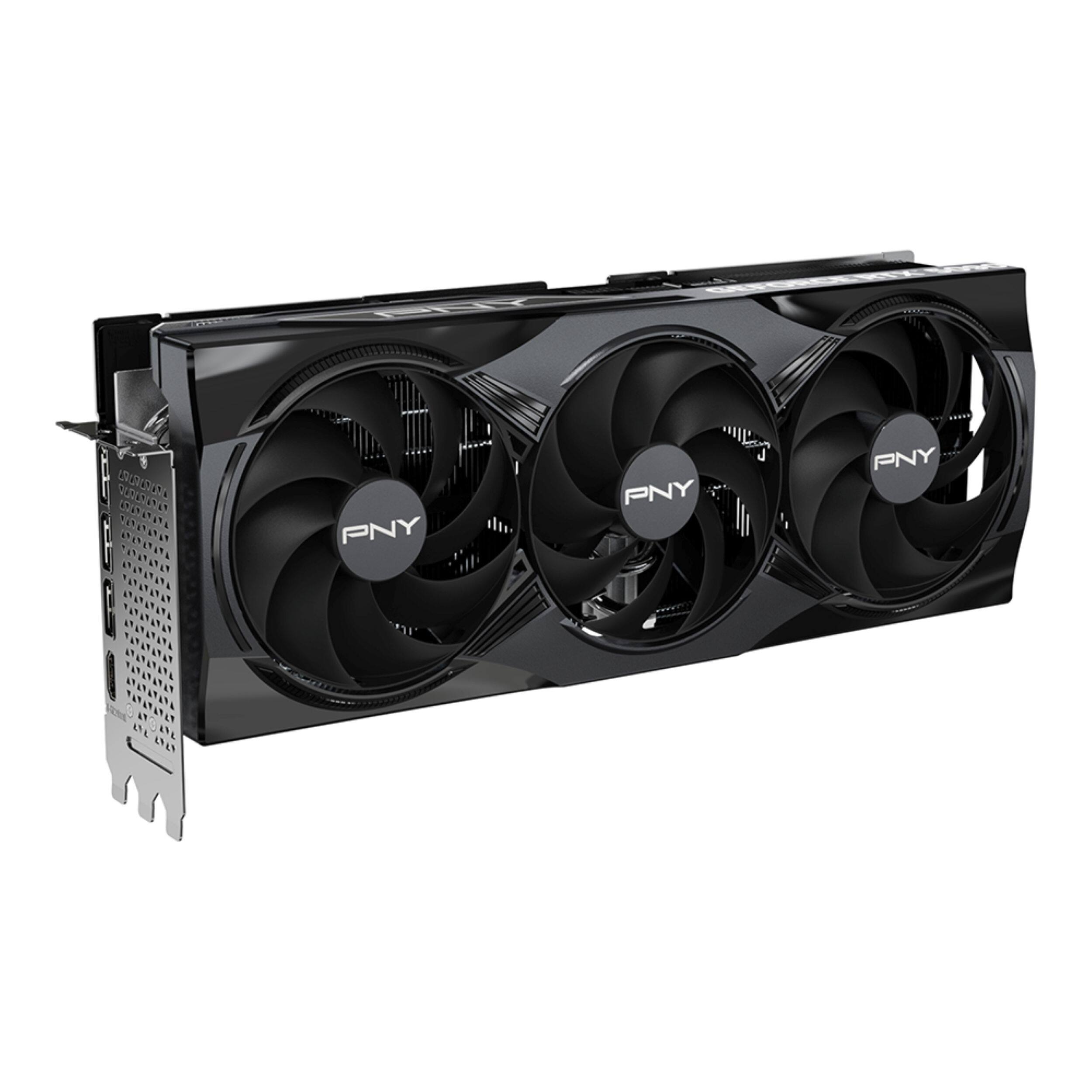

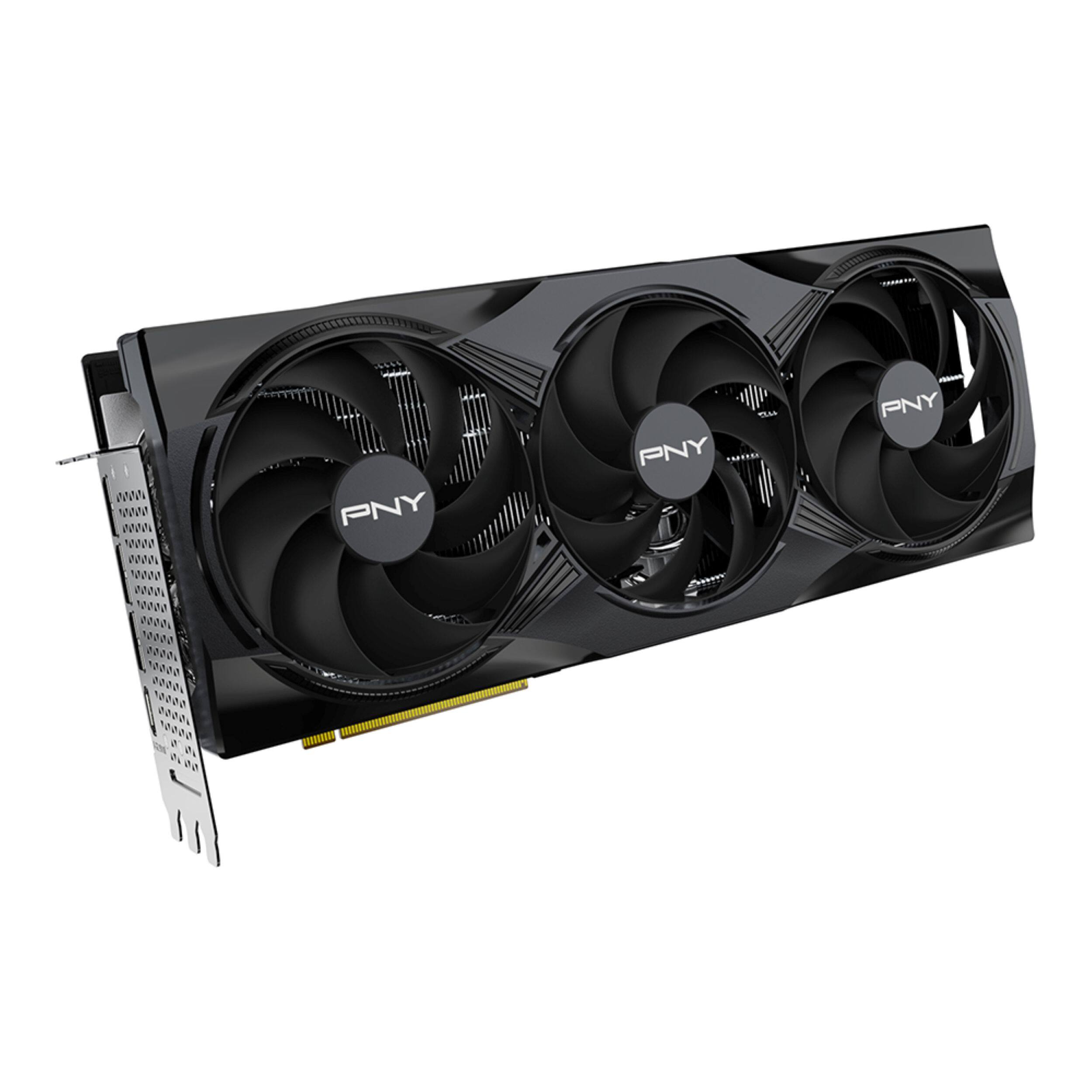

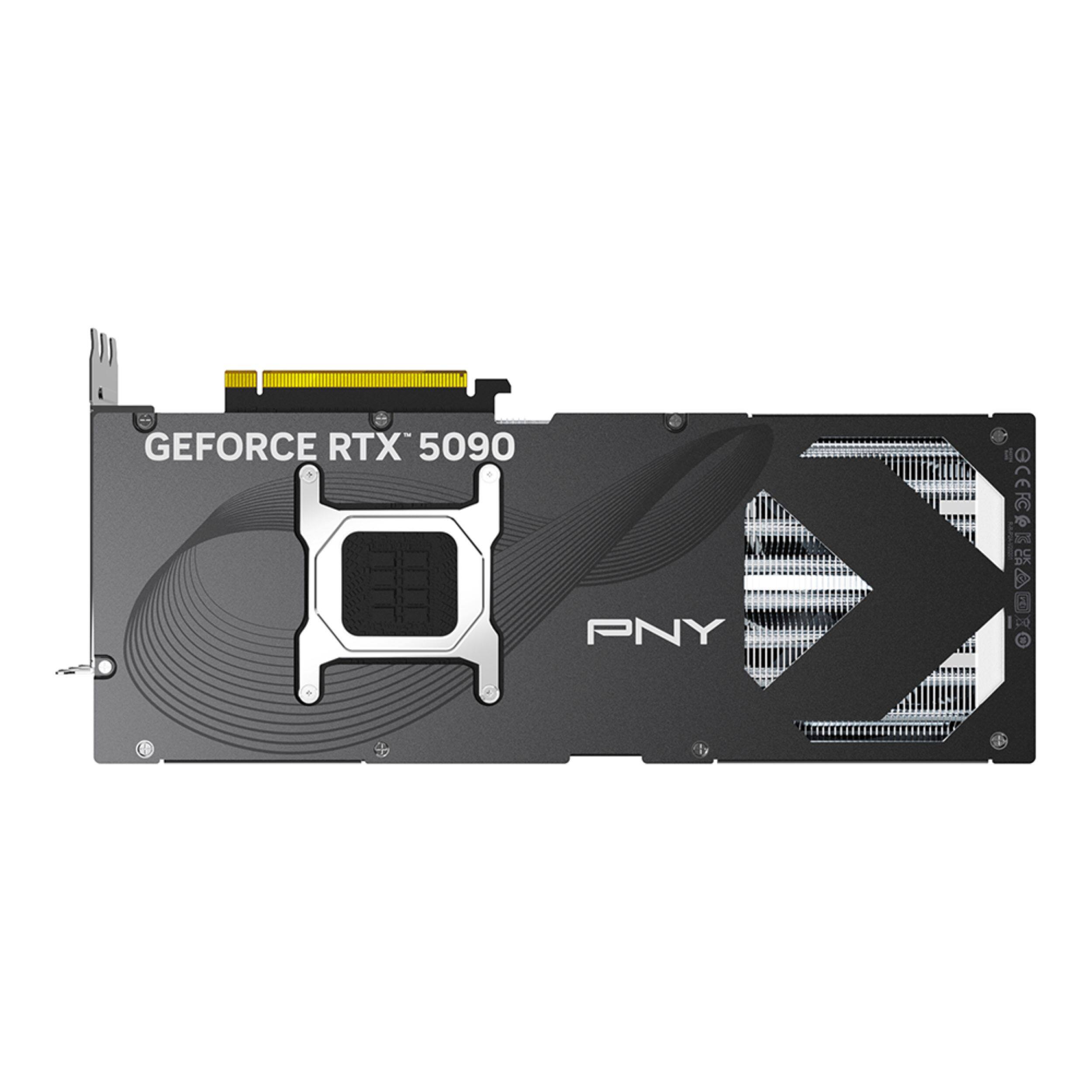

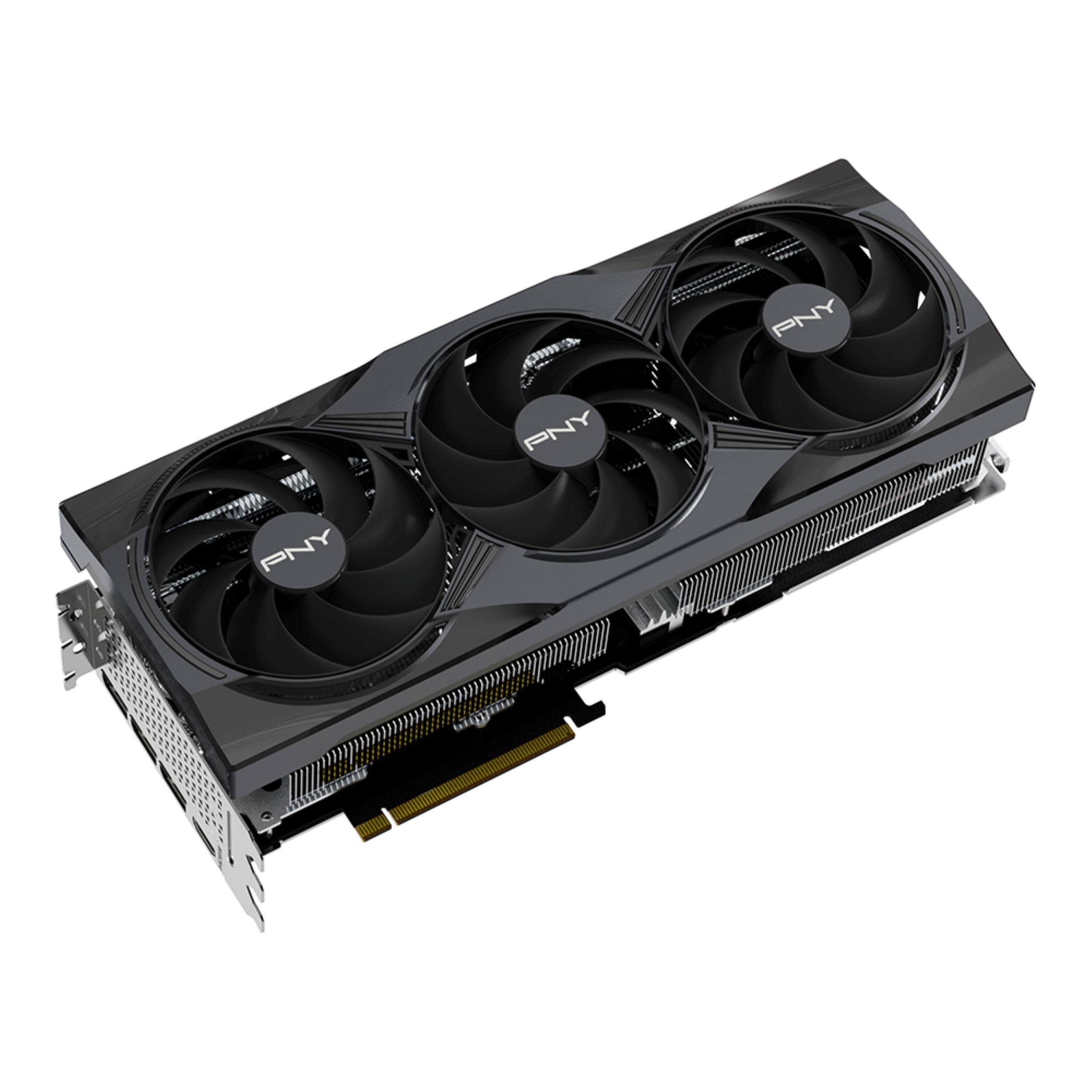

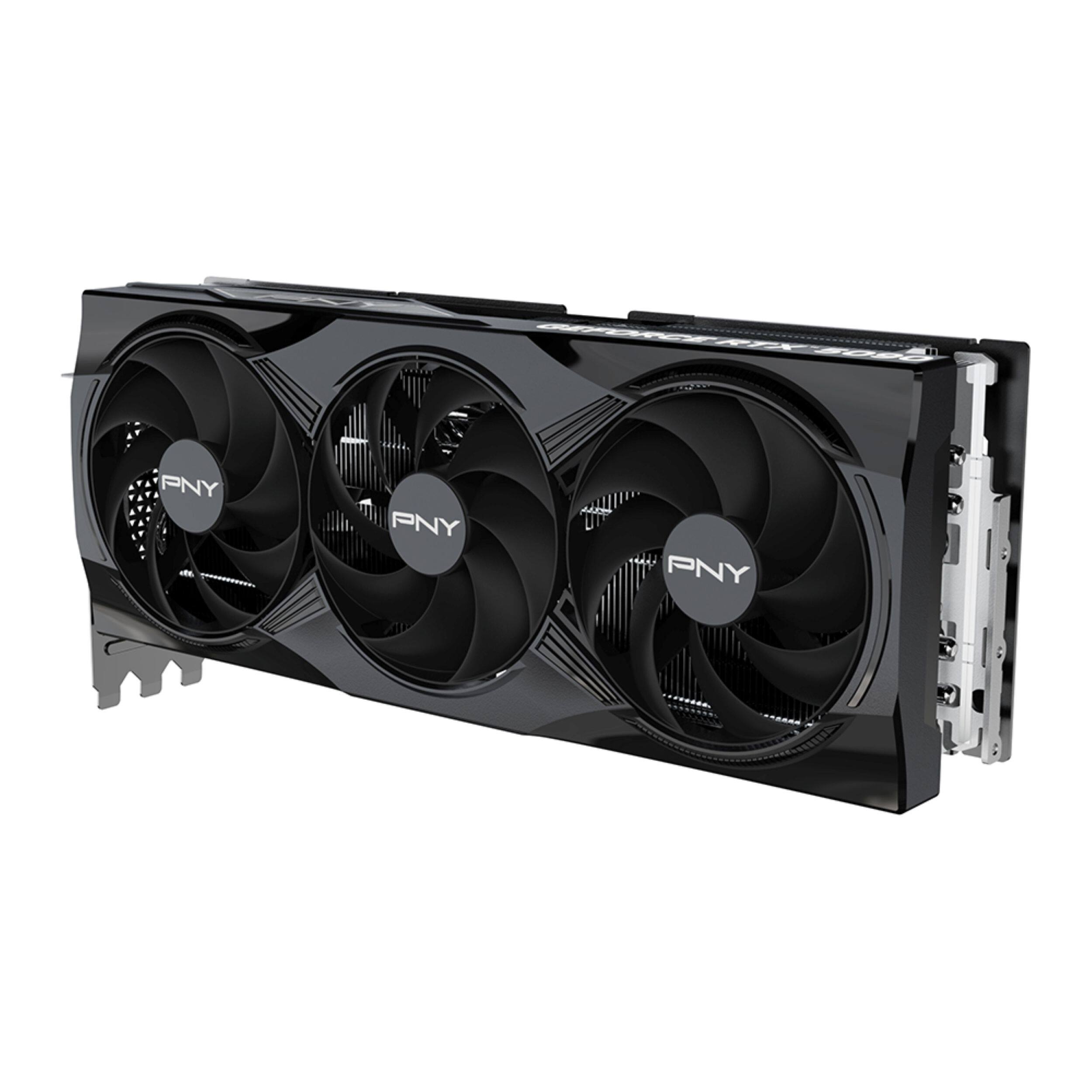

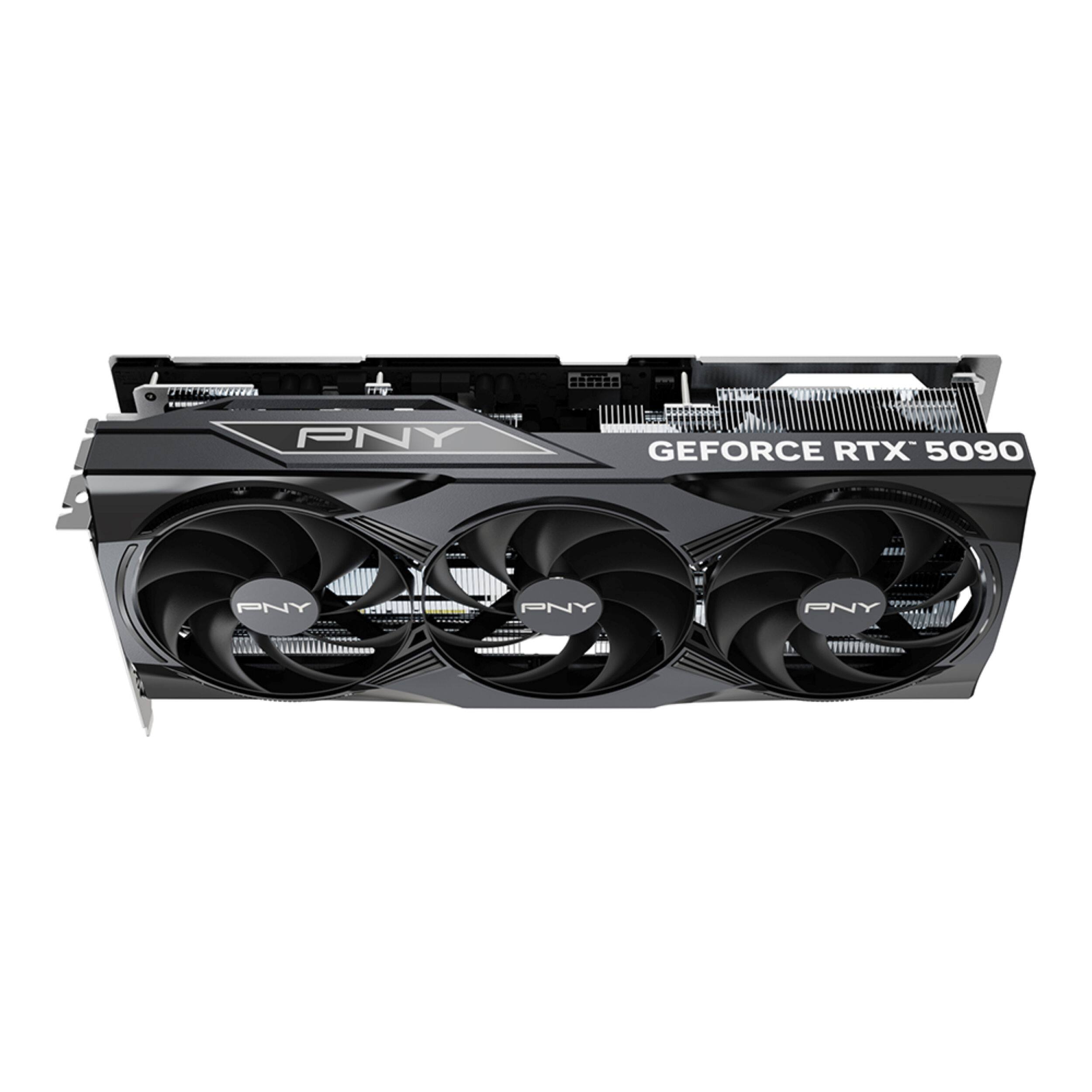

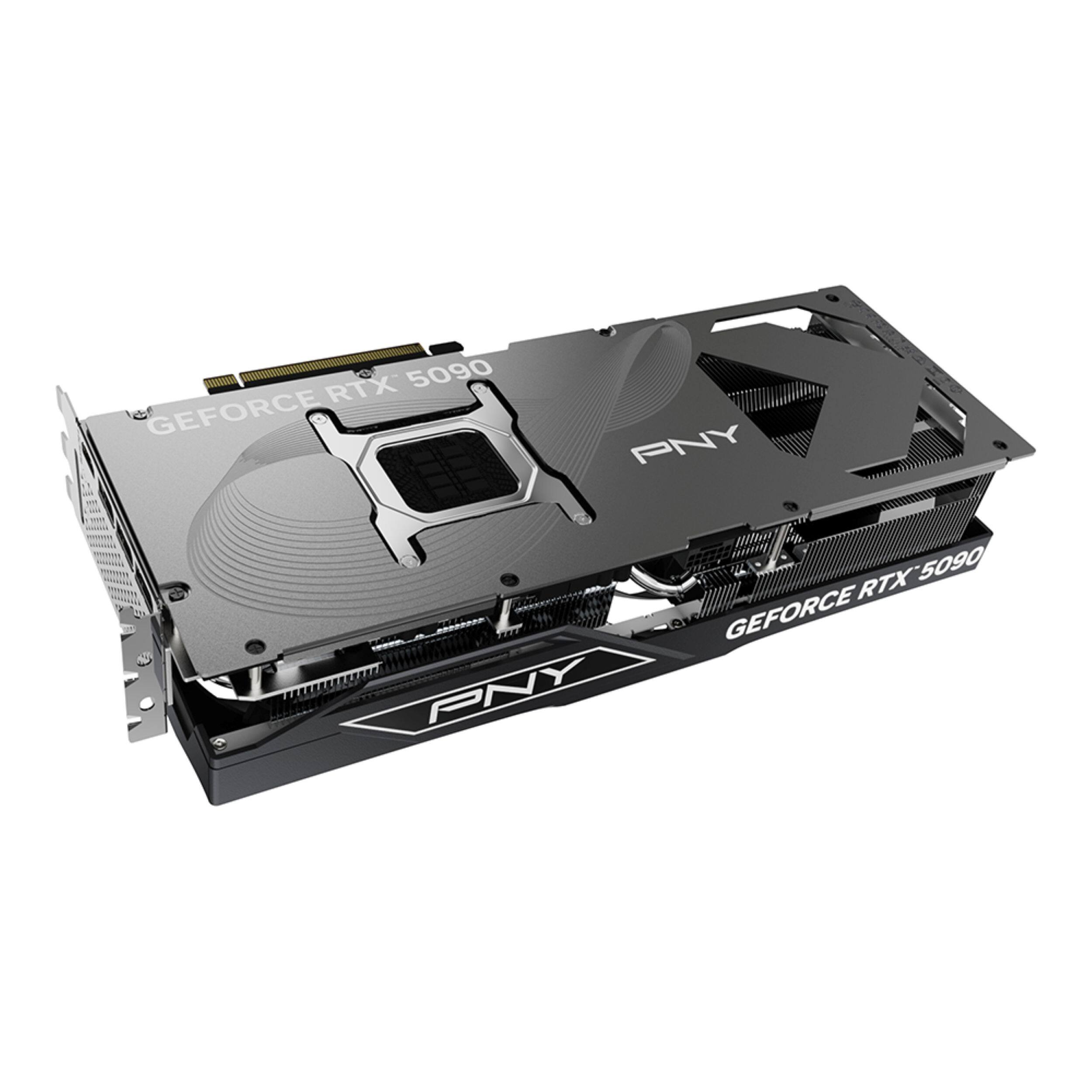

PNY - GeForce RTX 5090 32GB OC GDDR7 PCI Express 5.0 Graphics Card with Triple Fan - Black
Specifications
- GPU Base Clock Frequency2.02 gigahertzGPU Boost Clock Frequency2.41 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMIMaximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.02 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.41 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

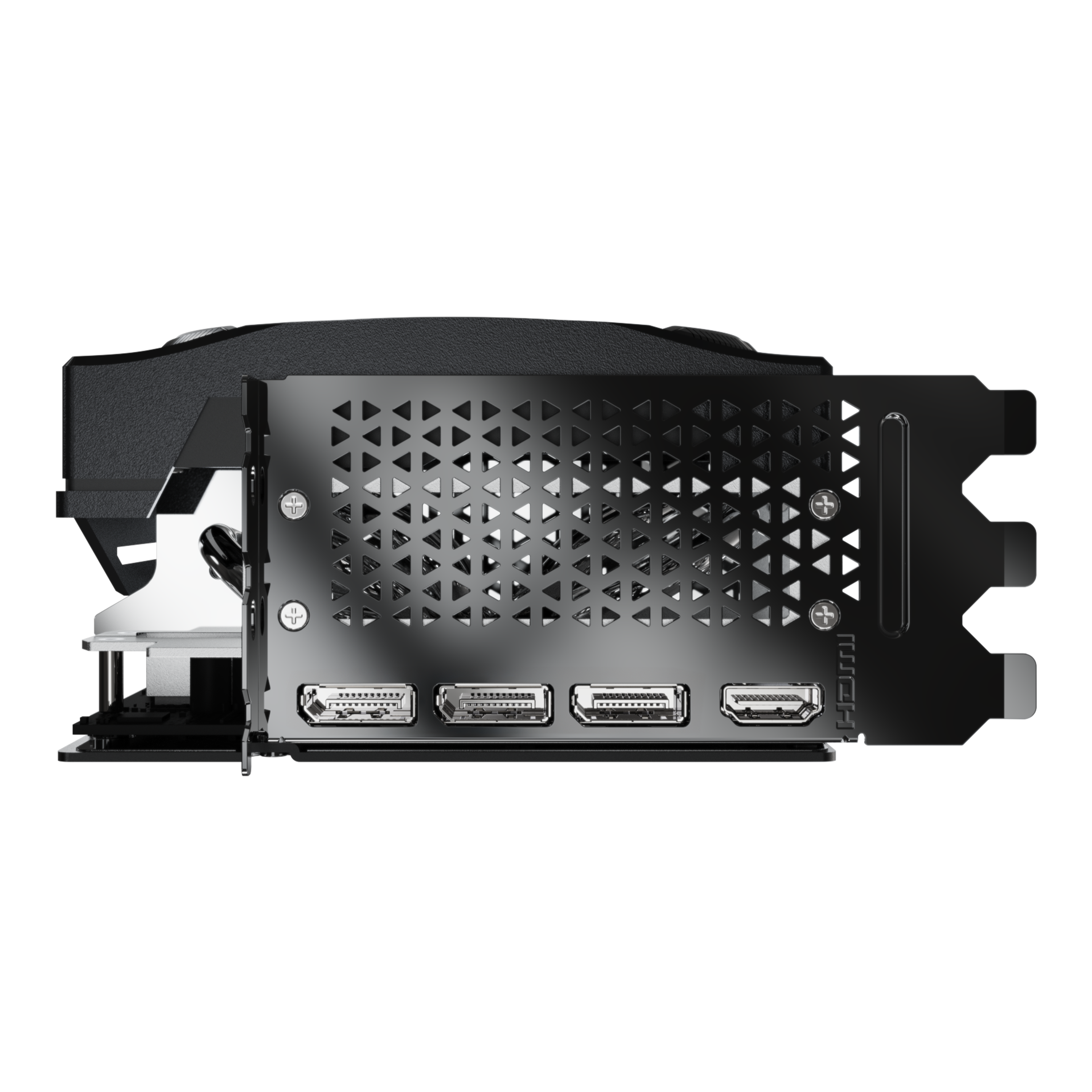

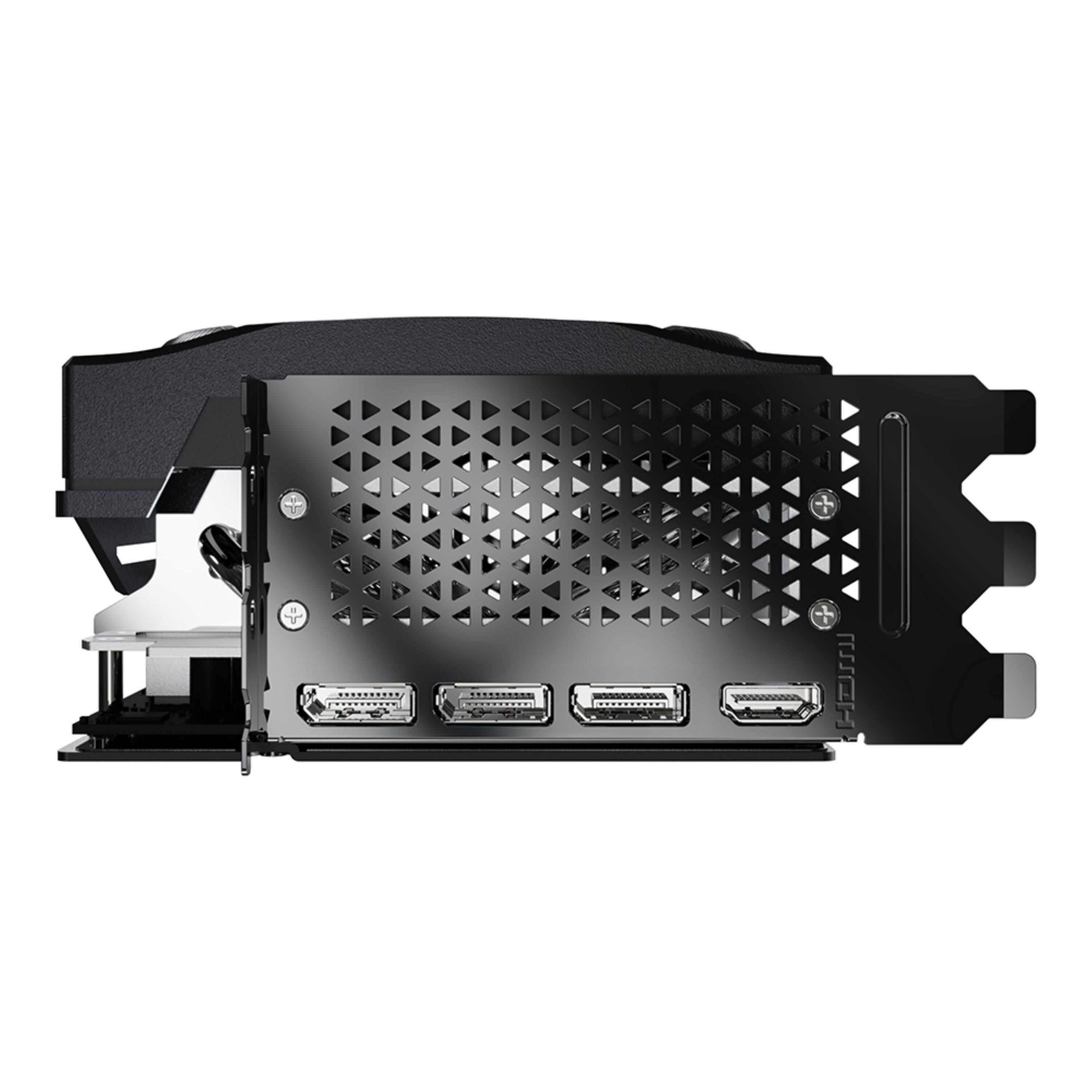

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 2.76 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.5 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 13 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: PNY
- Model Number: VCG509032TFXPB1-O
- Product Name: GeForce RTX 5090 32GB OC GDDR7 PCI Express 5.0 Graphics Card with Triple Fan
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.02 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.41 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

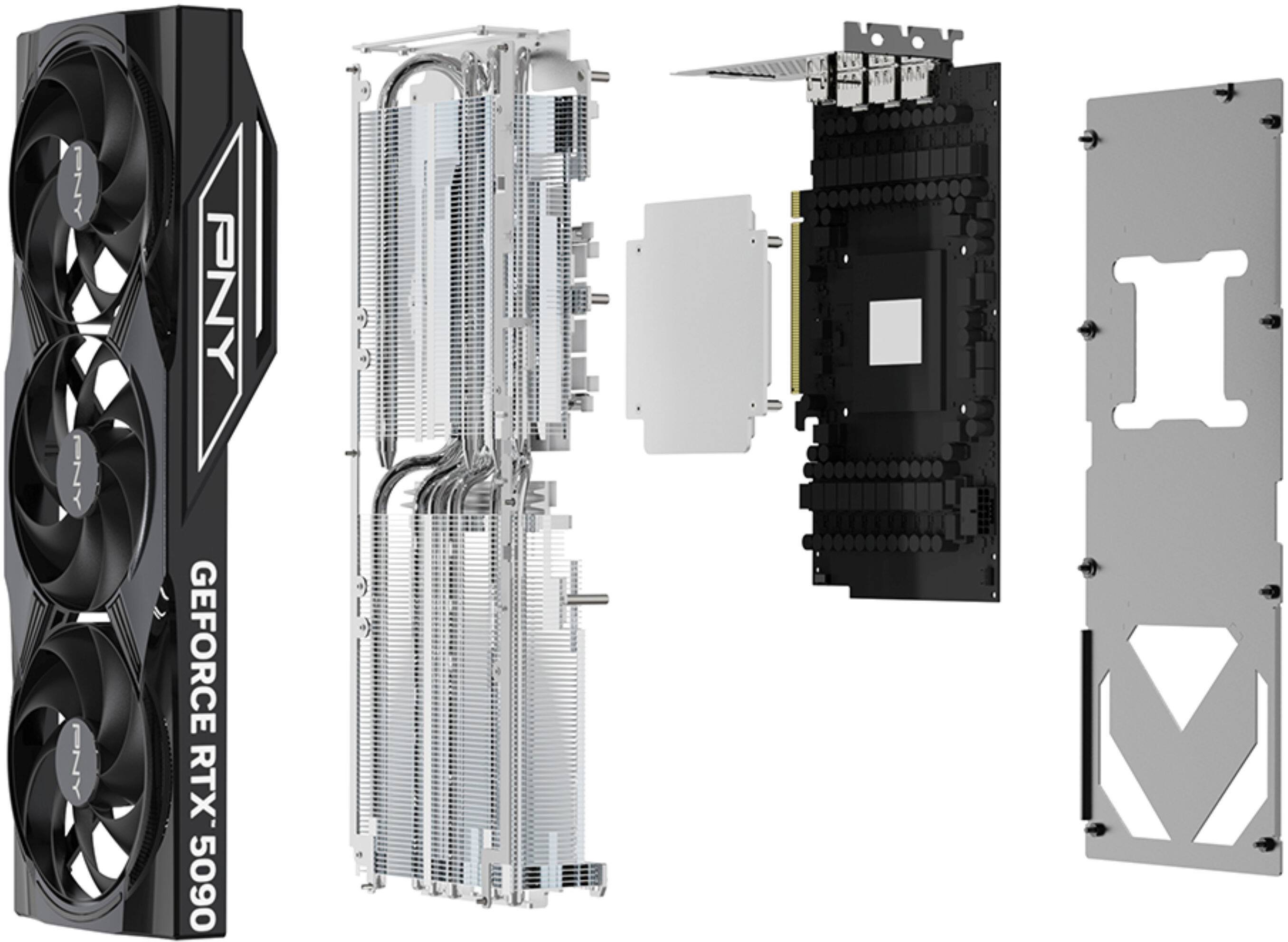

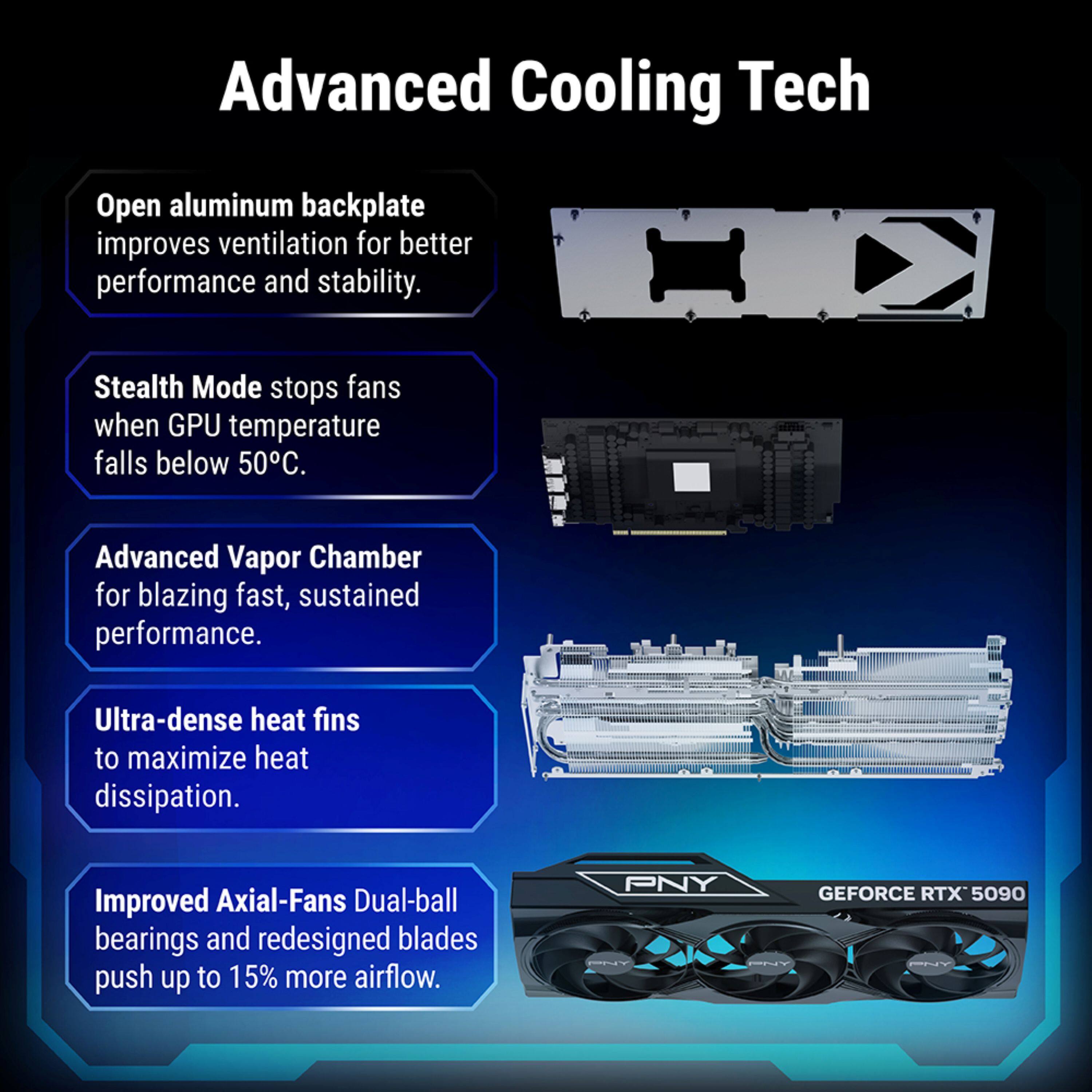

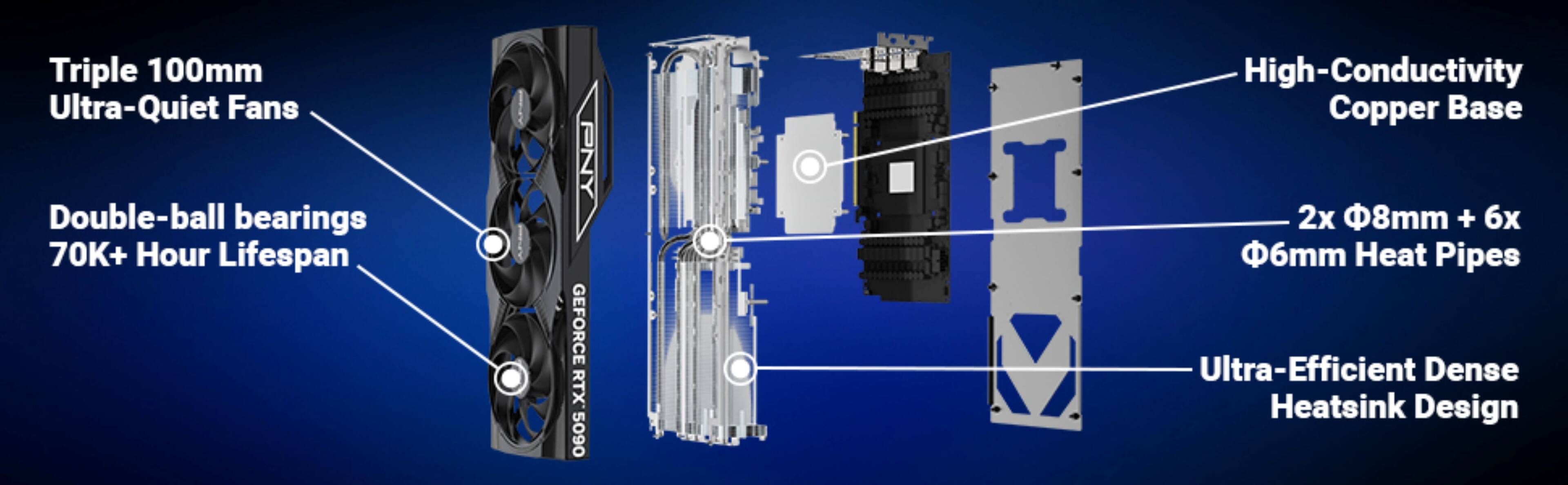

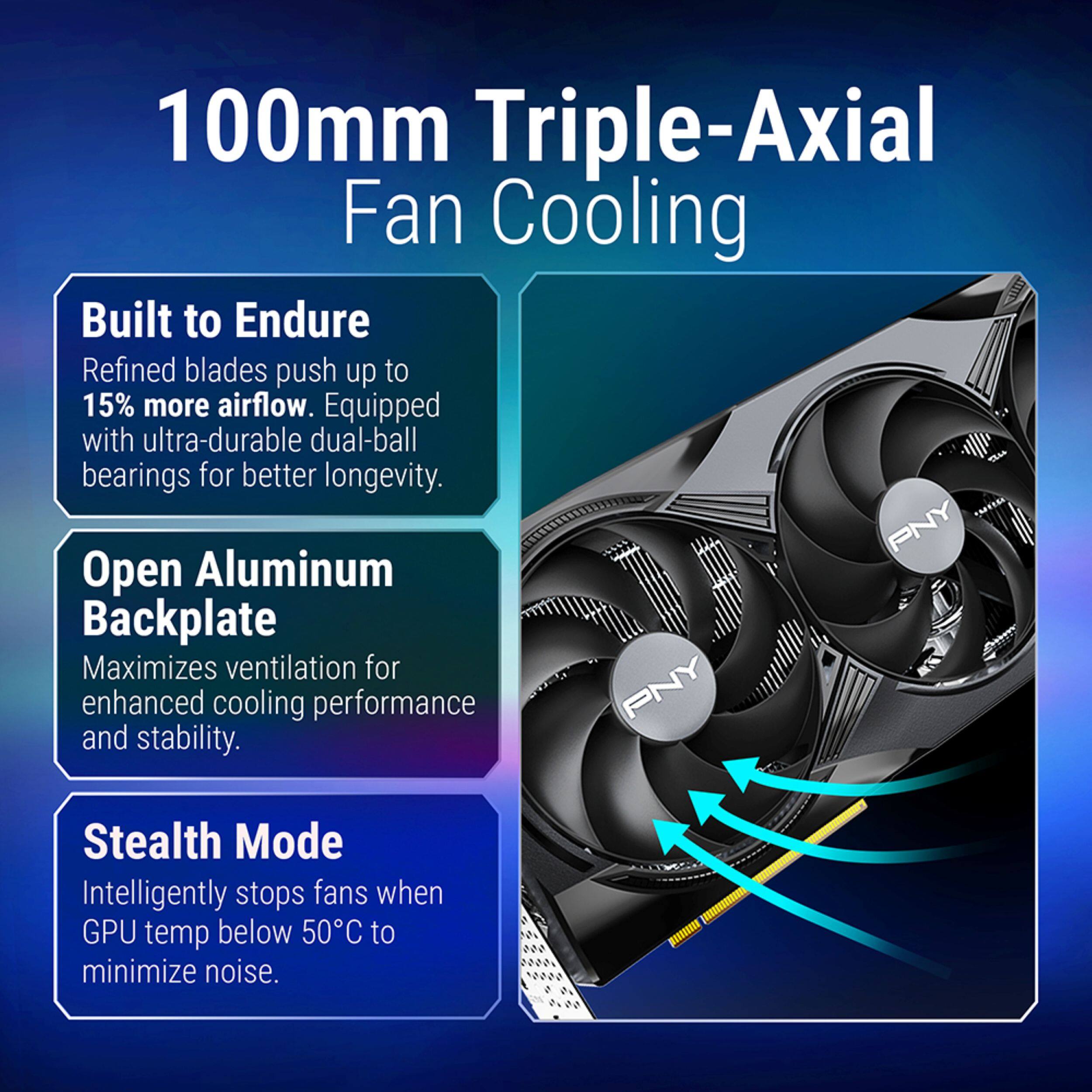

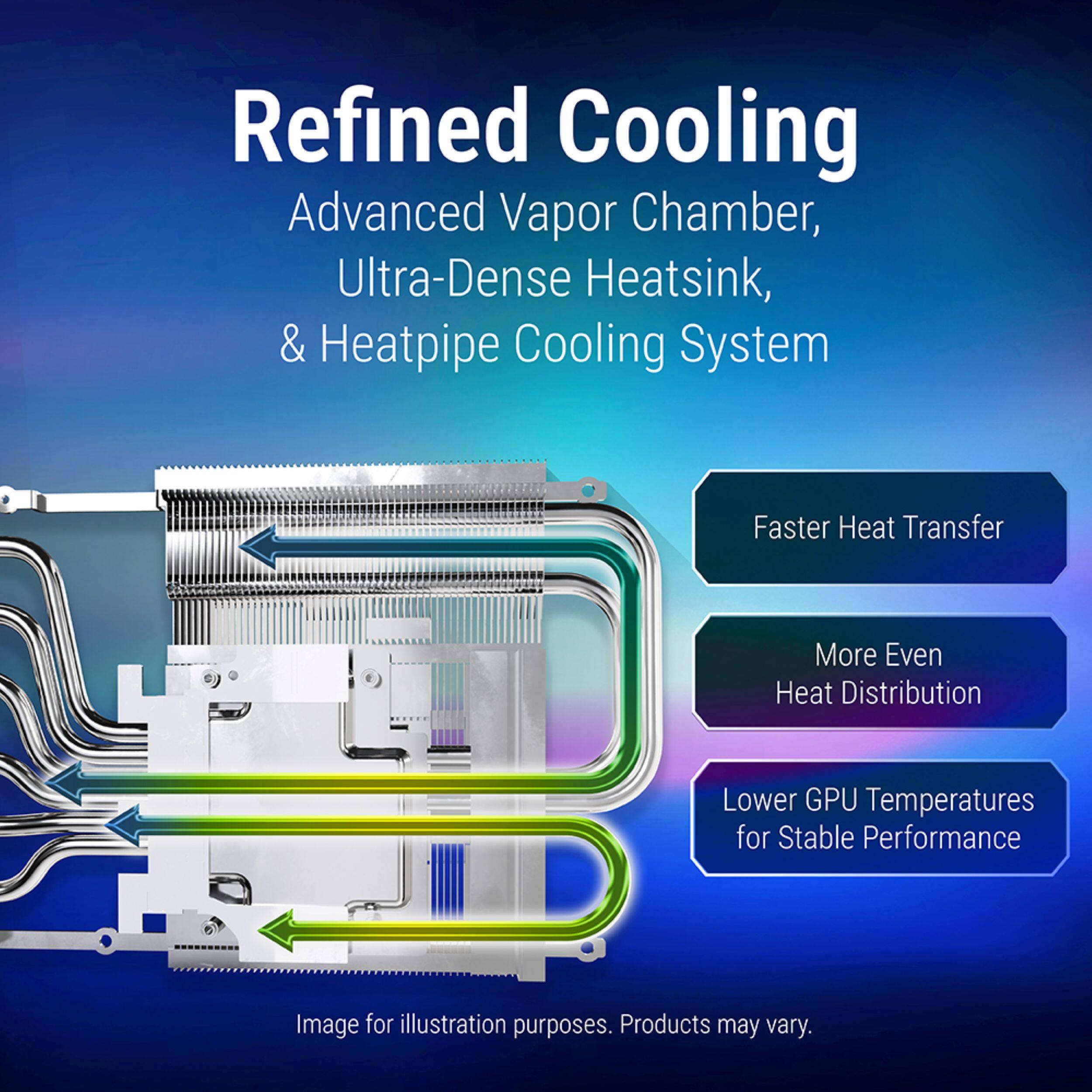

- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 2.29 gigahertz
- Compatibility
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows, Linux
- Power
- Total Graphics Power: 575 watts
- Recommended Power Supply: 1000 watts
- Dimensions
- Product Height: 2.76 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.5 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 13 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.88 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited
- Other
- UPC: 751492794228
The PNY GeForce RTX 50 Series Overclocked line of GPUs will be available in four different configurations: GeForce RTX 5090, RTX 5080, RTX 5070 Ti, and RTX 5070, all powered by the NVIDIA Blackwell architecture, providing enhanced gaming realism, powerful real time ray tracing, and cutting-edge features to accelerate gaming performance.
- NVIDIADLSS4: Supreme speed. Superior visuals. Powered by AI. DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new multi frame generation and enhanced ray reconstruction and super resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores.
- NVIDIAReflex2: Compete at warp speed. Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games.
- RTXAIPCs: NVIDIA powers the world’s AI. And yours. Upgrade to advanced AI with NVIDIA GeForce RTX GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
- Creators: GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
Whats Included

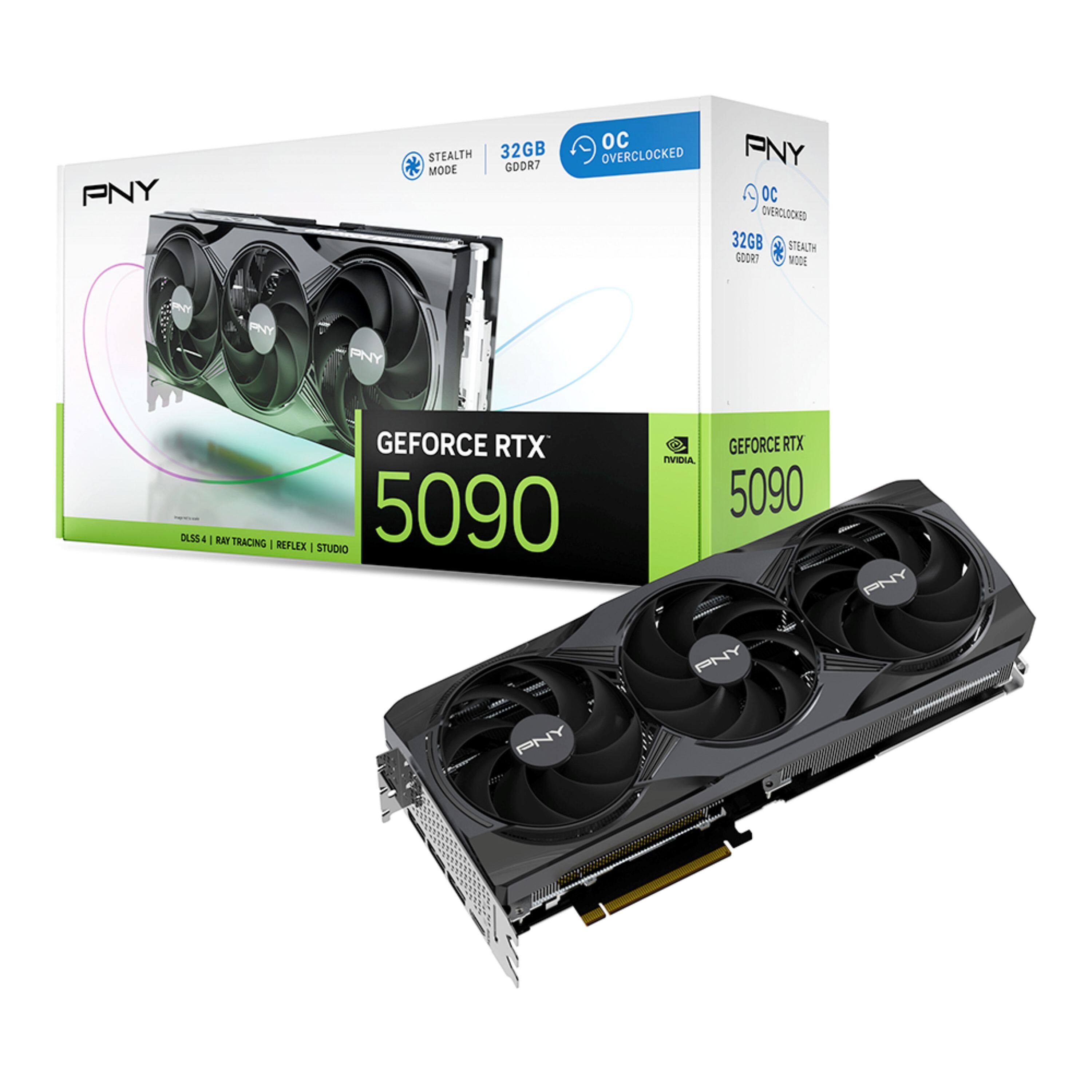

- 1x PNY GeForce RTX 5090 OC Triple Fan
- 1x Auxiliary Cable
Product Manuals
Q: What is the base clock speed of the GPU?
A: The base clock speed of the GPU is 2.02 GHz.
Q: What is the total graphics power of this graphics card?
A: The total graphics power of this graphics card is 575 watts.
Q: What type of cooling system does this graphics card have?
A: This graphics card uses a fan cooling system.
Q: How many displays does this graphics card support?
A: This graphics card can support a maximum of 4 displays.
Q: Which version of PCI Express does this graphics card use?
A: This graphics card uses PCI Express 5.0.
Q: Does this graphics card support DLSS?
A: Yes, this graphics card supports DLSS 4 (Deep Learning Super Sampling).
