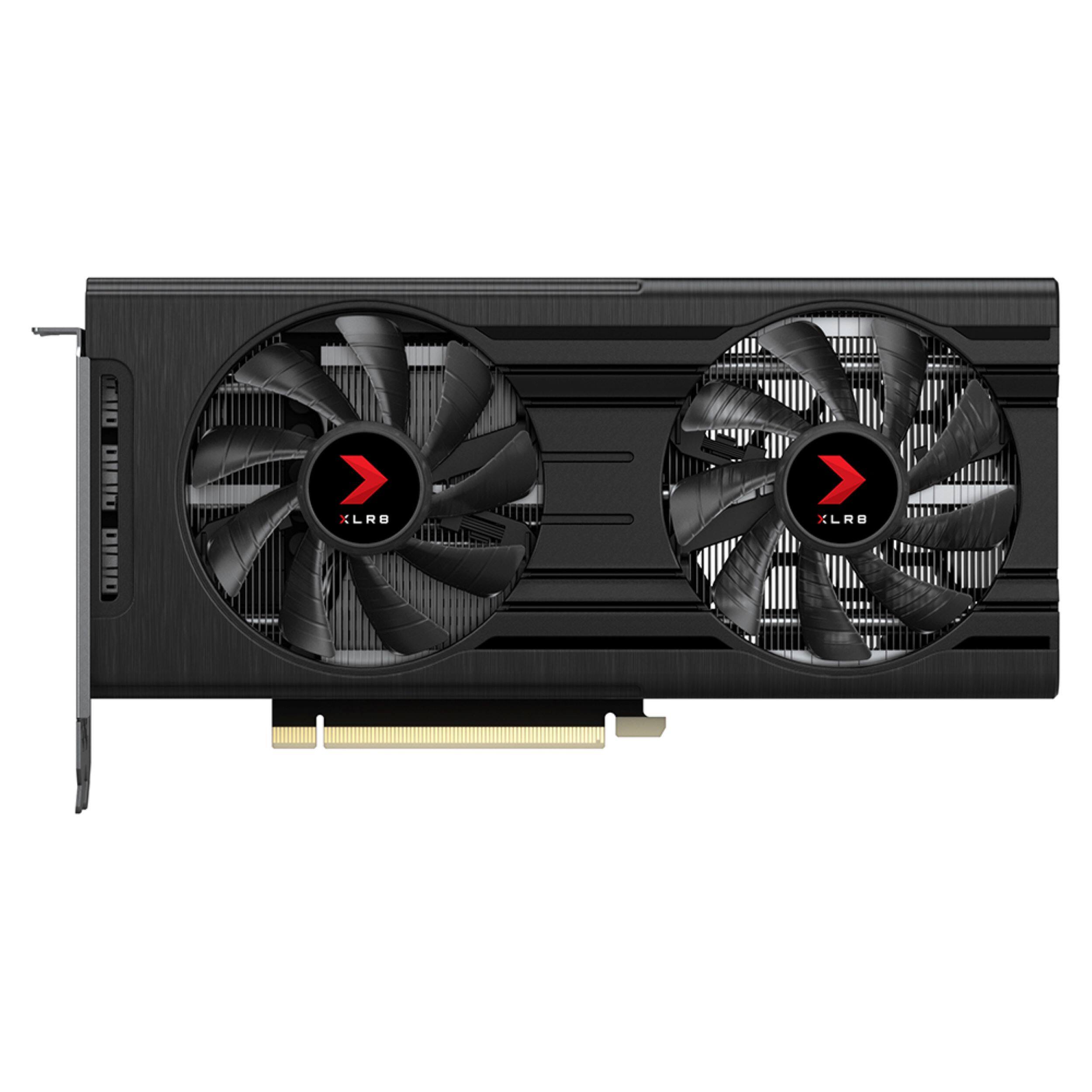

PNY - NVIDIA GeForce RTX 3050 8GB GDDR6 PCI Express 4.0 Graphics Card with Dual Fan - Black
Model: VCG30508DFXPPB
SKU: 6510164
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.552 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.777 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 119 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 245 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3050 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: PNY
- Model Number: VCG30508DFXPPB
- Product Name: NVIDIA GeForce RTX 3050 8GB GDDR6 PCI Express 4.0 Graphics Card with Dual Fan
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3050 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2020
- Performance
- GPU Base Clock Frequency: 1.552 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.777 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: One 8-Pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 14 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: PCI Express-compliant motherboard w/ 1x dual-width x16 graphics slot, 1x 8-pin power connector, 500 W power supply, 1.5GB hard-disk space, 8GB system memory, Microsoft Windows 10 64-bit (April 2018 or later), Windows 11 64-bit, Linux 64-bit, Internet (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Windows, Linux
- Features
- Included Software: GeForce Experience
- Power
- Total Graphics Power: 130 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 119 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 245 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.9 pounds (The out of box weight of the item.)
- Other
- UPC: 751492660394
The NVIDIA GeForce RTX 3050 is built with the powerful graphics performance of the NVIDIA Ampere architecture. It offers dedicated 2nd gen RT Cores and 3rd gen Tensor Cores, new streaming multiprocessors, and high-speed G6 memory to tackle the latest games. Step up to GeForce RTX. The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators. The PNY XLR8 Gaming GeForce RTX 3050 REVEL comes equipped with EPIC-X RGB lighting to level up the graphics card and illuminate the system.
- Graphics processing unit GPU/clock speed: NVIDIA Ampere architecture, with 1552MHz core clock and 1777MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/processing cores/memory bandwidth: 8GB GDDR6 (128-bit) on-board memory, plus 2560 CUDA processing cores and up to 224GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- RGB design: EPIC-X RGB offers brilliant RGB design combined with ultimate performance, taking your PC to the next level.
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort 1.4a and HDMI 2.1 outputs for expanded connectivity.
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
- Graphics processing unit GPU/clock speed: NVIDIA Ampere architecture, with 1552MHz core clock and 1777MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/processing cores/memory bandwidth: 8GB GDDR6 (128-bit) on-board memory, plus 2560 CUDA processing cores and up to 224GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- RGB design: EPIC-X RGB offers brilliant RGB design combined with ultimate performance, taking your PC to the next level.
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort 1.4a and HDMI 2.1 outputs for expanded connectivity.
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
Whats Included
- 1x PNY GeForce RTX 3050 8GB XLR8 Gaming REVEL EPIC-X RGB Dual Fan Graphics Card
- No Additional Accessories
- 1x PNY GeForce RTX 3050 8GB XLR8 Gaming REVEL EPIC-X RGB Dual Fan Graphics Card
- No Additional Accessories
Q: I have a GeForce rtx 2060. Would upgrading it to this rtx 3050 be an upgrade or downgrade?
A: it's probably about the same. i wouldn't bother
Q: Worth upgrading from 1070ti?
A: Yes the speed is great!
Q: Will this fit an AsRock B550M-ITX/ac motherboard?
A: undefined
Q: What are the power requirements?
A: It requires a power supply of 550 watts
Q: Will this fit and work in a Dell Optiplex 3010?
A: do you have the factory motherboard
Q: will this card work in a intel dz77ga-70k motherboard i do have a 600w power supply in it.
A: The Intel motherboard you listed has at least 2 PCIe x16 Gen 2.x slots available to plug the new graphics card into. From a power perspective, the power supply should work but it's going to be dependent on the plugs available, specifically this video card requires an 8-Pin connector.
Q: What are the physical dimensions?
A: undefined
