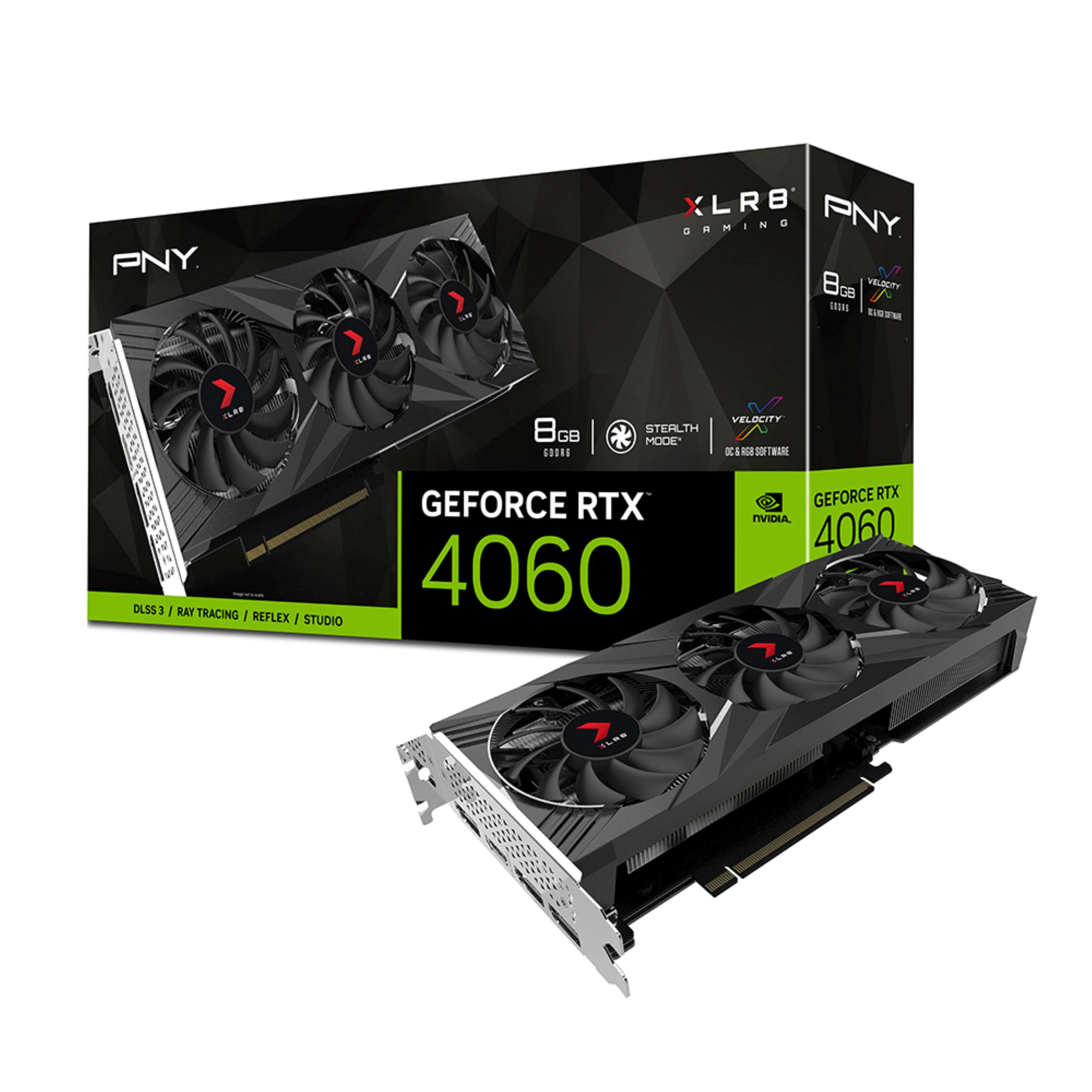

PNY - NVIDIA GeForce RTX 4060 8GB GDDR6 PCIe Gen 4 x16 Triple Fan Graphics Card with Triple Fan - Black
Model: VCG40608TFXXPB1
SKU: 6549563
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 1.83 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.46 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 112 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 260 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: PNY
- Model Number: VCG40608TFXXPB1
- Product Name: NVIDIA GeForce RTX 4060 8GB GDDR6 PCIe Gen 4 x16 Triple Fan Graphics Card with Triple Fan
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 1.83 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.46 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: One 8-pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 17 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: PCI Express-compliant motherboard with one dual-width x16 graphics slot (x8 active), One 8-pin power connectors, 550 W system power supply, Microsoft Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit, Internet connection (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Windows, Linux
- Features
- Included Software: GeForce Experience
- Power
- Total Graphics Power: 115 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 112 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 260 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.29 pounds (The out of box weight of the item.)
- Other
- UPC: 751492778013
NVIDIA GeForce RTX 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration. Game, stream, create. The GeForce RTX 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA® Studio. Featuring electrifying EPIC-X RGB lighting, for the ultimate controllable lighting experience with endless ARGB lighting possibilities. The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
- NVIDIA DLSS 3: Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- Graphics processing unit (GPU)/clock speed: NVIDIA Ada Lovelace, with 1830MHz core clock and 2460MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/Processing cores/Memory bandwidth: 8GB GDDR6 (128-bit) on-board memory, plus 3072 CUDA processing cores and up to 272GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort and HDMI outputs for expanded connectivity.
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
- Connectivity: PCI-Express 4.0 x16 (x8 Active).
Whats Included
- 1x PNY GeForce RTX 4060 8GB XLR8 Gaming VERTO RGB Triple Fan Graphics Card DLSS 3
- No Additional Accessories
A: undefined
Q: Is this compatible with a gigabyte z790 gaming motherboard ?
A: All graphics cards are compatible with all motherboards as long as it has a pci-e slot
Q: Does it work with ddr4 ram?
A: System memory doesn't matter with a graphics card
Q: Dimensions
A: Read the specifications on the product page
Q: How many pins does it require for the power connection.
A: 8 pin power connector
