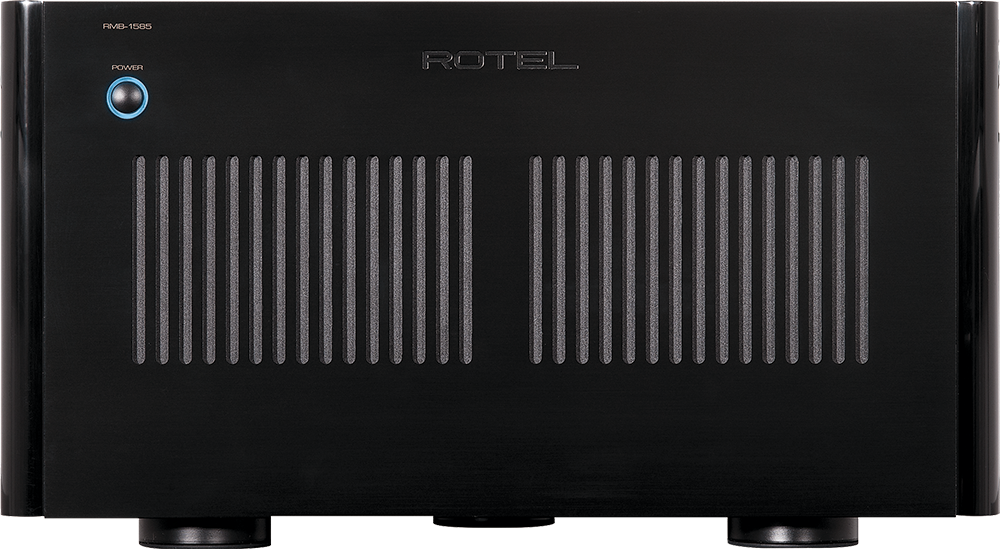

Rotel - RMB-1585 200W x 5-Ch @ 8 Ohms Multi-Channel Amplifier - Black
Model: RMB-1585 Black
SKU: 5708421
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 200 Watts x 5 @ 8 Ohms
- Number of Channels: 5 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Network Connector(s): No network connectors
- Preamp Outputs: false
- General
- Brand: Rotel
- Model Number: RMB-1585 Black
- Product Name: RMB-1585 200W x 5-Ch @ 8 Ohms Multi-Channel Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 200 Watts x 5 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 310 Watts x 5 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 1100 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 5 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.03 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Signal-to-Noise Ratio (SNR): 116 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Sensitivity: 1.9 decibels
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Preamp Outputs: false
- Speaker Connection Type: RCA, XLR
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: true
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Dimensions
- Product Height: 10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 81 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563201110
The pinnacle of performance in Rotel's superb multichannel power amplifier range, the RMB-1585 features 5 x 310 Watts at 4 ohms to drive even the largest home theater speaker systems.
- Class AB Amplification: With five channels, each capable of producing 200 continuous watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.
- High Current Toroidal Transformer: The in-house manufactured toroidal transformer delivers high efficiency, low noise, ultra-stable power with reduced electromagnetic interference to critical amplifier circuits lowering the noise floor and reducing distortion.
- Customizable Input and Output Options: The RMB-1585 makes system connection easy with both single-ended inputs via RCA jacks or balanced connections via three-pin XLR connectors.
Whats Included
- Rotel RMB-1585 Amplifier
- Power Cord
- Manual
Q: What amplifier class does this product have?
A: This product has class AB amplification.
Q: What is the impedance of this amplifier?
A: The impedance of this amplifier is 8 ohms.
Q: What is the signal-to-noise ratio for this amplifier?
A: The signal-to-noise ratio is 116 decibels.
Q: Does this amplifier have balanced connections?
A: Yes, it has balanced connections via three-pin XLR connectors.
Q: Are there cooling fans in this amplifier?
A: Yes, dual cooling fans provide airflow for thermal dissipation.
Q: Does this amplifier have any protection features?
A: Yes, it has thermal and over-current protection.
Q: What is the total harmonic distortion of this amplifier?
A: The total harmonic distortion is 0.03 percent.
