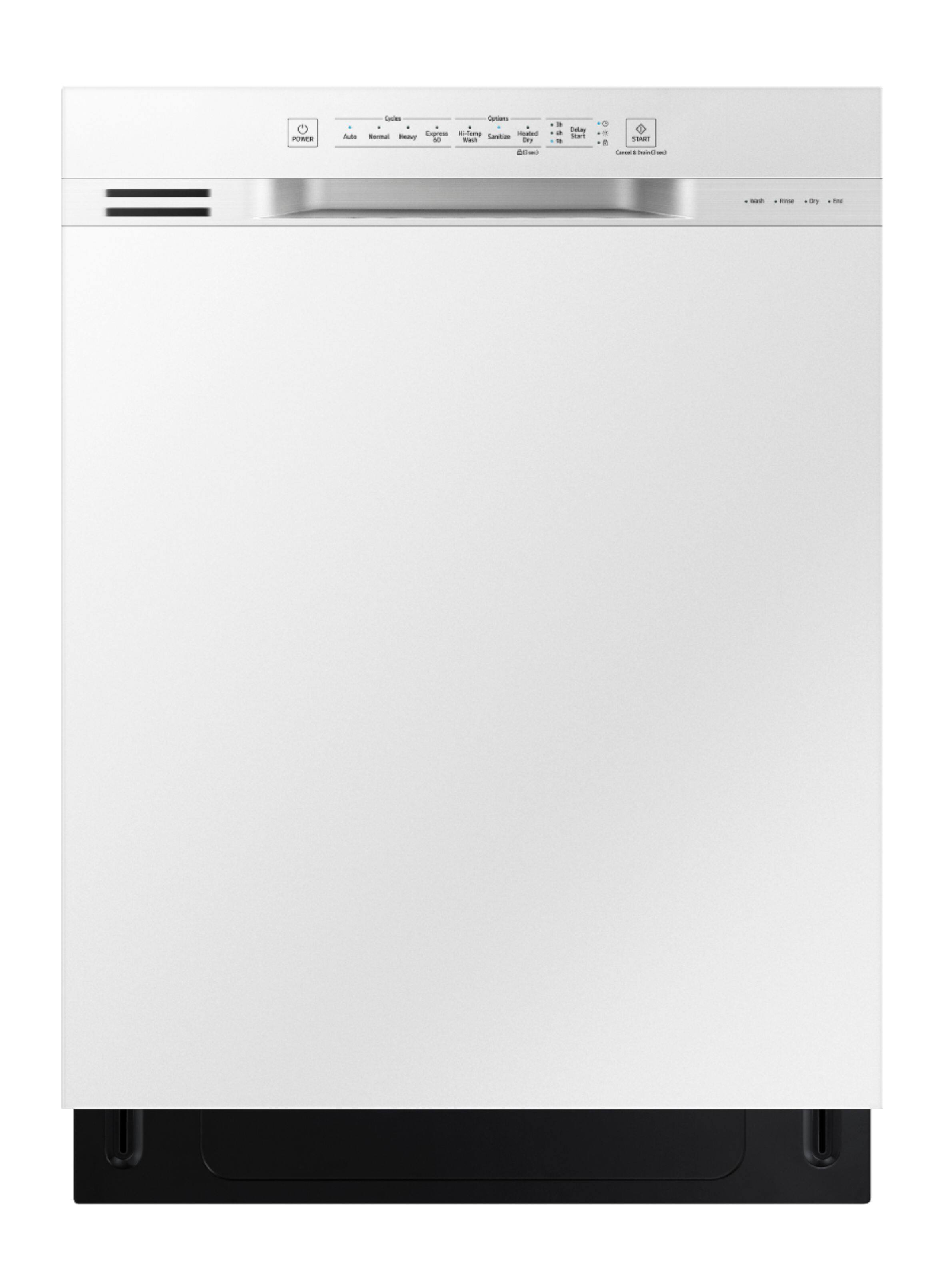

Samsung - 24" Front Control Built-In Dishwasher - White
Model: DW80N3030UW
SKU: 6272933
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 33 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Samsung
- Model Number: DW80N3030UW
- Product Name: 24" Front Control Built-In Dishwasher
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 33 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 66.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Auto, Normal, Heavy, Express 60
- Options and Programs: Hi-Temp Wash, Sanitize (Anti-Bacterial-NSF), Delay Start, Control Lock, Heated Dry
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Removable, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Front control
- Display Type: LED
- Handle Type: Recessed handle
- Fingerprint Resistant: false
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 255 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 36 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 887276269894
The Samsung dishwasher with easy-to-use digital touch controls offers the flexibility of a 3rd rack to easily access and clean more utensils and culinary tools. The upper rack is height-adjustable so that it can easily accommodate dishes of various shapes and sizes. The interior door is made from stainless steel making it more durable and hygienic.
- 3rd Rack: Easily access and clean utensils & culinary tools adding more usable space to your dishwasher.
- Digital Touch Controls: Digital touch controls make it easy to select functions with a gentle touch.
- Adjustable Rack: Height adjustable upper rack makes it easy to accommodate various dishware shapes and sizes.
- Recessed Handle: Recessed Handle offers a modern, sleek design.
- Options for Cleaning: 4 wash cycles and 5 options let you adjust the pressure and temperature.
- Advanced Wash System: Advanced Wash System provides a heavy-duty wash to get pots and pans clean.
- Quiet Clean: 51 DBA lower noise level for quieter cleaning of dishes.
- Stainless Steel Interior Door: Interior door made from stainless steel making it more durable and hygienic.
- Multiple Place Settings: Accommodate 15 place settings, so that you can wash multiple dishes at once
- Digital Leak Sensor: Digital Leak Sensor identifies leaks as small as 2.4 oz and automatically shuts off before water can escape.
- 3rd Rack: Easily access and clean utensils & culinary tools adding more usable space to your dishwasher.
- Digital Touch Controls: Digital touch controls make it easy to select functions with a gentle touch.
- Adjustable Rack: Height adjustable upper rack makes it easy to accommodate various dishware shapes and sizes.
- Recessed Handle: Recessed Handle offers a modern, sleek design.
- Options for Cleaning: 4 wash cycles and 5 options let you adjust the pressure and temperature.
- Advanced Wash System: Advanced Wash System provides a heavy-duty wash to get pots and pans clean.
- Quiet Clean: 51 DBA lower noise level for quieter cleaning of dishes.
- Stainless Steel Interior Door: Interior door made from stainless steel making it more durable and hygienic.
- Multiple Place Settings: Accommodate 15 place settings, so that you can wash multiple dishes at once
- Digital Leak Sensor: Digital Leak Sensor identifies leaks as small as 2.4 oz and automatically shuts off before water can escape.
Whats Included
- Samsung 24" Front Control Built-In Dishwasher
- Owner's manual
- Samsung 24" Front Control Built-In Dishwasher
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Since there isn't a third wash arm, do the items on the third rack get clean?
A: The silverware is separated,layed out on the rack. Since it's not touching in the bins it comes out sparkling. Better than my old kitchen aid. Only issues I have had so far is control panel is very sensitive,power turns on just brushing against it and to install you need to buy an elbow piece that should come with it.
A: I'm a plumber and install these all the time the drain hose has to be installed a certain way for it to drain properly. Need to go high up then down low then into the trap under sink. Essentially it makes a trap in the drain hose so it cant flow back into washer when it's done discharging water. Hope this helped if you need a pic for reference let me know
Q: How many gallons of water is used per wash ?
A: This energy star rated dishwasher uses roughly 3.5 gallons of water per wash, madill22. ^Lo
Q: Why does it say that the power chord is not included?
A: You have to buy separately. Its there way of charging you more money.
A: Plastic plastic plastic... the whole unit is one piece of molded plastic. Very poor quality plastic too.
A: If you hold the heated dry button in for 3 seconds it will lock the panel so no kids can mess with it or will keep it from turning on when you brush by the unit.
Q: Is this dishwasher fingerprint resistant?
A: No, but it matches my other Samsung machines which are the resistant finish. Not hard to wipe off a few smudges, and we don't touch the door except near the controls anyway.
Q: How quiet is this dishwasher?
A: Very quiet. Most of the time we cannot tell when it’s running.
