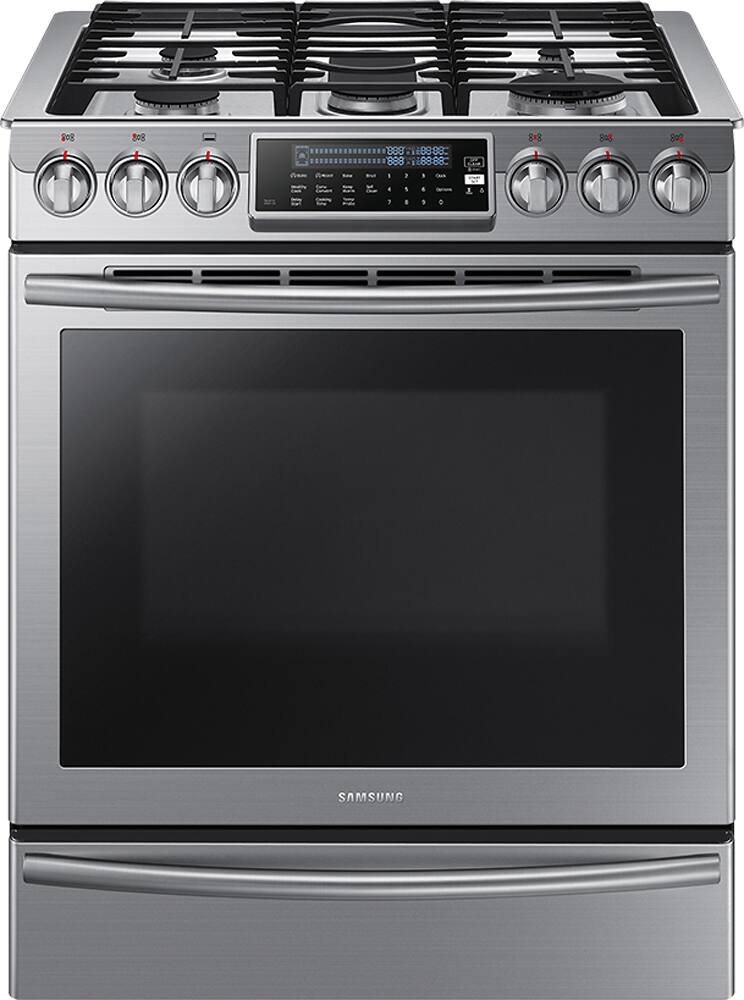

Samsung - 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range - Stainless Steel
Model: NX58H9500WS
SKU: 6062115
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 37 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 13/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 19/50 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 26 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Samsung
- Model Number: NX58H9500WS
- Product Name: 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 37 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 13/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 19/50 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 26 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 202 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: false
- Control Type: Touchscreen, Knob
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Bake, Broil, Roast
- Oven Settings: Delay Bake Option, Keep Warm Setting, Time Bake, Timer, Variable Broil
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Warming (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 0
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Stainless steel
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Integrated (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 18000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 5000 british thermal units
- Burner 4 Rating: 9500 british thermal units
- Burner 5 Rating: 9500 british thermal units
- Broiler Burner Rating: 18000 british thermal units
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 887276032047
Create new recipes every day. This spacious Samsung range is equipped with all the tools you need to expand your culinary skills. The Guiding Light controls, reversible cast iron griddle, custom wok grate, and more, will help you bring variety to every mealtime.
- 5.8 cu. ft. capacity: Prepare multiple dishes at once with 3 oven racks – 2 wire and 1 split, and 5 separate burners. The oval burner fits oversize pots and pans, while the Dual Power burner takes dishes from boil to simmer fast.
- Slide-in design: Get a built-in look. This range appears customized for your cabinetry with its sleek design, no remodeling required.
- Guiding Light controls: Choose your cooking options with the intuitive guiding light controls. Program your favorite recipes, plus easily control temperature, time settings, and more.
- Temperature Probe: Monitor meats and poultry without opening the door. The built-in probe keeps tabs on food’s internal temperature.
- True Convection: Bake and broil with better results. The fan system distributes heat throughout the oven, so your dishes cook faster and more evenly every time.
- Reversible Cast Iron Griddle: Start the day with your favorite breakfast foods, or grill sandwiches anytime. Choose the smooth or ridged surface of this removable griddle, and you’re ready to cook.
- Custom Wok Grate: Mix up a fresh-cooked meal. The grate's circular base heats every inch of the wok for delicious stir fry and more.
- Grate Indicator Marks: Distribute heat evenly. Grate marks on each burner help you place pots and pans in the best spot for well-cooked results.
- Warming Drawer: Keep cooked meals at the ideal temperature. This drawer stores warm food for you until you’re ready to serve it.
- 5.8 cu. ft. capacity: Prepare multiple dishes at once with 3 oven racks – 2 wire and 1 split, and 5 separate burners. The oval burner fits oversize pots and pans, while the Dual Power burner takes dishes from boil to simmer fast.
- Slide-in design: Get a built-in look. This range appears customized for your cabinetry with its sleek design, no remodeling required.
- Guiding Light controls: Choose your cooking options with the intuitive guiding light controls. Program your favorite recipes, plus easily control temperature, time settings, and more.
- Temperature Probe: Monitor meats and poultry without opening the door. The built-in probe keeps tabs on food’s internal temperature.
- True Convection: Bake and broil with better results. The fan system distributes heat throughout the oven, so your dishes cook faster and more evenly every time.
- Reversible Cast Iron Griddle: Start the day with your favorite breakfast foods, or grill sandwiches anytime. Choose the smooth or ridged surface of this removable griddle, and you’re ready to cook.
- Custom Wok Grate: Mix up a fresh-cooked meal. The grate's circular base heats every inch of the wok for delicious stir fry and more.
- Grate Indicator Marks: Distribute heat evenly. Grate marks on each burner help you place pots and pans in the best spot for well-cooked results.
- Warming Drawer: Keep cooked meals at the ideal temperature. This drawer stores warm food for you until you’re ready to serve it.
Whats Included
- 30" Self-Cleaning Slide-In Gas Convection Range
- Owner's manual
- Reversible cast-iron griddle
- 30" Self-Cleaning Slide-In Gas Convection Range
- Owner's manual
- Reversible cast-iron griddle
Product Manuals
A: Honestly I thought it would be a nightmare to clean. Didn't want stainless steel cooktop surface for that reason but I have found it so much easier to clean than I thought. The grill plates (or whatever you call the cast iron that sits over the burners) are easy to clean with soap and water. And the stainless steel surface cleans up much more easily than the black ceran top that my kitchen aide had. That was truly a nightmare to clean. It always looked like it was smudged. So far I am very pleased with the ease of cleanup.
A: The fan is on the whole time that the oven is on, preheat and cooling also. This is a new feature for me, I never had the fan going when the oven is on! I imagine it is supposed to do that! The air comes from the back of the stove because when I have the oven on and have some burners on the air blows the flame from the burners so I use the front burners and put a pan in the way behind the burners I am using, so the flame does not blow around.
Q: Can this stovetop still be used for cooking when the power is out?
A: Hi Jennifer, The cook top burners on Samsung Gas Ranges can be lit manually and used when your power goes out. Thanks for the question, Ms. Samsung
A: Hey there, Missyh. Here is a link that includes some troubleshooting steps to help resolve this issue (http://bit.ly/39NwPZv). We hope you find it helpful. ^Lo
Q: Depth for installing in an island?
A: It fit in my countertop which is 24 inches deep
Q: Does the warming drawer get hot enough to cook in? Like 350 degrees Fahrenheit?
A: The Warming Drawer has three temperature settings: Hi (~194°F), Med (~186°F) and Low (~158°F), and is not designed to cook uncooked foods. Thanks for your interest, Ms. Samsung
Q: Is the touchpad plastic with buttons under it or is it a glass touchpad?
A: Touch pad is glass and easy to clean
Q: what kind of power supply do I need 110 or 220
A: This operates on 110 Volts AC. Just plug it into a regular outlet.
