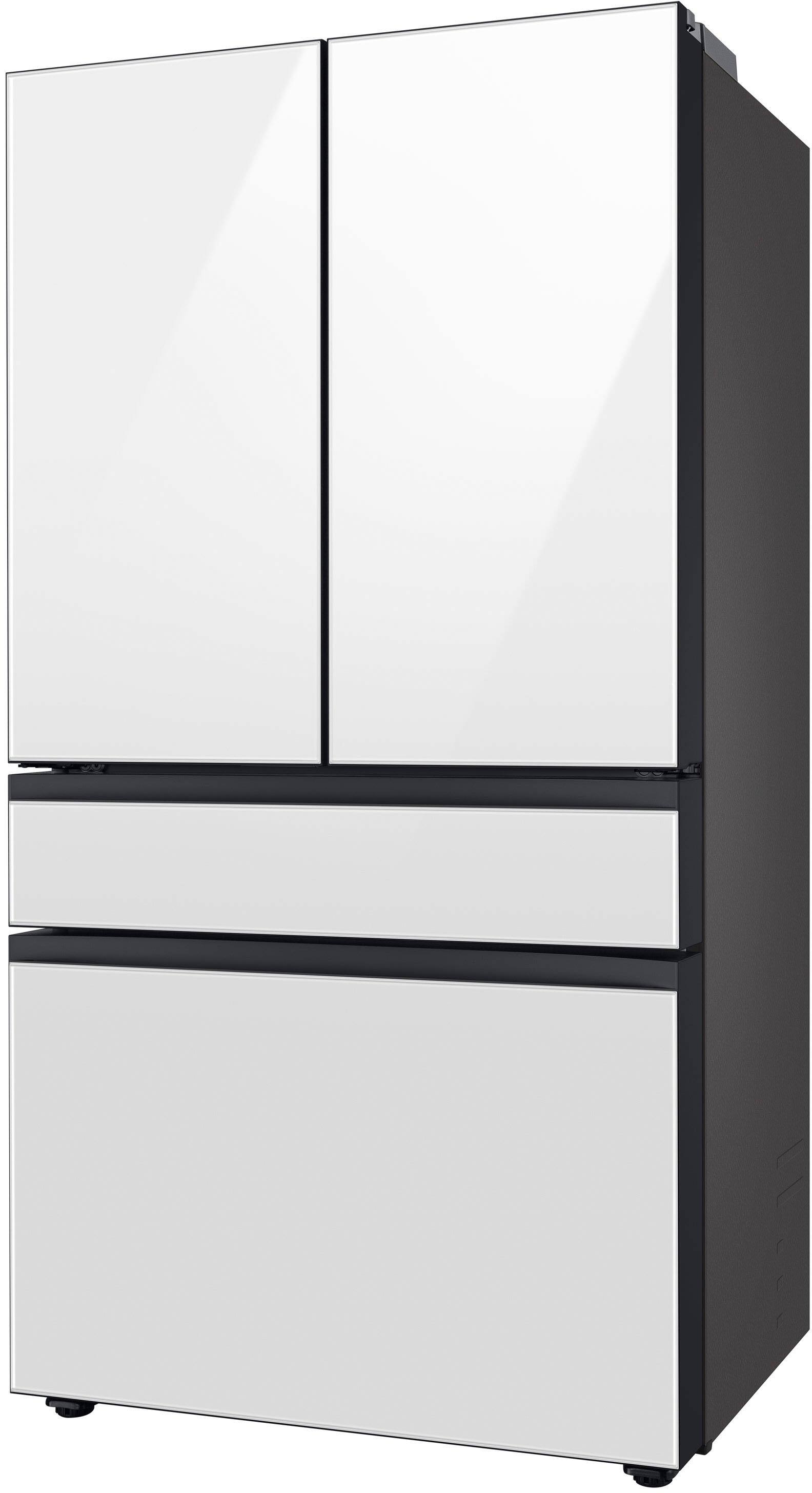

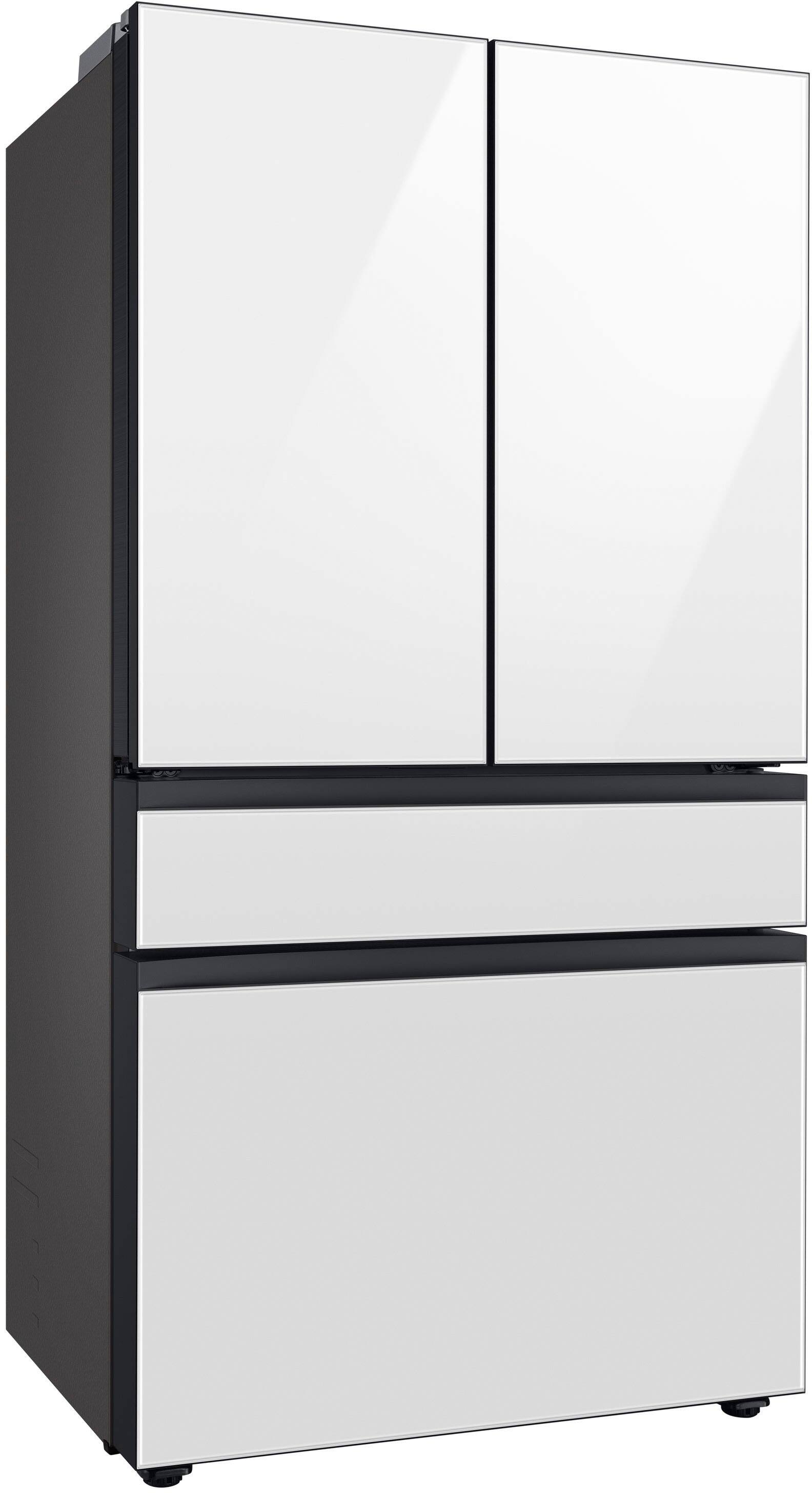

Samsung - BESPOKE 23 cu. ft. 4-Door French Door Counter Depth Smart Refrigerator with Beverage Center - Custom Panel Ready
- Key Specs
- Color Finish: Custom
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 6/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 28 6/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 6/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.8 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Samsung
- Model Number: RF23BB8600APAA
- Product Name: BESPOKE 23 cu. ft. 4-Door French Door Counter Depth Smart Refrigerator with Beverage Center
- Color: Custom Panel Ready
- Color Finish: Custom
- Vendor Collection: Samsung BESPOKE (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 6/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 6/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 28 6/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 6/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 313.056 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 22.8 cubic feet
- Refrigerator Capacity: 13.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.8 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2.5 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 50 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Fingerprint Resistant: true
- Panel(s) Included: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Middle
- Convertible Temperature Zone Range: 23℉ to 41℉
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Daily Ice Production: 5.3 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Water only
- Ice and Water Dispenser Location: Internal
- Dispensed Water Type: Cold Water
- Dispenser Features: Beverage center
- Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Slide-In, Spill proof
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Interior Light: true
- Filter Info

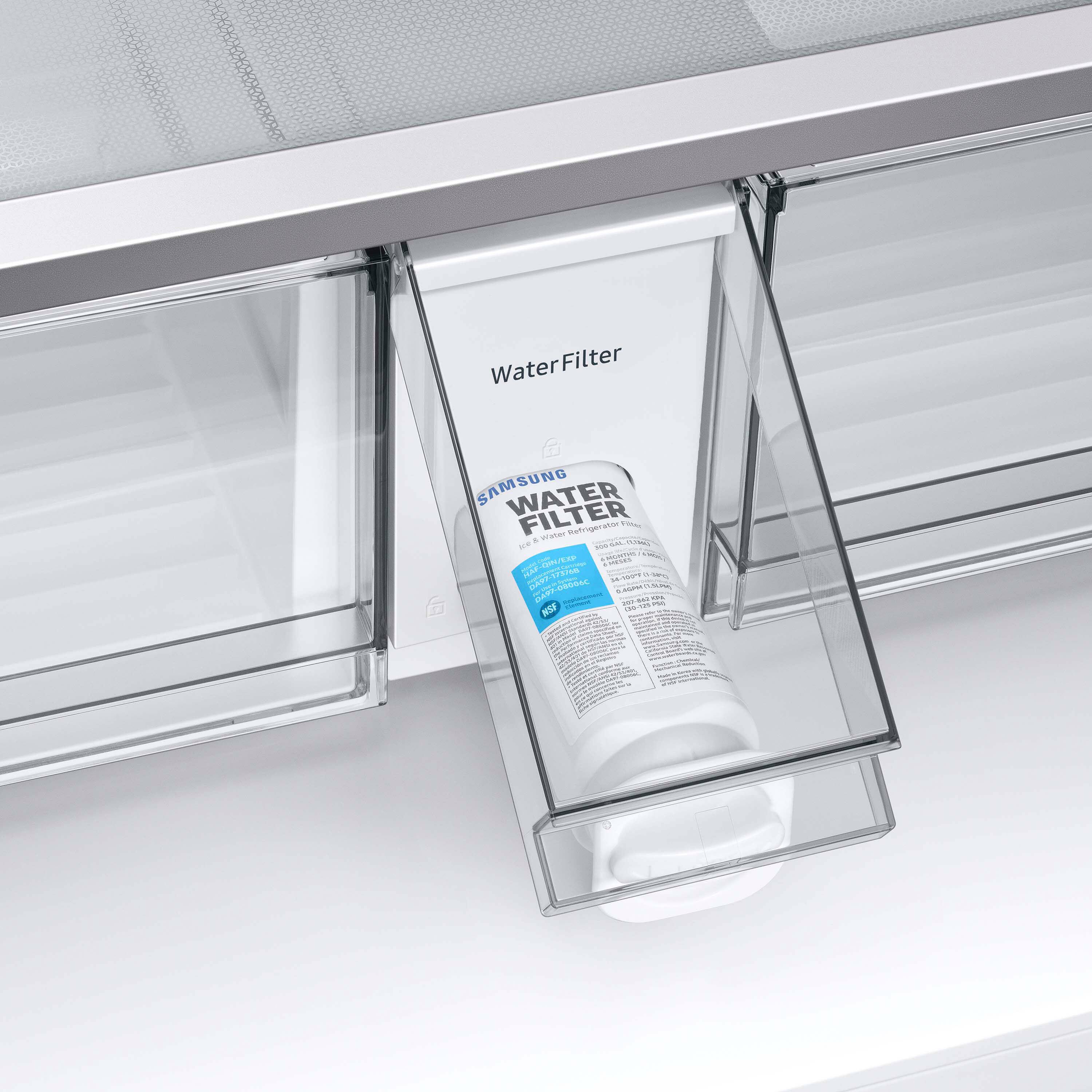

- Water Filtration: true
- Water Filter Model Number: HAF-QIN (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 3.5 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 621 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 87 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276624204

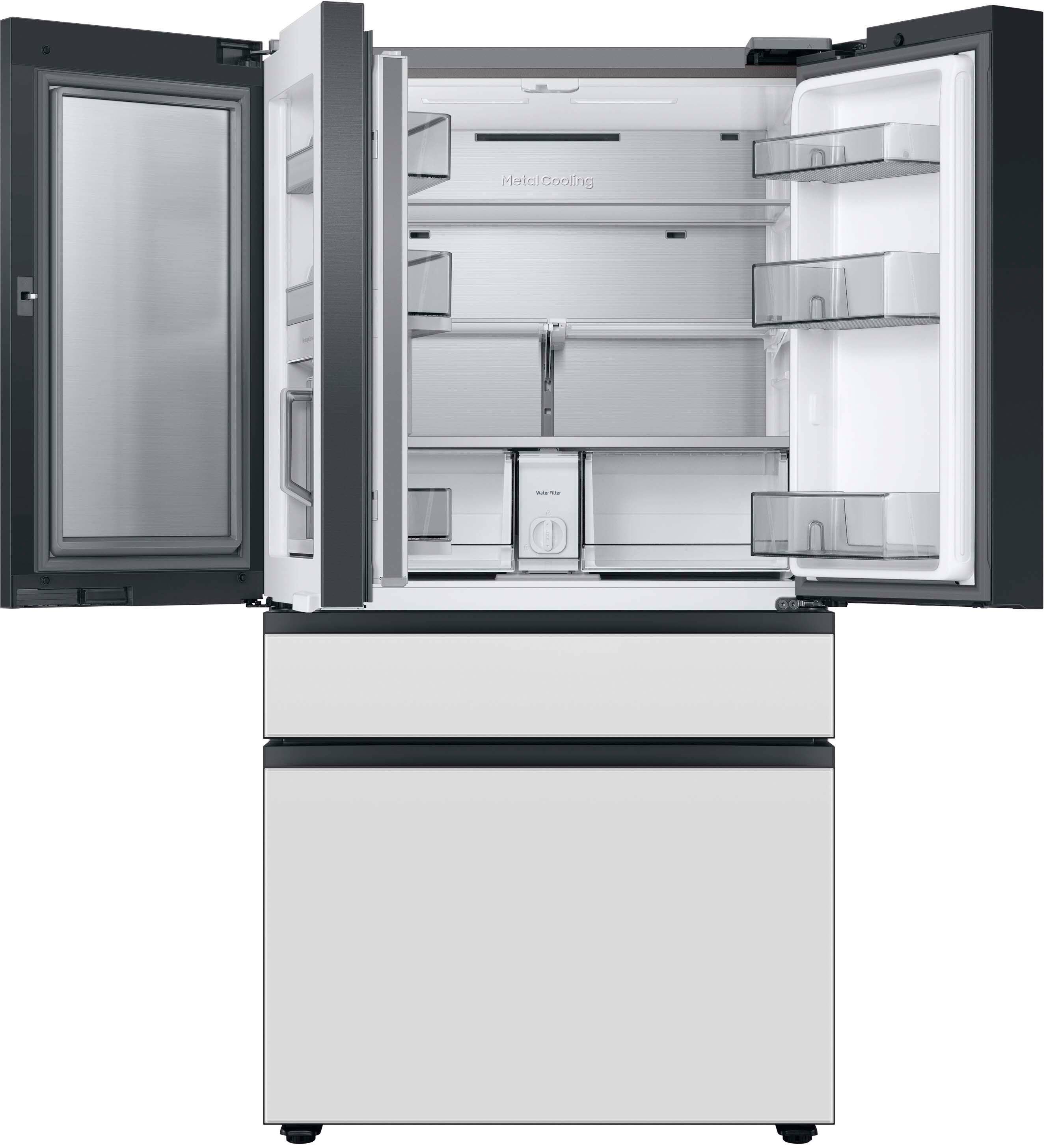

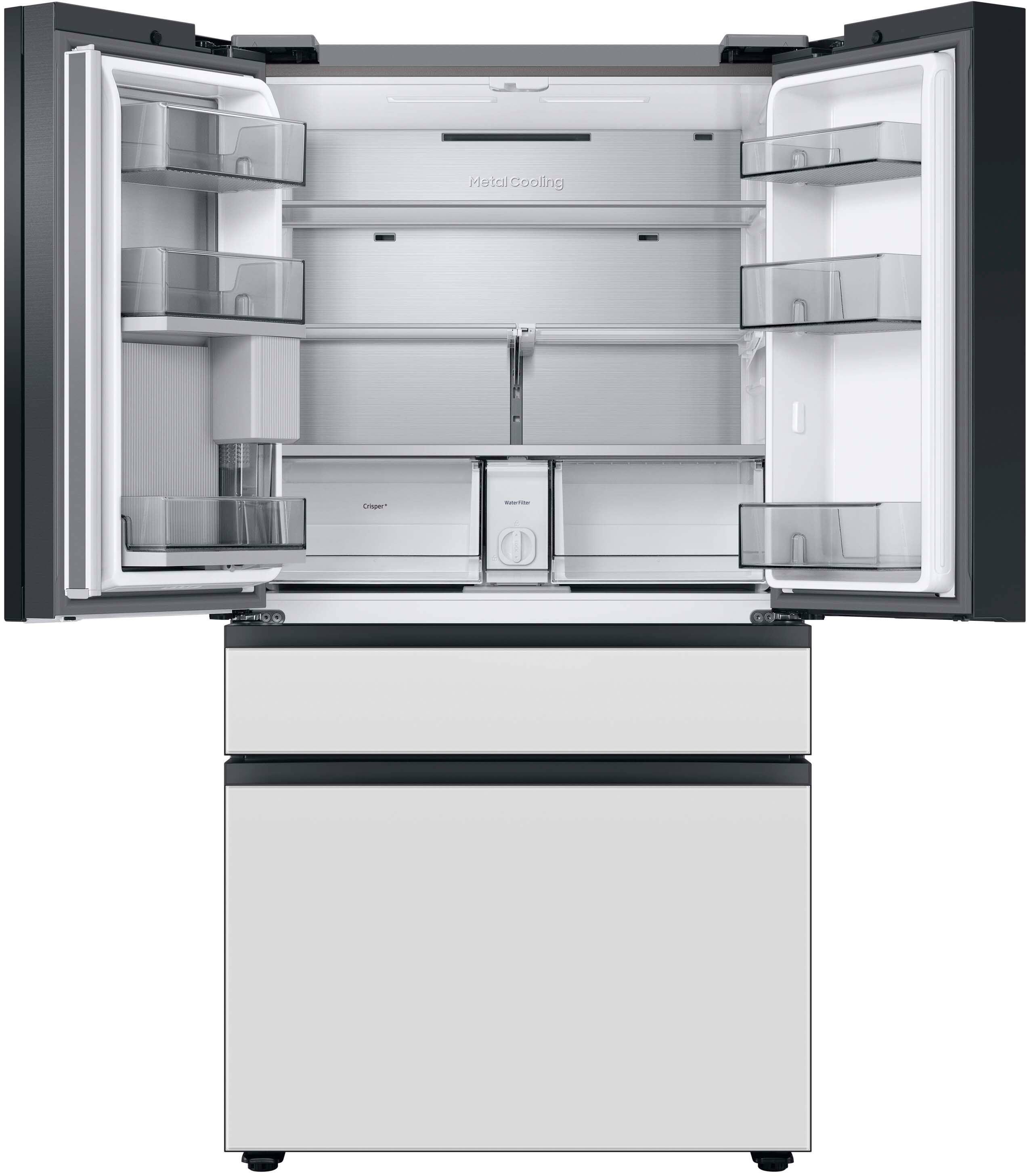

Counter Depth 4-Door French Door Refrigerator with customizable and changeable door panels available in a variety of colors and finishes. A revolution in convenience and design, the concealed Beverage Center features both a water dispenser and AutoFill Water Pitcher. Plus a Dual Ice Maker with cubed ice and Ice Bites.
- Color Customization: Customize the design of your french door refrigerator with changeable door panels. Choose from a variety of colors and two finishes to create a space that fits your style.

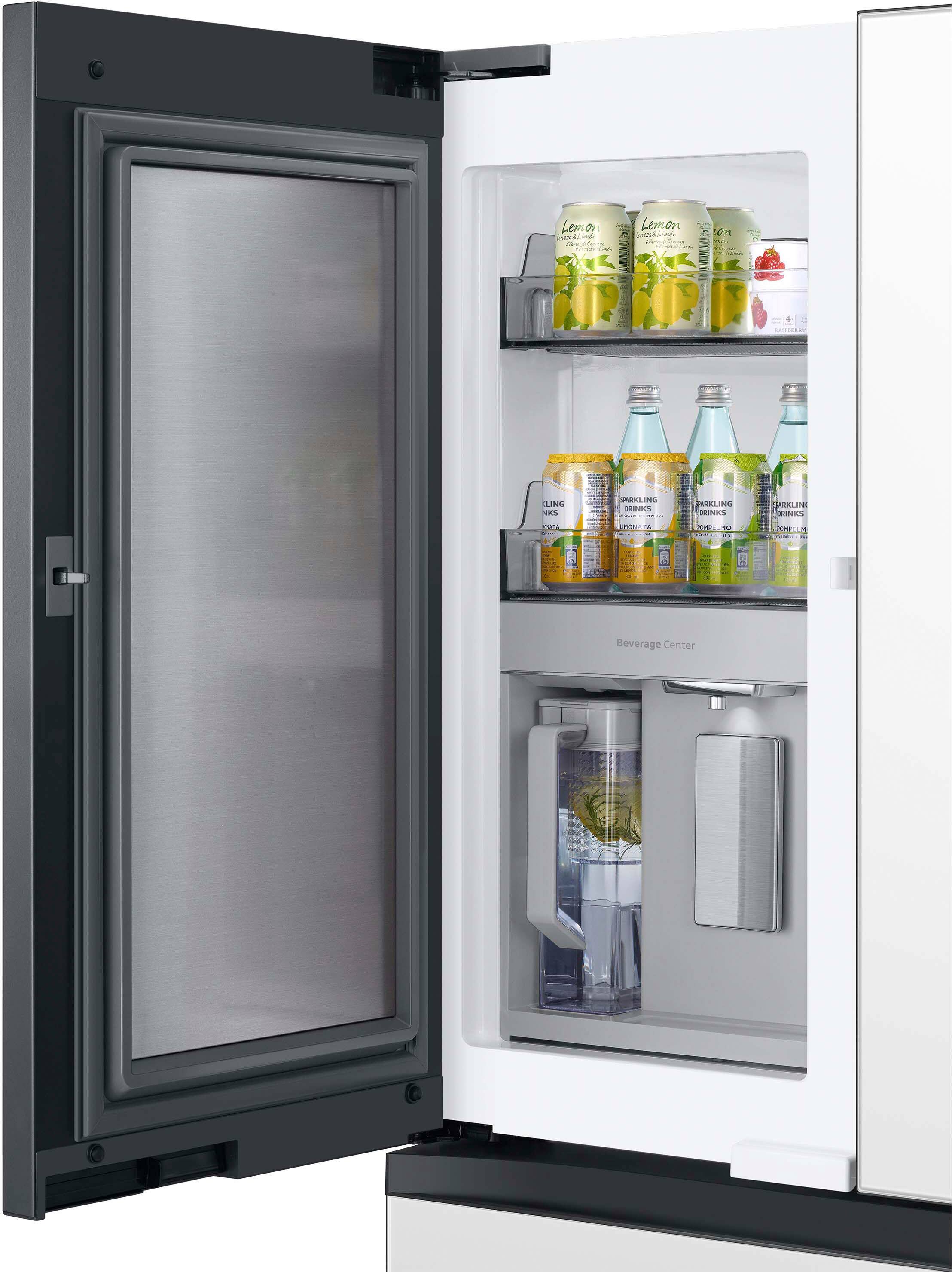

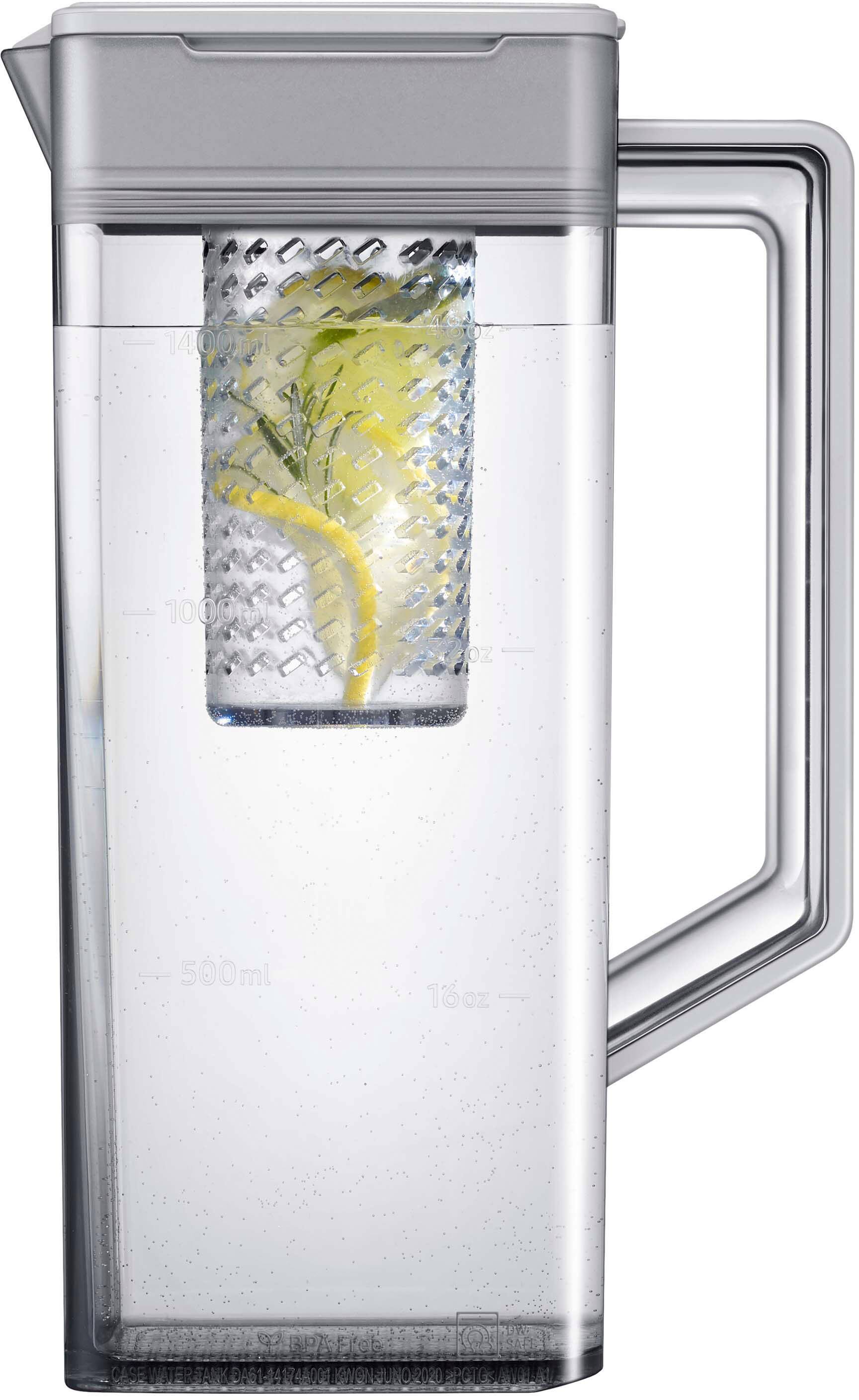

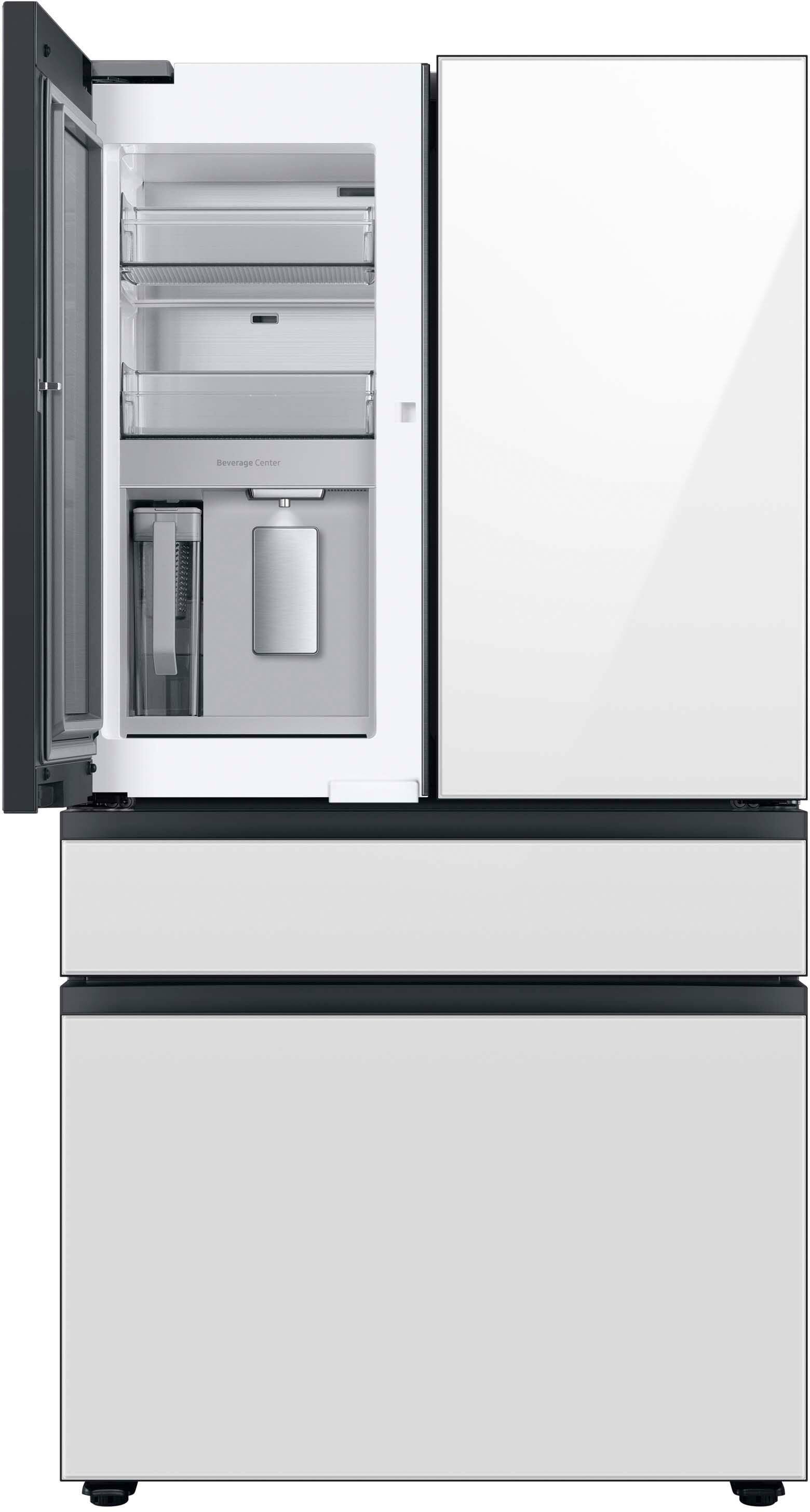

- Beverage Center: Quick access to refreshingly cool, filtered water two ways. Choose from an internal dispenser or a built-in pitcher that automatically refills, with the option to infuse with a flavor.
- Dual Ice Maker with Ice Bites: Enjoy your favorite beverage with your choice of ice. Select from cubed ice or Ice Bites that chill your drink faster
- FlexZone Drawer: The FlexZone Drawer is customizable with 5 different temperature settings. From french door refrigerator to soft freeze, this middle drawer can store everything from fruit and vegetables to your favorite meat & seafood.

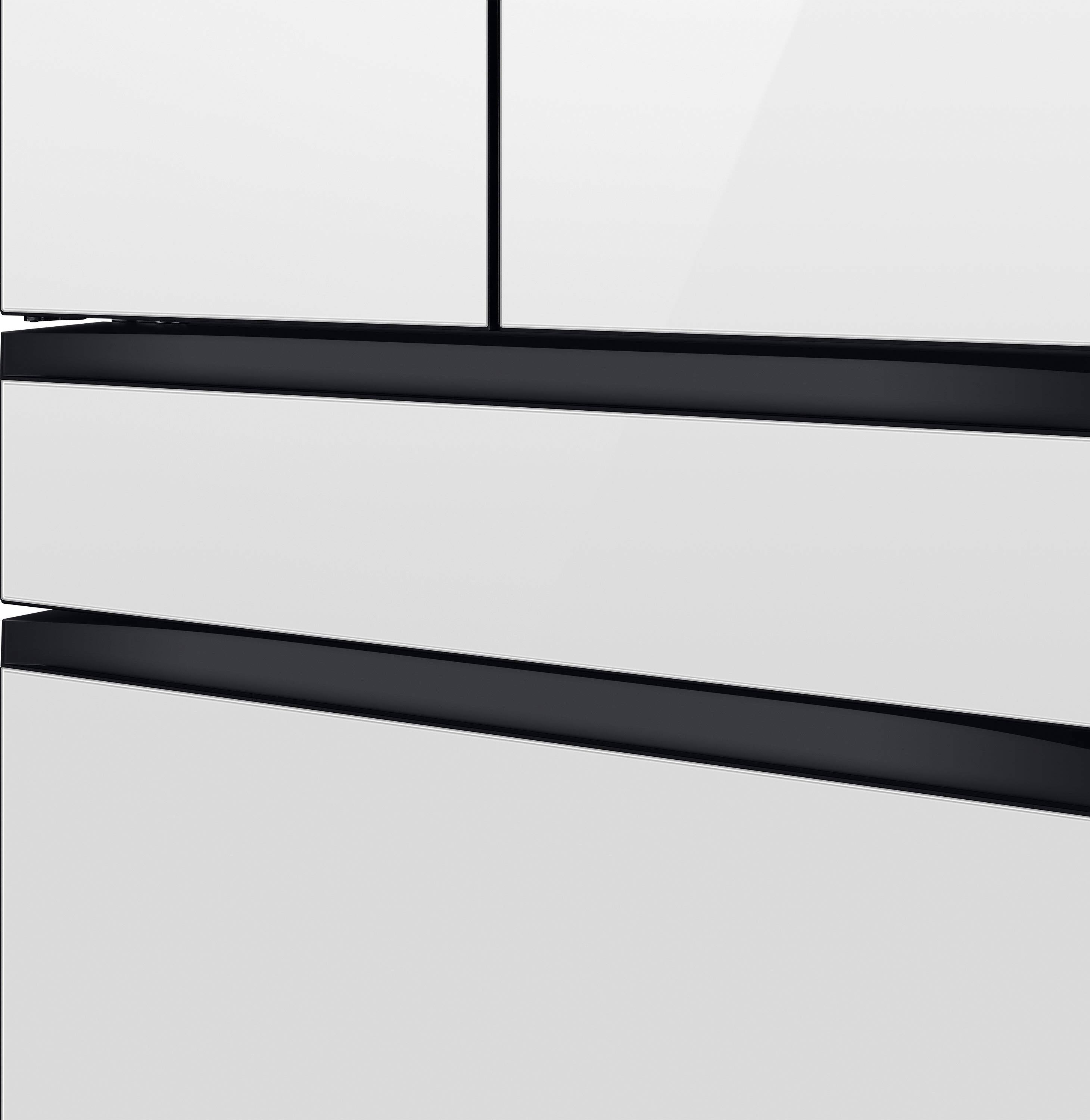

- Modern Design: Flat Panel door design with easy-to-open recessed handles blends into your cabinetry to give you a modern built-in-look.
- Large Crisper Drawers: Two large drawers that are perfect for storing fruits and vegetables.
- Twin Cooling Plus: Independent fridge and freezer controls keep food fresher longer.

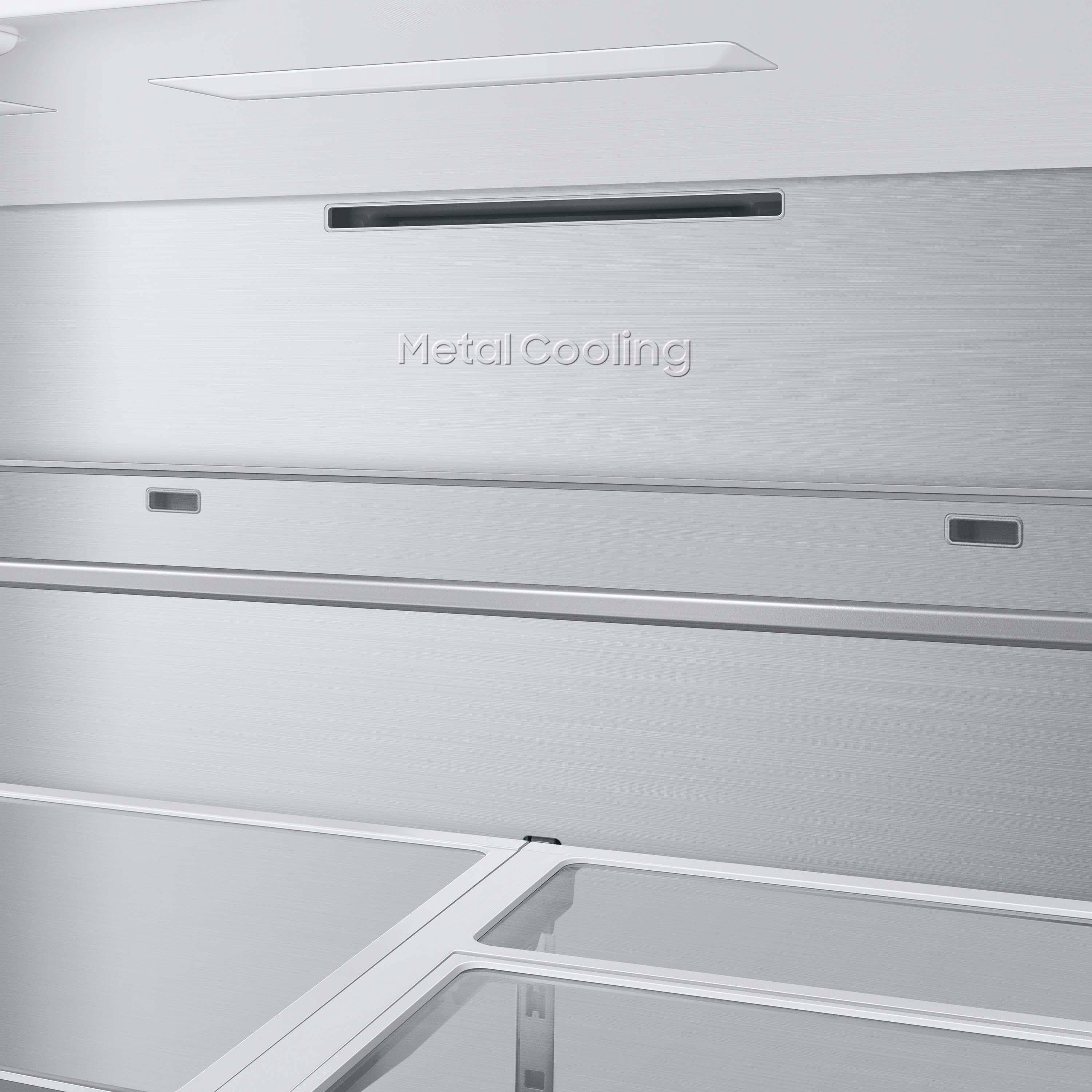

- Metal Cooling: The stainless steel paneling helps maintain consistent temperature throughout the refrigerator
- Wi-Fi Connectivity: Use the Samsung SmartThings App¹ on your smartphone to control the temperature of your refrigerator and monitor it remotely.
- ADA-Compliant Display: ADA-Compliant Display Easy-to-reach controls for everyone.
Product Manuals
Documents
- Energy_Guide_PDF
Q: What is the difference between AutoFill Pitcher, and Beverage Center? Is it worth $400 more. Thanks!
A: Hi heyjmk, Thank you for your question about the difference between the AutoFill pitcher model and the Beverage Center model. The main difference is that the Beverage Center has a Door-in-Door feature and a water dispenser. The door allows you access to the Autofill Pitcher, water dispenser, and other beverages without opening the main french doors. This helps the refrigerator keep the cool air in, and lesser hot air goes into the main fridge area. The AutoFill Pitcher model does not have this Door-in-Door feature. Leo
Q: Can you change the panel colors out on this model that comes in stainless?
A: The answer provided above is incorrect. You absolutely can change the stainless panels on this model to a different color of your choosing! All BESPOKE refrigerators have the capability to have their panels swapped; it does not matter if it's a 3-Door, 4-Door and 4-Door Flex model. If it is branded as BESPOKE the panels CAN be changed.
A: We store 4 gallons of milk in it Also out litre juice bottles It did force us to take stock of the sauce and pickle and mustard bottles The middle draw works well The water station for us is excellent The freezer is tight for space and is limited with a half partition Overall I’d say it’s the best fridge we have had Hope that helps
A: Hi NotAnIceQueen, We understand your question about the ice maker and whether it can be turned off and if the space for the ice maker can be used for something other than ice. You can turn the Ice Maker on or off. Head over to the control panel located inside the fridge on the right side. Press the ice maker button until the cubed ice on and ice bites on indicator are turned off. You may also just select cubed ice instead of ice bites so one compartment of the ice bucket can be utilized for ice and the other for food. As a general rule, if the light indicators for Cubed Ice On and Ice Bites On are lit, they are in operation. Leo
A: Most importantly, note that the installer can not do anything but bring the refrigerator in your house. He can't disconnect the water line on your old fridge or hook up the line on your new fridge. I just learned this the hard way in spite of what I had in writing from my order and the fact that I joined Total Tech which was supposed to provide extra services.
Q: Can you change water filter without turning off water supply?
A: Hello there, No, turning off the water supply first when changing the water filter in your fridge is recommended, as there may be some water pressure build-up. Have a great day. -John
A: It is located in the freezer. The beverage Center, which contains the water dispenser, and optional auto refill picture, is located in the left door
A: Yes, the refrigerator can be used without the panels.
