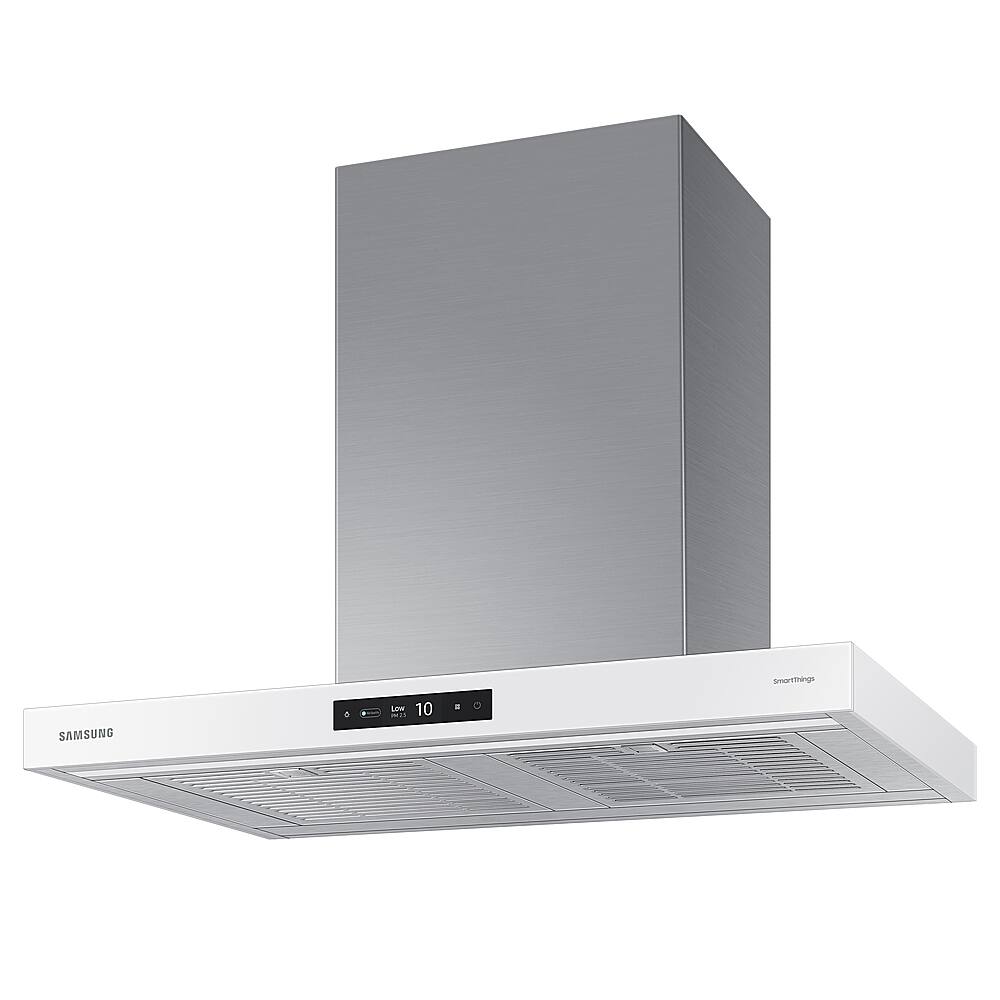

Samsung BESPOKE - 29 inches - Convertible - Wall Range Hood - White
- Key Specs
- Color Finish: White
- Product Height: 25 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Samsung
- Model Number: NK30CB700W12AA
- Product Name: 30" BESPOKE Smart Wall Mount Hood
- Color: White
- Color Finish: White
- Vendor Collection: Samsung BESPOKE (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 25 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 27 inches
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 29 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 35.7 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 887276724201
Our stunning wall mount hood delivers powerful ventilation, with minimal noise. Conveniently sync the hood with your cooktop via the SmartThings app to make cooking in the kitchen a little easier. A Bespoke panel on the front of the hood enables you to match, complement, or contrast other appliances in your kitchen – the choice is yours.
- Bespoke Design: This range vent hood is available in a variety of Bespoke colors¹ to complement other appliances and express your personal style. Whether you prefer to match, complement or contrast – the choice is yours.
- Low Noise (50 dBA): Cook with minimal noise with a range vent hood that is 40% quieter.²
- Triple Air Sensor: Whether the range vent hood is on or off, in Smart Mode, the Triple Air Sensor provides 24 hour air quality detection in your kitchen and turns on or adjusts power levels to improve air quality.³
- SmartThings/Wi-Fi: Enjoy convenience and peace of mind with SmartThings. Monitor and control the range vent hood anytime, anywhere using the SmartThings App on your smartphone. Also, once your cooktop burner is powered on, the hood automatically turns on.⁴
- 630 CFM – Pre-programmed to 390 CFM: Reduce cooking odor and smoke quickly with ventilation capability of up to 630 cu. ft. per minute⁵ on this range vent hood.

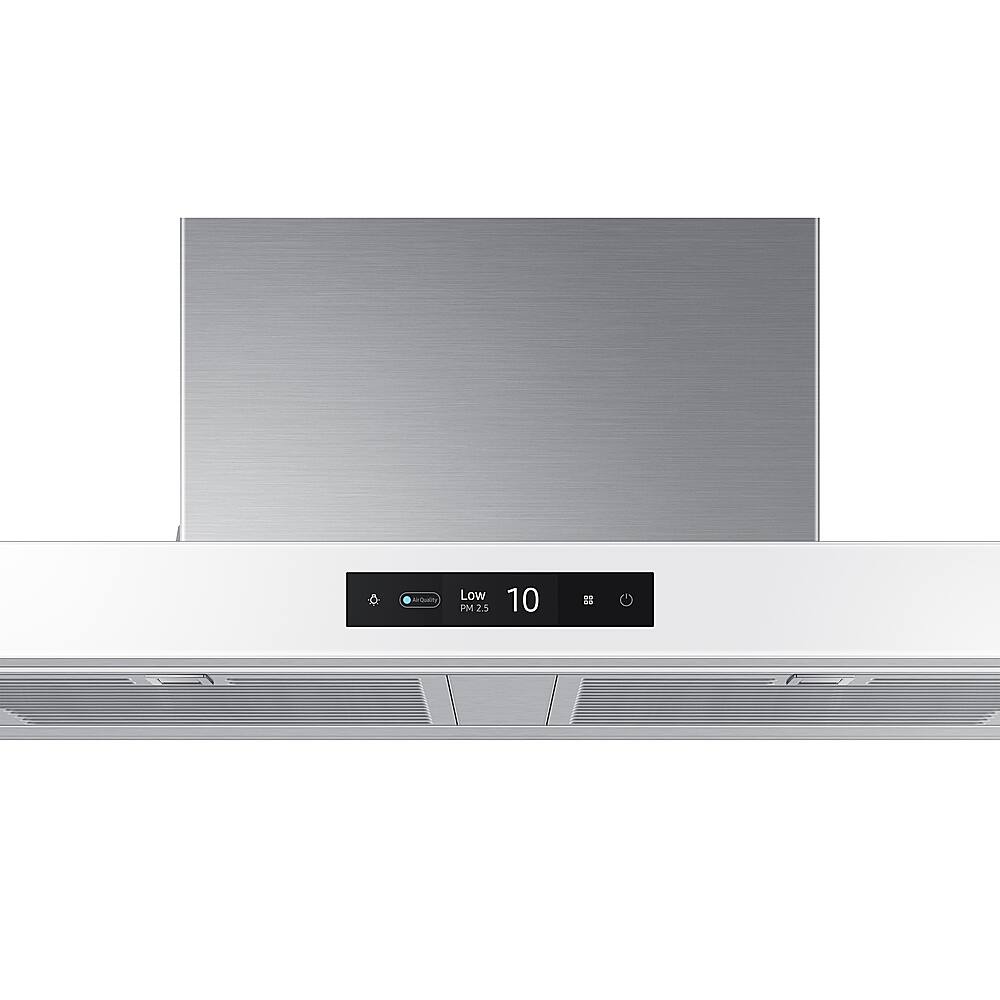

- LCD Display & Touch Control: The LCD display with touch control is easy to read, even from a distance. Adjust settings with a touch of your finger.
- LED Bar Light: Illuminate your cooktop with LED lighting.
- Voice Control: Control the hood by voice when you’re busy doing other things. Simply use your favorite voice assistant, whether it’s Samsung Bixby, Amazon Alexa or Google Assistant.⁶ You can turn the hood on and off, as well as its light and fan, activate timers and change settings such as fan speed.

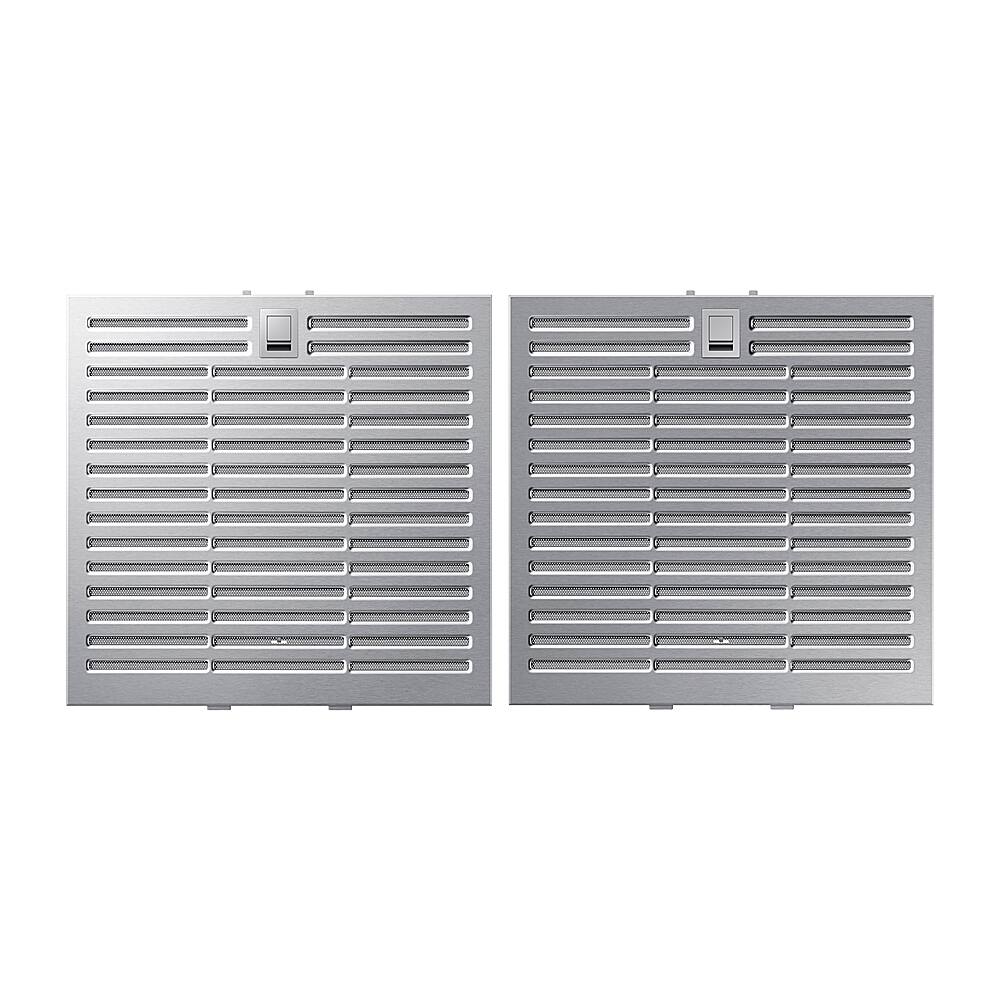

- Smart Filter: A dishwasher-safe, durable stainless steel filter traps airborne oil and dust for a cleaner cooktop. The Smart- Things app will alert you when it needs to be cleaned.⁷
- Bespoke Design: This range vent hood is available in a variety of Bespoke colors¹ to complement other appliances and express your personal style. Whether you prefer to match, complement or contrast – the choice is yours.
- Low Noise (50 dBA): Cook with minimal noise with a range vent hood that is 40% quieter.²
- Triple Air Sensor: Whether the range vent hood is on or off, in Smart Mode, the Triple Air Sensor provides 24 hour air quality detection in your kitchen and turns on or adjusts power levels to improve air quality.³
- SmartThings/Wi-Fi: Enjoy convenience and peace of mind with SmartThings. Monitor and control the range vent hood anytime, anywhere using the SmartThings App on your smartphone. Also, once your cooktop burner is powered on, the hood automatically turns on.⁴
- 630 CFM – Pre-programmed to 390 CFM: Reduce cooking odor and smoke quickly with ventilation capability of up to 630 cu. ft. per minute⁵ on this range vent hood.
- LCD Display & Touch Control: The LCD display with touch control is easy to read, even from a distance. Adjust settings with a touch of your finger.
- LED Bar Light: Illuminate your cooktop with LED lighting.
- Voice Control: Control the hood by voice when you’re busy doing other things. Simply use your favorite voice assistant, whether it’s Samsung Bixby, Amazon Alexa or Google Assistant.⁶ You can turn the hood on and off, as well as its light and fan, activate timers and change settings such as fan speed.
- Smart Filter: A dishwasher-safe, durable stainless steel filter traps airborne oil and dust for a cleaner cooktop. The Smart- Things app will alert you when it needs to be cleaned.⁷
A: Hi there, Yes, the hood can be vented to the outside. There are three venting methods that you can choose to set up, depending on your preference. Please see the "Important Safety Instructions" section on page 6, the "Installation Requirements" section on pages 7 - 10 and the "Installation" section on pages 11 - 21 to help you choose a venting method and to know how to install it. Manual https://downloadcenter.samsung.com/content/UM/202401/20240110131357334/O_01._DG68-01416B-03_IB_FULL_NK30CB700W33AA_EN.pdf Have a great day. ^Aloe
Q: Can this vent be used in a kitchen with an 88” ceiling?
A: Hi Lisa, Yes, you can use the hood in an 88" ceiling, as long as the mounting height is correct. Please see the "Setting the Location" section on page 11 of the user's manual. Manual https://downloadcenter.samsung.com/content/UM/202401/20240110132037151/O_01._DG68-01416C-03_IB_FULL_NK30CB600W12AA_EN.pdf Have a great day, Aloe
Q: Is this Stainless steel? It says clean gray…
A: Yes, it is stainless steel with a Clean Gray panel, which means it is less shiny than stainless steel, Karol. Have a great day, -Ernest-
A: undefined
Q: What are the dimensions of duct, particular the width.
A: Per the manual, it states the duct is 13 11/16" wide.
