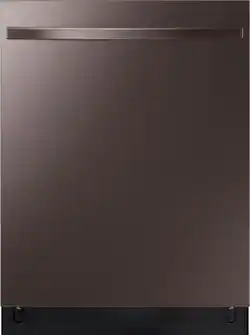

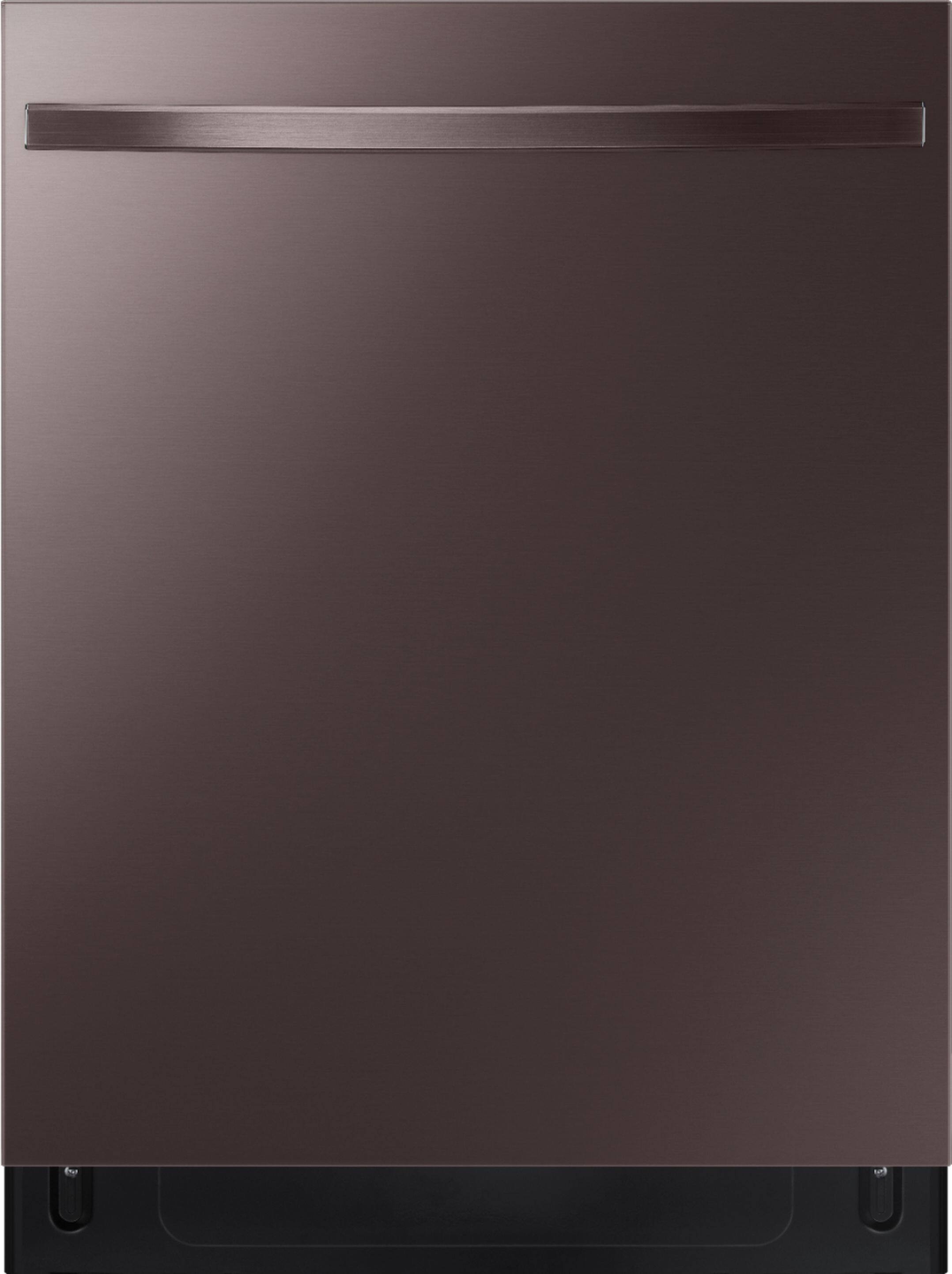

Samsung - StormWash 24" Top Control Built-In Dishwasher with AutoRelease Dry, 3rd Rack, 48 dBA - Tuscan Stainless Steel
Model: DW80R5061UT
SKU: 6361070
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Tuscan stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 48 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Samsung
- Model Number: DW80R5061UT
- Product Name: StormWash 24" Top Control Built-In Dishwasher with AutoRelease Dry, 3rd Rack, 48 dBA
- Color: Tuscan Stainless Steel
- Color Finish: Tuscan stainless steel
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 95 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 48 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Auto, Normal, Heavy, Delicate, Express 60, Rinse Only
- Options and Programs: Half-Load Wash (Lower Rack), StormWash, Hi-Temp Wash, Sanitize (Anti-bacterial - NSF), Delay Start, Control Lock
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Removable, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Adjustable tines, Cup shelf, Utility basket (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Utility basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Display Type: LED
- Fingerprint Resistant: true
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 265 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 32 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 887276338736
Heavy-duty StormWash is beautifully designed with a flat handle and has powerful rotating spray jets that clean at every angle for tough-to-reach spots. Take advantage of silent washes for a quieter kitchen at 48dBA sound level. The AutoRelease door automatically opens to circulate air and improve drying performance, while the third rack provides additional loading capacity.
- StormWash: Powerful rotating spray jets that clean at every angle for tough-to-reach spots.
- Quiet cleaning: Silent washes for a quieter kitchen at 48dBA sound level.
- AutoRelease door: At the end of the cycle, the door automatically opens to circulate air and improve drying performance.
- Flexible third rack: Provides extra space to load additional utensils and silverware.
- Fingerprint-resistant finish: Helps reduce smudges for an everyday great appearance.
- Adjustable rack: Easily adjustable upper rack maximizes space when you are washing tall items.
- Digital touch control: An integrated panel makes it easy to select functions with a gentle touch. Located on the front of the door for easy access, it offers simple control and is clear and easy to read.
- Six wash cycles: Include Auto, Normal, Heavy, Delicate, Express 60, and Rinse Only.
- Six control options: Half-Load Wash, StormWash, Hi-Temp Wash, Sanitize, Delay Start, and Control Lock.
- Hidden heating element: Helps protect plastic during sanitization cycle.
- Accommodates 15 place settings: Wash up to 15 place settings in a single load. Ideal for cleanup after entertaining.
- Half-load option: Offers greater flexibility to do small loads, saving energy and water.
- StormWash: Powerful rotating spray jets that clean at every angle for tough-to-reach spots.
- Quiet cleaning: Silent washes for a quieter kitchen at 48dBA sound level.
- AutoRelease door: At the end of the cycle, the door automatically opens to circulate air and improve drying performance.
- Flexible third rack: Provides extra space to load additional utensils and silverware.
- Fingerprint-resistant finish: Helps reduce smudges for an everyday great appearance.
- Adjustable rack: Easily adjustable upper rack maximizes space when you are washing tall items.
- Digital touch control: An integrated panel makes it easy to select functions with a gentle touch. Located on the front of the door for easy access, it offers simple control and is clear and easy to read.
- Six wash cycles: Include Auto, Normal, Heavy, Delicate, Express 60, and Rinse Only.
- Six control options: Half-Load Wash, StormWash, Hi-Temp Wash, Sanitize, Delay Start, and Control Lock.
- Hidden heating element: Helps protect plastic during sanitization cycle.
- Accommodates 15 place settings: Wash up to 15 place settings in a single load. Ideal for cleanup after entertaining.
- Half-load option: Offers greater flexibility to do small loads, saving energy and water.
Whats Included
- Samsung StormWash Top Control Built-In Dishwasher with Stainless Steel Tub
- Owner's manual
- Samsung StormWash Top Control Built-In Dishwasher with Stainless Steel Tub
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Does this get dishes dry? No condensation, etc.
A: No it does not, most dishes still feel wet to the touch and plastic items are soaked.
A: Sorry to hear that I live in a 1000 square foot house and I hardly can hear the one I've got.
A: Yes. The top of the dishwasher has two clips that fasten to the bottom of the countertop. Use short screws or they will go through the laminate. If your countertop is stone install a thin strip of wood with liquid nails and screw the clips to the wood.
A: No it does just have the plastic floor base with the rubber seal around it. If you like to give it a more finished look you can just add a floor molding piece to match what you have with the cabinets in your kitchen. Just don’t use screws/nails through the plastic piece because it will not support it. Tied mine into the cabinets on both sides and used a silicon based seal on the molding to the plastic, same stuff you would use for molding around the house. This will also allow you to remove it easily if their is a future problem.
Q: Does this model have a hard food disposer? It says it does, but where is it located in the machine?
A: Yes. This dishwasher has a hard food disposer within it. The hard food disposer is located below the bottom washer arm.
A: There is no heating element (which we were concerned about, as well) but this dishwasher dries perfectly. Minutes before the entire cycle is done, the door auto opens to assist in the drying process. As you know, your rinse aid helps the drying also. We use Cascade Platinum Pods and Cascade Platinum Power Dry which do a beautiful job on the dishes. We have had/purchased many different brands of dishwashers including Bosch, GE, KitchenAid (the most expensive KitchenAid model and was my favorite), LG, Maytag, and this Samsung is comparable to the best of these brands. We purchased what we are hoping is our last home this past summer and bought a whole Samsung kitchen suite in the Tuscan finish. It all works great and looks beautiful in our kitchen.
Q: Does it have an external indicator light to know when the cycle is in progress?
A: Yes... it has indicator lights to signify time left on cycle.
Q: Is it magnetic on the front?
A: Yes, the stainless steel is magnetic.
