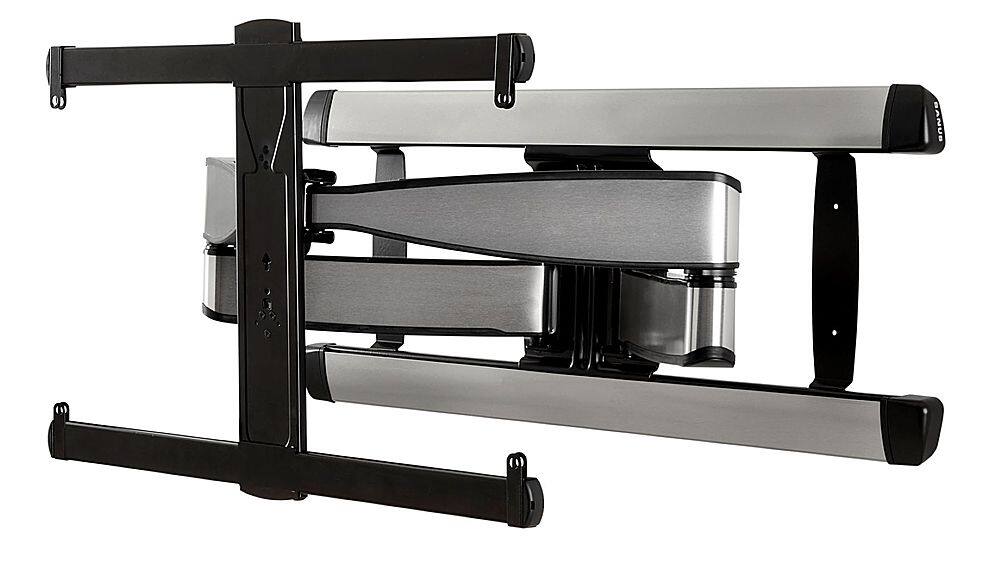

SANUS Elite - Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall - Silver Brushed Metal
- General
- Brand: SANUS Elite
- Model Number: BLF328-S1
- Product Name: Advanced Full-Motion TV Wall Mount for Most 42"-90" TVs up to 125 lbs - Tilts, Swivels, and Extends up to 28" From Wall
- Color: Silver Brushed Metal
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Tilting, Swiveling
- Pan: 57° to -57° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: 5° to -15° (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Cord Storage: true
- Compatibility
- Maximum Weight Capacity: 125 pounds (The maximum load that can be supported by the product.)
- Compatibility: 42"-90"
- Mount Location: Wall
- Maximum Television Size: 90 inches
- Minimum Television Size: 42 inches
- VESA Wall Mount Standard: 200mm x 200mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 17.68 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 33.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 28 inches
- Product Weight: 38.6 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 2.15 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal, Plastic
- Other
- UPC: 793795533586
Sanus Elite products are engineered to deliver unparalleled performance that will elevate your TV and audio experience. Expertly engineered with FluidMotion design, the Elite Advanced Full-Motion Mount provides unparalleled smoothness. Effortlessly extend, tilt and swivel your TV regardless of its weight or thickness. The mount’s included Steady Set functionality ensures your TV will stay exactly where you want it – no drifting, shifting or unwanted movement ever. With its simple and intuitive design, the Elite Advanced Full-Motion Mount ensures a clear and hassle-free 30-minute installation.
- Full-Motion TV Wall Mount Compatible with most 42" - 90" TVs: Up to 125 lbs. for sturdy support.
- Easy to hide and access cable management: Built-in cable management makes it easy to achieve a neat, clutter-free TV setup.
- Tilt, swivel and extend: Tilts 5° to -15°, swivels 57° to -57° and extends up to 28" to adjust viewing angles to suit your preferences.
- Universal TV Interface - Perfect for 50, 55, 65, and 75 inch TVs and more: From VESA 200mm x 200mm through 600mm x 400mm for a variety of mounting options.
- Corner Mounting: With 28" of extension you will be able to place your TV in the corner.
- Full-Motion TV Wall Mount Compatible with most 42" - 90" TVs: Up to 125 lbs. for sturdy support.
- Easy to hide and access cable management: Built-in cable management makes it easy to achieve a neat, clutter-free TV setup.
- Tilt, swivel and extend: Tilts 5° to -15°, swivels 57° to -57° and extends up to 28" to adjust viewing angles to suit your preferences.
- Universal TV Interface - Perfect for 50, 55, 65, and 75 inch TVs and more: From VESA 200mm x 200mm through 600mm x 400mm for a variety of mounting options.
- Corner Mounting: With 28" of extension you will be able to place your TV in the corner.
Whats Included
- Advanced Full-Motion TV Wall Mount
- Mounting hardware
- Instruction manual
- Wall plate template
- Advanced Full-Motion TV Wall Mount
- Mounting hardware
- Instruction manual
- Wall plate template
Q: The mount itself is level, but the TV, 75" Samsung, is slightly lopsided. How is this remedied?
A: There are 2 screws- one on top of each of the brackets that you attached to the back of your tv/snapped into the thing that you mounted on the wall. You simply need to tighten or loosen one side, depending what side you want to go up or down. I just turned the screw with a pair of plyers, but I think you need an alan wrench or different kind of bit to turn it with a screwdriver. I attached the picture from the back of the box that shows you what to do.
Q: Can I mount this on a lath and plaster wall?
A: You most certainly can mount this on lath and plaster walls. The key is finding the studs - and honestly finding the center of the studs. The mount itself is really heavy, and then you're putting a heavy television on the end of a long lever. That's a ton of force on those four lag bolts. If you hit the edge of a stud with those bolts, nothing good is going to happen. So drill a bunch of tiny pilot holes to find the two edges of the stud. Lath and plaster makes it really hard to find studs. Just make sure you're anchoring that truly in studs and not just the lath.
Q: What is the difference between swivel and full motion tv mounts?
A: A swivel mount will turn from side to side only. A swivel/tilt mount will turn from side to side, and tilt up and down. A full motion mount will swivel side to side, tilt up and down, and extend from the wall, and retract back to the wall.
A: Yes the mount tilts. The mount has a full range of motion: tilting up, down, left, and right...as well as pulling it out from the wall and pushing it back. The mount comes with several different mounting brackets including VESA mounting hardware and pretty much all new Samsung models adhere to VESA standards. So long as the mount is properly installed, it should support the weight of either of those TV models. The mount is rated to support 125 lbs; the QN75Q70R weighs 79 lbs without the stand and the QN82Q70 weighs 94 lbs without the stand. However, I used this mount for a QN75Q80R that weighs 82 lbs without the stand and it seemed a bit precarious while making angle adjustments. Because of this, I downsized to the QN65Q80R that weighs 56 lbs without stand and it works wonderfully. TLDR: Yes, it tilts. Yes it will fit either of those TV models. However, based on my own experience with this mount, I would recommend a more robust mount for those models despite the mount's weight rating.
A: Hi TomM, This mount, mounts across two studs. If you have any additional questions give us a shout at [email protected] or at 1-800-359-5520. Thanks, - Haydn @ SANUS
A: Hi Jess, When retracted the mount sits 2.15" off of the wall. Thanks, - Haydn @ SANUS
A: Fish the wires or buy a wire hiding kit
A: Good eye, yes these mounts are the same. If you have any additional questions please give our customer support team a shout at [email protected] or at 1-800-359-5520. Thanks, - Haydn @ SANUS
