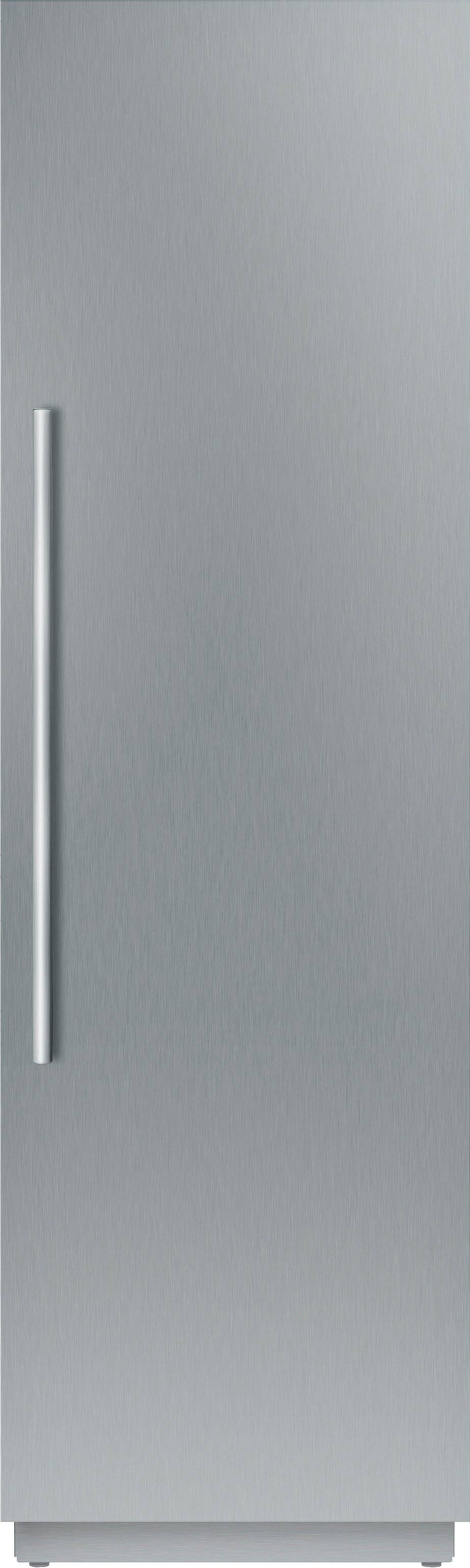

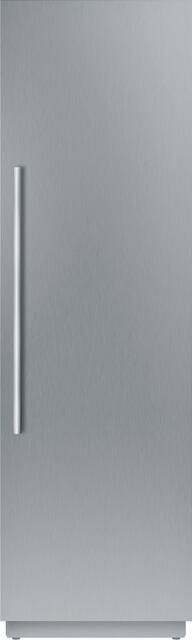

Name: Thermador - Freedom Collection 13 Cu. Ft. Column Built-In Counter-Depth Smart Refrigerator - Custom Panel Ready
Brand: Thermador
SKU: 6438350
Rating: 5 (1 reviews)

Key Specs
- Color Finish: Custom
- Product Height: 83 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 13 cubic feet
- Refrigerator Style: No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
General
- Brand: Thermador
- Model Number: T23IR905SP
- Product Name: Freedom Collection 13 Cu. Ft. Column Built-In Counter-Depth Smart Refrigerator
- Color: Custom Panel Ready
- Color Finish: Custom
- Side Panel Color: Silver
Dimensions
- Product Height: 83 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/4 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 83 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 23 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 50 7/16 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 328 pounds (The out of box weight of the item.)
Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
Capacity
- Total Capacity: 13 cubic feet
- Refrigerator Capacity: 13 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
Performance
- Minimum Operating Temperature: 50 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 109.4 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: No Freezer
- Fingerprint Resistant: false
- Panel(s) Included: false
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Touchscreen
- Display Type: LCD
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Not Applicable
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: None
Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Spill proof
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass
Freezer Info
- Freezer Compartment: false
Filter Info
- Water Filtration: false
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 32 United States dollars (Predicted cost of operating the product under average conditions for one year.)
Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 2
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
Warranty
- Warranty - Parts: 2-year limited
- Warranty - Labor: 2-year limited
Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
Other
- UPC: 825225960331

Preserve every incredible moment in your culinary adventures with the Freedom Refrigeration Collection. Taking personalization to a new level, the Fresh Food, Freezer, and Wine line features custom exterior and interior renovations, so every element has been meticulously crafted to let you flavor life the way you like it.

Free Flow Cold Air System: Free Flow Cold Air System is proprietary Thermador technology that evenly distributes cold air throughout all parts of the unit.
ThermaFresh system: ThermaFresh system provides independent climate control and uses advanced and improved cooling technology for humidity control and temperature management. Stainless steel ThermaFresh mats included with each drawer for easy cleaning.
Premium-Grade Stainless Steel Interior: The Premium-Grade Stainless Steel Interior adds refined strength with a bold industrial design.
Touch-Screen TFT Display: Touch-Screen TFT Display easily control lighting, and settings, such as an individual temperature control.
Custom Panel Ready for seamless integration: Custom Panel Ready with front paneling that matches your kitchen’s custom cabinetry for complete integration.
Reversible door hinge: Reversible door hinge allows you flexibility.
LED Theater Lighting: The theater-style, diffused lighting ensures visibility while limiting hot spots. Theater lighting gradually turns on as doors are opened and brightness level is adjustable.
SoftClose Drawers: SoftClose Drawers offer an ultra-smooth glide when you open or close the drawers. Luxury you can feel. Revel in a gentle, quiet glide each time you open or close one of the drawers
Wi-Fi Enabled temperature control & notifications: Wi-Fi Enabled Refrigeration allows for remote temperature control, notifications when the door is left open via Home Connect app, and works with smart home devices and services like Amazon Alexa.
Gallon Bins keep larger items within reach: The shelving system has been redesigned specifically to accommodate gallon-sized containers, while offering a variety of placement options on the refrigerator door.
Open door assist allows for a handle-less design: With the flexibility to push or pull open, open door assist uses Auto Door Opening technology to open the door with a push, adding a luxurious touch and the option for a sleek, handle-less design. SoftClose doors provide a quiet luxurious experience.
Freedom Hinge enables true flush design: The Freedom Hinge can be installed fully-flush, allowing for custom panels to match the surrounding cabinetry for completely seamless integration.
Sleek design: Sleek clean design for the perfect symmetry when paired with additional columns.
Energy Star Certified: Comes with an Energy-Star Certification.
All-Leg Leveling for quicker installation: All-leg leveling allows for quicker and faster installation.
Star-K certified: This appliance is Star-K certified making it possible to use it on the Sabbath or the holidays.
Free Flow Cold Air System: Free Flow Cold Air System is proprietary Thermador technology that evenly distributes cold air throughout all parts of the unit.
ThermaFresh system: ThermaFresh system provides independent climate control and uses advanced and improved cooling technology for humidity control and temperature management. Stainless steel ThermaFresh mats included with each drawer for easy cleaning.
Premium-Grade Stainless Steel Interior: The Premium-Grade Stainless Steel Interior adds refined strength with a bold industrial design.
Touch-Screen TFT Display: Touch-Screen TFT Display easily control lighting, and settings, such as an individual temperature control.
Custom Panel Ready for seamless integration: Custom Panel Ready with front paneling that matches your kitchen’s custom cabinetry for complete integration.
Reversible door hinge: Reversible door hinge allows you flexibility.
LED Theater Lighting: The theater-style, diffused lighting ensures visibility while limiting hot spots. Theater lighting gradually turns on as doors are opened and brightness level is adjustable.
SoftClose Drawers: SoftClose Drawers offer an ultra-smooth glide when you open or close the drawers. Luxury you can feel. Revel in a gentle, quiet glide each time you open or close one of the drawers
Wi-Fi Enabled temperature control & notifications: Wi-Fi Enabled Refrigeration allows for remote temperature control, notifications when the door is left open via Home Connect app, and works with smart home devices and services like Amazon Alexa.
Gallon Bins keep larger items within reach: The shelving system has been redesigned specifically to accommodate gallon-sized containers, while offering a variety of placement options on the refrigerator door.
Open door assist allows for a handle-less design: With the flexibility to push or pull open, open door assist uses Auto Door Opening technology to open the door with a push, adding a luxurious touch and the option for a sleek, handle-less design. SoftClose doors provide a quiet luxurious experience.
Freedom Hinge enables true flush design: The Freedom Hinge can be installed fully-flush, allowing for custom panels to match the surrounding cabinetry for completely seamless integration.
Sleek design: Sleek clean design for the perfect symmetry when paired with additional columns.
Energy Star Certified: Comes with an Energy-Star Certification.
All-Leg Leveling for quicker installation: All-leg leveling allows for quicker and faster installation.
Star-K certified: This appliance is Star-K certified making it possible to use it on the Sabbath or the holidays.

Whats Included

T23IR905SP 23.5-Inch Built-in Fresh Food Column
Owner's manual
T23IR905SP 23.5-Inch Built-in Fresh Food Column
Owner's manual

Product Manuals

Documents

Energy_Guide_PDF
Energy_Guide_PDF

Q: What is the maximum temperature this refrigerator can operate at?

A: The maximum operating temperature for this Thermador refrigerator is 109 degrees Fahrenheit. This information can be found in the "product specifications" section of the provided context.

Q: What is the minimum temperature this refrigerator can operate at?

A: The minimum temperature this refrigerator can operate at is 50 degrees Fahrenheit.

Q: How much space is in the refrigerator compartment?

A: The refrigerator compartment of the Thermador Freedom Collection 13 Cu. Ft. Column Built-In Smart Refrigerator has a capacity of 13 cubic feet.

Q: What is the total storage capacity of this refrigerator?

A: The total storage capacity of the Thermador Freedom Collection 13 Cu. Ft. Column Built-In Smart Refrigerator is 13 cubic feet. This information can be found in the "Total Capacity" field in the product specifications.

Q: Does this refrigerator have a quick access door?

A: The Thermador Freedom Collection 13 Cu. Ft. Column Built-In Smart Refrigerator does not have a quick access door. However, it does feature a sleek, handle-less design with open door assist technology, allowing for easy opening with a gentle push.

Q: What kind of lights are inside the refrigerator?

A: The interior of the refrigerator is equipped with LED theater lighting. This lighting gradually turns on as the doors are opened, and its brightness level is adjustable.

Q: Can I put this refrigerator in my garage where it can get below 50°F?

A: The minimum operating temperature for this refrigerator is 50 degrees Fahrenheit. Therefore, it is not recommended to place it in a garage where the temperature can drop below this level.

Q: Does this refrigerator have a water filter?

A: No, this refrigerator does not have a water filter. The product specifications clearly state "Water Filtration: false".
