Thermador Masterpiece - 36 inches - Convertible - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height10 1/2 inchesProduct Width36 inchesProduct Depth18 5/8 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Thermador
- Model Number: VCI6B36ZS
- Product Name: Masterpiece Series 36" Convertible Custom Insert Range Hood, 600 CFM, Home Connect
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 29.24 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 32 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 520 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 3.3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Compatibility
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225961291
Masterpiece custom insert vent hoods provide premium performance with a sleek built-in look and add a sophisticated touch to contemporary kitchens. Automatic Mode automatically adjusts the fan speed according to your cooking style. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app. The multi-level LED lights of this Thermador wall hood offer stylish and functional illumination.
- Custom Insert Blends Into Cabinetry: Make a subtle statement with a design that matches your current kitchen decor. You have the ability to create a decorative soffit if desired.
- Wi-Fi Enabled for a fully connected experience: Wi-Fi Enabled allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Delay Shut Off & Automatic Mode: Delay Shut Off & Automatic Mode features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- Beautiful illumination with LED Lighting: LED Lighting highlights your meal from first course to last with multi-level vivid LED Lighting.

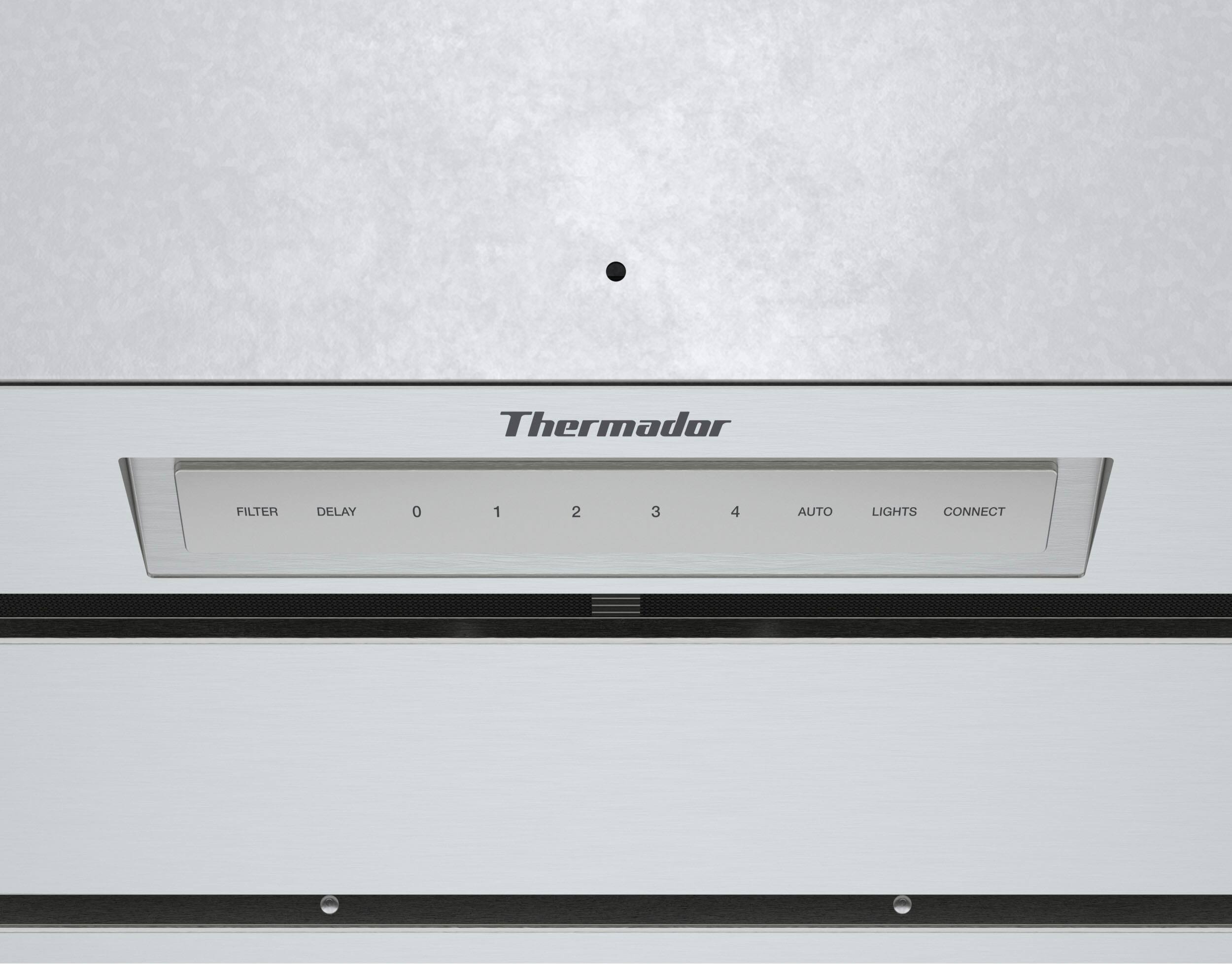

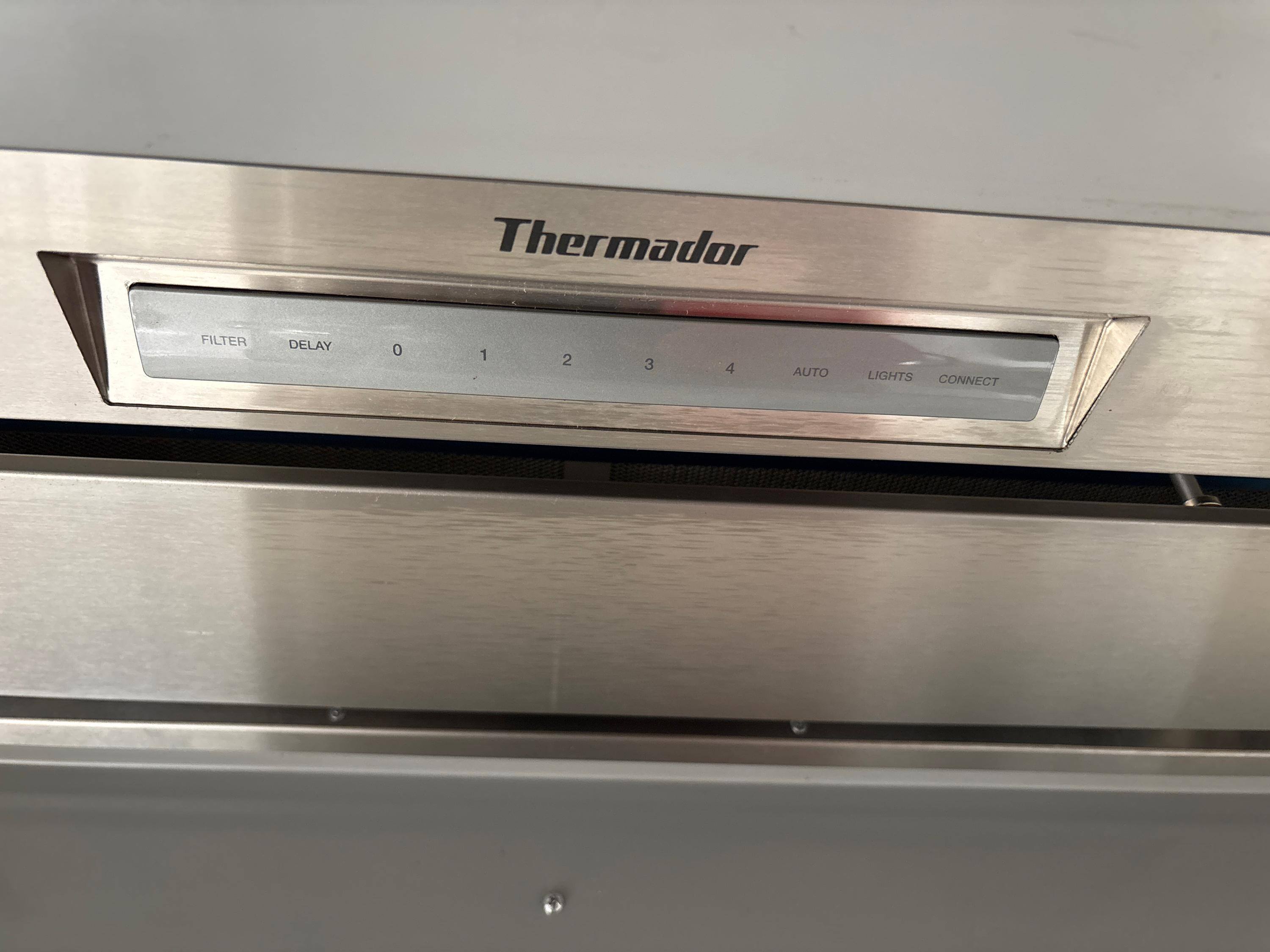

- Electronic Touch Control Panel: Sleek Electronic Touch Control Panel provides convenient control that is easy-to-use and easy-to-clean.
- Hood Sync: Freedom and Liberty Induction cooktops and matching ventilation hood can communicate to synchronize turning on task lighting and ventilation automatically when in use. Hood Sync between ventilation and cooktops is available only on Thermador Freedom and Liberty cooktops with Home Connect.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- 4 Fan speeds for the perfect air flow for any cooking situation: Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.
Whats Included
- Masterpiece Series 36" Range Hood
- Owner's manual
Q: How does the Custom Insert feature of this range hood blend in with the kitchen cabinetry?
A: The Custom Insert feature of this range hood allows for a decorative soffit to be created, which can match the current kitchen decor and blend in seamlessly with the cabinetry. This is achieved by designing the range hood to match the kitchen's existing cabinetry, making it a subtle and stylish addition to the kitchen.
Q: How much does this range hood weigh?
A: The Thermador Masterpiece Series 36" Convertible Custom Insert Range Hood weighs 29 pounds.
Q: How easy is it to clean the dishwasher-safe aluminum filters?
A: The aluminum filters are dishwasher-safe, making them easy to clean. The filter button will illuminate when the grease filter needs to be cleaned to ensure optimal performance.
Q: How does the Electronic Touch Control Panel enhance the user experience?
A: The Electronic Touch Control Panel offers convenient control of the range hood, making it easy-to-use and easy-to- clean. It provides a sleek and modern look, enhancing the overall user experience.
Q: What is the standardized width of this range hood?
A: The standardized width of the Thermador Masterpiece Series 36" Convertible Custom Insert Range Hood is 36 inches. This information is found in the product specifications under the "Standardized Width" category.
Q: What is the minimum installation height required above the cooktop for this range hood?
A: The minimum installation height required above the cooktop for the Thermador Masterpiece Series 36" Convertible Custom Insert Range Hood is 30 inches. This information can be found in the product specifications section under "Minimum Installation Height Above Cooktop".
A: This range hood features four fan speeds, allowing users to choose the appropriate airflow for various cooking situations. Lower fan speeds are suitable for simmering or boiling, while higher speeds are ideal for high-heat cooking or stir-frying to effectively remove smoke, grease, and odors.
Q: What is the product depth of this range hood?
A: The product depth of the Masterpiece Series 36" Convertible Custom Insert Range Hood is 18 5/8 inches.
Compare similar products
Masterpiece custom insert vent hoods provide premium performance with a sleek built-in look and add a sophisticated touch to contemporary kitchens. Automatic Mode automatically adjusts the fan speed according to your cooking style. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app. The multi-level LED lights of this Thermador wall hood offer stylish and functional illumination.
Now available with LumiLight LED lighting and our exclusive ACT technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.
Choose a high-tech approach to kitchen ventilation with this GE Wi-Fi-enabled designer insert. Four fan speeds cycle out odors and smoke, while convenient touch controls allow easy operation. A ChecConnect feature automatically syncs the built-in lights with your range to illuminate your cooktop as you prepare meals. This GE Wi-Fi-enabled designer insert connects with smart devices for voice-activated control.
Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LEDs and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT technology and either a powerful 600-CFM blower (30 and 36 models) or 1,200-CFM blower (42 and 48 models).
| Pros for Thermador Masterpiece - 36 inches - Convertible - Range Hood Insert - Stainless Steel | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | LED Lighting, Noise Level | There were no pros for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars

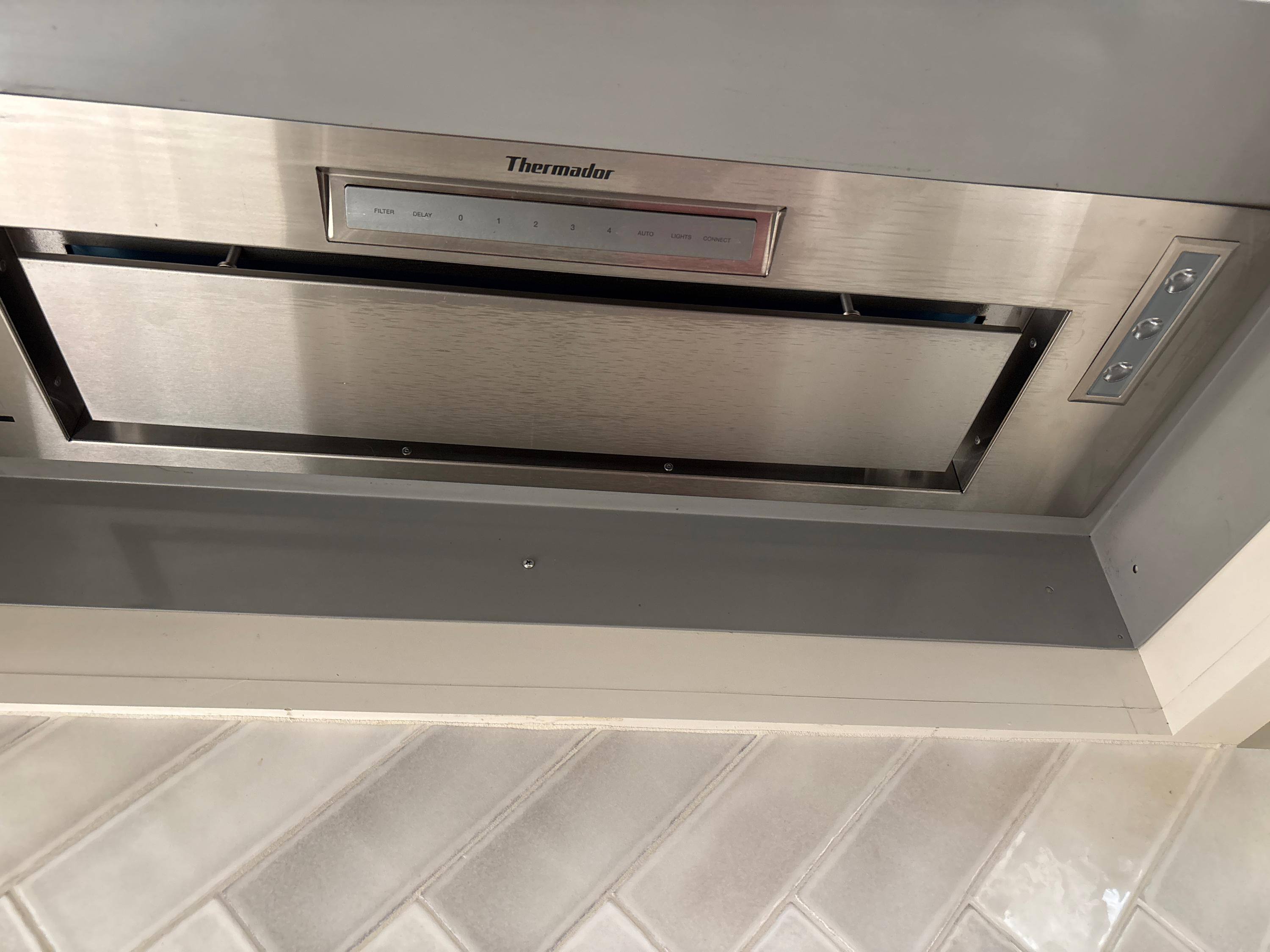

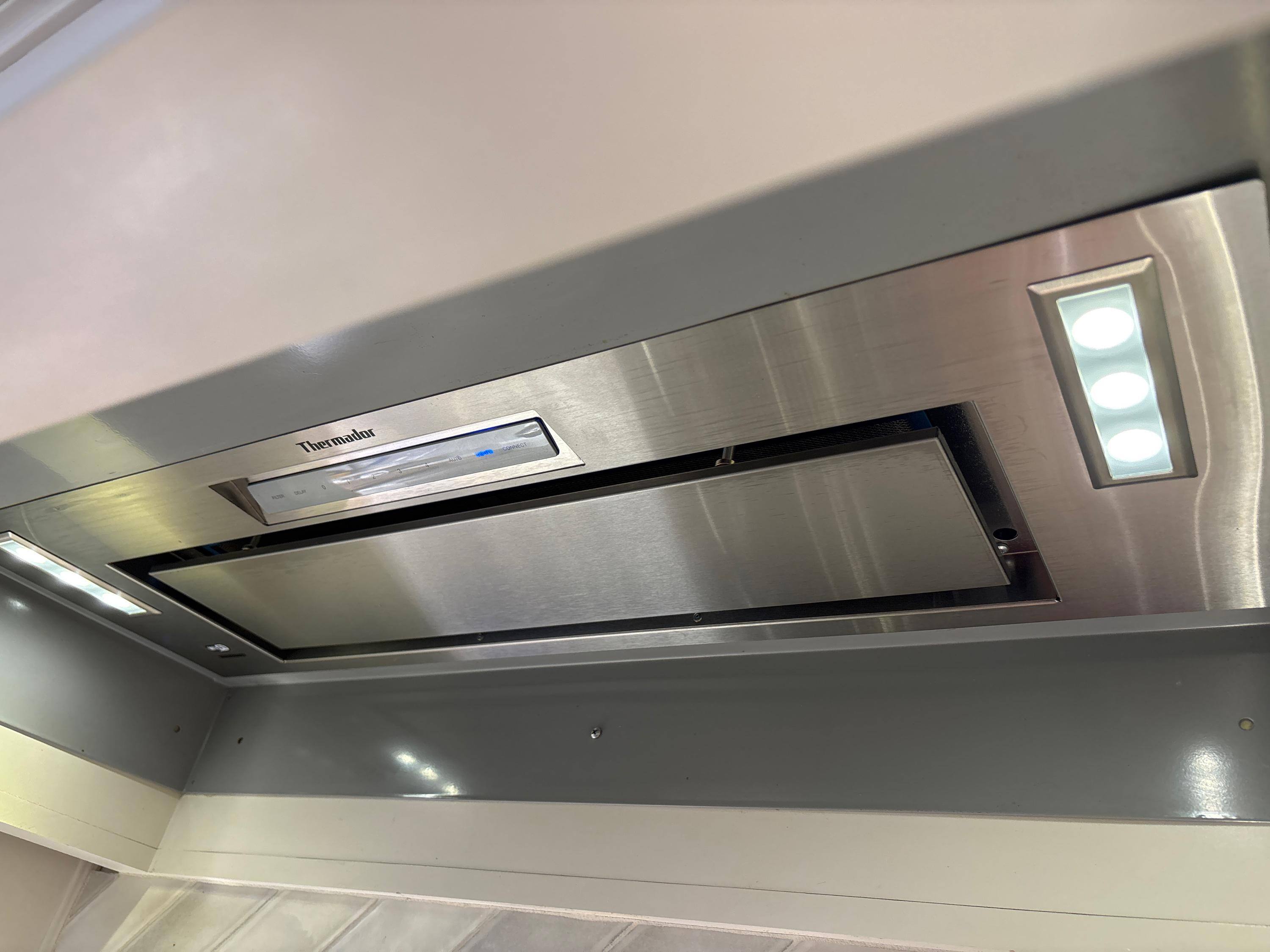

Great Ventilation
