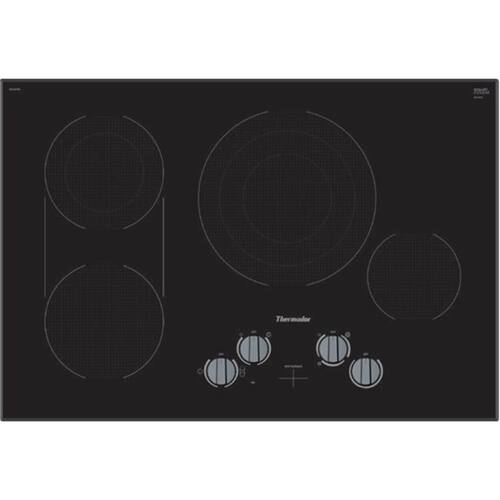

product image

Thermador - Masterpiece Series 30" Built-In Electric Cooktop with 4 elements - Black

Model: CEM305TB
SKU: 6230062
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Black
    • Product Height: 4 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Number of Elements: 4
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • General
    • Brand: Thermador
    • Model Number: CEM305TB
    • Product Name: Masterpiece Series 30" Built-In Electric Cooktop with 4 elements
    • Color: Black
    • Color Finish: Black
    • Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
  • Dimensions
    • Product Height: 4 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 31 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 26 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 3 15/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 28 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 19 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Features
    • Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
    • Installs Over Built-In Oven: true
    • Control Type: Analog
    • Control Location: Top
    • Digital Display: false
    • Power-On Indicator Light(s): true
    • Fingerprint Resistant: false
    • Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
    • Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
    • Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
    • Portable: false
    • Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
  • Cooktop Features
    • Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
    • Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Cooktop Surface Material: Ceramic, Glass
    • Number of Cooking Zones: 8
    • Number of Elements: 4
    • Bridge Element: true (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
    • Specialty Element(s): FALSE
    • Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Griddle Included: false
  • Power
    • Auto Shut-Off: false (Feature automatically turns off the product.)
    • Cooktop Power Source: Electric
  • Element Wattage
    • Element 1 Wattage: 1700 watts
    • Element 2 Wattage: 1700 watts
    • Element 3 Wattage: 3080 watts
    • Element 4 Wattage: 1200 watts
  • Electrical Specification
    • Wattage: 8200 watts (Measurement of electrical power.)
    • Amperage: 40 amperes (Strength of electrical current.)
    • Voltage: 240 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
    • ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
  • Warranty
    • Warranty - Parts: 2 years
    • Warranty - Labor: 2 years
  • Compatibility
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • Other
    • UPC: 825225924845

The Masterpiece Series electric cooktops offer excellent performance, precise controls and a sleek elegant frameless design. Dual-zone bridge elements and triple-zone center elements accommodate cookware of all shapes and sizes. Variable power setting offer a range of power from high heat to simmer. The cooktop indicates when elements are still hot and heavy-duty stainless steel metal knobs provide precise control.

  • Stainless Steel Metal Knobs to cook with style: Precisely control the temperature with these stylish knobs made from stainless steel metal.
  • Black Glass: Black Glass creates a sleek design to complement any kitchen.
  • A Frameless Design: The frameless design provides a seamless modern design.
  • 9-stage power setting: 9-Stage Power Setting offers a range of power from high heat to simmer.
  • Dual Zone Bridge connects two round cooking zones: Evenly heat large pans, griddles, and oblong cookware with connecting heat bridge and dual-zone elements, exclusive to Thermador.
  • Triple element adapts to the size of your cookware: Thermador electric cooktops feature three differently sized elements set in one location to adapt to the size of your cookware.
  • Visual indication when elements are hot: The cooktop clearly indicates visually when elements are still hot.
  • Four Heating Elements: Four round heating elements to meet any cooking requirements.
  • 11 Inch Heating Element: 11" Heating Element allows you to accommodate large pots and pans
  • A winning combination: Pairs perfectly with our Masterpiece Ventilation Collection
Whats Included
  • Thermador MASTERPIECE SERIES 30" Electric Cooktop
  • Glass scraper

Q: What is the wattage of this electric cooktop?

A: The total wattage of this cooktop is 8200 watts.

Q: Does this cooktop have a digital display?

A: No, this cooktop does not have a digital display.

Q: How many cooking zones does this Thermador cooktop have?

A: This cooktop has 8 cooking zones.

Q: What type of control does this cooktop use?

A: This cooktop uses an analog control system.

Q: Can I install this cooktop over a built-in oven?

A: Yes, you can install this cooktop over a built-in oven.

Q: Does this cooktop come with a power cord?

A: No, a power cord is not included with this cooktop.

Q: Can I use a wok on this cooktop?

A: Hello, thank you for your question. Without a wok ring, using a wok may damage the surface. Thank you.
