Thermador Professional - 46 inches - Externally Vented - Range Hood Insert - Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishStainless steelProduct Height12 13/16 inchesProduct Width45 3/4 inchesProduct Depth22 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 45 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Thermador
- Model Number: VCIN48GWS
- Product Name: PROFESSIONAL SERIES 46" Externally Vented Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Professional (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 12 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 45 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 46 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 65 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 9 4/5 inches
- Cut-Out Dimensions
- Cut-Out Width: 44 15/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 21 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 4
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 4.8 watts
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225931218
Revel in creative freedom with Professional Series custom inserts that can blend in with cabinetry or make a bold statement. Custom insert vent hoods provide premium performance with a built-in look. Automatic Mode automatically adjusts the fan speed according to your cooking style. Powerfully Quiet system accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. The hood is Wi-Fi enabled which allows for remote monitoring, control of lights, fan speed and notification to clean the grease filter via the Home Connect app.
- Custom Insert Blends Into Cabinetry: Make a subtle statement with a design that matches your current kitchen decor. You have the ability to create a decorative soffit if desired.
- Wi-Fi Enabled for a fully connected experience: Wi-Fi Enabled allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Powerfully Quiet ventilation systems: Powerfully Quiet system accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
- Delay Shut Off & Automatic Mode: Delay Shut Off & Automatic Mode features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- Beautiful illumination with LED Lighting: LED Lighting highlights your meal from first course to last with multi-level vivid LED Lighting.

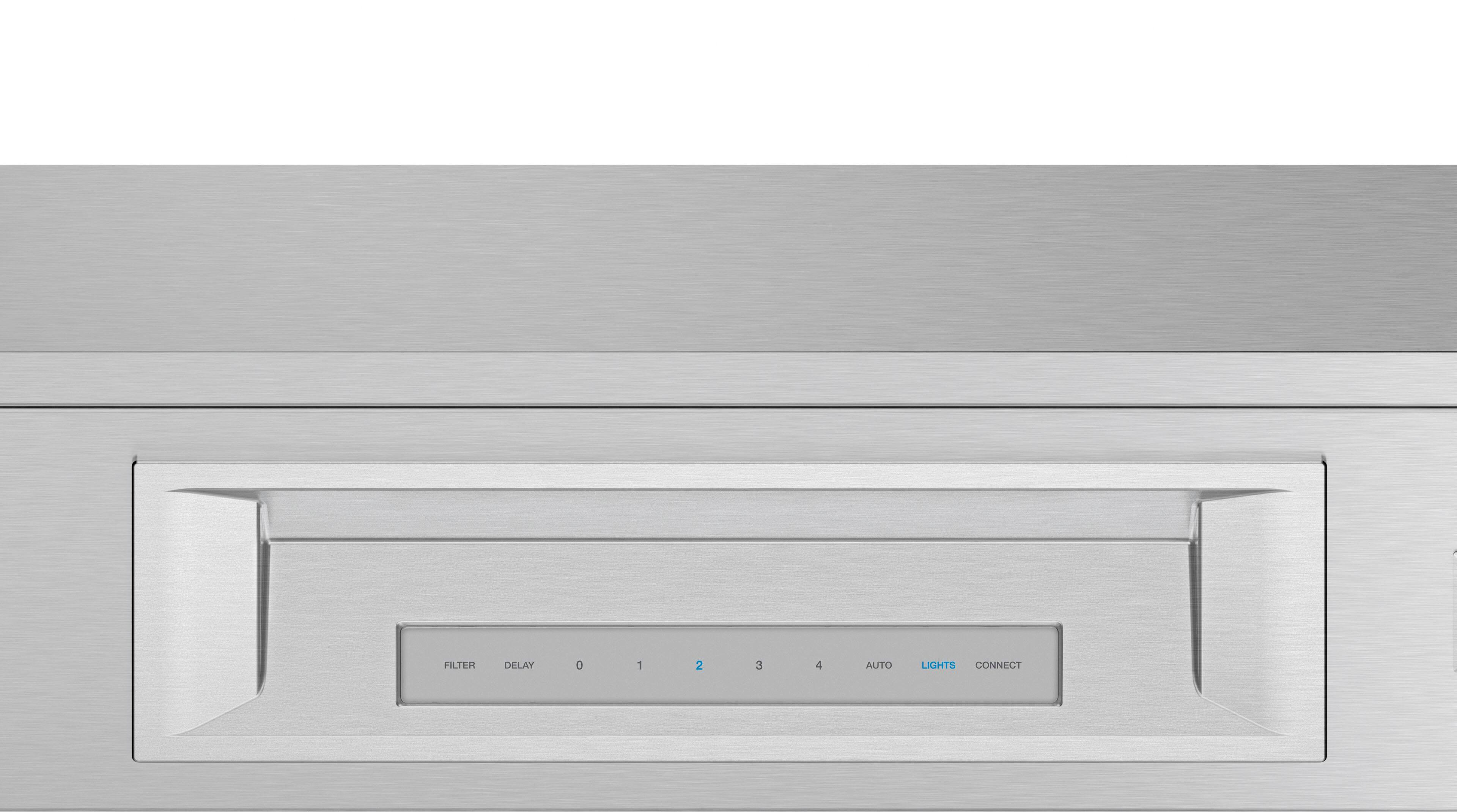

- Electronic Touch Control Panel: Sleek Electronic Touch Control Panel provides convenient control that is easy-to-use and easy-to-clean.
- Commercial-style baffle filters: Commercial-style baffle filters are durable and designed for heavy-duty high-heat cooking. The filtration system uses interlocking baffles that effectively and efficiently captures grease and collects within the canopy grease tray.
- Hood Sync: Freedom and Liberty Induction cooktops and matching ventilation hood can communicate to synchronize turning on task lighting and ventilation automatically when in use. Hood Sync between ventilation and cooktops is available only on Thermador Freedom and Liberty cooktops with Home Connect.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- 4 Fan speeds for the perfect air flow for any cooking situation: Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.
Whats Included
- Thermador PROFESSIONAL SERIES VCIN48GWS
- Damper kit
- Owner's manual
Disclaimers
- Blower sold separately
Q: What type of filters does this range hood use?
A: This range hood uses commercial-style baffle filters that are dishwasher safe.
Q: What is the diameter of the ductwork needed for this range hood?
A: This range hood is designed to fit standard 10" round ductwork.
Q: What is the minimum height I can install this range hood above my cooktop?
A: The minimum installation height above the cooktop for this range hood is 30 inches.
Q: Can I control this range hood with my phone?
A: Yes, this range hood is Wi-Fi enabled and can be controlled remotely using the Home Connect app.
Q: How many fan speeds does this Thermador range hood have?
A: This Thermador range hood has 4 fan speeds to handle a variety of cooking scenarios.
Q: Does this range hood have a light?
A: Yes, this range hood comes with built-in LED lights to illuminate your cooking surface.
Q: What blower goes with this hood or motor,
A: Hello Sonnia, thank you for your question and interest in model # VCIN48GWS. Per the product specifications sheet, the blower options are as follows: Remote Blowers (Mounted to Roof or External Wall): VTR1FZ - 600 CFM VTR2FZ - 1000 CFM Inline Blowers (Mounted Between Kitchen and External Wall): VTI1FZ - 600 CFM VTI2FZ - 1000 CFM Integrated Blower (Mounted in Hood): VTN2FZ - 1000 CFM
