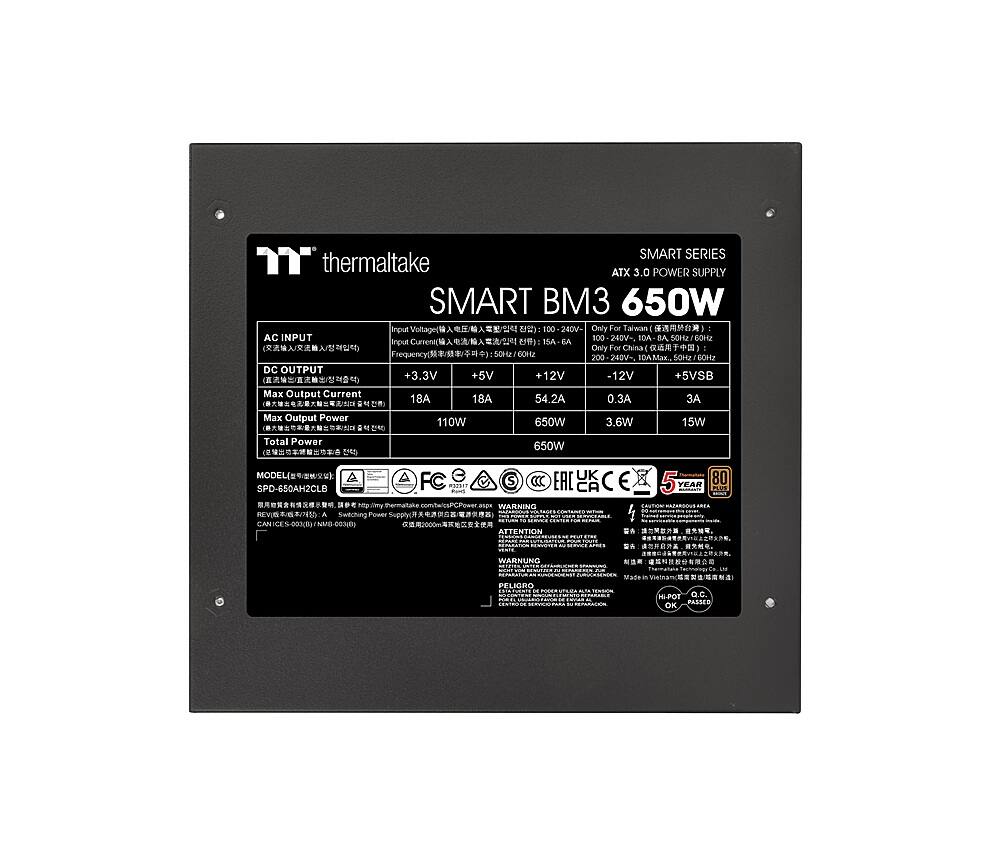

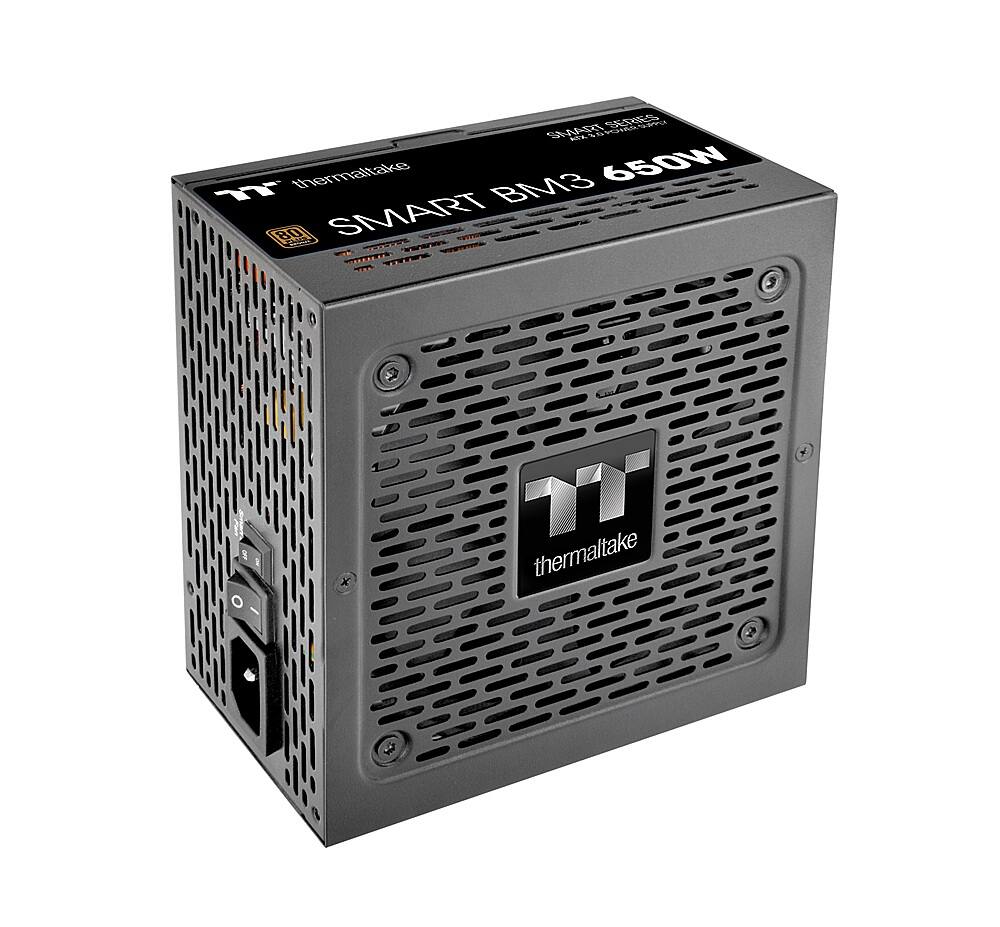

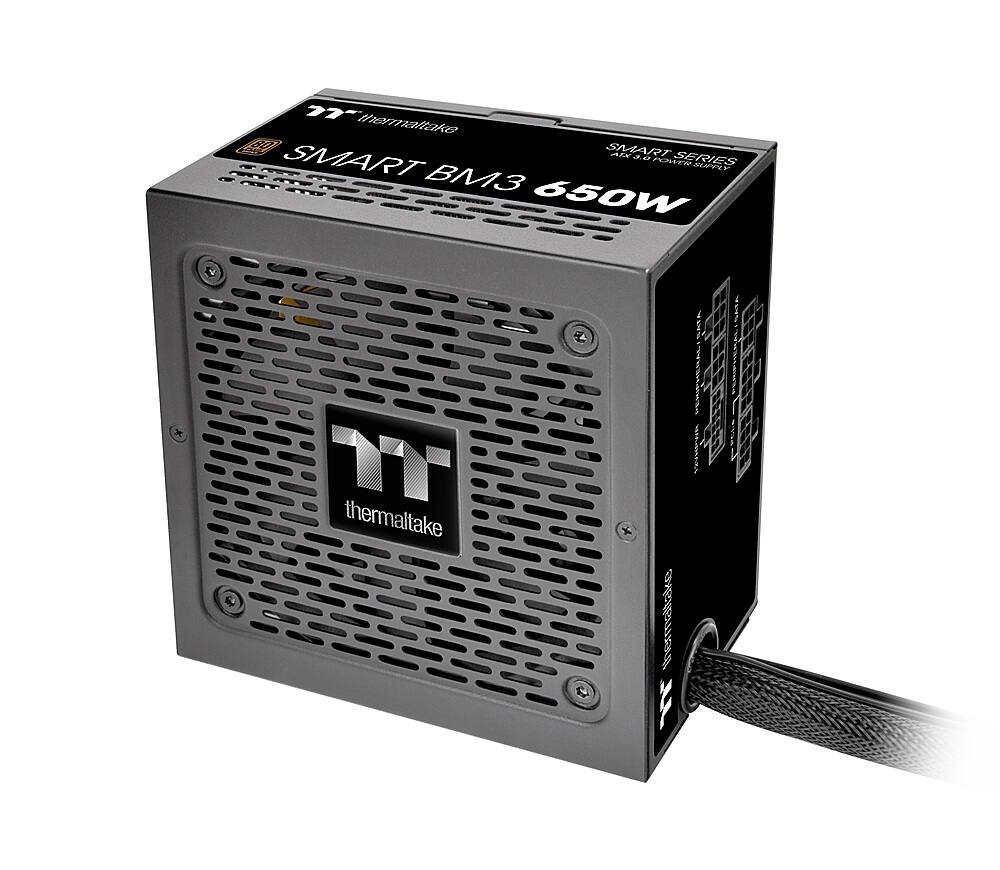

Thermaltake - Smart BM3 80+ Bronze PCIE Gen 5 ATX 3.0 650W Semi-Modular Power Supply - Black
Wattage
650 watts
Intel - Core i7-12700KF Desktop Processor 12 (8P+4E) Cores up to 5.0 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$229.99$409.99
More Buying Options
Related Item
Specifications
- Wattage650 wattsModularSemi-modularEnergy Efficiency80 PLUS BronzeATX ConnectorATX 12V 4+4Pin (650mm+150mm) x 2PCIe Connector1 x PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2Peripheral Connector7 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1, (500mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Semi-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)

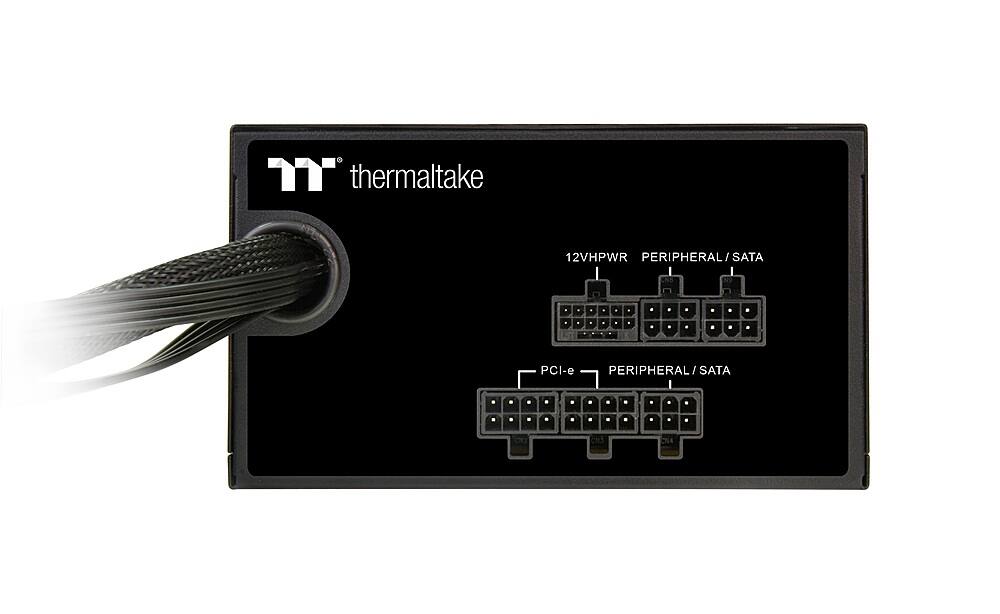

- ATX Connector: ATX 12V 4+4Pin (650mm+150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 7 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1, (500mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 3 x SATA connectors (500mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 4+4Pin (650mm+150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-SPD-0650MNFABU-3
- Product Name: Smart BM3 80+ Bronze PCIE Gen 5 ATX 3.0 650W Semi-Modular Power Supply
- Color: Black
- Power
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Semi-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 2.13 feet
- Connectivity
- ATX Connector: ATX 12V 4+4Pin (650mm+150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCI-E 12+4Pin connectors (600mm) x 1. 4 x PCI-E 6+2Pin connectors (500mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 7 x Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 1, (500mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 3 x SATA connectors (500mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: ATX 12V 4+4Pin (650mm+150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 55 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: 120mm Fluid Dynamic Bearing Fan
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 841163089699
Power Up the Next Generation Hardware. Smart BM3 80 PLUS Bronze certified semi modular power supply unit is designed to meet ATX 3.0 standards, it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
- 120mm Fluid bearing fan: Featuring a 120mm fluid bearing fan to guarantee superior cooling performance.
- Ultra quiet smart zero fan: With the Smart Zero Fan Function, the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise.
- Flat cable design: Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
- Fully compatible with Intel ATX 3.0 specifications: Fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
- PCIe Gen 5.0 Ready: Included 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
- 120mm Fluid bearing fan: Featuring a 120mm fluid bearing fan to guarantee superior cooling performance.
- Ultra quiet smart zero fan: With the Smart Zero Fan Function, the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise.
- Flat cable design: Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
- Fully compatible with Intel ATX 3.0 specifications: Fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
- PCIe Gen 5.0 Ready: Included 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
Q: What is the length of the power supply?
A: The product length is 140 millimeters.
Q: What is the maximum wattage output of the power supply?
A: The maximum wattage output of the power supply is 650 watts.
Q: Does the power supply come with a power cord?
A: This power supply does include a power cord.
Q: How many PCIe Gen 5.0 connectors does the power supply have?
A: This power supply comes with one PCIe Gen 5.0 (12VHPWR) connector.
Q: Will this work for a gpu with 2 8 pin connectors?
A: Hello Yes, it would. Best Regard, Thermaltake Support
A: Thanks anyways. I purchased it and it worked.
