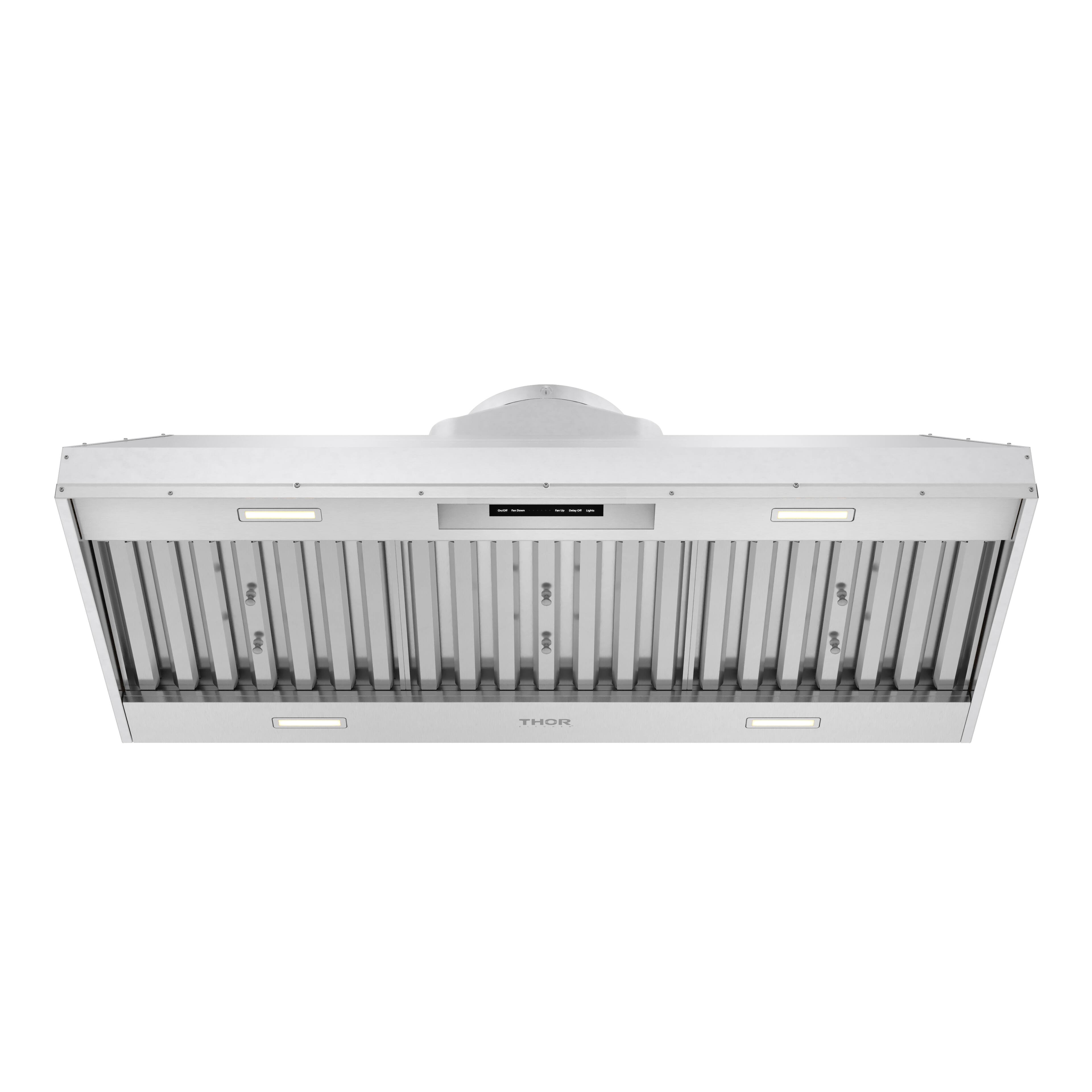

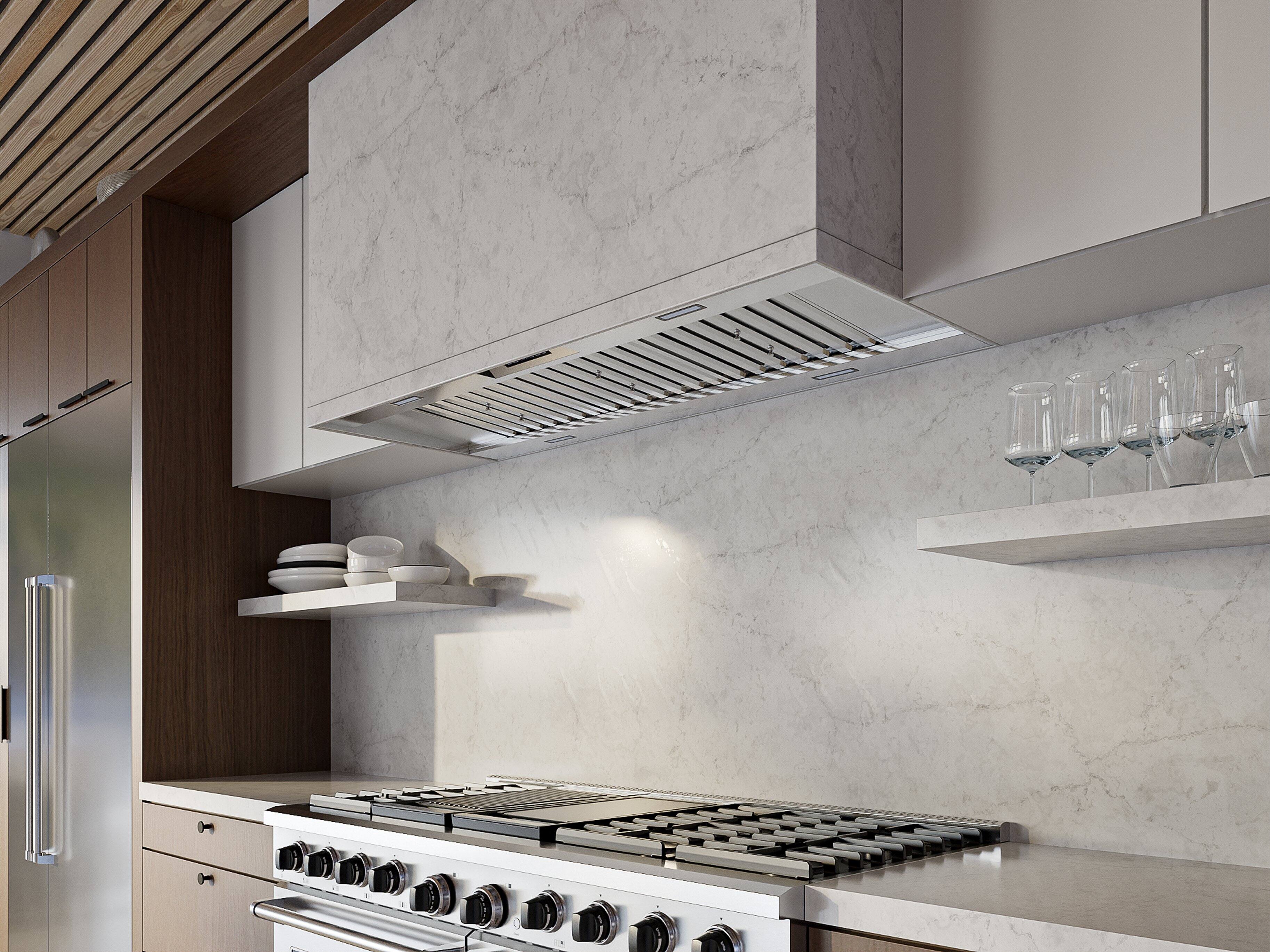

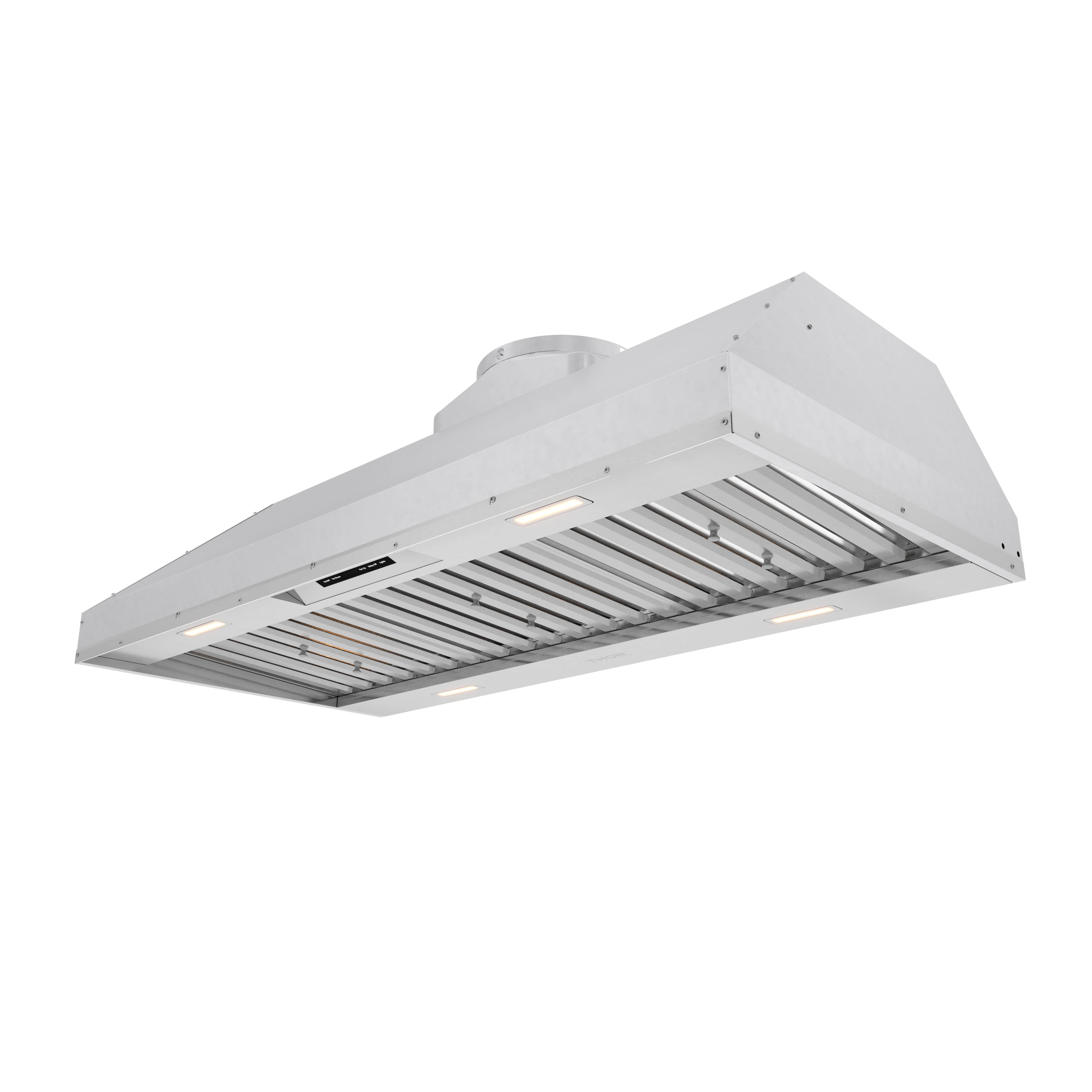

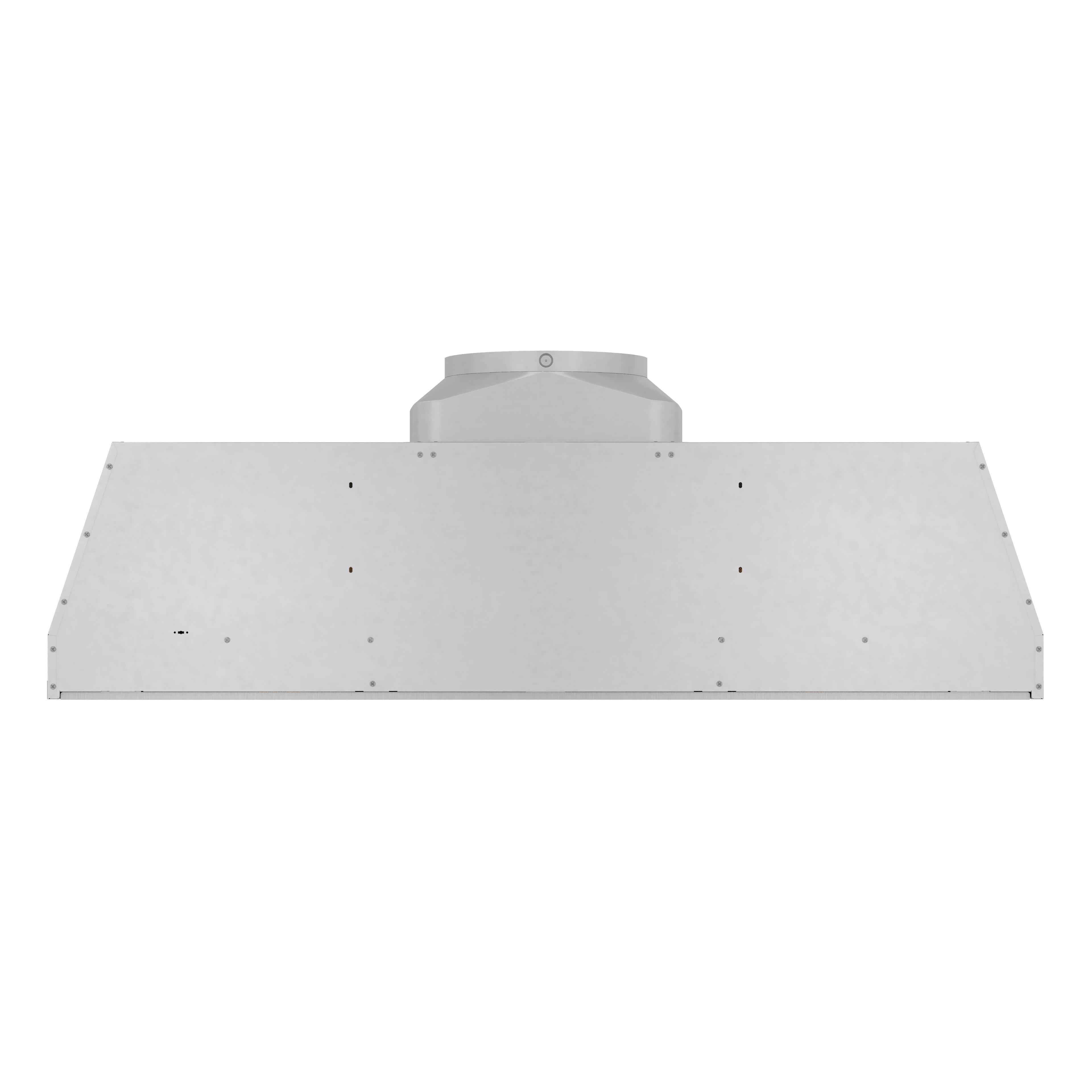

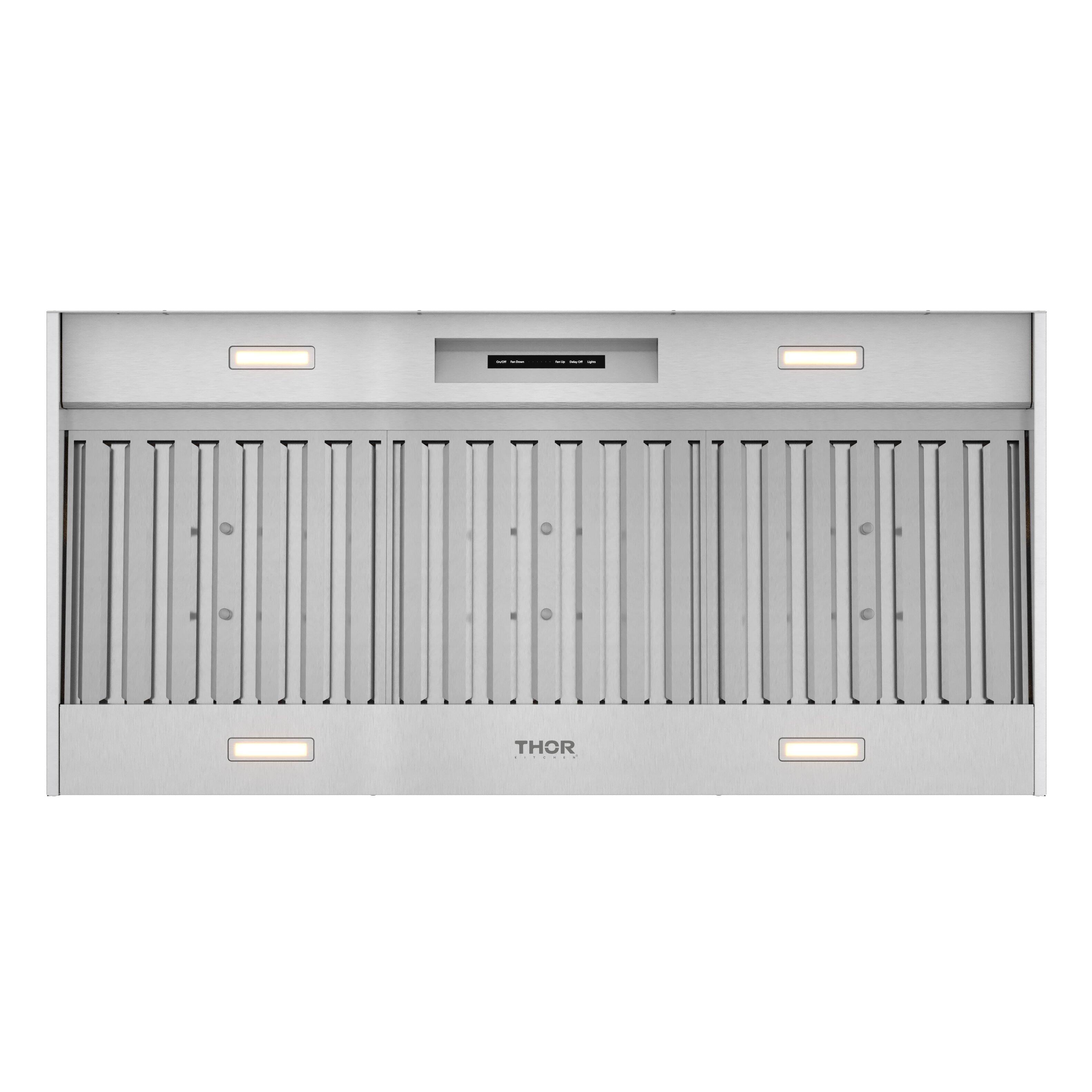

Thor Kitchen - 48 inches - Externally Vented & Externally Vented - Range Hood Insert - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width46.375 inchesProduct Depth22.5 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46.375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External, External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Thor Kitchen
- Model Number: XLH48
- Product Name: 48 Inch 1200 CFM Liner Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46.375 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 64 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 10 inches
- Cut-Out Dimensions
- Cut-Out Height: 12 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 46.625 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22.75 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External, External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Control Type: Touch pad
- Display Type: LED
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 4
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 350 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 19 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical Specification
- Amperage: 7 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 850058622293
THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Introducing the 48″ Liner Hood, designed to effortlessly handle all your kitchen ventilation needs with its powerful 1200 CFM motor. Perfectly customizable to meet any custom cabinet design, this liner hood integrates seamlessly into your kitchen decor. Wave goodbye to smoke, odors, and steam with intuitive Gesture Controls that let you adjust the speed with just a wave of your hand. The intelligent Heat Sensor activates the hood at 131°F and shuts it off at 104°F, while the Delay-Off feature lets you set a power-off delay for up to 12 minutes. Keep your kitchen grease-free with deep-groove Baffle Filters, which are also dishwasher-safe for easy cleaning. Bright LED Lights illuminate your cooking space, and the Clean Filter Reminder ensures your filters are always maintained. With 6 adjustable fan speeds and a responsive Touch Control pnael, you have complete control over your kitchen environment.
- Liner Hood: Integrates seamlessly into any kitchen cabinet design.
- 1200 CFM: 6 speeds that handle all of the odors, smoke, and steam from multiple dishes at once.

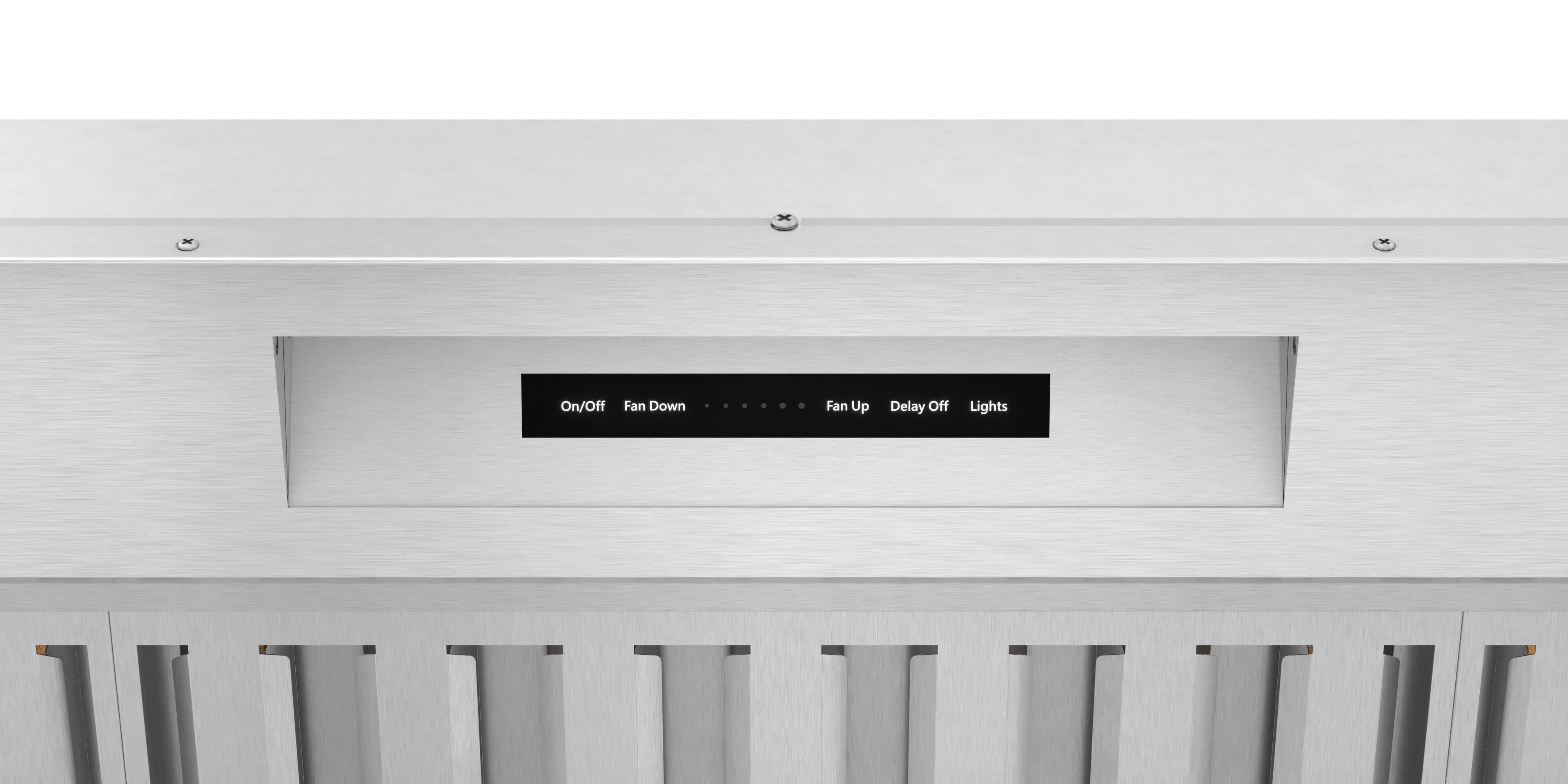

- Touch Control: Control the fan functions at a touch of the LED display.
- Gesture Controls: Turn on/off and adjust speed with a wave of your hand.
- Delay-Off: Set it and forget it with delay power shut off for up to 12 minutes.
- Stainless Steel Baffle Filters: Easy to remove and place into the dishwasher for a good cleaning.
- Clean Filter Reminder: Never forget to clean your filters again.
- 6 Speeds: This powerful hood handles all of the odors, smoke, and steam from multiple dishes at once.
- Heat Sensor: Equipped with a heat sensor that automatically activates the fan when the temperature reaches 131°F (55°C) and deactivates when it cools down to 104°F (40°C), ensuring energy efficiency and effective heat management.
Product Manuals
Q: Can I clean the filters in a dishwasher?
A: Yes, the baffle filters are dishwasher-safe.
Q: How do I control the fan functions on this range hood?
A: You can control the fan functions through touch controls and gesture controls.
Q: How many fan speeds does the XLH48 have?
A: This range hood offers 6 adjustable fan speeds.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity is 1200 CFM.
Q: Does the range hood have a built-in heat sensor?
A: Yes, it has a heat sensor that automatically activates the fan at 131°F and deactivates it at 104°F.
Q: What type of filters does this range hood use?
A: It uses stainless steel baffle filters.
Q: Does this Thor Kitchen range hood have a delay shut-off feature?
A: Yes, it has a delay power shut-off for up to 12 minutes.
