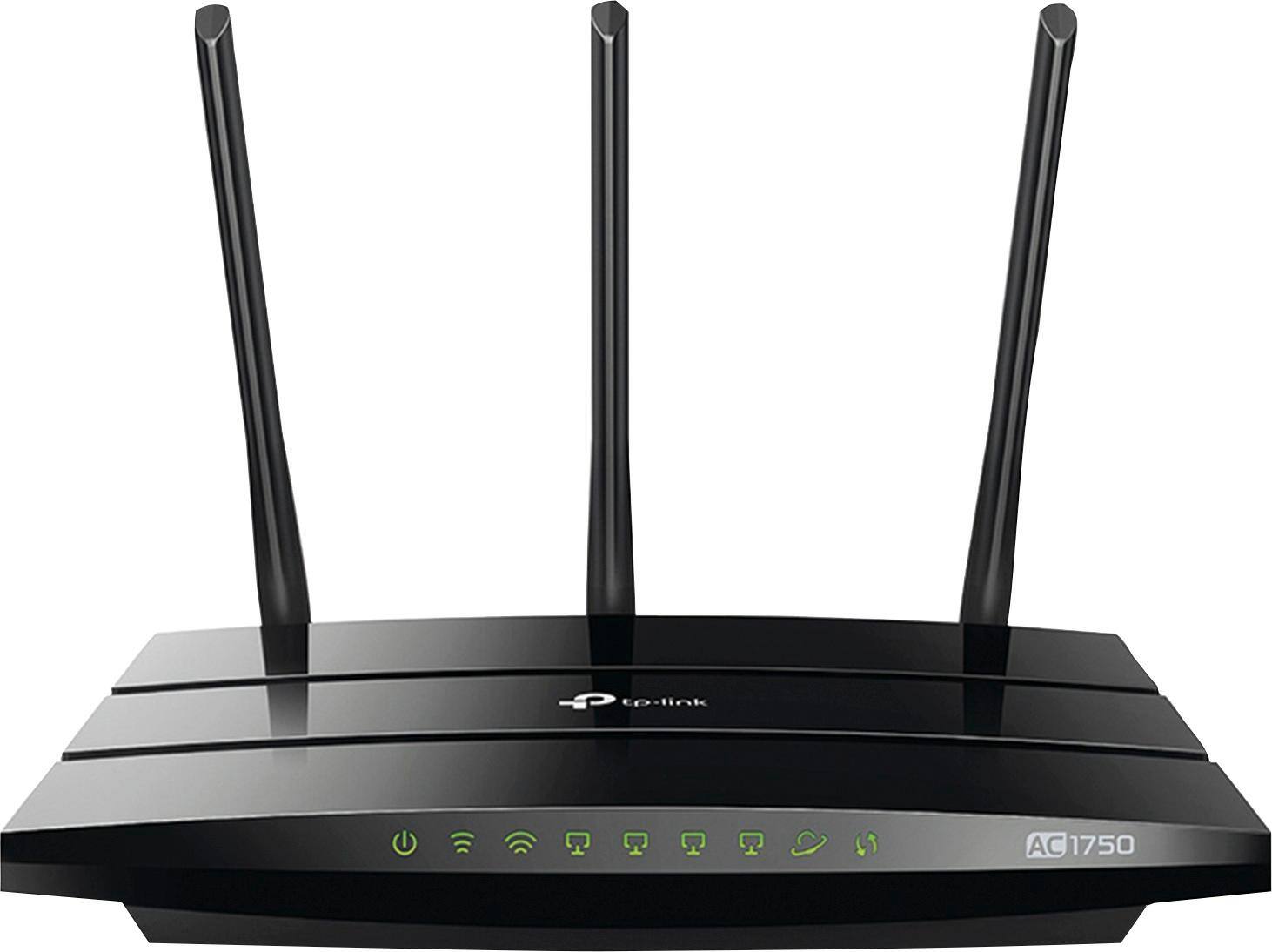

TP-Link - Archer AC1750 Dual-Band Wi-Fi 5 Router - Black
Model: Archer C7
SKU: 5889900
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1.75 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: TP-Link
- Model Number: Archer C7
- Product Name: Archer AC1750 Dual-Band Wi-Fi 5 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: 64/128-bit WEP,WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 3
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: TP-Link Tether
- Beamforming: false (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1.75 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10; MAC OS, NetWare, UNIX or Linux (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Dimensions
- Product Height: 1.29 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 9.59 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7.34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.93 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2-Year Limited
- Warranty - Labor: 2-Year Limited
- Other
- UPC: 845973070601
The Archer C7 covers your home with fast dual-band Wi-Fi. The 2.4GHz (450Mbps) Wi-Fi band is perfect for sending emails, browsing the web and listening to music. The 5GHz band reaches 1300Mbps so you can game and stream in HD at the same time without interruption.
- Wireless-AC technology: Smoother 4K HD streaming and online gaming with AC1750 Wi-Fi over 5GHz (1300Mbps) and 2.4GHz (450Mbps) bands.
- Better coverage: Fully expanded Wi-Fi coverage with three external detachable antennas and three internal antennas
- Gigabit wired connections: Lightning-fast wired connections using four Gigabit Ethernet Ports.
- Easy set up: Set up and adjust Wi-Fi settings from your mobile device (Android, iOS) with Tether app.
- Guest network access: Provides secure Wi-Fi access for guests sharing your home or office network.
- Wireless-AC technology: Smoother 4K HD streaming and online gaming with AC1750 Wi-Fi over 5GHz (1300Mbps) and 2.4GHz (450Mbps) bands.
- Better coverage: Fully expanded Wi-Fi coverage with three external detachable antennas and three internal antennas
- Gigabit wired connections: Lightning-fast wired connections using four Gigabit Ethernet Ports.
- Easy set up: Set up and adjust Wi-Fi settings from your mobile device (Android, iOS) with Tether app.
- Guest network access: Provides secure Wi-Fi access for guests sharing your home or office network.
Whats Included
- Archer C7 AC1750 Dual-Band Wi-Fi 5 Router
- 3 Detachable Antennas
- Power Adapter
- Quick installation guide
- Ethernet cable
- Archer C7 AC1750 Dual-Band Wi-Fi 5 Router
- 3 Detachable Antennas
- Power Adapter
- Quick installation guide
- Ethernet cable
Q: Can this be used with FIOS?
A: Yes, this router can be used in conjunction with FIOS internet.
Q: Is this version 2 of this router as was reviewed in PC Magazine?
A: I purchased this recently and checked the version. It is Hardware Version: 5.0. The interface is graphical and it should perform all the functions in the PC Mag review. I bought it for the VPN capability and it is built in without any 3rd party firmware. I have been very pleased with the setup and operating speed. Photos show the detailed hardware version.
Q: Can this be used with Spectrum?
A: Yes this dual band work with spectrum equipment..I must say my data is is received faster!!
A: I have this and it isn't sufficient for a 2 story home. I'm looking for something stronger
A: In most scenarios, the battery and power to the modem should be replaced once the modem has been connected to the router via Ethernet cable.
Q: Is this router compatible with VDSL?
A: This is not a VDSL modem; however it can be used in conjunction with an existing VDSL modem (connected to the router via Ethernet cable) to provide your home with AC1750 Dual-Band WiFi.
Q: Is this router compatible with Spectrum?
A: Yes, with a modem.
Q: Does this router output separate signals for 2.4 and 5.0 GHz, or is it combined in a single signal?
A: Hi! Both options are available. You can assign separate SSIDs to each band, or unify them, depending on your network preferences.
