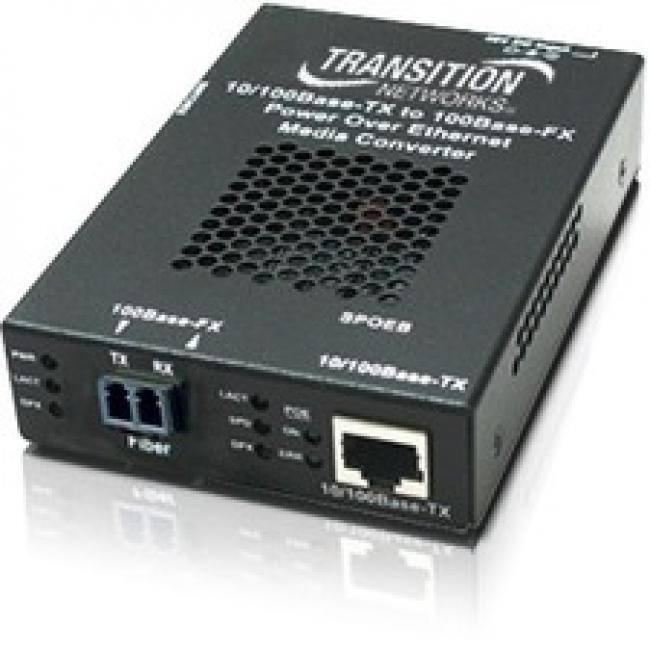

Transition Networks - SPOEB1039-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Black
Reviews coming soon
About this product
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.). The PoE converter is fully compatible with devices that comply with the IEEE 802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Features
Transition Networks SPOEB1039-105 Transceiver/Media
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing
Specifications
- Adapter TypeWired
Reviews
This product doesn't have any reviews yet.
Compare similar products
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.). The PoE converter is fully compatible with devices that comply with the IEEE 802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Customizable media converter extends your copper Gigabit Ethernet network connection over fiber optic cable with the addition of PoE. Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device Customizable SFP port supports both 1G single- and multimode transceivers RJ45 jack supports auto-MDI/MDIZ to bridge various network devices Supports both full- and half-duplex operation Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately). More from the Manufacturer
Increase the reliability of your connected devices and expand your network easily with TP-Link 5-port full gigabit desktop PoE+ switch. 4 PoE ports provide extra convenient support for PoE devices such as IP phone and camera. Ideal for home or offices, the TL-SG605P's plug-and-play design allows for easy and effortless deployment, no technician is required to begin connecting at ultra-smooth speeds. Auto-negotiation senses the link speed of a network device then intelligently adjusts to ensure full compatibility and optimal performance. Durable metal casing ensures a long product life and desktop/wall-mounting design is well-suited for different environments.
| Pros for Transition Networks - SPOEB1039-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Overall Performance, Setup, Ease of Use, Connectivity, Size |
