Trendnet - 10-Port Industrial Gigabit PoE+ Switch, WideTemperature Range -20° - 65°C (-4° - 149°F), DIN - Unknown
FREE shipping to
More Buying Options
Specifications
- Number of LAN Ports8
- Key Specs
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Trendnet
- Product Name: TRENDnet 10-Port Industrial Gigabit PoE+ Switch, WideTemperature Range -20° - 65°C (-4° - 149°F), DIN
- Color: Unknown
- Dimensions
- Product Height: 1.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Lifetime
- Warranty - Labor: Lifetime
- Other
- UPC: 710931162202

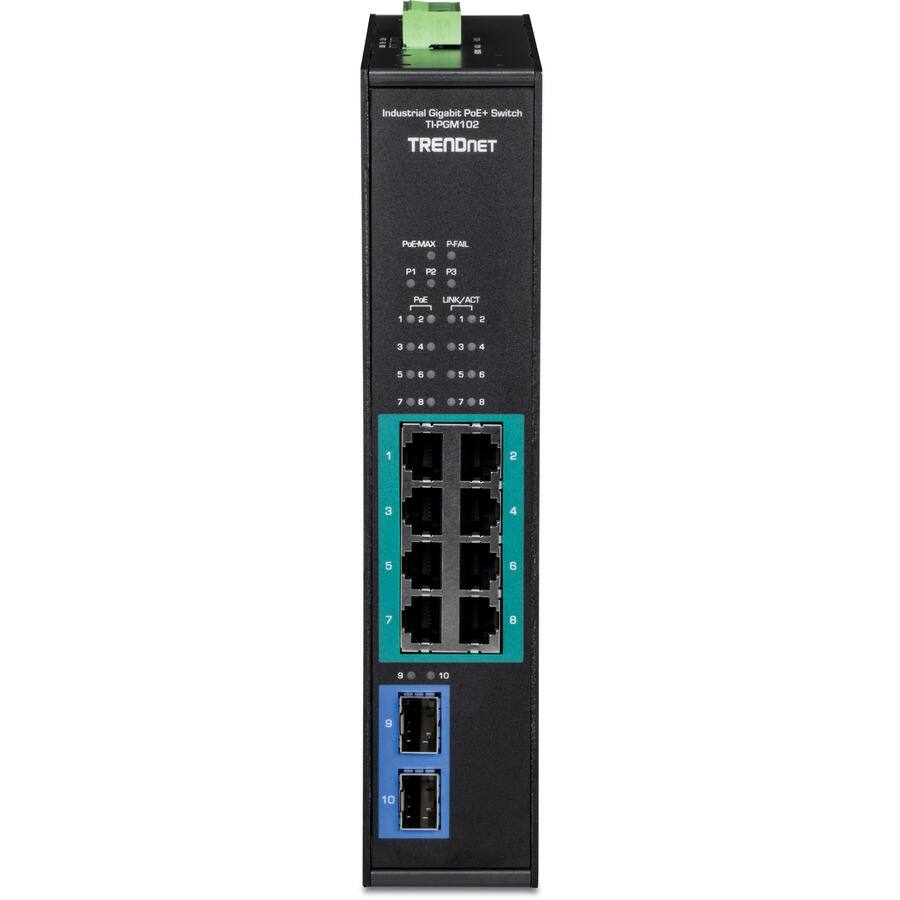

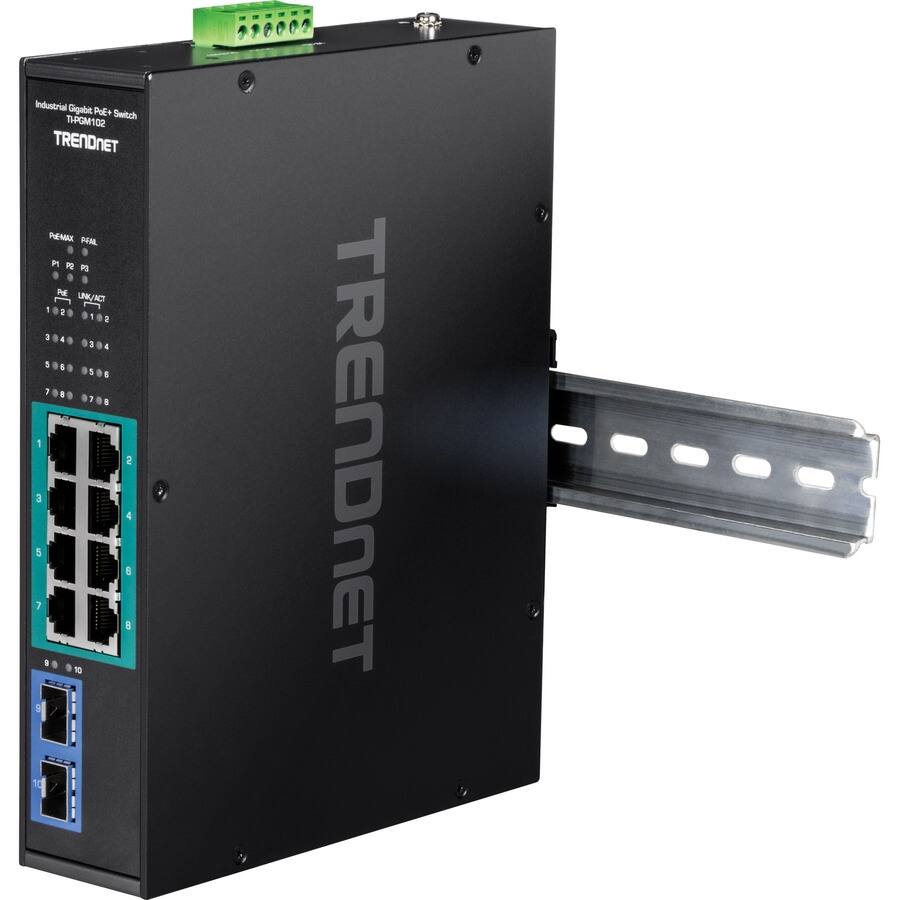

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.8 x Gigabit PoE+ ports2 x Gigabit SFP slots240W PoE power budget20Gbps switching capacityHardened IP30 rated metal switchIncludes DIN-Rail and wall mountsWide operating temperature range of -20° - 65°C (-4° - 149°F)Redundant power inputs with overload current protectionAlarm output triggered by power failurePower supply sold separately (models: TI-S24052, TI-S24048)NDAA / TAA compliantLifetime Warranty
- PoE Power: A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

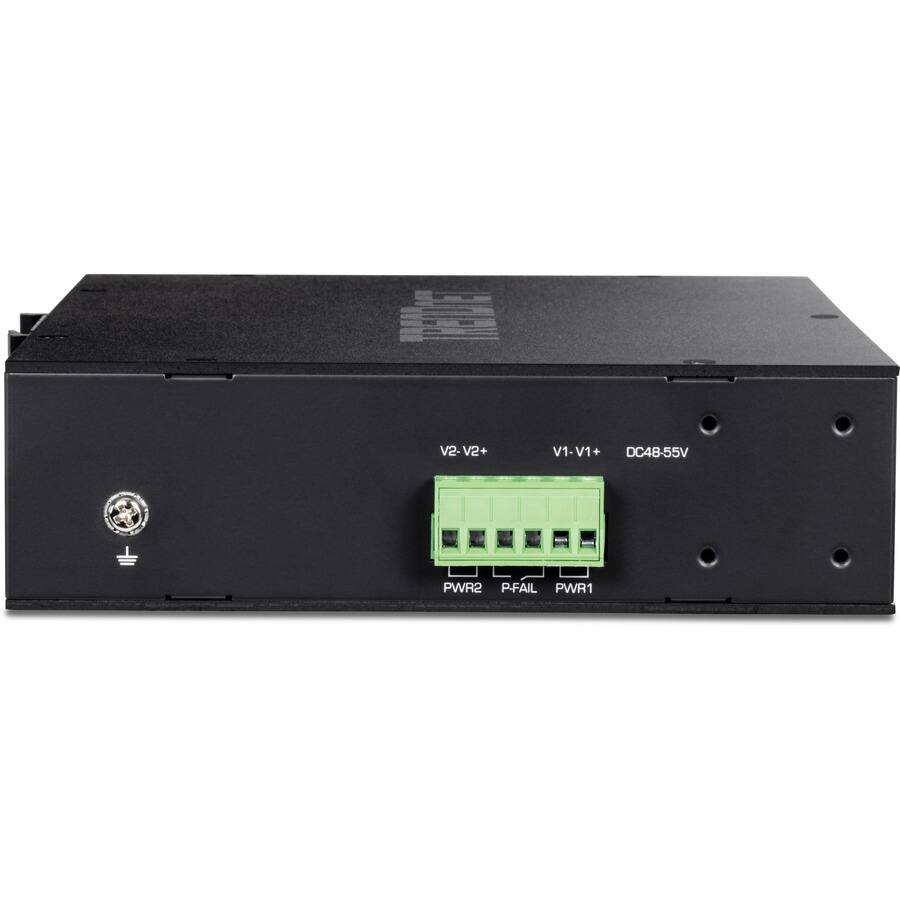

- Fault Tolerance: Features redundant power inputs with overload current protection and output alarm relay.
- Industrial Hardened Design: Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F). More from the Manufacturer
- PoE Power: A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
- Fault Tolerance: Features redundant power inputs with overload current protection and output alarm relay.
- Industrial Hardened Design: Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F). More from the Manufacturer
Whats Included
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) Quick Installation Guide Removable Terminal Block
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) Quick Installation Guide Removable Terminal Block
