Ubiquiti - Pro Max 16-Port 2.5G/1G Managed Network Switch USW-PRO-MAX-16 - Gray
FREE shipping to
Specifications
- Number of LAN Ports16
- Key Specs
- Number of LAN Ports: 16 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Ubiquiti
- Product Name: Pro Max 16-Port 2.5G/1G Managed Network Switch USW-PRO-MAX-16
- Color: Gray
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 12.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 810084694541

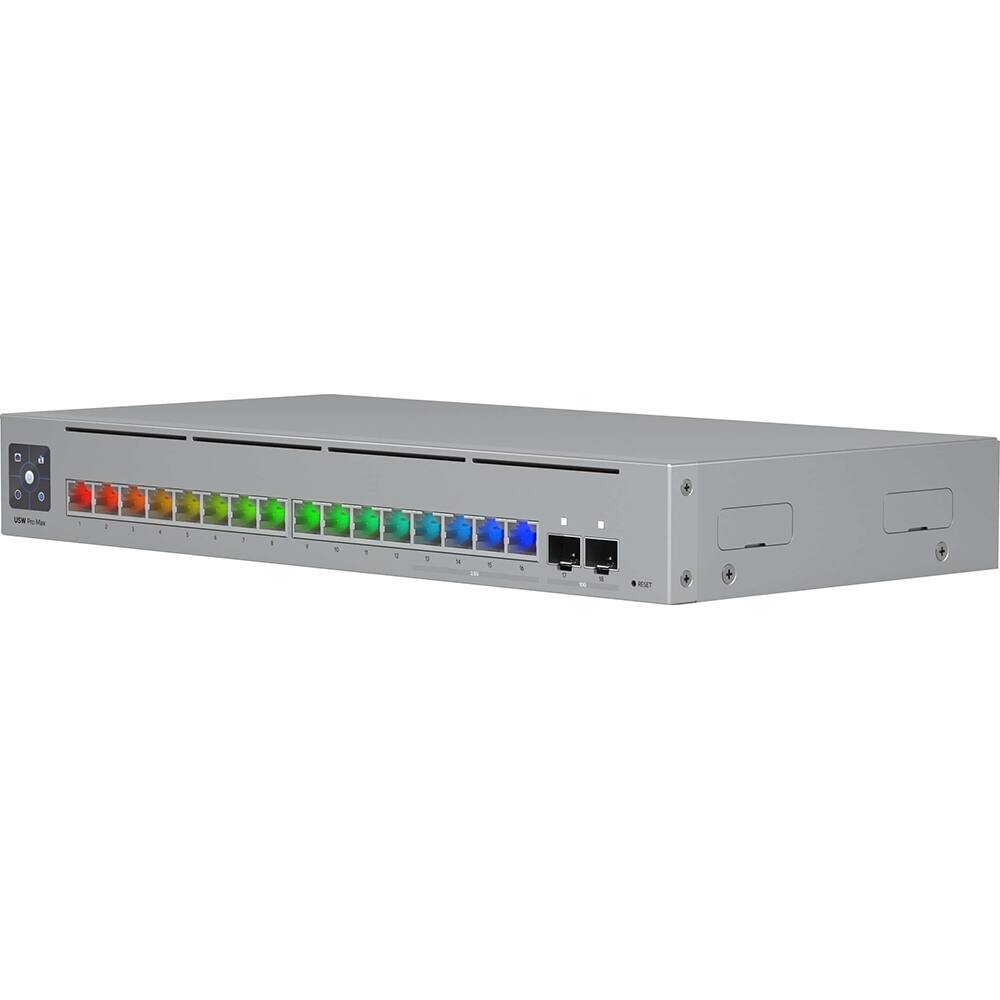

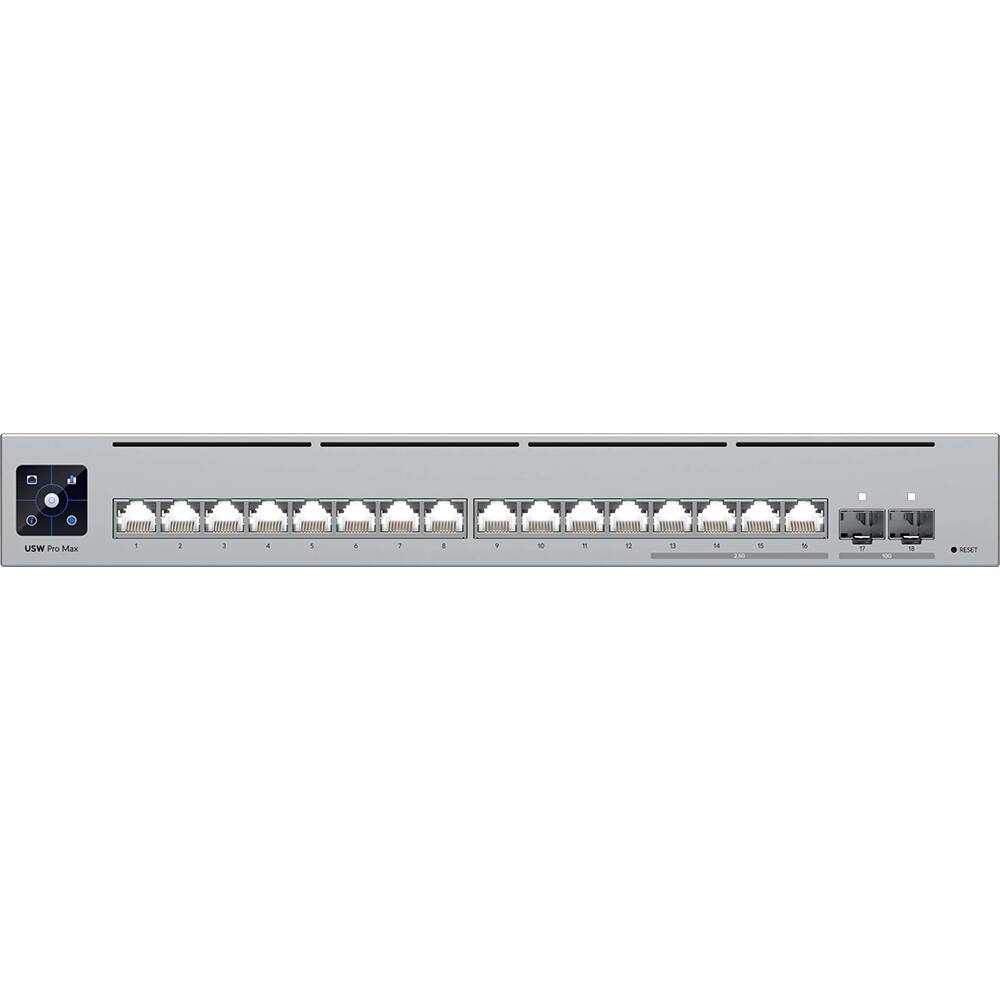

A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options. Etherlighting? ports that illuminate to indicate port location, speed/link, and native VLAN/network (4) 2.5 GbE RJ45 ports (12) GbE RJ45 ports (2) 10G SFP+ ports Versatile desktop, wall, and rack mounting Silent, fanless cooling system (Pair with UniFi Etherlighting Patch Cables for optimal brightness.) (Requires add-on Rack Mount accessory.)
- Performance: This switch supports Layer 3 features with an 84 Gb/s (42 Gb/s non-blocking) switching capacity and 62.496 Mpps forwarding rate.
- Performance: This switch supports Layer 3 features with an 84 Gb/s (42 Gb/s non-blocking) switching capacity and 62.496 Mpps forwarding rate.
Whats Included
- Ubiquiti Inc Pro Max 16
- Ubiquiti Inc Pro Max 16
Compare similar products
A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options. Etherlighting? ports that illuminate to indicate port location, speed/link, and native VLAN/network (4) 2.5 GbE RJ45 ports (12) GbE RJ45 ports (2) 10G SFP+ ports Versatile desktop, wall, and rack mounting Silent, fanless cooling system (Pair with UniFi Etherlighting Patch Cables for optimal brightness.) (Requires add-on Rack Mount accessory.)
Expand your business's network with the Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support advanced IP cameras, access points, and other PoE compatible devices. Four 60W 2.5G PoE++ Ethernet ports are available alongside twelve 30W Gigabit speed Ethernet ports with a total power budget of 180W for compatible equipment. Two SFP+ ports are also available for up to 10 Gb/s uplinks. Etherlighting technology illuminates each port to indicate the port location, speed/link status, and native VLAN/network configurations when used with compatible cables. A 1.3" touchscreen display provides important status information at a glance. Supporting a 84 Gb/s (42 Gb/s non-blocking) switching capacity, 62.496 Mpps forwarding rate, and Layer 3 features, the Pro Max 16 PoE delivers smooth data transfers. Its settings may be managed through the UniFi Network platform. Performance. This switch supports Layer 3 features with a 84 Gb/s (42 Gb/s non-blocking) switching capacity and 62.496 Mpps forwarding rate. Flexible Mounting. Place the Pro Max 16 PoE onto a desk, wall, or rack.
UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Expand your business's network with the Pro Max 24-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support additional computers, servers, and other compatible devices. Eight 2.5G Ethernet ports and sixteen 1G ports are available with Etherlighting technology illuminating each of them to indicate their location, speed/link status, and native VLAN/network configurations when used with compatible cables. Two SFP+ ports are also available for up to 10 Gb/s uplinks. A 1.3" touchscreen display provides important status information at a glance. Supporting a 112 Gb/s (56 Gb/s non-blocking) switching capacity and Layer 3 features, the Pro Max 48 delivers smooth data transfers. Its settings may be managed through the UniFi Network platform. Performance. This switch supports Layer 3 features with a 112 Gb/s (56 Gb/s non-blocking) switching capacity. Backup Power. Connecting the DC backup power input to a compatible source provides failover support for added peace of mind.
