Unique Bargains - 2pcs KSD9700 Thermostat 60C Normally Close N.C Temperature Switch 250V 10A Thermal Protector Ceramics - Black

2Pcs KSD9700 60°C NC 250V/10A Thermostat

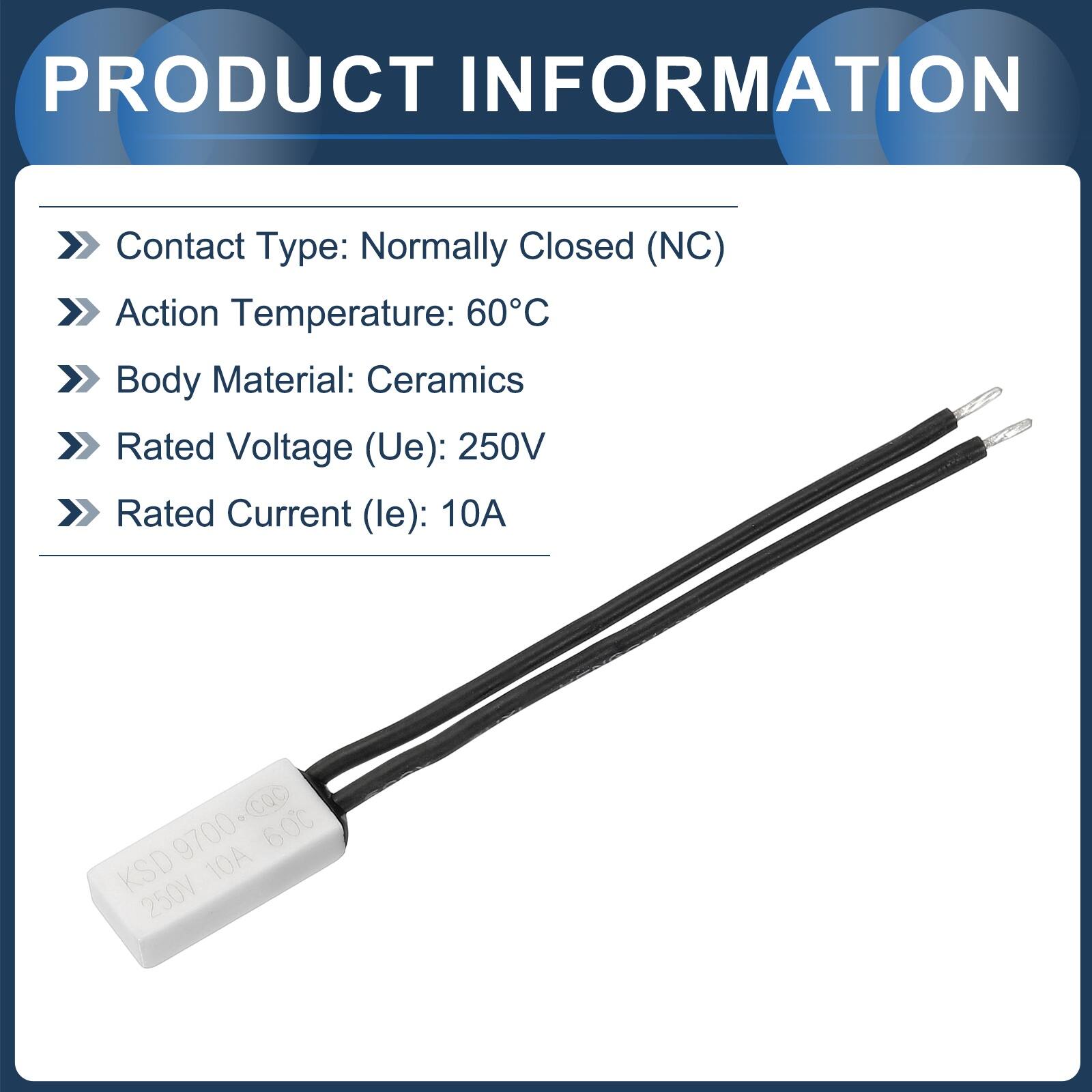

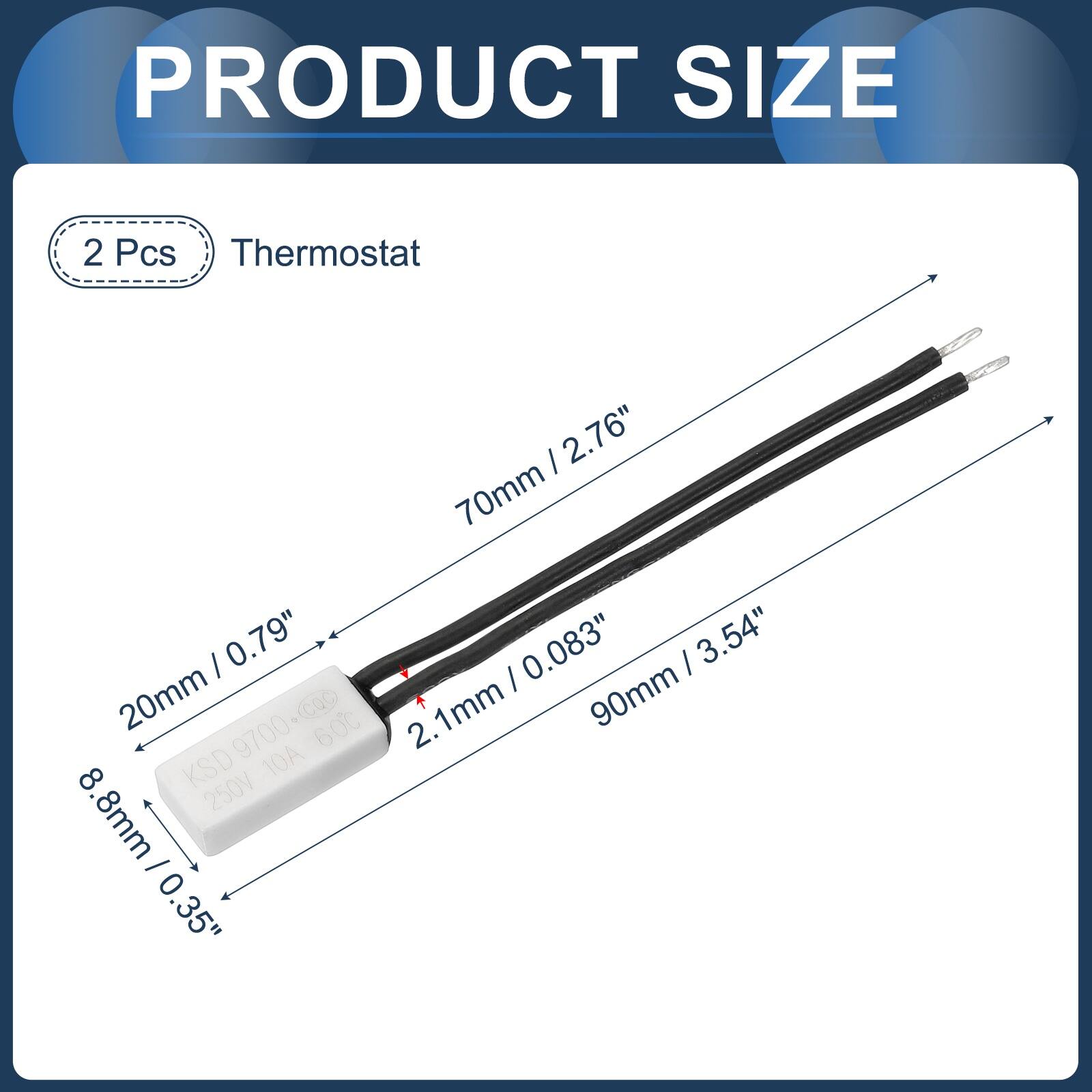

Product: Thermostat; Contact Type: Normally Closed (NC); Action Temperature: 60°C; Body Material: Ceramics; Body Size: 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 10A; Package: 2 Pcs Thermostat

The ceramic body of the thermal switch ensures high temperature resistance, corrosion resistance, fast thermal conductivity, and rapid response, while normally closed contacts keep the circuit closed under normal conditions and open at the action temperature.

The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.

Connect the two wires of the thermal protector in series with the circuit you wish to protect. Mount the body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will open, interrupting the circuit to prevent overheating.

Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NC) are suitable for your specific use before installation.
