Unique Bargains - 2pcs KSD9700 Thermostat 70C Normally Close N.C Temperature Switch 250V 10A Thermal Protector Ceramics - Black
Reviews coming soon
About this product
This is a thermostat with a normally closed (NC) contact and an action temperature. It is designed to automatically cut off electrical circuits when the temperature exceeds the set point. The thermal protector is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
2Pcs KSD9700 70°C NC 250V/10A Thermostat Ceramic

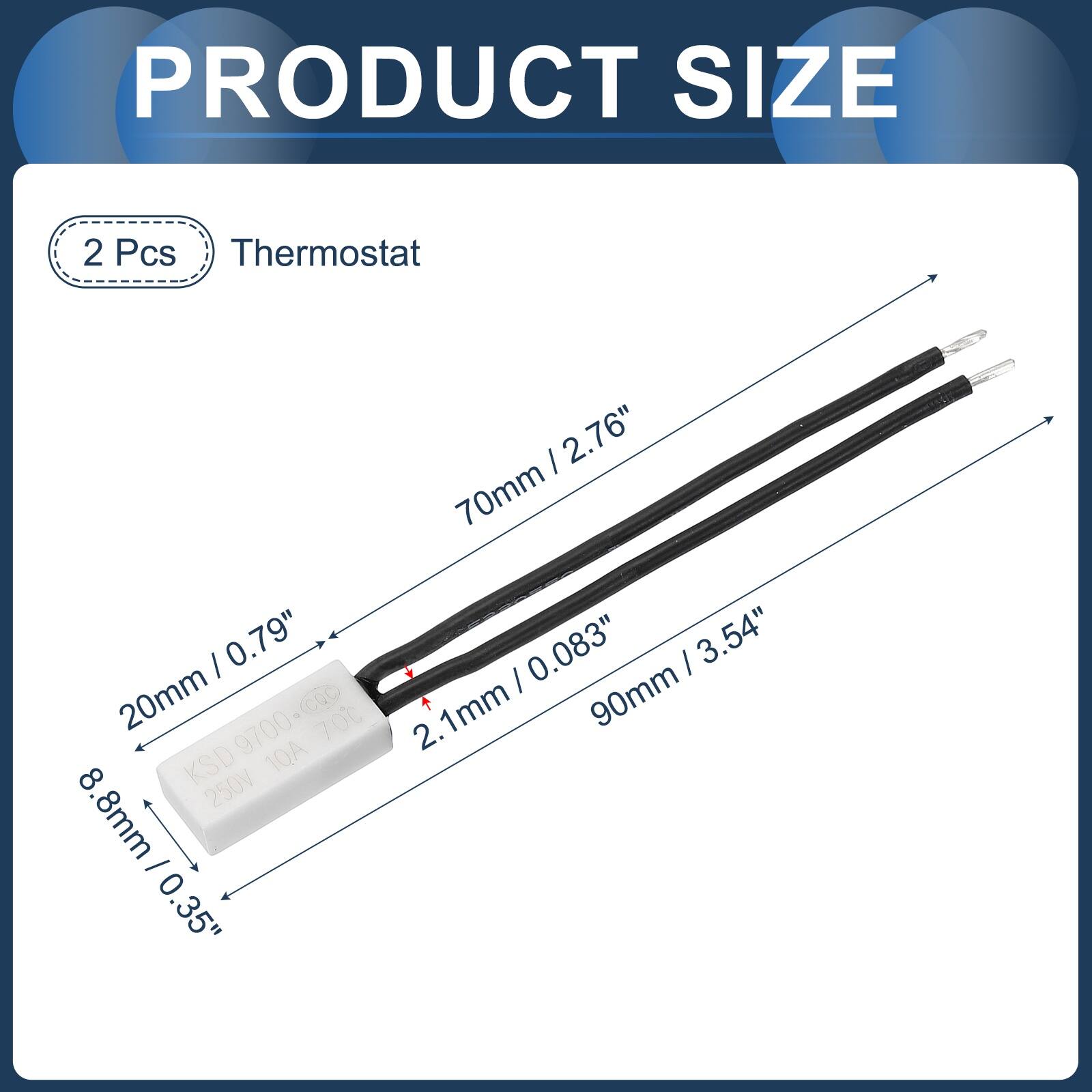

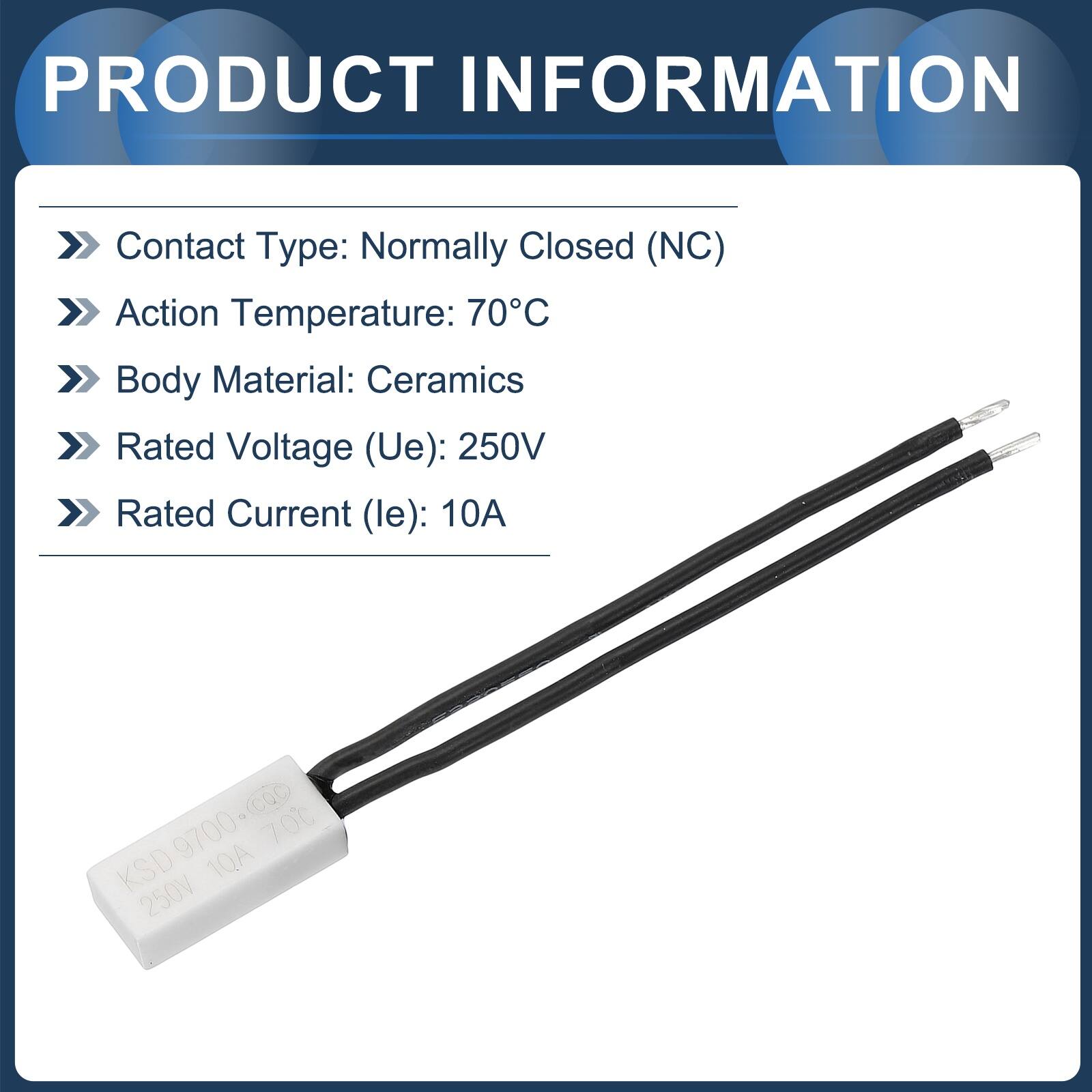

Product: Thermostat; Contact Type: Normally Closed (NC); Action Temperature: 70°C; Body Material: Ceramics; Body Size: 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 10A; Package: 2 Pcs Thermostat
The ceramic body of the thermal switch ensures high temperature resistance, corrosion resistance, fast thermal conductivity, and rapid response, while normally closed contacts keep the circuit closed under normal conditions and open at the action temperature.
The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
Connect the two wires of the thermal protector in series with the circuit you wish to protect. Mount the body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will open, interrupting the circuit to prevent overheating.
Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NC) are suitable for your specific use before installation.
- BrandUnique BargainsModel Numbers26060900ux2939Product Name2pcs KSD9700 Thermostat 70C Normally Close N.C Temperature Switch 250V 10A Thermal Protector CeramicsColorBlackSwitch TypeToggleVoltage250 volts
Reviews
This product doesn't have any reviews yet.
Compare similar products
This is a thermostat with a normally closed (NC) contact and an action temperature. It is designed to automatically cut off electrical circuits when the temperature exceeds the set point. The thermal protector is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
This is a thermostat with a normally open (NO) contact and an action temperature. It is designed to automatically close electrical circuits when the temperature reaches the set point. The normally open temperature switch is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 140°C/284°F ; Action Type: N.C (Normally Closed); Rated Voltage/Current : 125V/16A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch
A thermostat automatically switches circuits on or off by sensing temperature changes to maintain a set point, widely used in circuits requiring automatic temperature-based switching, including household appliances (coffee makers, ovens, microwaves, air fryers, toasters, rice cookers, steamers, heaters) as well as transformers, motors, automotive electronics, and automated equipment.
