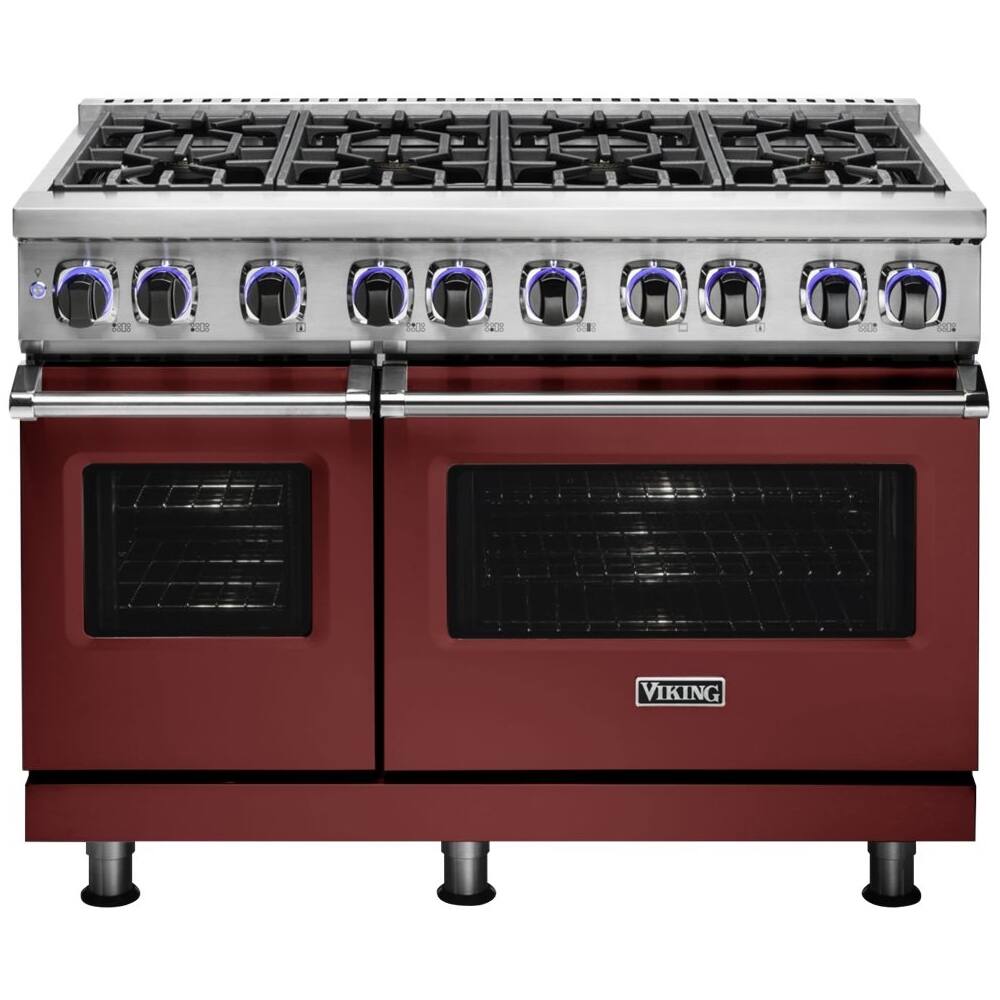

Viking - 48"W 7-Series Dual Fuel Self-Clean Range-8 Burners-LP - Reduction Red
- Key Specs
- Color Finish: Red
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VDR74828BRELP
- Product Name: 48"W 7-Series Dual Fuel Self-Clean Range-8 Burners-LP
- Color: Reduction Red
- Color Finish: Red
- Dimensions
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 692 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 4.7 cubic feet
- Oven 2 Capacity: 2.6 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Liquid propane
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob
- Oven Control Location: Front panel
- Oven Light: true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Bake, Broil, Dehydrate, Defrost
- Oven Settings: Time Bake
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1 Specification
- Oven 1 Location: Right
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 3
- Number of Oven 1 Rack Positions: 6
- Oven 2 Specification
- Oven 2 Location: Left
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 2
- Number of Oven 2 Rack Positions: 6
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 8
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Elevation (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 23000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 23000 british thermal units
- Burner 3 Rating: 23000 british thermal units
- Burner 4 Rating: 23000 british thermal units
- Burner 5 Rating: 15000 british thermal units
- Burner 6 Rating: 15000 british thermal units
- Burner 7 Rating: 15000 british thermal units
- Burner 8 Rating: 8000 british thermal units
- Total Maximum BTU Rating: 128500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 43 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: NA (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284030058
Reach new culinary heights with this Viking 7 Series dual-fuel range. The eight Elevation burners let you prepare multiple dishes simultaneously, and the porcelain burner pan prevents spills from baking on for easier cleanup. This Viking 7 Series dual-fuel range has two ovens with Rapid Ready systems that help minimize preheating time.
- 8 cooktop burners: Provide between 8,000 and 20,000 BTUs to meet various cooking requirements.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 4.7 cu. ft. oven lets you cook for a large group in less time.
- Continuous Grate Design: Allows easy movement of pots and pans from burner to burner.
- Reduction red color: Match your existing décor with this color.
- Safety features: Include SureSpark reignition system.
- 8 cooktop burners: Provide between 8,000 and 20,000 BTUs to meet various cooking requirements.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 4.7 cu. ft. oven lets you cook for a large group in less time.
- Continuous Grate Design: Allows easy movement of pots and pans from burner to burner.
- Reduction red color: Match your existing décor with this color.
- Safety features: Include SureSpark reignition system.
Whats Included
- (3) Tru-Glide Rack
- Island Trim
- Viking Professional 7 Series VDR74828BRELP
- (3) Tru-Glide Rack
- Island Trim
- Viking Professional 7 Series VDR74828BRELP
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: What is the manufacturer's warranty coverage for both labor and parts?
A: The manufacturer provides a two-year full warranty for both labor and parts for the 48"W 7-Series Dual Fuel Self-Clean Range-8 Burners-LP. Additionally, there's a five-year limited warranty on burners, covering repairs or replacements for defective materials or workmanship (excluding cosmetic failures) during the third through fifth year from the original purchase date. However, the owner is responsible for all labor costs during this period.
Q: Can you provide more information about the SureSpark re-ignition system and its benefits?
A: The SureSpark re-ignition system ensures consistent and reliable ignition on all burners. It automatically re-ignites the burners if the flame goes out, as long as the gas is still flowing. This feature eliminates the need for continuous manual ignition and provides peace of mind, ensuring that the burners will always ignite when needed.
Q: Does this range come with a griddle or any additional cooking accessories?
A: Yes, this Viking range comes with an optional 15,000 BTU griddle/grill made of cast iron with a non-stick surface. The griddle is designed for excellent cooking performance and easy cleanup. It has an electronic thermostat to maintain an even temperature.
Q: What is the maximum heat output of the most powerful burner on this range?
A: The most powerful burner on this Viking range is rated at 23,000 BTU. This burner is designed to provide extra high heat output, especially when using large pans, and should be used for boiling large quantities or if you need to bring something to a boil quickly.
Q: Does this range require a separate electric cord, or is it included in the package?
A: The electric cord is sold separately and is not included in the package of this Viking 48"W 7-Series Dual Fuel Self- Clean Range-8 Burners-LP.
Q: What is the standardized width of this range, and does it fit standard kitchen counter dimensions?
A: The standardized width of this Viking range is 48 inches, which is the standard width for kitchen ranges and should fit standard kitchen counter dimensions.
Q: What is the total oven capacity of this Viking range?
A: The total oven capacity of this Viking range is 6.7 cubic feet. The first oven has a capacity of 4.7 cubic feet, while the second oven has a capacity of 2 cubic feet.
Q: What is the material used for the cooktop surface, and how easy is it to clean?
A: The cooktop surface of this Viking range is made of a one-piece tooled and porcelainized material. This material is designed to contain spills for easy cleaning. It can be cleaned with warm, soapy water and a soft cloth after each use. For cooked-on foods, a non-abrasive cleanser such as Bon Ami™ and a soft brush or Scotch Brite™ pad can be used.
