Viking

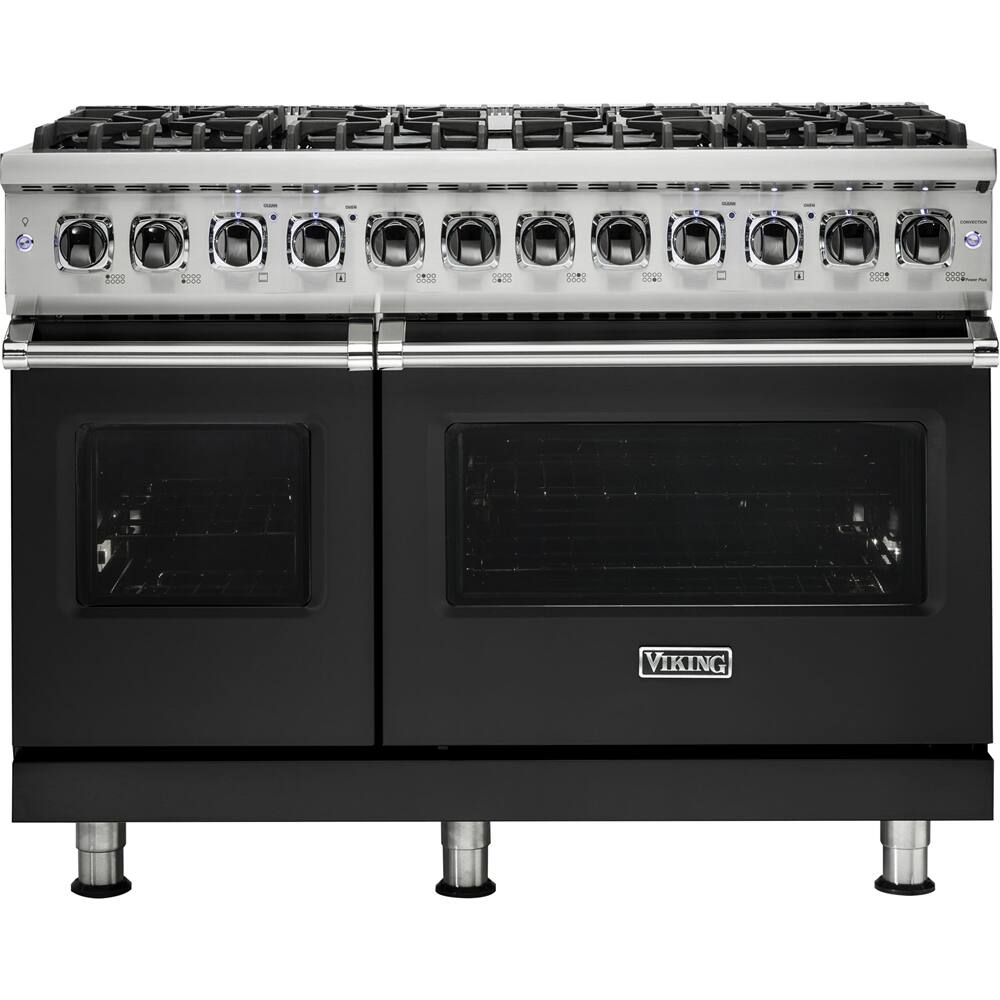

Viking - 48 in. Wide 8 Burner 5-Series Dual Fuel Self-Clean Sealed Burner Range - Cast Black

Model: VDR5488BCS
SKU: 6383893
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Black
    • Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 28 2/3 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Single/Double Oven: Double Oven
    • Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Number of Burners: 8
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • General
    • Brand: Viking
    • Model Number: VDR5488BCS
    • Product Name: 48 in. Wide 8 Burner 5-Series Dual Fuel Self-Clean Sealed Burner Range
    • Color: Cast Black
    • Color Finish: Black
  • Dimensions
    • Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
    • Depth With Handle: 28 2/3 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
    • Product Weight: 575 pounds (The out of box weight of the item.)
  • Capacity
    • Oven 1 Capacity: 2.6 cubic feet
    • Oven 2 Capacity: 4.7 cubic feet
  • Features
    • Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
    • Gas Type: Natural gas
    • Range Power Source: Dual fuel
    • Ignition Type: Electric
    • Soft Close Door: true
    • Control Type: Backlit knob
    • Oven Control Location: Front panel
    • Oven Light: true
    • Propane (LP) Convertible: true
    • Propane Kit Model Compatibility: Convert to LP with Kit LPKPDR., LP conversion by experienced servicer.
  • Functions
    • Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
    • Oven Cooking Modes: Convection, Bake, Broil, Defrost, Dehydrate
    • Oven Settings: Time Bake
  • Oven Features
    • Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
    • Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
    • Single/Double Oven: Double Oven
    • Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
  • Oven 1
    • Oven 1 Location: Left
    • Oven 1 Window: true
    • Oven 1 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 1 Racks: 2
    • Number of Oven 1 Rack Positions: 6
  • Oven 2
    • Oven 2 Location: Right
    • Oven 2 Window: true
    • Oven 2 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Number of Oven 2 Racks: 3
    • Number of Oven 2 Rack Positions: 6
  • Cooktop Features
    • Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Cooktop Surface Material: Porcelain
    • Number of Burners: 8
    • Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
    • Specialty Burner(s): VSH Pro sealed, TruPowerPlus (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
    • Grate Material: Cast iron
  • Burner Rating
    • Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
    • Burner 2 Rating: 15000 british thermal units
    • Burner 3 Rating: 15000 british thermal units
    • Burner 4 Rating: 15000 british thermal units
    • Burner 5 Rating: 15000 british thermal units
    • Burner 6 Rating: 15000 british thermal units
    • Burner 7 Rating: 15000 british thermal units
    • Burner 8 Rating: 18500 british thermal units
    • Total Maximum BTU Rating: 123500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
  • Electrical
    • Amperage: 50 amperes (Strength of electrical current.)
    • Voltage: 240 volts (Amount of power needed to support an electrical current.)
  • Included
    • Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Propane Conversion Kit Included: false
    • Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
  • Certifications Listings & Approvals
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • Chemical Disclosures: NA (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 2 years
    • Warranty - Labor: 2 years
  • Compatibility
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • Other
    • UPC: 800284028703

Become a master chef with this Viking 5 Series dual-fuel range. The TruPower Plus burner boils water quickly with up to 18,500 BTUs of even heat, and the seven additional15,000 BTU burners let you prepare dishes simultaneously. This Viking 5 Series dual-fuel range has two integrated ovens with large windows and built-in halogen lights that offer a clear view of your food.

Range, Cooktop and Wall Oven Buying Guide

  • 8 cooktop burners: Provide between 8,000 and 23,000 BTUs to meet various cooking requirements.
  • Porcelain-enamel cooktop surface: Offers a durable design.
  • Bi-directional Convection Fan: Maximum airflow throughout the oven for faster cooking times and more flavorful results.
  • Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
  • Dual Oven Design: Accomodates multiple cooking tasks and provides flexibilty when cooking a wide range of food at different temperatures.
  • Interior oven light: Lets you keep an eye on food being cooked without opening the oven door and letting heat escape.
  • Cast black color: Match your existing décor with this color.
  • Safety features: Include automatic flame reignition.
Whats Included
  • (1) Regular Rack
  • (2) Tru-Glide Rack
  • 3 x rack
  • Island trim kit
  • Viking Professional 5 Series VDR5488BCS

Q: What is the weight of the range?

A: The weight of the 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range by Viking is 575 pounds. This information is found in the context under the "Product Weight" attribute.

Q: What is the capacity of the left oven?

A: The capacity of the left oven of the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range is 2.6 cubic feet. This information can be found in the "product specifications" section of the provided context.

Q: What is the capacity of the right oven?

A: The capacity of the right oven of the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range is 4 cubic feet.

Q: What are the dimensions of the range (width, depth, and height)?

A: The dimensions of the range are as follows: - Width: 48 inches - Depth: 24.3125 inches - Height: 36 inches

Q: How many burners does the cooktop have?

A: The cooktop of this Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range features a total of 8 burners. Each burner offers varying BTU ratings to accommodate different cooking requirements, ranging from 8,000 to 23,000 BTUs.

Q: Does the range have a door lock?

A: Yes, the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range does have a door lock feature. The "Door Lock" feature is explicitly mentioned in the product specifications.

Q: Does the range have a convection fan?

A: Yes, the range has a convection fan. The product description mentions "Bi-directional Convection Fan: Maximum airflow throughout the oven for faster cooking times and more flavorful results." and "Circulates air throughout the oven: Convection technology for fast cook times and flavorful results."

Q: What is the BTU rating of the most powerful burner?

A: The most powerful burner on the Viking 5-Series Dual Fuel Self-Clean 48"W Sealed Burner Range has a BTU rating of 18,500.
