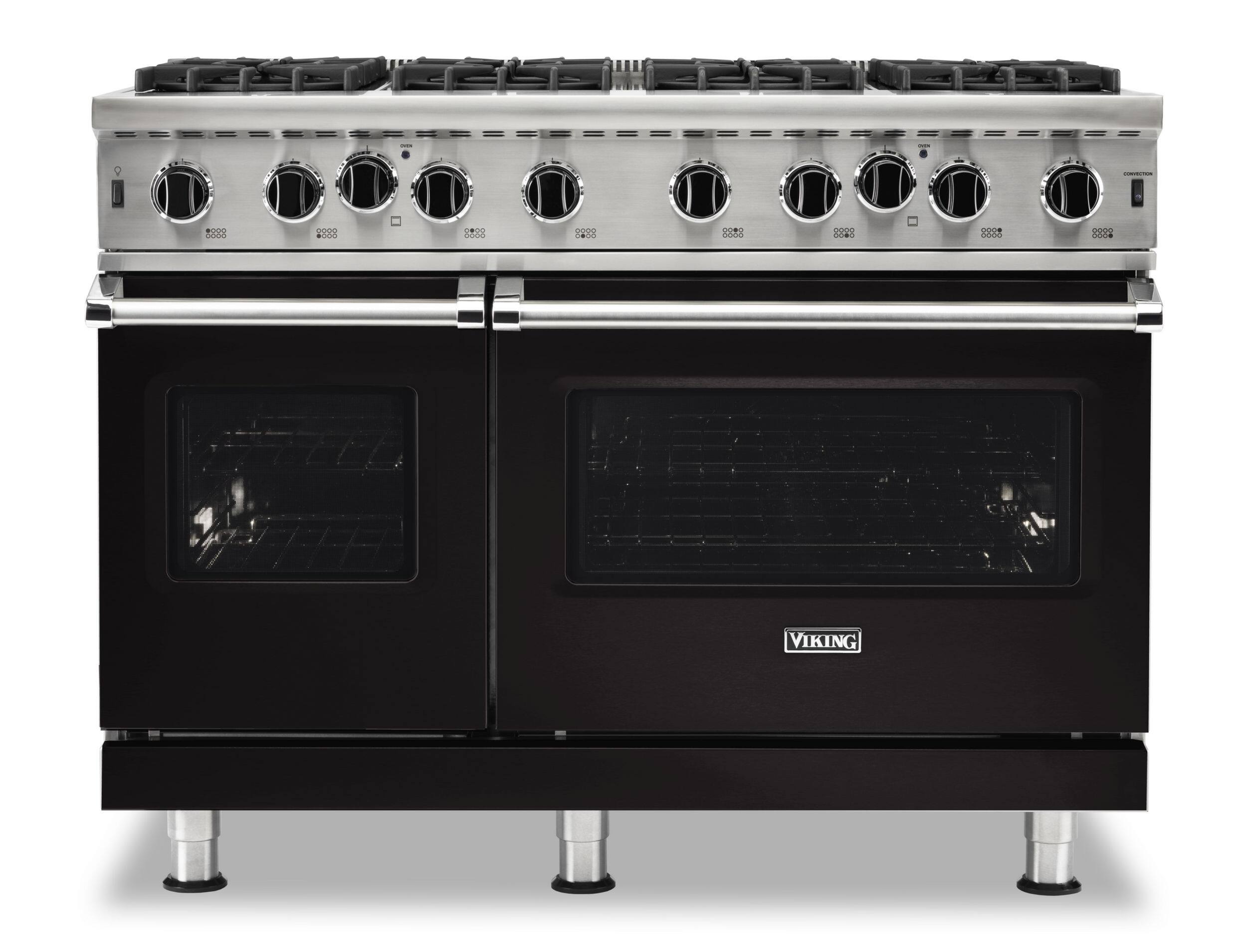

Viking - 5-Series Gas Open Burner Range - Onyx
Color
OnyxNeed-haul away?
Related Item
Specifications
- Color FinishBlackProduct Height36 7/8 inchesProduct Width48 inchesProduct Depth25 3/4 inchesDepth With Handle28.68 inchesRange TypeFreestanding
- Key Specs
- Color Finish: Black
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 28.68 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Number of Burners: 8
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VGIC54828BON
- Product Name: 5-Series Gas Open Burner Range
- Color: Onyx
- Color Finish: Black
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 28.68 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 575 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2.1 cubic feet
- Oven 2 Capacity: 4 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: false
- Control Type: Knob
- Oven Control Location: Front panel
- Clock Display: false
- Lock Type: None
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: LPKPDR
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: None
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake, Convection, Broil, Dehydrate, Defrost
- Oven Settings: Natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate and convection defrost
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 2
- Number of Oven 1 Rack Positions: 6
- Oven 1 Interior Depth: 18.75 inches
- Oven 1 Interior Height: 16.125 inches
- Oven 1 Interior Width: 12.125 inches
- Oven 2
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 3
- Number of Oven 2 Rack Positions: 6
- Oven 2 Interior Depth: 18.75 inches
- Oven 2 Interior Height: 16.125 inches
- Oven 2 Interior Width: 23 inches
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 8
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 15000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 15000 british thermal units
- Burner 6 Rating: 15000 british thermal units
- Burner 7 Rating: 15000 british thermal units
- Burner 8 Rating: 15000 british thermal units
- Broiler Burner Rating: 30000 british thermal units
- Total Maximum BTU Rating: 180000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: 0 (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 Year full warranty, except for cosmetic parts (90 days).
- Warranty - Labor: 2 Year full warranty, except for cosmetic parts (90 days).
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284057970
The Viking 5-Series open-burner all gas range touts dual large capacity ovens with 6 different cooking modes and 6 oven rack positions. The ovens are heated with a 30,000 BTU U-shaped burner for maximum coverage in the oven cavity, for faster pre-heat and more even cooking. The oversized infrared Broiler provides intense searing heat for broiling applications.
- Open Burners: Open burner design allows for more air flow to the burner, which translates to a better flame pattern to the center of the cooking vessel.
- Easy Clean cooking surface: Individual grates and drip pans combined with an over-sized pull out tray allows for easy cleaning of the entire cooking surface.
- Continuous Grate design: Heavy-duty porcelanized cast-iron grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
- Cooking Modes: Larger oven features six cooking functions with convection option specifically designed to ensure balanced airflow for even heat distribution. Smaller oven features a bake mode only.
- Gourmet Glo Infrared Broiler: Large infrared broiler with dual settings provides controlled, intense heat for a variety of broiling options.
Product Manuals
Q: Does the larger oven have convection settings?
A: Yes, the larger oven features six cooking functions with a convection option.
Q: Are the burners on this range sealed?
A: No, the burners are not sealed; they are open burners.
Q: What is the capacity of the smaller oven?
A: The capacity of the smaller oven is 4 cubic feet.
Q: What is the total maximum BTU rating for this range?
A: The total maximum BTU rating for this range is 180000.
Q: How many oven rack positions are in the first oven?
A: There are six oven rack positions in the first oven.
Q: What is the BTU rating of the broiler burner?
A: The broiler burner has a BTU rating of 30000.
Q: Does this range have a soft close door?
A: No, this range does not have a soft close door.
Q: What paint color matches Nantucket
A: undefined
