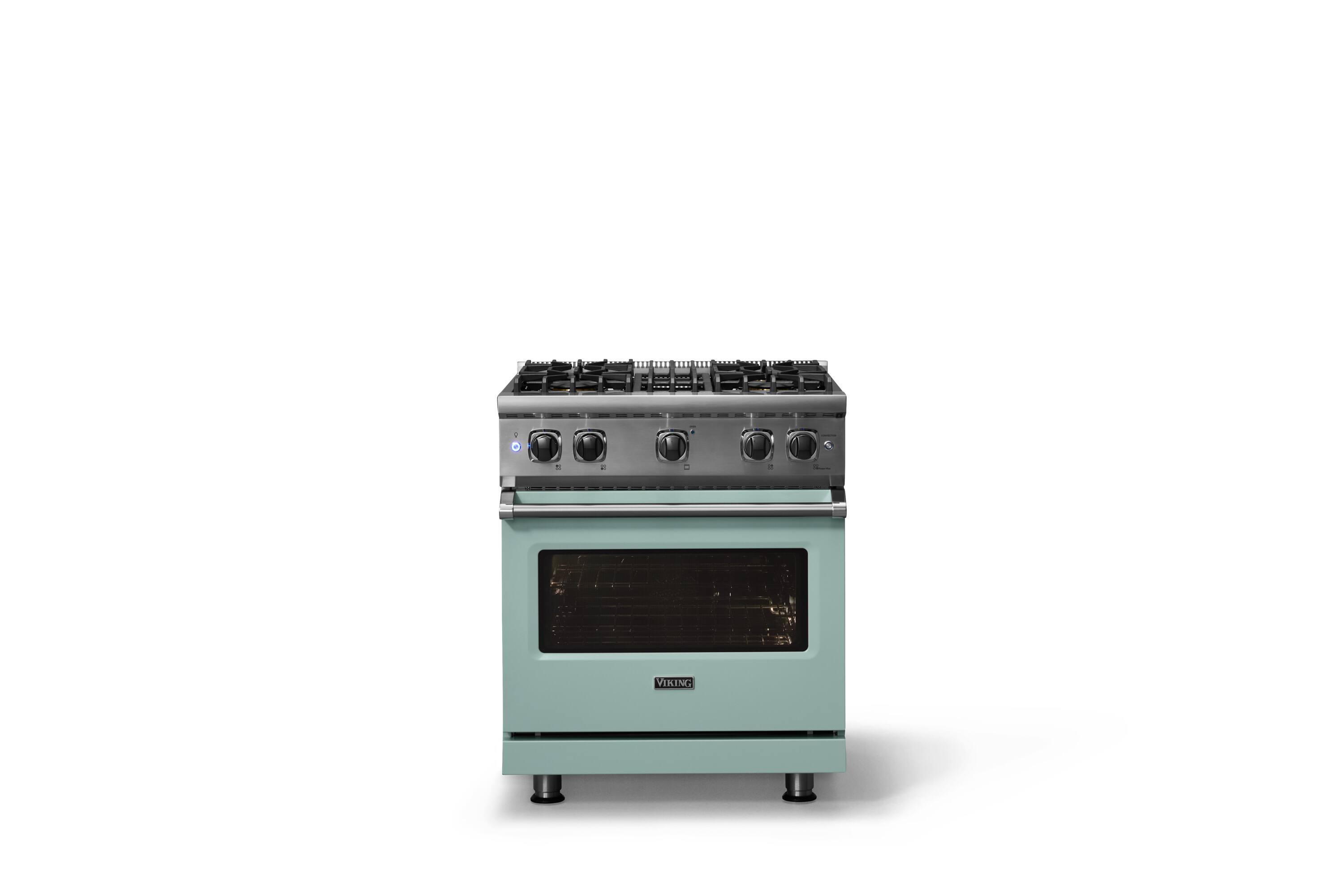

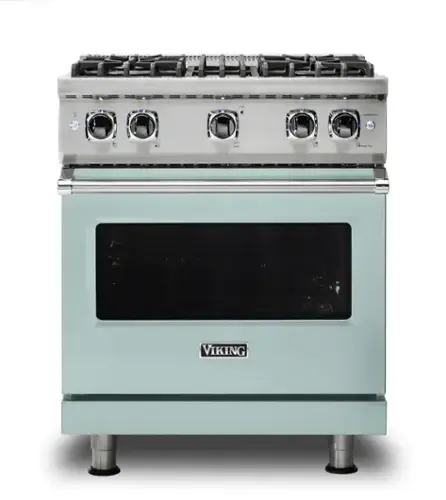

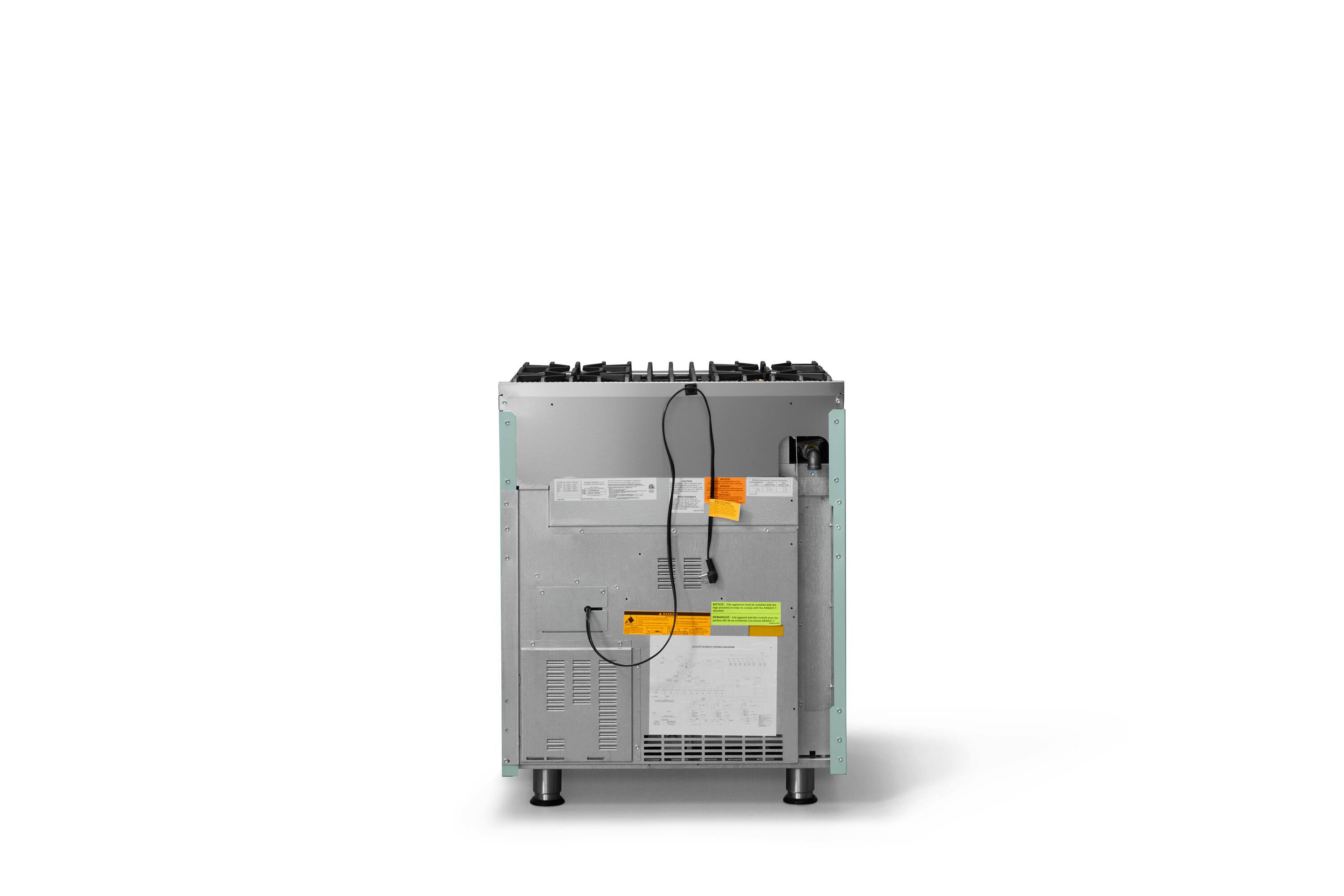

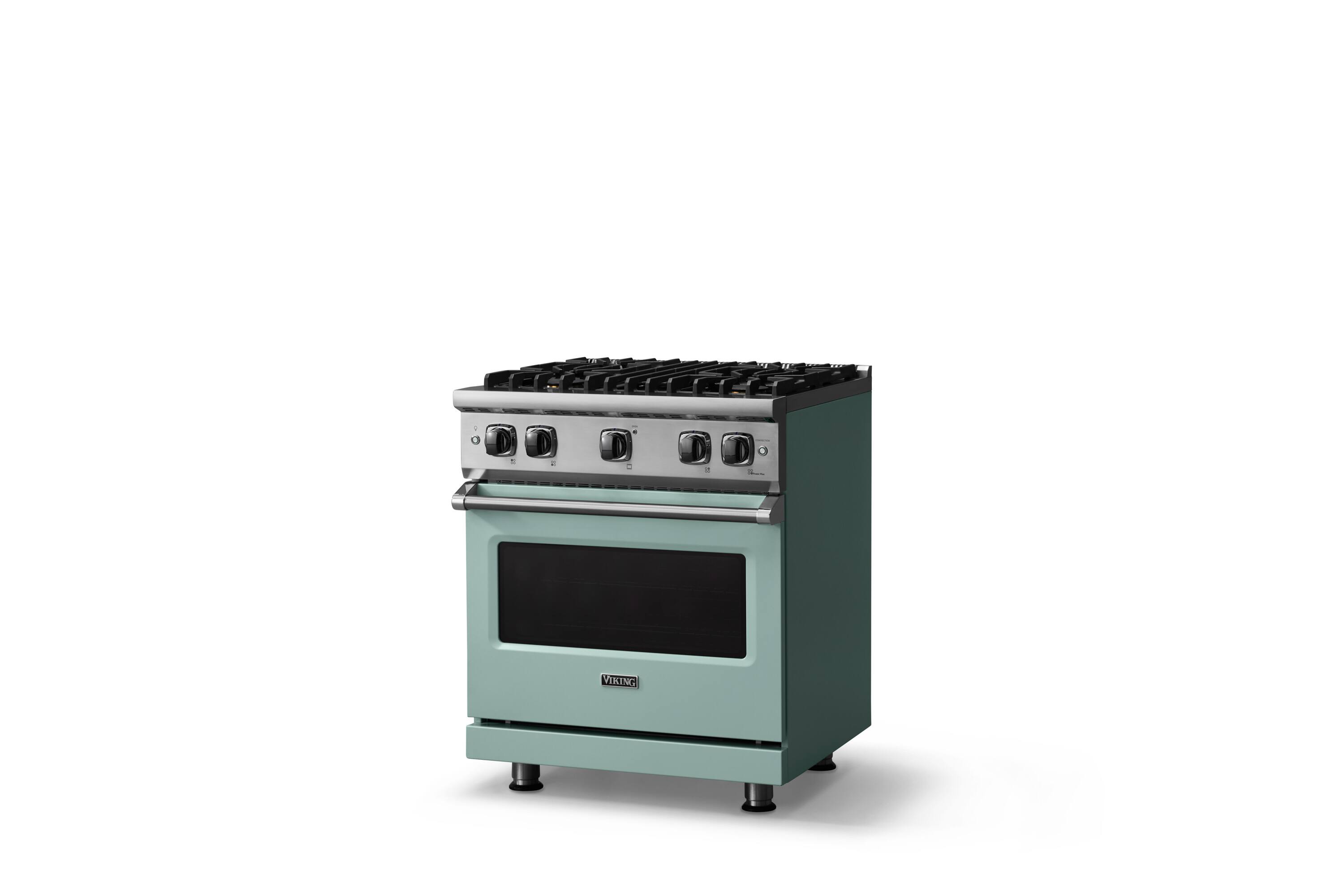

Viking - 5-Series Gas Sealed Burner Range - Splash
Range Power Source
GasColor
SplashDelivery to
Related Item
Specifications
- Color FinishBlueProduct Height36 7/8 inchesProduct Width30 inchesProduct Depth25 3/4 inchesDepth Without Handle25 3/4 inchesDepth With Handle28 1/16 inches
- Key Specs
- Color Finish: Blue
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 1/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Interior Oven Depth: 18 3/4 inches
- Interior Oven Height: 16 1/8 inches
- Interior Oven Width: 23 inches
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Single Oven
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VGR5304BSP
- Product Name: 5-Series Gas Sealed Burner Range
- Color: Splash
- Color Finish: Blue
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 1/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 410 pounds (The out of box weight of the item.)
- Interior Oven Depth: 18 3/4 inches
- Interior Oven Height: 16 1/8 inches
- Interior Oven Width: 23 inches
- Capacity
- Oven Capacity: 3.7 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: false
- Control Type: Knob
- Oven Control Location: Front panel
- Lock Type: Self-cleaning mode lock
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: LPKPDR
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Bake, Convection, Broil, Dehydrate, Defrost
- Oven Settings: Natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate and convection defrost
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 15000 british thermal units
- Burner 4 Rating: 18500 british thermal units
- Broiler Burner Rating: 30000 british thermal units
- Total Maximum BTU Rating: 108500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: 0 (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 Year full warranty, except for cosmetic parts (90 days).
- Warranty - Labor: 2 Year full warranty, except for cosmetic parts (90 days).
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284058205
The Viking 5-Series sealed-burner all gas range touts one of the largest oven cavities in the industry with 6 different cooking modes and 6 oven rack positions. The oven is heated with a 30,000 BTU U-shaped burner for maximum coverage in the oven cavity, for faster pre-heat and more even cooking. The oversized infrared Broiler provides intense searing heat for broiling applications.
- Sealed Burner: Sealed burners allow for easier clean-up in the case of a spill-over
- Easy Clean cooking surface: Completely sealed cooking surface will contain spilled liquids for easy clean-up.
- Continuous Grate design: Heavy-duty porcelanized cast-iron grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
- All gas oven: Six cooking functions with convection option specifically designed to ensure balanced airflow for even heat distribution.
- Gourmet Glo Infrared Broiler: Large infrared broiler with dual settings provides controlled, intense heat for a variety of broiling options.
Q: Can the range be converted to propane?
A: This range can be converted to propane.
A: The Viking 5-Series range has sealed burners.
A: The oven capacity is 3.7 cubic feet.
Q: How many cooking modes does the oven have?
A: This oven has 6 different cooking modes.
Q: Can the range be converted to propane?
A: This range can be converted to propane.
Q: What type of material is the cooktop surface made of?
A: The cooktop surface is made of porcelain.
Q: Does the range have a griddle?
A: This range does not come with a griddle.
Q: What type of oven control does the range have?
A: The range has a knob control type.
