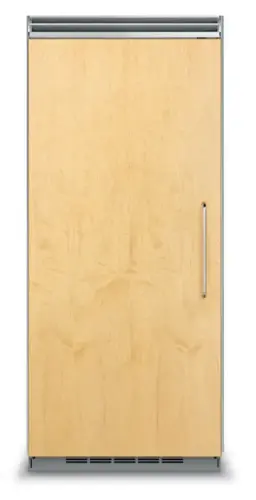

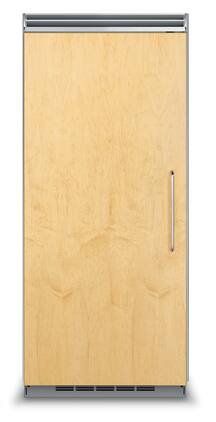

Viking - 5 Series Quiet Cool 22.8 Cu. Ft. Built-in All Refrigerator - Custom panel
Related Item
Specifications
- Product Height82.75 inchesProduct Width30 inchesHeight To Top Of Refrigerator (Without Hinges)82.75 inchesHeight To Top Of Door Hinge82.75 inchesDepth Without Handle22.187 inchesDepth With Handle26.5 inches
- Key Specs
- Product Height: 82.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 82.75 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 82.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 22.187 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26.5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.8 cubic feet
- Refrigerator Style: No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: FDRB5364L
- Product Name: 5 Series Quiet Cool 22.8 Cu. Ft. Built-in All Refrigerator
- Color: Custom panel
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Side Panel Color: Dark Silver
- Dimensions
- Product Height: 82.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22.187 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 82.75 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 82.75 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 22.187 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26.5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 20.75 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 60 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 590 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82.875 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35.625 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 22.8 cubic feet
- Refrigerator Capacity: 22.8 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: No Freezer
- Fingerprint Resistant: true
- Panel(s) Included: false
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Temperature Control Type: Electronic
- Display Type: LED
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed left
- Lighting Type: LED
- Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Spill proof
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: glass
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 6.5 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 403 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 57 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 year full covers complete unit. 90-day full on cosmetic parts such as glass, painted items, and decorative items. 6-year full on sealed refrigeration system.
- Warranty - Labor: 2 year full covers complete unit. 90-day full on cosmetic parts such as glass, painted items, and decorative items.
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284054597
Preserve the flavor of fresh produce with this Viking 5-Series all refrigerator. The variable speed DC Overdrive compressor is quiet and maintains the temperature inside within one degree of accuracy. Store a variety of foods without worrying about smells contaminating other foods with the multichannel airflow system and odor eliminator.
- Keep your food organized and easy to find: 2 adjustable glass shelves, multiple deli and humidity control drawers, plus adjustable in door bins make it easy to organize your food and preserve freshness
- 22.8 cu. ft. capacity: Offers plenty of adjustable storage space for fresh meats, vegetables, milk cartons and more.
- Electronic controls with digital display: Enable easy adjustments within one degree Fahrenheit to keep food fresher longer.
- LED Lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls.
- Door-open and temperature alarms: Alert you when the door has been left ajar and when the internal temperature is rising.
- Keep your food organized and easy to find: 2 adjustable glass shelves, multiple deli and humidity control drawers, plus adjustable in door bins make it easy to organize your food and preserve freshness
- 22.8 cu. ft. capacity: Offers plenty of adjustable storage space for fresh meats, vegetables, milk cartons and more.
- Electronic controls with digital display: Enable easy adjustments within one degree Fahrenheit to keep food fresher longer.
- LED Lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls.
- Door-open and temperature alarms: Alert you when the door has been left ajar and when the internal temperature is rising.
Whats Included
- Full Size BI Refrigerator
- Glass Shelves (2)
- Full width door bins (4)
- Humidty Zone Drawers (2)
- Deli-compartment drawers (4)
- Full Size BI Refrigerator
- Glass Shelves (2)
- Full width door bins (4)
- Humidty Zone Drawers (2)
- Deli-compartment drawers (4)
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Are there any alarms if the refrigerator door is left open?
A: Yes, the refrigerator has door-open and temperature alarms.
Q: Does this refrigerator have humidity controlled crispers?
A: Yes, this refrigerator has humidity-controlled crispers.
Q: Is the temperature easy to adjust on this refrigerator?
A: Yes, electronic controls with digital display enable easy adjustments.
Q: What type of lighting does this refrigerator use?
A: This refrigerator uses bright energy efficient LED lighting.
Q: Does this refrigerator have adjustable shelves?
A: Yes, this refrigerator has adjustable glass shelves.
Q: What is the total capacity of this refrigerator?
A: The total capacity of this refrigerator is 22.8 cubic feet.
Q: Does this refrigerator have a deli meat drawer?
A: Yes, this refrigerator has a deli meat drawer.
