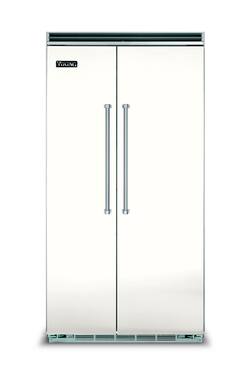

Viking - 5-Series-VCSB - Pure White
Model: VCSB5424PW
SKU: 6617612
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 82 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 42 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 25.3 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCSB5424PW
- Product Name: 5-Series-VCSB
- Color: Pure White
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Side Panel Color: Light Silver
- Dimensions
- Product Height: 82 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 42 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 23 7/8 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 652 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 41 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 25.3 cubic feet
- Refrigerator Capacity: 15.7 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 9.6 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Side-by-Side
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Display Type: LED
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Not Applicable
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Removable, Spill proof
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: false
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Left
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 706 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 99 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284085256
42"W BI Side-by-Side Ref/Frz-Pure White
- Prochill Temperature Management System: Variable speed DC overdrive compressor quickly chills food and saves energy
- Filter-free freshness: Exlusive Plasmacluster Ion Air Purifier uses advanced ion technology to eliminate airborne bacteria, mold and odors to enhance food preservation.
- LED Lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls
- Electronic controls: Maintain even temperatures within one degree Fahrenheit to keep food fresher longer.
- Specialized Refrigeration Storage: One adjustable Humidity drawer with new soft-close slides. Additional space for large pizza box storage
- Prochill Temperature Management System: Variable speed DC overdrive compressor quickly chills food and saves energy
- Filter-free freshness: Exlusive Plasmacluster Ion Air Purifier uses advanced ion technology to eliminate airborne bacteria, mold and odors to enhance food preservation.
- LED Lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls
- Electronic controls: Maintain even temperatures within one degree Fahrenheit to keep food fresher longer.
- Specialized Refrigeration Storage: One adjustable Humidity drawer with new soft-close slides. Additional space for large pizza box storage
Whats Included
- 42"W 5 SERIES SIDE BY SIDE REFRIGERATOR/FREEZER
- 42"W 5 SERIES SIDE BY SIDE REFRIGERATOR/FREEZER
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What type of lighting is used in the refrigerator?
A: This refrigerator uses bright and energy-efficient LED lighting.
Q: Does this refrigerator have an ice maker?
A: Yes, this refrigerator comes with a built-in ice maker.
Q: Does this refrigerator have a water filter?
A: No, this model does not come with a water filtration system.
Q: How many shelves are in the refrigerator compartment?
A: The refrigerator compartment has 3 shelves.
Q: What is the total capacity of this Viking refrigerator?
A: This Viking refrigerator has a total capacity of 25.3 cubic feet.
Q: How does the Prochill Temperature Management System work?
A: The Prochill Temperature Management System uses a variable speed DC overdrive compressor to quickly chill food and save energy.
Q: can you get an owners manual online and or schematics of inside of freezer
A: Here is a link to our Product Page that includes links to the User and Care Manual under "Downloads" at the bottom of the page: https://www.vikingrange.com/consumer/product/products/refrigeration/built-in-refrigeration/5-series-built-in-refrigerator-freezers/5-series-full-height-refrigeration/42--side-by-side-refrigerator-freezer---vcsb5424
