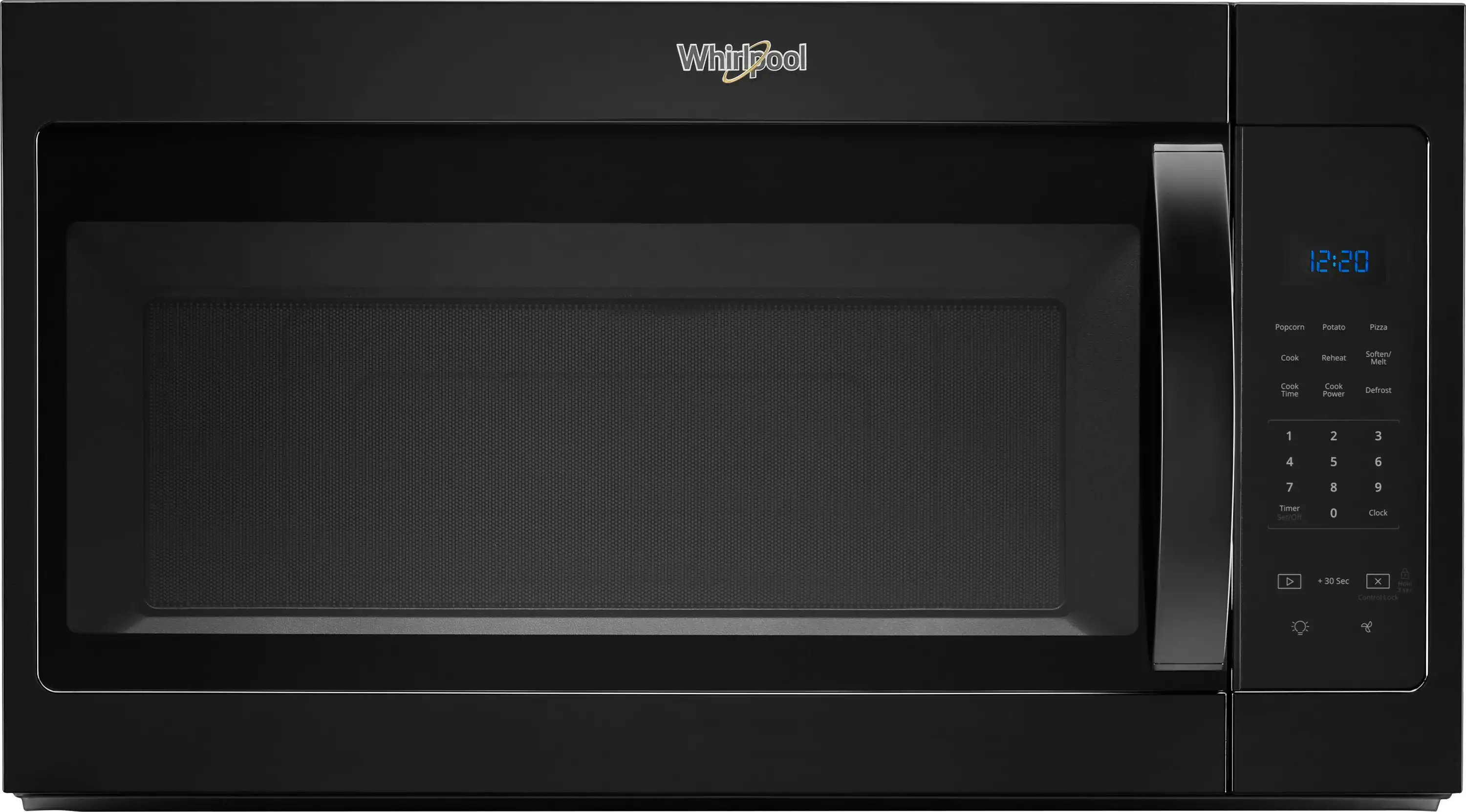

Whirlpool - 1.7 Cu. Ft. Over-the-Range Microwave - Black
- Key Specs
- Color Finish: Black
- Product Height: 17 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 inches
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Whirlpool
- Model Number: WMH31017HB
- Product Name: 1.7 Cu. Ft. Over-the-Range Microwave
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 17 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 55.9 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 14 x 9-1/2 x 21-1/16 (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Height: 17 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.7 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: true
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 inches
- Interior Light(s): false
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Preset Programs: 13
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: false
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Other
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 16 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Other
- UPC: 883049477350
Move cooking off your countertop with this spacious over-the-range Whirlpool microwave oven. Its 1.7 cu. ft. capacity and 1000W of power make quick work of meal and snack preparation, and it includes a work space light to illuminate activities below. This Whirlpool microwave oven vents your range-top with a filtered updraft fan.
- 2-Speed, 300 CFM Motor Class: Match the right amount of ventilation to the dish being prepared and quickly get rid of cooking odors with two different fan speed settings. (Performance varies based on installation. Resources available at aham.org.)
- Dishwasher-Safe Turntable Plate: Clean up spills on the turntable by simply putting it in the dishwasher.
- Microwave Presets: Get just the right amount of heat and time, whether you're cooking or defrosting, with specific preset options.
- Add 30 Seconds Option: Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- Electronic Touch Controls: Navigate through cooking modes and options with controls that are as easy to use as they are to clean.
- Adjustable Cooktop Lighting: Keep an eye on what's cooking below the microwave or keep a nightlight on in the kitchen.
Whats Included
- Whirlpool 1.7 Cu. Ft. Over-the-Range Microwave
Q: this microwave is set up with a recirculating vent. where does it vent out? front ,rear , or side?
A: The vent is on the top rear as with most over the range microwaves. You can vent it traditionally (ie to an outside vent) or recirculate it, which means just that--the air recirculates as opposed to being vented outside. There is an air filter used for this that comes with the unit. I have done it both ways, depending on the house. In my opinion it's always better to vent outside but sometimes there may not be an existing outside vent to attach to so unless you want to make one by cutting a hole through an outside wall, you would simply use the recirculating option. Hope that helps!
A: I was able to use the the same mounting rack from a very similar Whirlpool I had professionally installed 9 years earlier. Some plastic piece on the door latch actuator broke on the old whirlpool microwave that I used several times a day. Although this could be a cheap fix "if" one properly takes apart and puts back together, I decided to just buy a new microwave. I was lucky and the mounting plate was exactly the same. My wife and I were able to just slip the new microwave in and tighten down the bolts.
Q: Does this unit vent to the outside?
A: yes, you just have to flip the fan when you get it to point the fan either out of the back or out of the top, depressing on if you have venting going out a back wall, or up to the roof. otherwise, if you don't flip the fan, it will recirculate the air.
A: Hi Jerri, the Mounting Kit is supplied with your Microwave. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
Q: where is the wire/plug located? back or top of the microwave?
A: The plug is on top towards the right side
Q: Can this microwave be used over a gas stove or does it not matter?
A: Yes, this product is suitable for use above electric or gas cooking products up to and including 36" (91.4 cm) wide.
A: Billman, the power cord is going to be about 4ft in length.
Q: What's the difference between Whirlpool OTR microwave WMH31017HS and WMH31017HZ?
A: Fan is 300 CFM on HS and 330 CFM on HZ (HZ has stronger fan).
