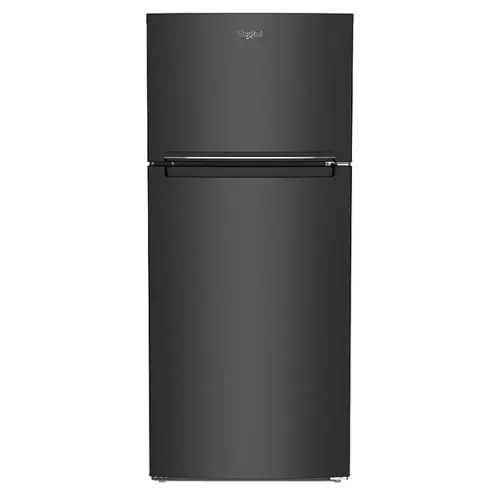

Whirlpool - 16.3 Cu. Ft. Top-Freezer Refrigerator - Black
Color
BlackRelated Item
Specifications
- Color FinishBlackProduct Height66 5/8 inchesProduct Width28 1/8 inchesHeight To Top Of Refrigerator (Without Hinges)83 3/8 inchesHeight To Top Of Door Hinge65 3/8 inchesDepth Without Handle31 7/8 inches
- Key Specs
- Color Finish: Black

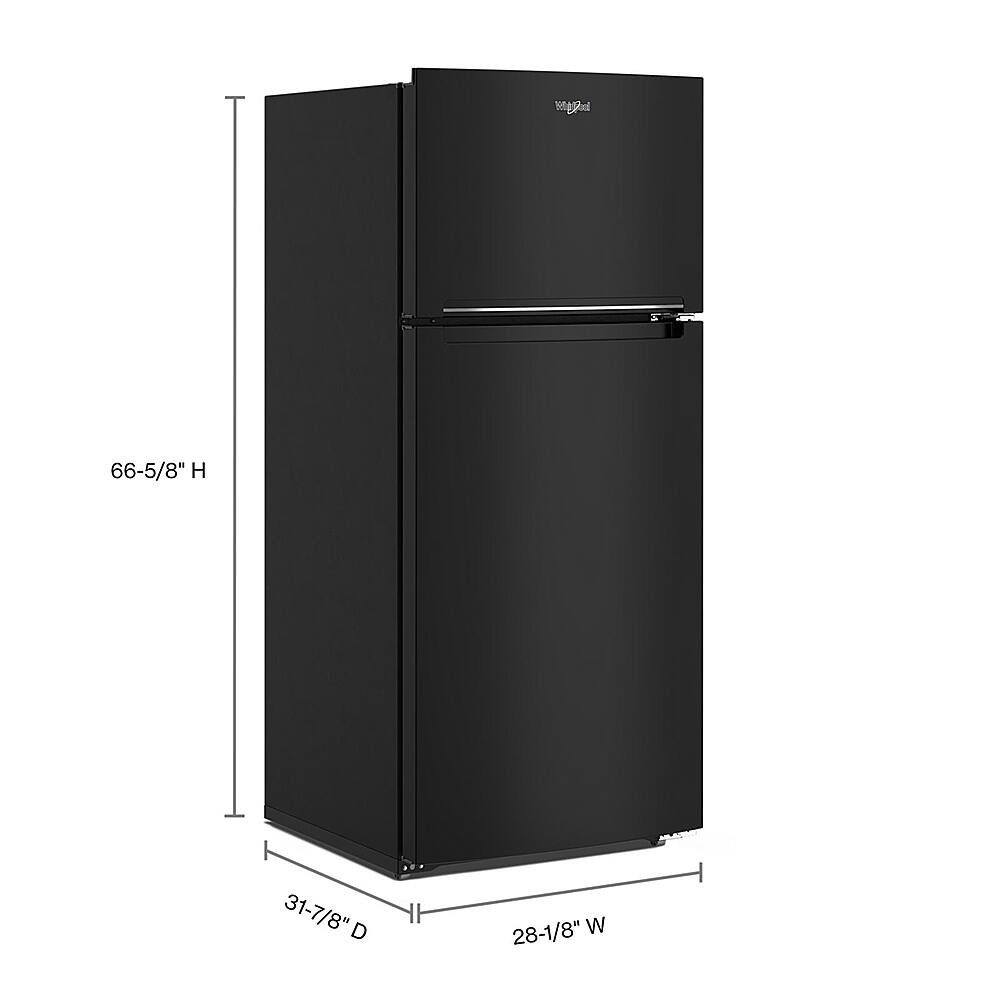

- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 65 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 31 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 16.3 cubic feet
- Refrigerator Style: Top Freezer
- Lighting Type: LED
- Ice Maker: Optional
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Whirlpool
- Model Number: OBX WRTX5028PB
- Product Name: 16.3 Cu. Ft. Top-Freezer Refrigerator
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 83 3/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 65 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 31 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 27 5/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 56 7/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 177 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 65 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 29 1/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 29 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 16.3 cubic feet
- Refrigerator Capacity: 12.27 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 4.03 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: Top Freezer
- Fingerprint Resistant: false
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: false
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Optional
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Compatible Ice Maker Model: W11517113 or W11729596
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable, Fixed
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Top
- Freezer Door Type: Swing Door
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 400065814480
Stay organized and make room for all your groceries with our top freezer refrigerator. The Flexi-Slide Bin and Adjustable Glass Shelves give you the flexibility you need to store what you want, where you want it. Keep your food looking good and staying fresh with features like LED Interior Lighting and Electronic Temperature Controls.
- LED Interior Lighting: Keep food looking as good as it tastes. Light is cast inside the refrigerator so food looks like it's supposed to.

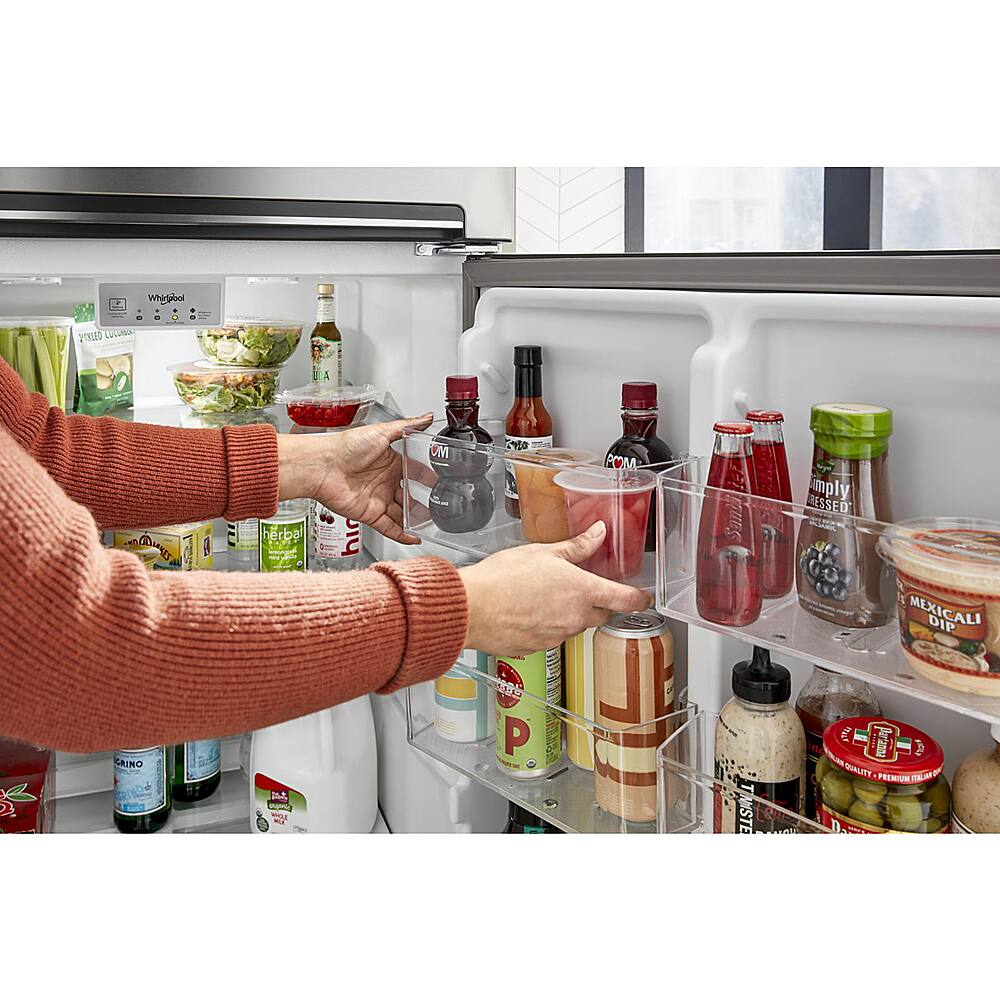

- Flexi-Slide Bin: Quickly and easily move side-to-side for convenient storage options, so you can adjust to make space for tall items when needed.
- Electronic Temperature Controls: Choose the ideal temperature for whatever foods you're storing.
- Freezer Temperature Control: Keep frozen items ice cold with controls that allow you to adjust the temperature level in the freezer compartment
- EZ Connect Icemaker Compatible: This optional icemaker adds convenient, easily accessible ice without having to worry about refilling ice trays.
Whats Included
- Whirlpool 16.3 Cu. Ft. Top-Freezer Refrigerator
- Owners Manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: What is the freezer capacity?
A: The freezer capacity is 4.03 cubic feet.
Q: Is the refrigerator compatible with an external ice maker?
A: This refrigerator is compatible with an external ice maker.
Q: Can the refrigerator shelves be adjusted?
A: The refrigerator shelves in this model can be adjusted to fit your needs.
Q: What type of lighting is used inside the refrigerator?
A: This refrigerator uses LED lighting.
Q: What is the maximum operating temperature for the refrigerator?
A: The maximum operating temperature for the refrigerator is 110 degrees Fahrenheit.
Q: Is there a temperature control for the freezer?
A: Yes, there is a temperature control to adjust the freezer's temperature.
Q: What type of defrost does this refrigerator use?
A: This refrigerator uses automatic defrost.
Q: Can I install an icemaker in this refrigerator?
A: Yes, this refrigerator is compatible with an EZ Connect Icemaker.
