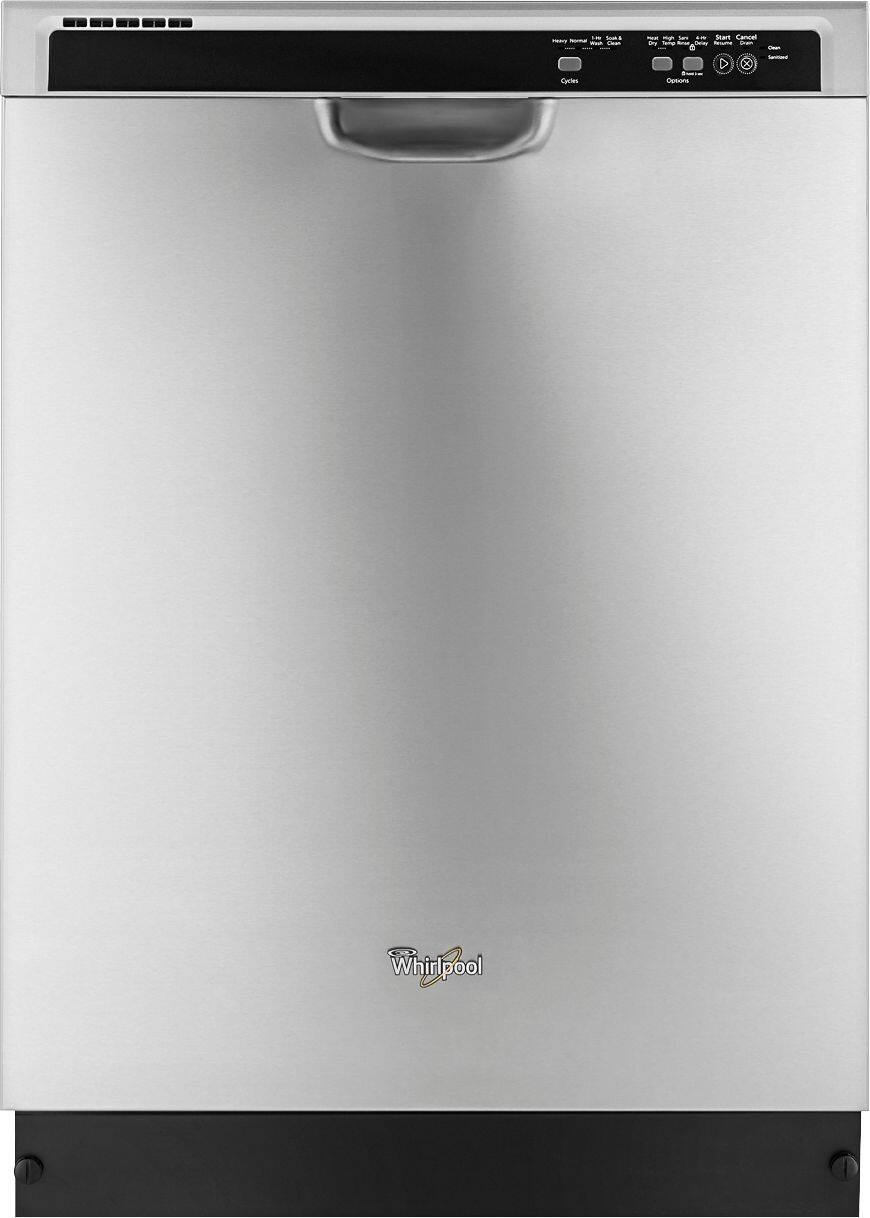

Whirlpool - 24" Tall Tub Built-In Dishwasher - Monochromatic Stainless Steel
Model: WDF520PADM
SKU: 8561015
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Silver
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 55 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Whirlpool
- Model Number: WDF520PADM
- Product Name: 24" Tall Tub Built-In Dishwasher
- Color: Monochromatic Stainless Steel
- Color Finish: Silver
- Dimensions
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door Open: 49 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 66 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 55 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: false (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Normal, Heavy, 1 Hr Wash, Soak & Clean
- Options and Programs: 4 Hour Delay, Heated Dry, Hi Temp Wash, Sani Rinse, Control Lock
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Rack Material: Other
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Front control
- Handle Type: Pocket handle
- Fingerprint Resistant: false
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 260 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 31 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 883049340821
Whirlpool 24" Tall Tub Built-In Dishwasher: Dishwashing has never been so easy with this high-performance Whirlpool dishwasher. With room for up to 14 place settings, this dishwasher comes with an adjustable silverware basket, a soil-sensing wash system, and 4 cycle options to choose from.
- Front panel controls: Easy-to-use electronic controls with control lock capability.
- Quiet operation: A 55 dBA rating means a quiet performance every time, so you won't interrupt your household while running loads.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, less loads.
- Flexible loading options: The AnyWare Plus silverware basket frees up rack space by easily fitting on the front of the lower rack or in the door.
- Wash system adjusts to cleaning needs: The AccuSense soil sensor determines how dirty dishes are and adjusts the Normal cycle as needed.
- High temperature wash for better, safer clean: The sanitize option operates at a higher temperature to help reduce bacteria and enhance drying results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
- Triple filtration system: The removable filter disposes of food particles, eliminating the need for deep pre-rinsing.
- 4 wash cycles give you more cleaning options: Includes Heavy, Normal, 1-Hour Wash and Soak & Clean.
- Front panel controls: Easy-to-use electronic controls with control lock capability.
- Quiet operation: A 55 dBA rating means a quiet performance every time, so you won't interrupt your household while running loads.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, less loads.
- Flexible loading options: The AnyWare Plus silverware basket frees up rack space by easily fitting on the front of the lower rack or in the door.
- Wash system adjusts to cleaning needs: The AccuSense soil sensor determines how dirty dishes are and adjusts the Normal cycle as needed.
- High temperature wash for better, safer clean: The sanitize option operates at a higher temperature to help reduce bacteria and enhance drying results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
- Triple filtration system: The removable filter disposes of food particles, eliminating the need for deep pre-rinsing.
- 4 wash cycles give you more cleaning options: Includes Heavy, Normal, 1-Hour Wash and Soak & Clean.
Whats Included
- Whirlpool 24" Tall Tub Built-In Dishwasher
- Owner's manual
- Whirlpool 24" Tall Tub Built-In Dishwasher
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Does it come with a power cord?
A: Unfortunately no and I just found that out after it got delivered to my house. My question is why does it not come with a power cord? How are you suppose to use it? That’s like buying a truck and it does not come with tires.
Q: what is difference between a regular dishwasher and a "tall tub"?
A: Hello there! There is very little difference in height, width, and depth between a tall tub and regular tub dishwasher. The tall tub allows for plates that are larger than normal the space needed to clean properly. I have a link between two units, the tall tub on the right, that will help show the specs between the two units. I hope it helps you. http://www.whirlpool.com/webapp/wcs/stores/servlet/WHRCompareProductsDisplay?catalogId=10561&categoryId=721820&langId=-1&storeId=10211
A: Most likely your heating element isn't working. If it doesn't heat the detergent up to a certain temperature than it will leave (smear) residue and globs of detergent over your dishes.
Q: Is the siverware rack attached to door? Or like most takes up room on rack?
A: The silverware basket is attached to the door and can be removed for unloading.
A: If you look at the instruction manual, you can see how you can adjust the springs. Basically you pull the dishwasher out and you will see a spring on either side connected to the base. There are a series of holes that you can move the spring to. Towards the door will lessen the tension and away will increase it. It sounds like yours it too tense. Try moving the spring towards the doors a slot or two (both side equally) until you get the tension you like. You shouldn't have to have the lower rack out just to keep the door from closing. Hope this helps.
A: sounds like water is backing up into your dishwasher from the drainline, did you install with the air gap or install the drainline with a high loop to prevent backflow of water?
Q: will this adjust to fit under a counter of 33 7/8"????
A: Thank you for your interest in Whirlpool dishwashers. I have been looking at our brands and most require a 33 1/2 height to fit the units. The feet removed or lowered my only provide about 1/2" of space at the most, so the fit will be tight but it should work. I have provided the use and care guide as it provides the minimums required to install the dishwasher so you know before the purchase. I hope this provides the best guide and help possible. In appreciation, Melanie http://www.whirlpool.com/digitalassets/MLPDF/Installation%20Instructions%20-%20W10435040.pdf
A: The decibel level is 51-55 dBA.
