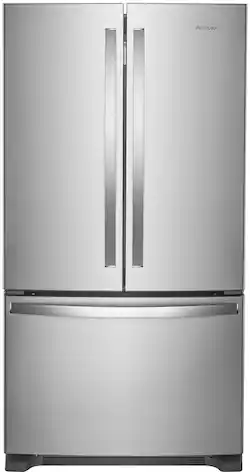

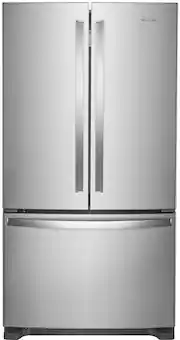

Whirlpool - 25.2 Cu. Ft. French Door Refrigerator with Internal Water Dispenser - Stainless Steel
Model: WRF535SWHZ
SKU: 5789904
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 70 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 13/16 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 33 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 35 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 25.19 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Whirlpool
- Model Number: WRF535SWHZ
- Product Name: 25.2 Cu. Ft. French Door Refrigerator with Internal Water Dispenser
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 35 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 13/16 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 33 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 35 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 29 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 48 1/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 262 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 70 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 36 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 25.19 cubic feet
- Refrigerator Capacity: 17.75 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 7.44 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Fingerprint Resistant: true
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: false
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed right
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Water only
- Dispensed Water Type: Cold Water
- Dispenser Features: Auto shut-off
- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Filter Info
- Water Filtration: true
- Water Filter Model Number: EDR4RXD1 (The water filter model(s) recommended for use with the product.)
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 615 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 74 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 883049442068
Get the storage your family needs and easily access filtered water with this refrigerator's water dispenser. Humidity-controlled crisper drawers provide room to store fruits and veggies in their ideal environment. This ENERGY STAR certified refrigerator also has LED lighting to keep food looking as great as it tastes.
- Fingerprint-resistant finish: Resists fingerprints and smudges with steel that easily wipes clean.
- Contoured doors: Align perfectly with any stylish kitchen design.
- Temperature controlled full-width: For optimal freshness and more accurate refrigerator temperature control.
- Generous storage: Includes a pull out drawer, a plastic drawer and a wire basket to create plenty of space to organize frozen food.
- Organize contents with ease: Includes 4 adjustable half-width glass shelves, 2 humidity controlled half-width drawers, 4 adjustable full-width door bins and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Automatic Defrost: Keep your fridge clear of ice using the automatic defrost function.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
- Fingerprint-resistant finish: Resists fingerprints and smudges with steel that easily wipes clean.
- Contoured doors: Align perfectly with any stylish kitchen design.
- Temperature controlled full-width: For optimal freshness and more accurate refrigerator temperature control.
- Generous storage: Includes a pull out drawer, a plastic drawer and a wire basket to create plenty of space to organize frozen food.
- Organize contents with ease: Includes 4 adjustable half-width glass shelves, 2 humidity controlled half-width drawers, 4 adjustable full-width door bins and more to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Automatic Defrost: Keep your fridge clear of ice using the automatic defrost function.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
Whats Included
- Whirlpool 25.2 Cu. Ft. French Door Refrigerator with Internal Water Dispenser
- Owner's manual
- Water Filter EDR4RXD1
- Whirlpool 25.2 Cu. Ft. French Door Refrigerator with Internal Water Dispenser
- Owner's manual
- Water Filter EDR4RXD1
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Hi Curious, the WRF535SWHZ does feature a freezer mounted internal Ice Maker. The only dispenser is button operated and located inside the Fresh Food (upper) section, on the left side wall which dispenses water from a small reservoir in the refrigerator. The WRF535SWHZ comes with a water filter installed, it is PN EDR4RXD1 and filtered water is sent to both the ice maker and water dispenser. Hope this helps!
A: We just had this delivered and it needed to fit through a 31" doorway. The techs removed the appliance doors and it fit through with no problem.
A: My layout is the same way. The only noise I hear is when the ice machine makes ice.
A: Hello Bobbie! This specific model does have automatic defrost. Thank you for your inquiry on our Whirlpool appliances.
A: Have this fridge and also 36" wide opening, fits just fine.
A: I recently purchased this refrigerator and I can confirm that it does not have the butter shelf as indicated in the picture. I reached out to Whirlpool regarding this and they I informed me that this is considered and accessory. What is included on the right side are 3 shelving units and top shelving is similar to bottom shelves in the picture.
Q: What causes frost to form in the bottom freezer? Will it go away on its on?
A: Good question. Same thing happened to us after about 1.5 weeks of use. We emptied it & unplugged it to defrost overnight. Started back up the next morning & haven't had the issue again...YET. It has only been about another week & a half. And we have not filled it back up yet. I suspect that someone didn't close the door completely, causing heat to enter and cause the frost. I hope it isn't a failure on the part of the fridge. Best of luck to you.
Q: what is the size of refrigerator?
A: Hi Mish, the WRF535SWHZ, not sure which dimensions will be helpful, here are the Dimensions we have for you: Capacity (Cu Ft) 25.20 Cabinet Width (in) 35 5/8 Carton Depth 38 Carton Height 72 1/2 Carton Width 38 1/2 Depth 35 1/2 Height 70 1/8 Width 35 5/8 Depth Closed Excluding Handles 33 Depth Closed Including Handles 35 1/2 Depth Excluding Doors 29 1/8 Depth With Door Open 90 Degree 48 1/8 Depth-Drawer Open 52 1/8 Gross Weight 280 Height To Top Of Cabinet 68 7/8 Height To Top Of Door Hinge 70 1/8 Height To Top of Door Trim 70 1/8 Net Weight 262 Width Doors Open 90 Degrees 41
