Whirlpool - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Whirlpool - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications

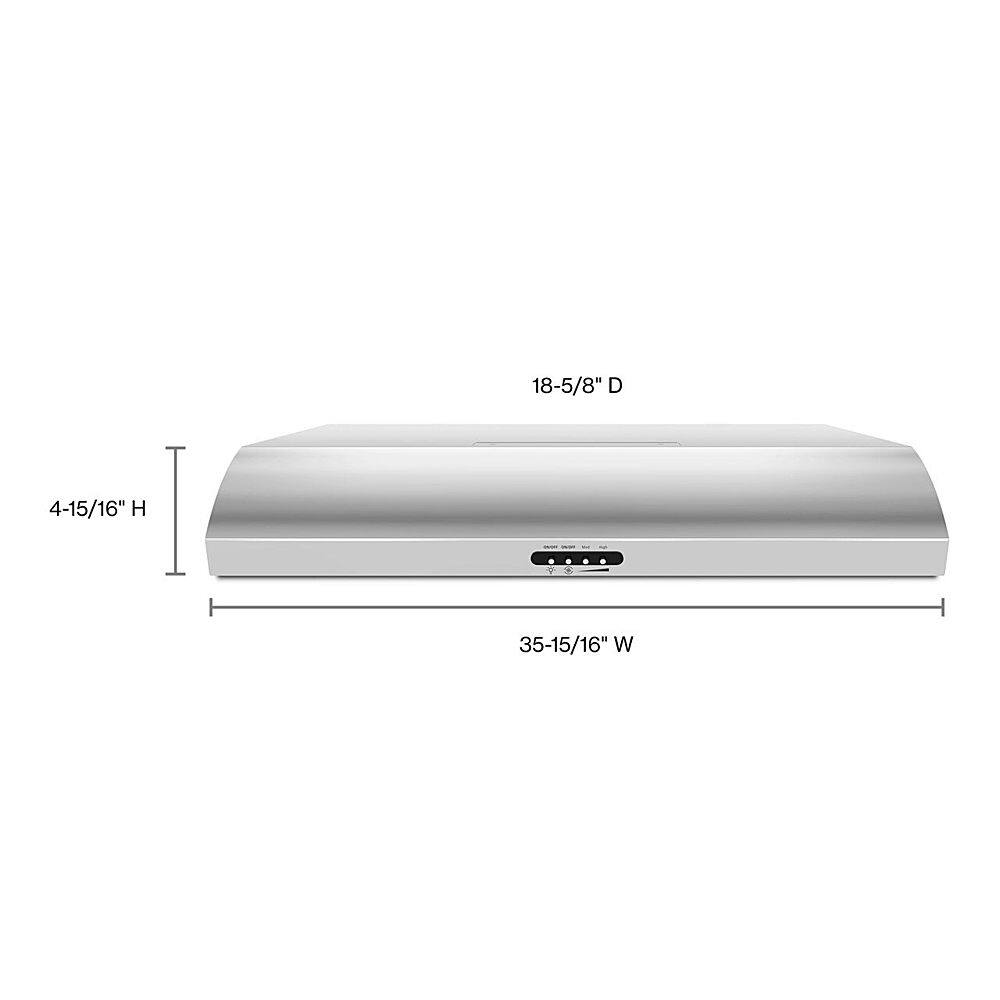

- Color FinishStainless steelProduct Height4 15/16 inchesProduct Width35 15/16 inchesProduct Depth18 5/8 inchesExhaust Vent LocationRearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: UXT5236BDS
- Product Name: 36" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 12 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 420 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 560 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Operating Sound Level: 7 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: false
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049326542
This Whirlpool UXT5236BDS convertible range hood features a FIT system that makes installation simple. A 3-speed, 560 cfm fan blows smoke and odors out of your kitchen, and a removable filter traps grease.
- 3-Speed, 560 CFM Motor Class: Effectively removes smoke and odors from your kitchen. (Performance varies based on installation. Resources available at aham.org.)
- Grease Filter: The grease filter helps trap unwanted grease and helps remove odors.
- FIT System: The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- Halogen Lighting: Lets you easily install the range hood in 3 simple steps.
- Recirculation (Non-Vented/Duct-Free): By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
Whats Included
- Grease filter
- Hardware
- Whirlpool 36" Convertible Range Hood
Q: What type of lighting does this range hood use?
A: This range hood uses halogen lighting.
Q: What is the CFM of the fan on this range hood?
A: This range hood has a 3-speed, 350 cfm fan.
Q: How many fan speeds does this Whirlpool range hood have?
A: This Whirlpool range hood has 3 fan speeds.
Q: Does this range hood require a duct to vent outside?
A: This range hood can operate without venting outside using recirculation through filters.
Q: What is the maximum airflow capacity of this range hood?
A: This range hood has a maximum airflow capacity of 560 cubic feet per minute.
Q: Does this range hood come with a grease filter?
A: Yes, this range hood comes with a grease filter that helps trap unwanted grease and remove odors.
A: Hello, for model UXT5236BDS, the grease filter is part number W11177751. Thank you for your inquiry on our Whirlpool appliances.
Q: Will the suction from this vent be strong enough to keep my new cabinets above the vent oil free
A: Hello Greasy, ensuring that the grease filter is clean and install properly will help with this issue, the grease filter helps trap unwanted grease and helps remove odors. We hope this helps.
