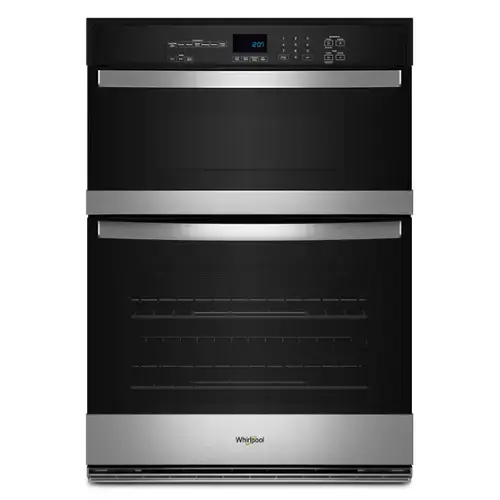

Whirlpool - 30 inch 6.4 Total Cu. Ft. Combo Self-Cleaning Wall Oven - Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Specifications
- Color FinishStainless steelProduct Height41 3/4 inchesProduct Width29 3/4 inchesProduct Depth26 7/16 inchesDepth Without Handle24 7/16 inchesDepth With Handle26 7/16 inches
- Key Specs
- Color Finish: Stainless steel
- Product Height: 41 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 7/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Whirlpool
- Model Number: WOEC3030LS
- Product Name: 30 inch 6.4 Total Cu. Ft. Combo Self-Cleaning Wall Oven
- Color: Stainless Steel
- Color Finish: Stainless steel

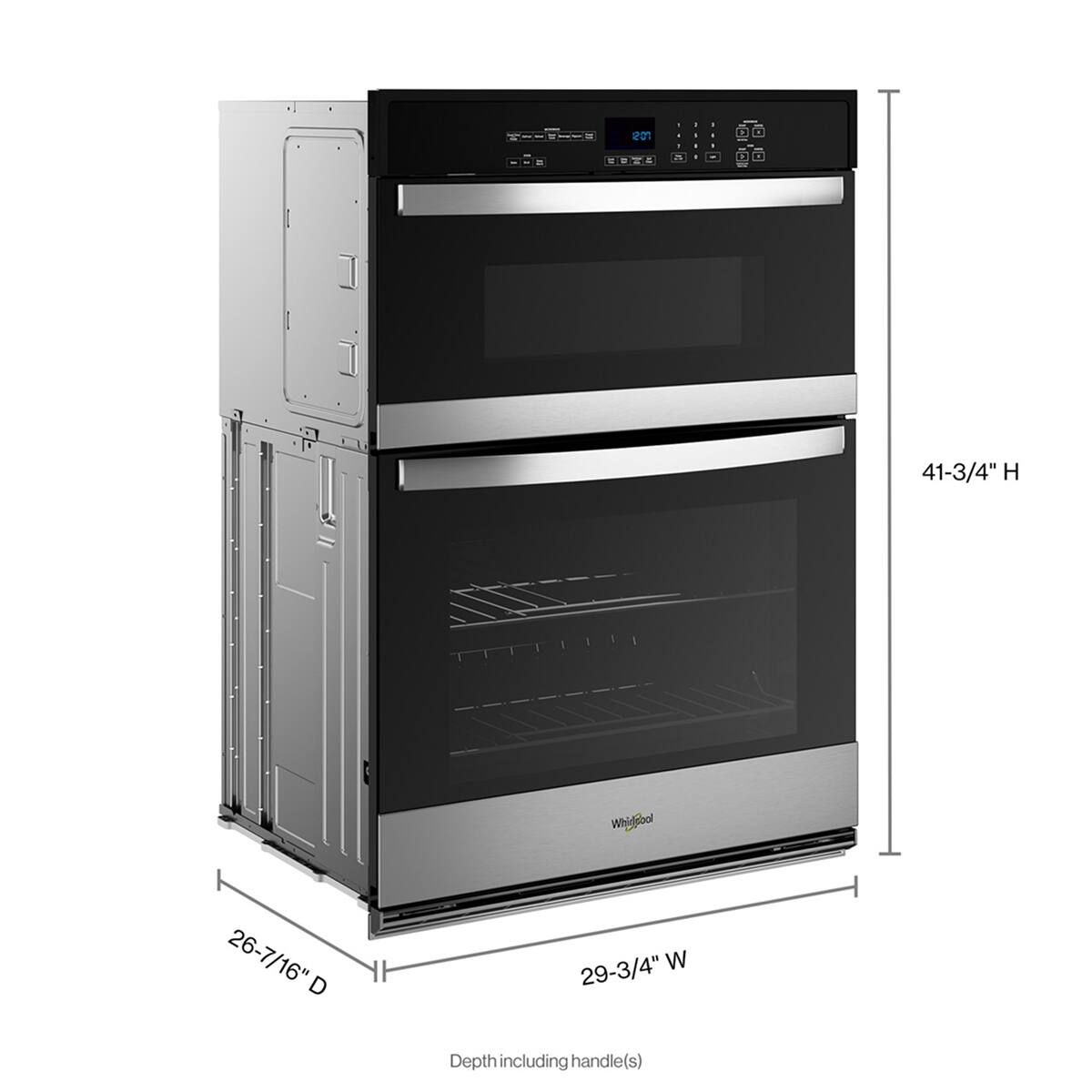

- Dimensions
- Product Height: 41 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 7/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 3/16 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 223 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 41.3125 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28.5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 1.4 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features

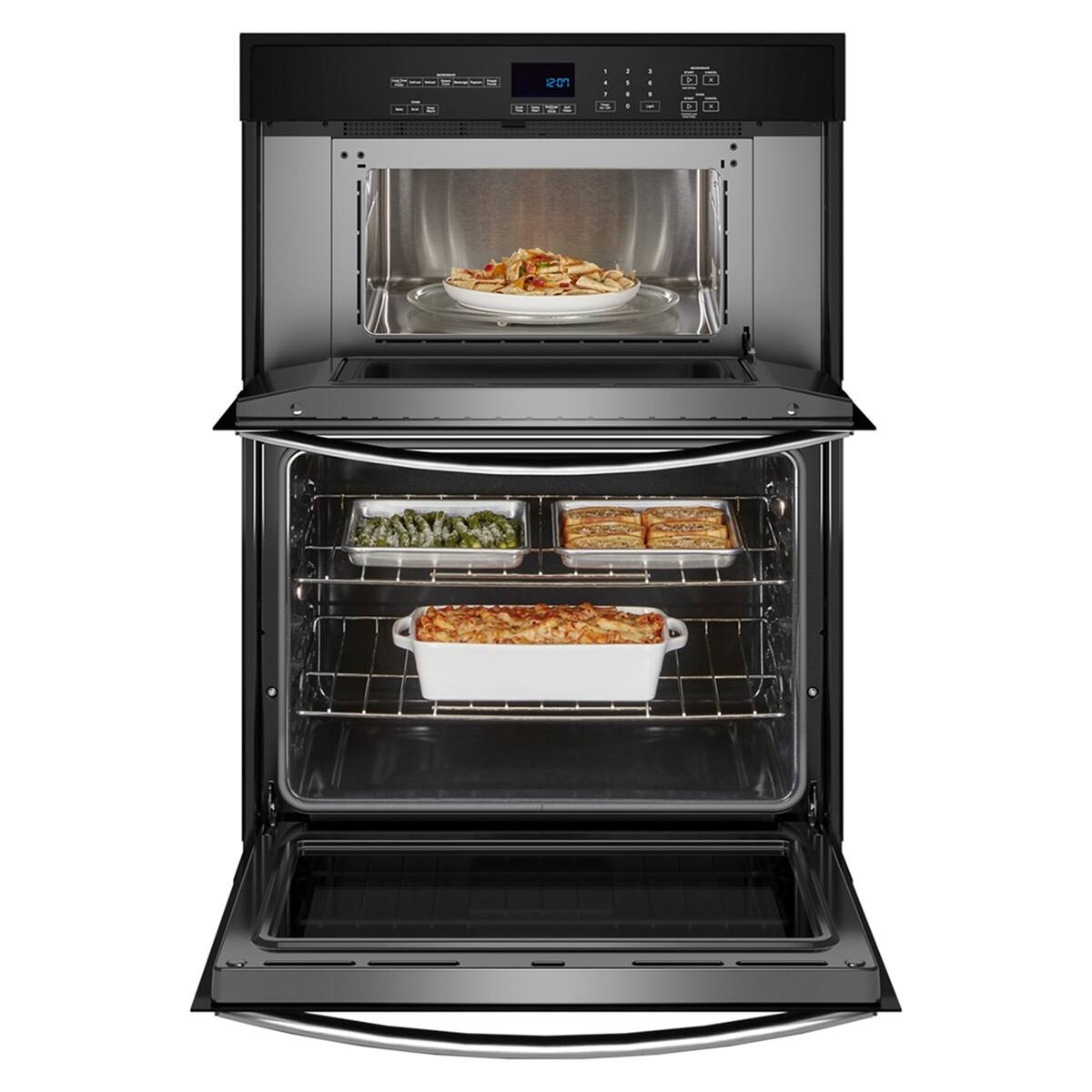

- Oven Type: Microwave and wall oven combination
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Auto Shut-Off: true (Feature automatically turns off the product.)

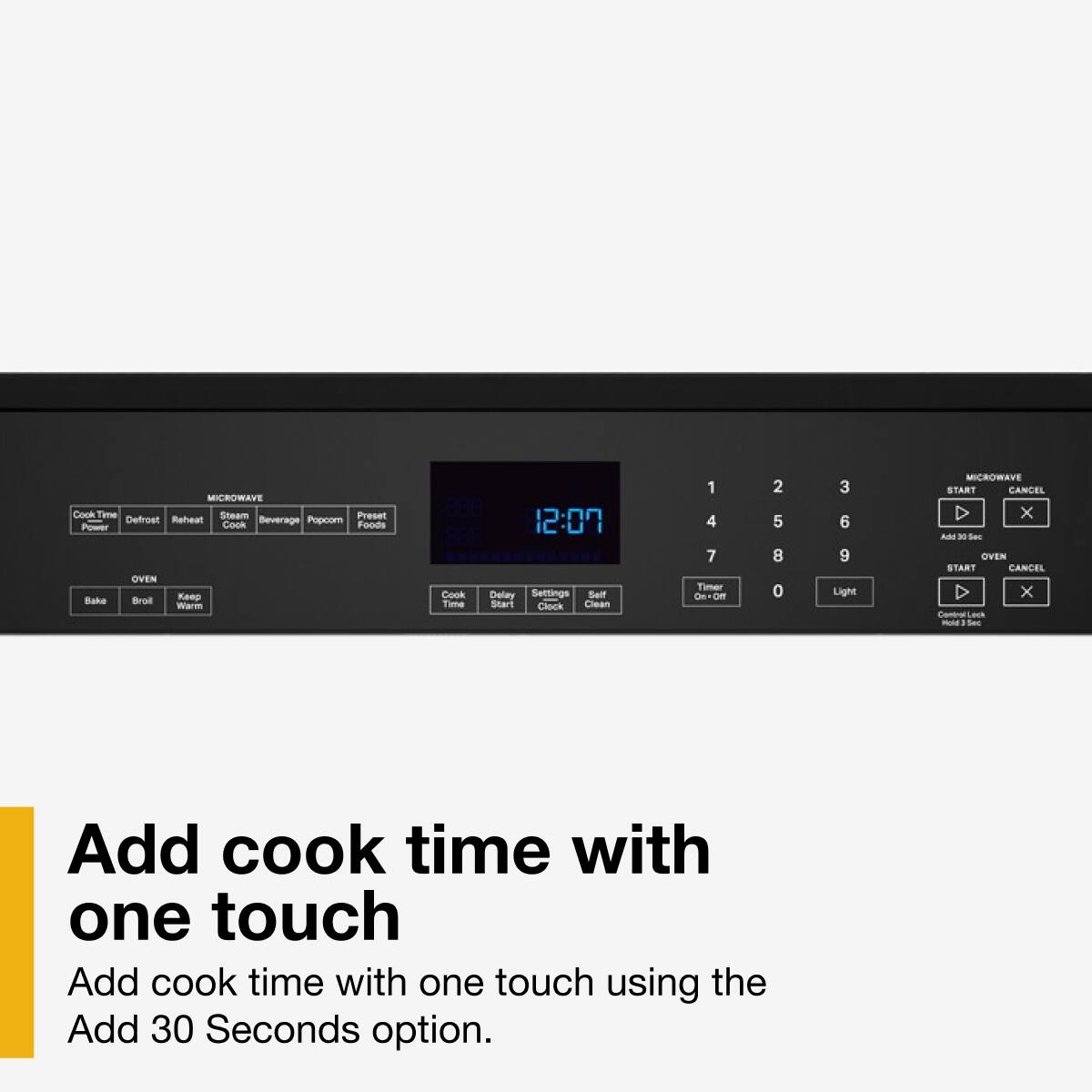

- Control Type: Touchscreen
- Clock Display: true
- Lock Type: Self-cleaning mode lock, Control panel lock
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Turntable Diameter: 14 1/8 inches
- Removable Turntable: true

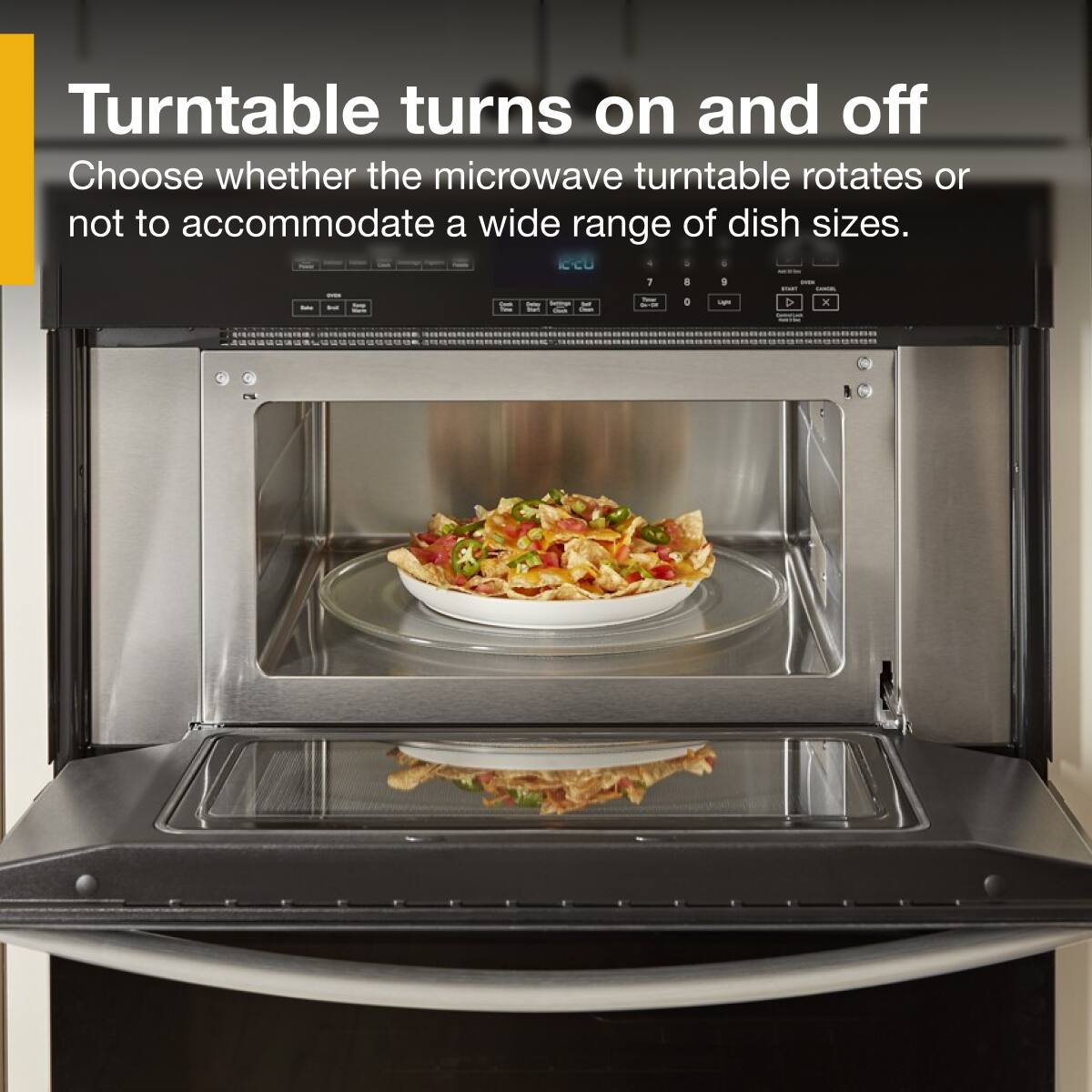

- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Design
- Display Type: LCD
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true

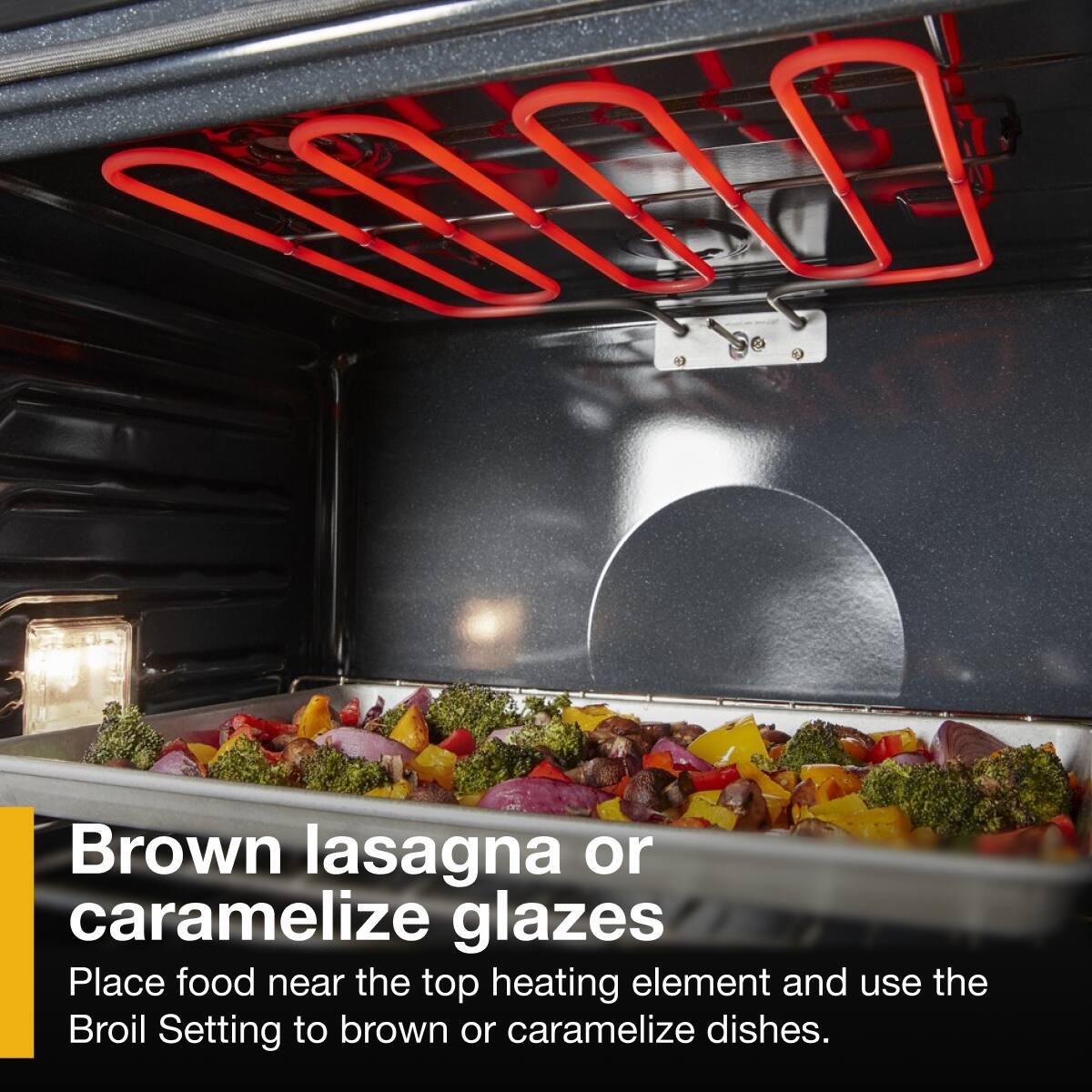

- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Oven 1
- Oven 1 Location: Upper
- Oven 1 Interior Height: 8.25 inches
- Oven 1 Interior Width: 17 5/8 inches
- Oven 1 Interior Depth: 16 1/2 inches
- Oven 1 Cavity Material: Steel
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 0
- Number of Oven 1 Racks: 0
- Oven 2
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 inches
- Oven 2 Interior Width: 25 inches
- Oven 2 Interior Depth: 19 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning, Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2800 watts
- Oven 2 Broil Element: 3600 watts
- Electrical
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)

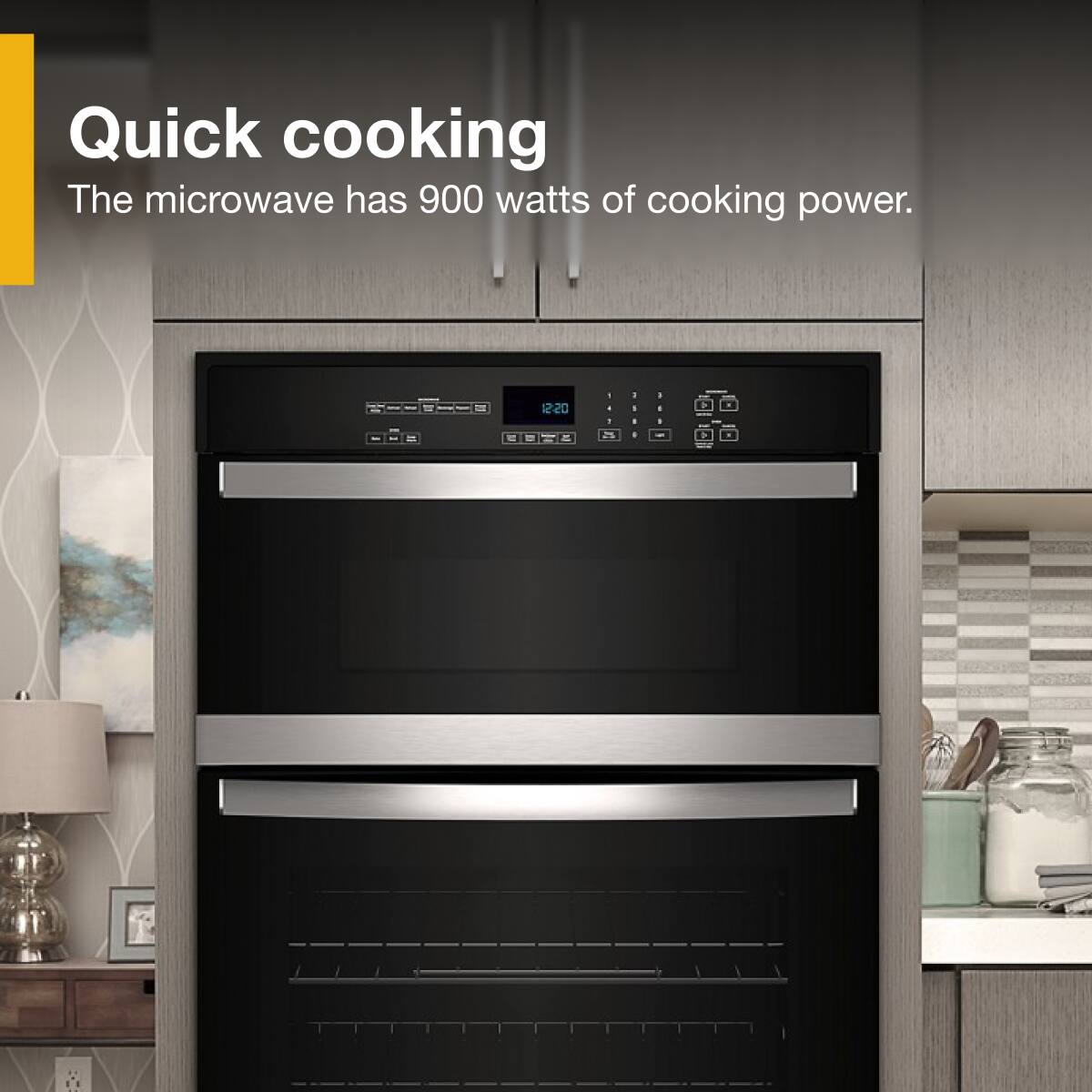

- Wattage: 900 watts (Measurement of electrical power.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: "This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] " (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049641560

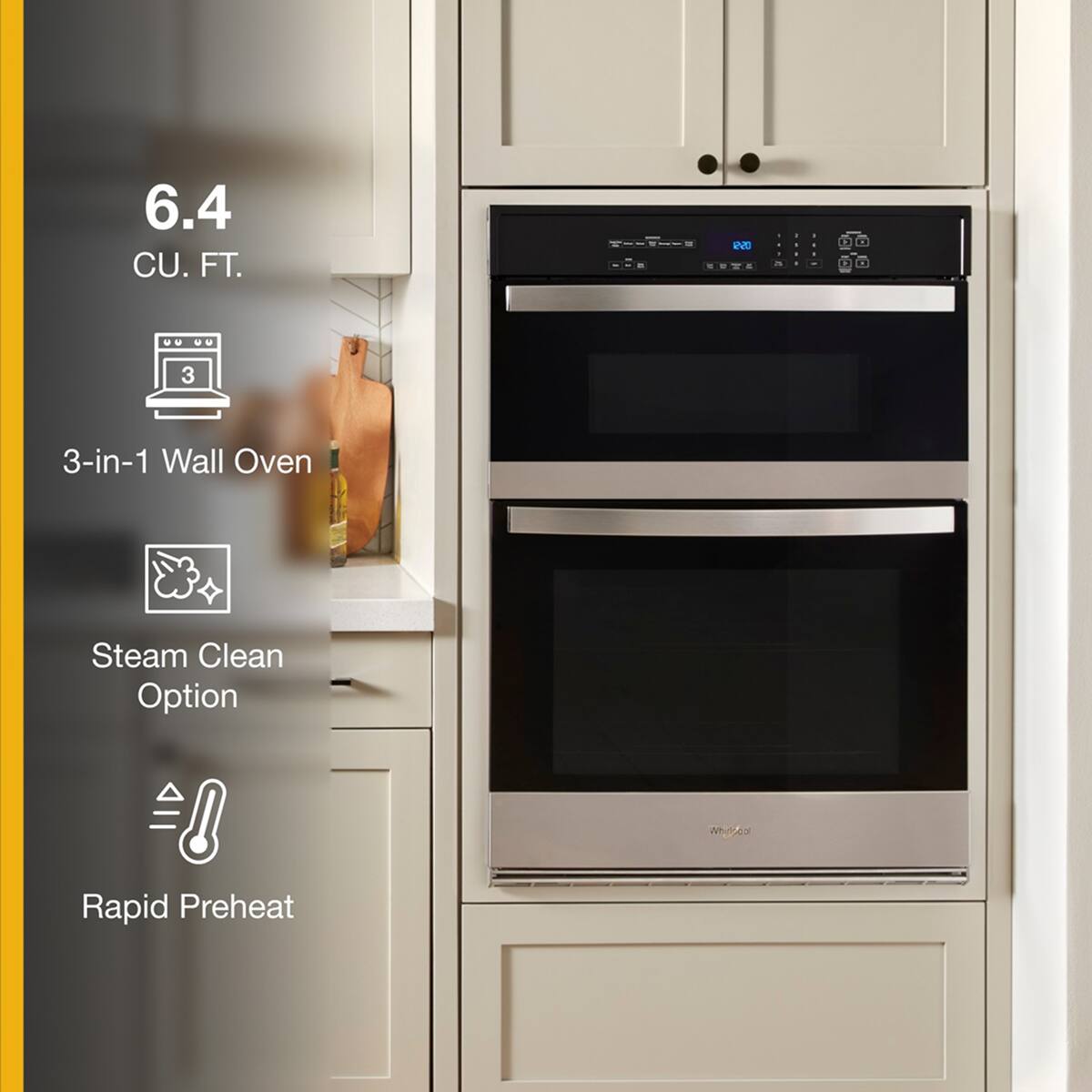

Take on every meal with a combination microwave and wall oven that cleans without chemicals using the Adjustable Self-Clean Cycle. Use the Steam Clean Option to clean up everyday spills. Get meals to the table easily with features like Electronic Touch Controls, Control Lock Mode and Rapid Preheat.
- 3-in-1 Wall Oven: Cook however you want with 3 cooking modes in one wall oven: Keep Warm, Broil and Bake. Get the flexibility to cook your favorite dishes by combining multiple cooking modes into one wall oven.
- 6.4 Cu. Ft. Total Capacity: Easily cook a whole meal with 6.4 Cu. Ft. Total Capacity.

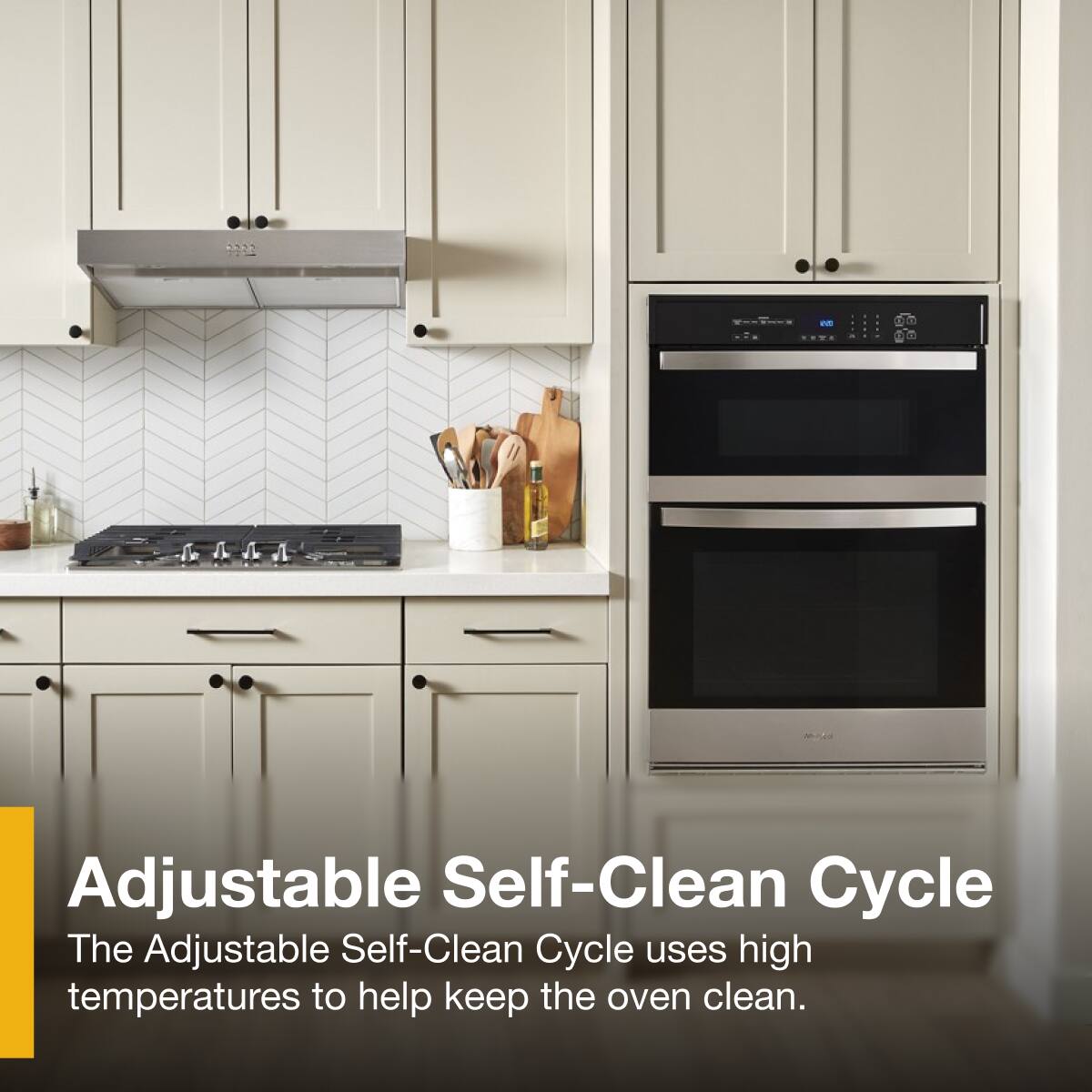

- Adjustable Self-Clean Cycle: Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- Steam Clean Option: Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

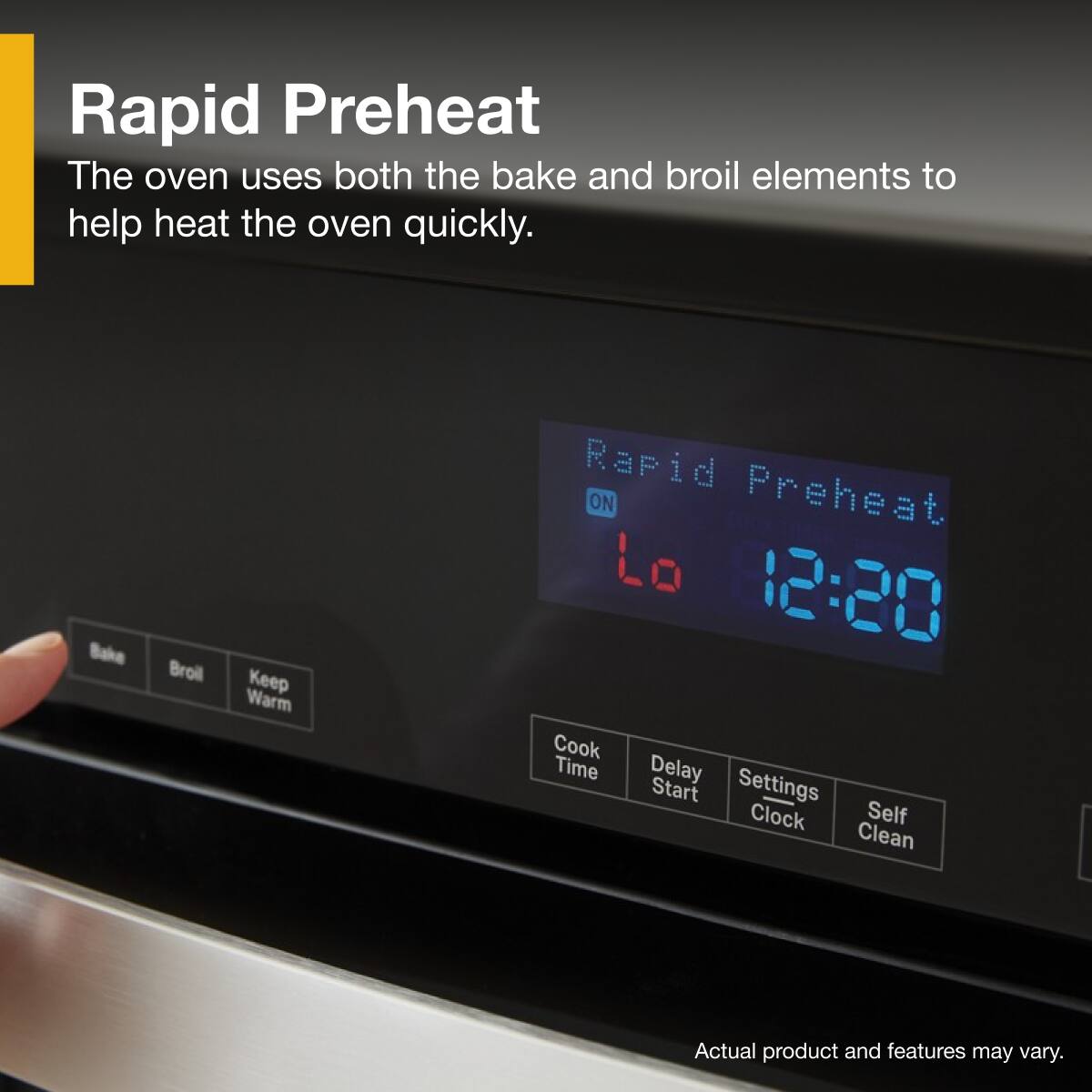

- Rapid Preheat: Save time with faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly.
- Keep Warm Setting: Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
Whats Included
- Whirlpool 30" Built-In Electric Combination Wall Oven with Adjustable Self-Clean Cycle
- Warranty
- Owners Manual
Product Manuals
Q: Does this oven have a self-cleaning feature?
A: Yes, this oven features an adjustable self-clean cycle that uses high temperatures to clean without harsh chemicals.
Q: What is the total capacity of this Whirlpool oven?
A: This Whirlpool oven has a total capacity of 6.4 cubic feet.
Q: What types of cooking modes does this wall oven offer?
A: This 3-in-1 wall oven offers three cooking modes: Keep Warm, Broil, and Bake, providing flexibility for various dishes.
Q: Can I keep food warm in this oven?
A: Yes, the oven includes a Keep Warm setting that uses low heat to keep dishes warm while you finish preparing the rest of your meal.
Q: How does the steam clean option work in this oven?
A: The steam clean option uses only heat and 1-1/4 cups of water to clean up everyday light spills, eliminating the need for harsh chemicals.
Q: Does this oven preheat quickly?
A: Yes, this oven utilizes rapid preheating technology. A rear fan and all heating elements work together to heat the oven quickly.
Q: Does this model come with self cleaning racks?
A: Hello, this model does not come with self cleaning racks. Oven racks are typically not recommended to be left in during the self-cleaning cycle because the intense heat can cause them to warp, discolor, or damage the oven's internal components. Additionally, the self-cleaning cycle's high temperatures can also damage the coating on the racks that helps them slide smoothly. Thank you for your inquiry about our Whirlpool appliances.
Q: WHERE CAN I FIND THE OPERATING MANUEL FOR MY WHIRLPOOL DROP IN RANGE S/N WEE745HOLZ?
A: Hello, please see the link for the Owner's Manual for model WEE745H0LZ https://shorturl.at/MtFgT. You may also view the Control Guide https://shorturl.at/dWQpu and Quick Start Guide https://shorturl.at/y7og6. Thank you for your inquiry on our Whirlpool appliances.
