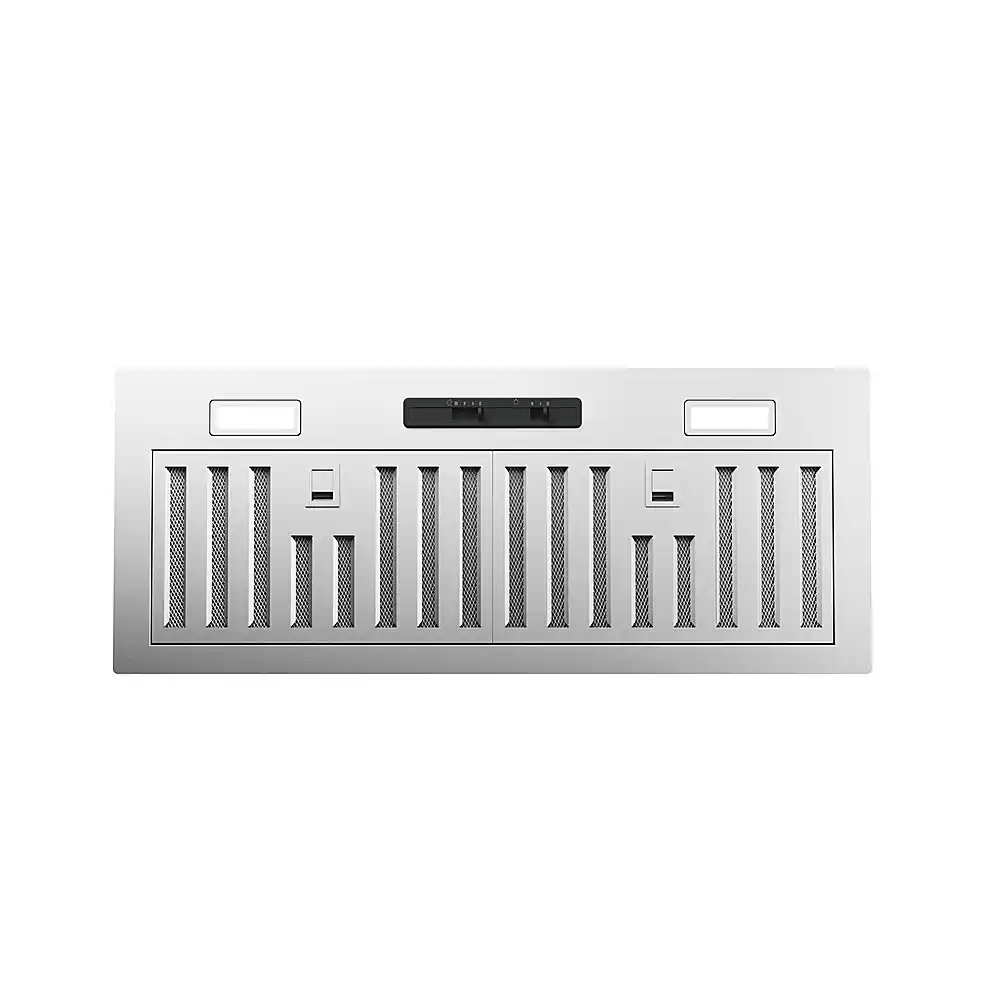

Zephyr - 28 inches - Convertible - Range Hood Insert - Stainless Steel
Zephyr - 28 inches - Convertible - Range Hood Insert - Stainless Steel
$39.99 delivery to
- Zephyr - Recirculating Kit for AK8000CS and AK8100BS Range Hoods - Black$29.99
Related Item
Specifications
- Color FinishStainless steelProduct Height10 1/2 inchesProduct Width27 9/16 inchesProduct Depth11 3/16 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK8100BS
- Product Name: Tornado I 28 in. 600 CFM Insert Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 10 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 20 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 27 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 28 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 21.6 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 26 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 14 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: true
- Electrical
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328009884
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Powerful 600 CFM Blower: The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Hybrid Baffle Filters: Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- 3 Speed Mechanical Slide Controls: 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional Liner Accessories Available: An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance. Part # AK0800AS, AK0836AS
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-0080)
Q: What is the minimum installation height above the cooktop for this range hood?
A: The minimum installation height above the cooktop is 20 inches.
Q: What type of filters does this Zephyr range hood use?
A: This Zephyr range hood uses hybrid baffle filters that are made with stainless steel baffles and aluminum mesh.
Q: What is the maximum air flow capacity of this range hood?
A: This range hood has a maximum air flow capacity of 600 cubic feet per minute.
Q: Does the range hood include lights?
A: Yes, the range hood has two integrated, dimmable LED lights.
Q: How many fan speeds does the Zephyr Tornado I range hood have?
A: The Zephyr Tornado I range hood has 3 fan speeds.
Q: Are liner accessories available for this range hood?
A: Yes, an optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Q: Does this range hood come with a ductless recirculating kit?
A: The ductless recirculating kit is optional and can be used when venting air outside is not possible.
A: Hello, Zephyr blowers are measured in sones, This blower has a maximum sone of 6 due to it's 600 CFM. A sone is an internationally recognized measurement of loudness. It is a unit of loudness as perceived by a person with normal hearing. This is the level and quality of noise your range hood will emit in a kitchen environment when properly ducted. Whisper: <1 sone, Refrigerator: 1 – 2 sones, Normal conversation: 3 – 4 sones, Busy restaurant: 5 – 6 sones, Traffic noise: 7 – 10 sones. Thank you for your inquiry! - Zephyr
Compare similar products
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
The 400-CFM Twister tucks away neatly beneath your custom hood enclosure. Upgraded with two aluminum mesh filters for increased capture, dual-level LumiLight LED lighting and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LEDs and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT technology and either a powerful 600-CFM blower (30 and 36 models) or 1,200-CFM blower (42 and 48 models).
High powered 610 CFM blower adjustable downward to either 370 or 290 maximum CFM to accommodate different installation needs. LED modules ensure bright lighting for the entire cooking environment. Removes odors and grease from your cooking area and easy to clean in your dishwasher. Add a sophisticated look with this up-front, easy-to-use display. Automatically control the hood's lights and fan by syncing with the range.
