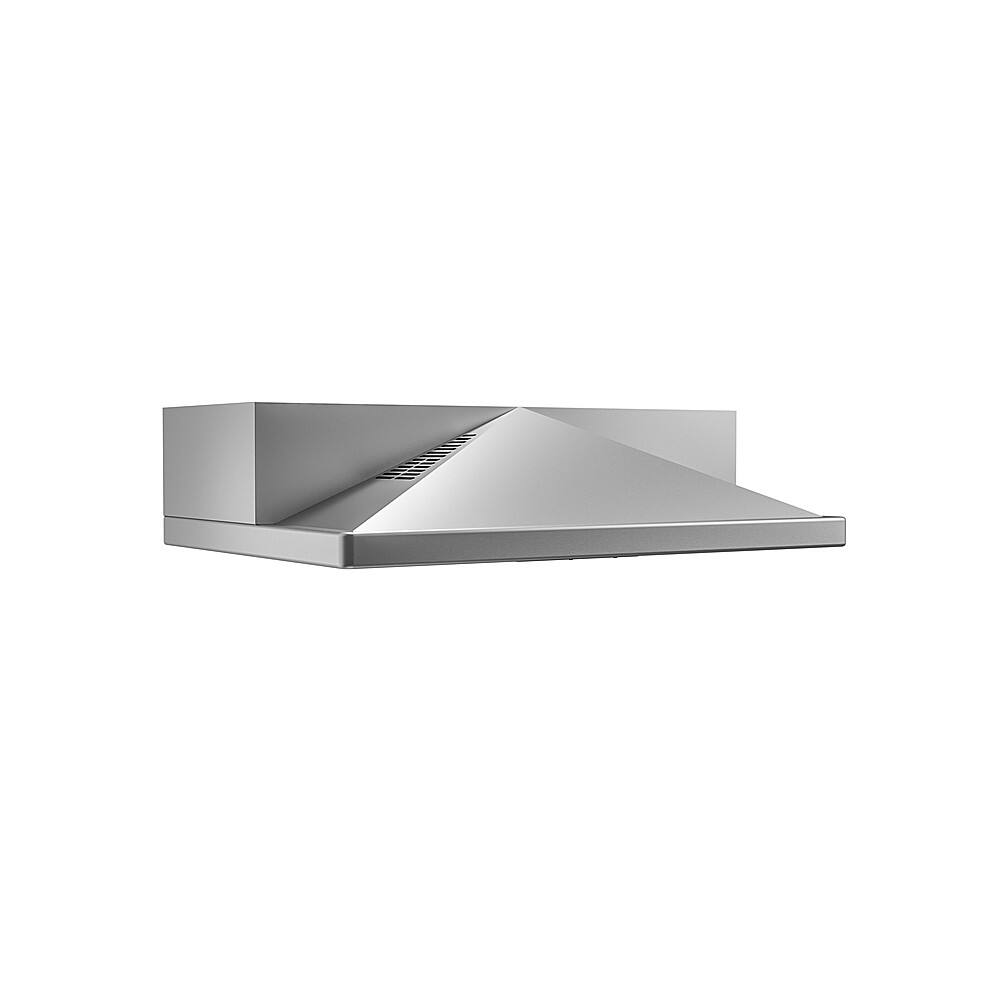

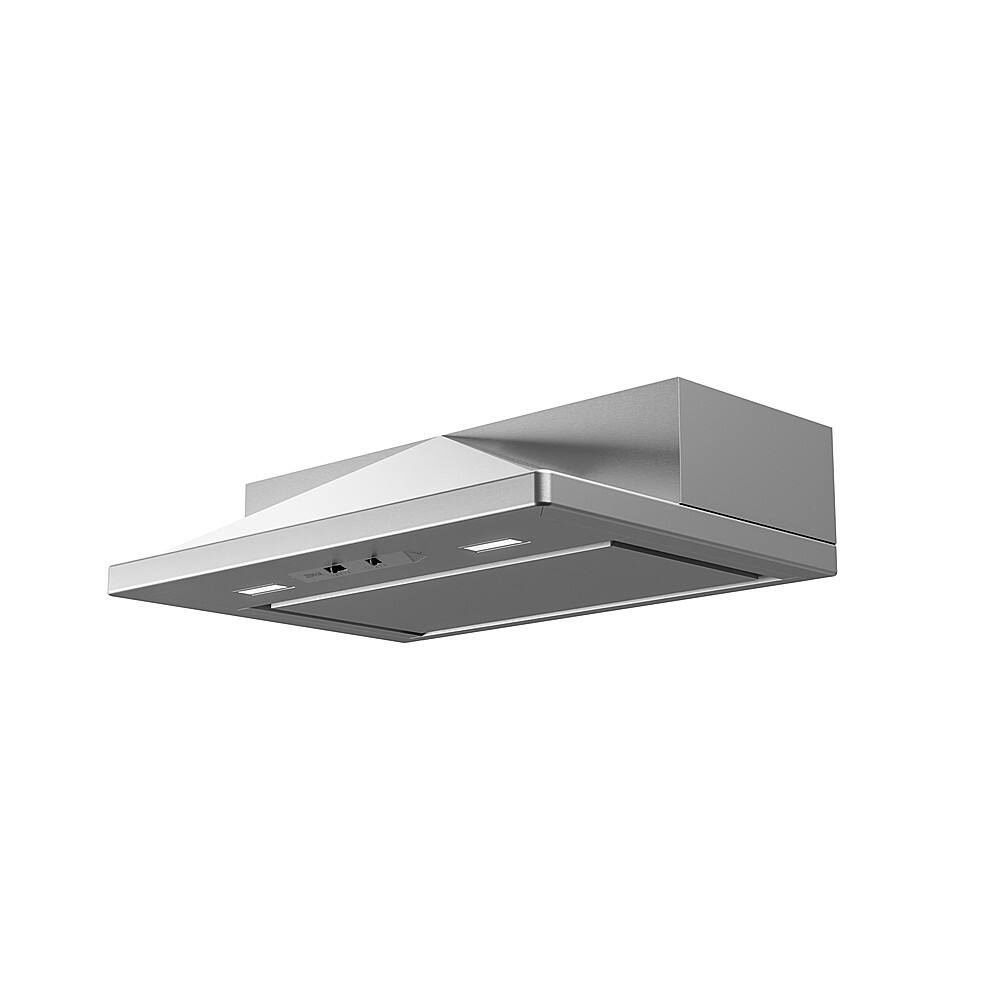

Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
- Zephyr - Recirculating Kit for ZPY Range Hoods - Black$59.99
Related Item
Specifications
- Color FinishStainless steelProduct Height7 3/8 inchesProduct Width29 15/16 inchesProduct Depth21 inchesExhaust Vent LocationTop/RearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 7 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZPY-E30BS
- Product Name: Pyramid 30 in. 400 CFM Under Cabinet Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 7 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 31.2 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 3.25 inches
- Duct Width: 10 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 210 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum Mesh
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328009945

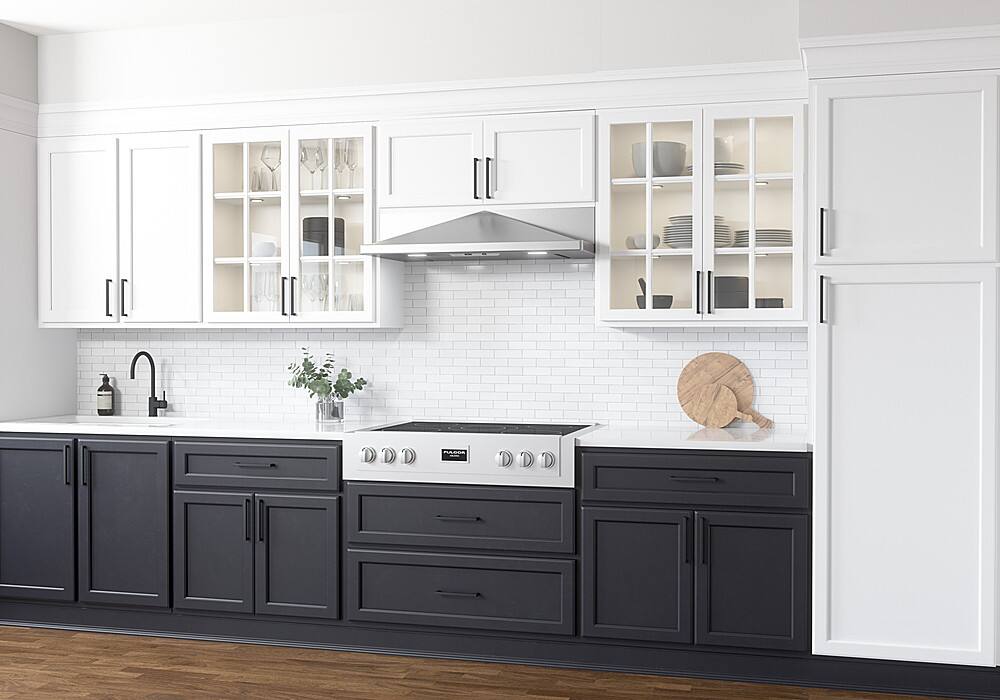

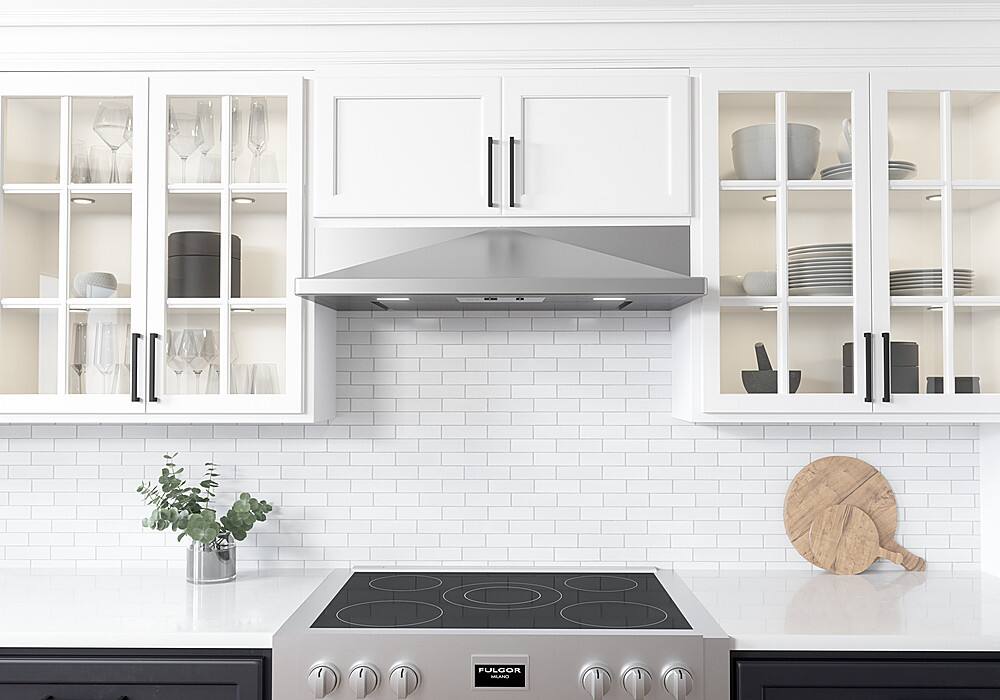

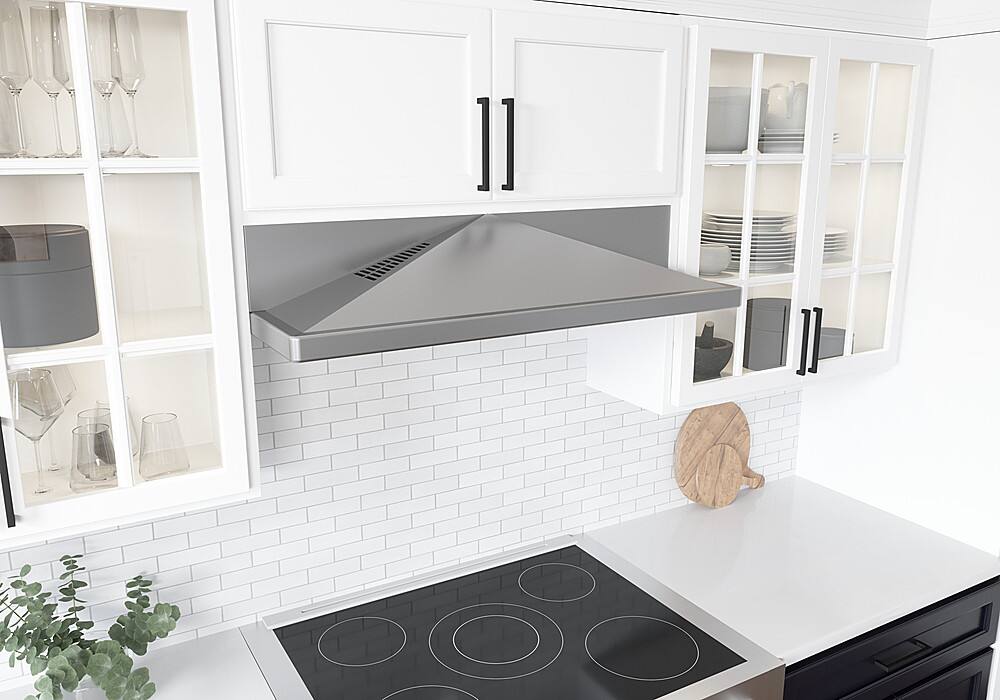

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- 3 Speed Mechanical Slide Controls: 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.

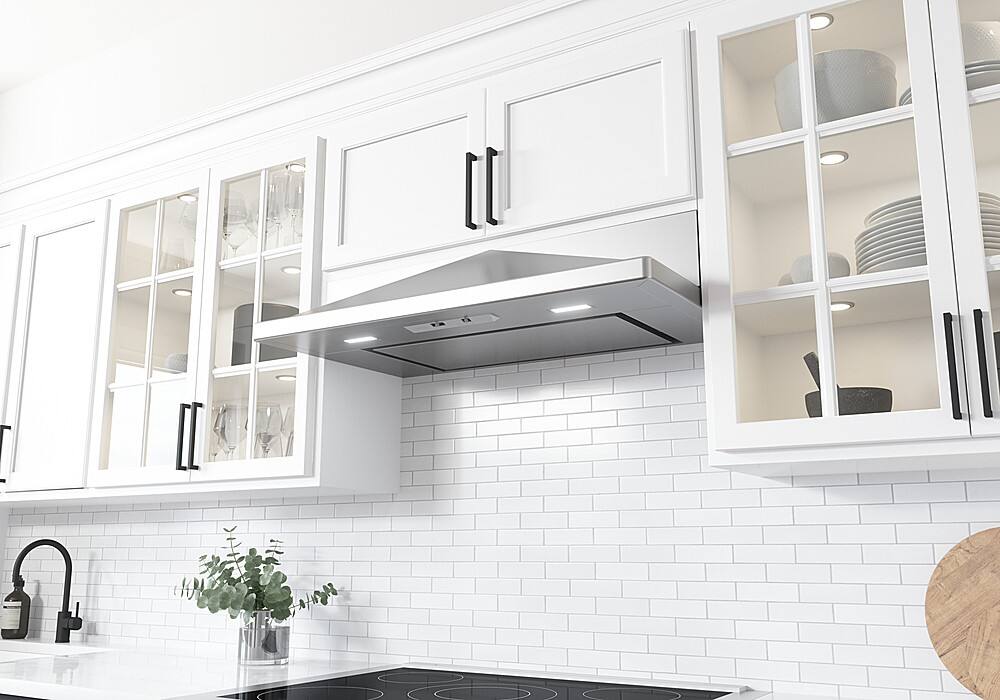

- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Dishwasher Safe Aluminum Mesh Filters: High-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.

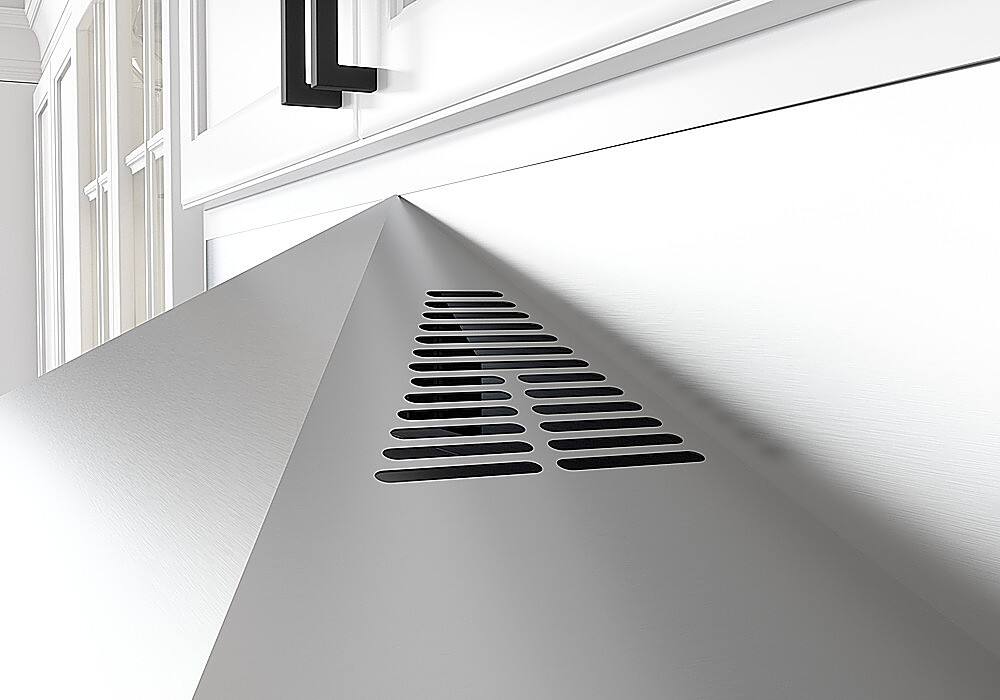

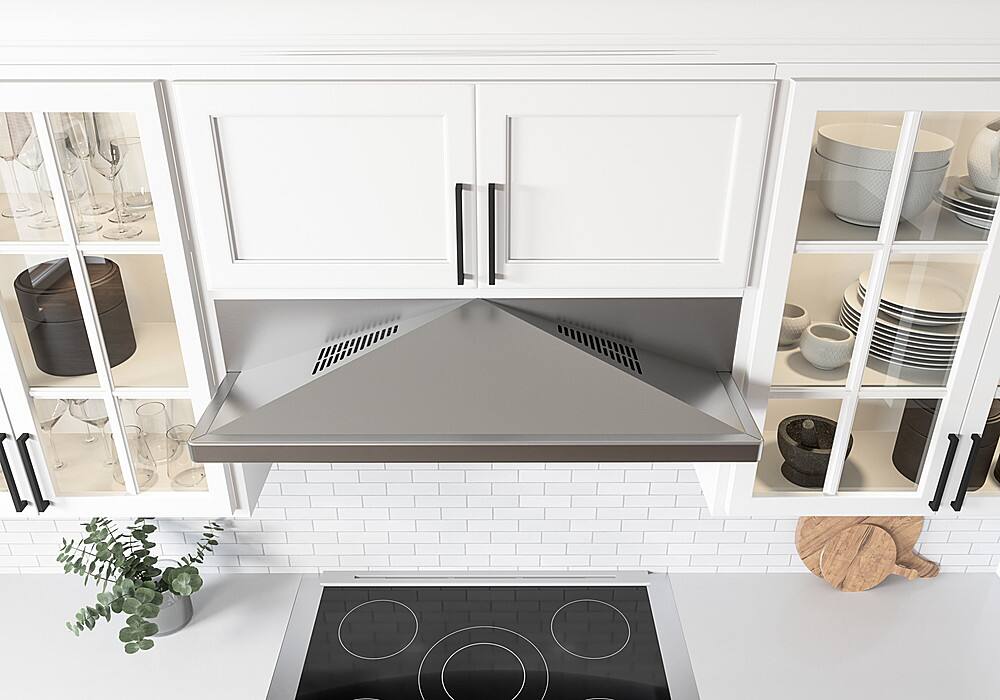

- Perimeter Aspiration System: This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. (Part # ZRC-00PY)
Q: What type of filters does this Zephyr range hood use?
A: This range hood uses high-quality, dishwasher-safe aluminum mesh filters.
Q: Does the Zephyr Pyramid range hood have a light?
A: Yes, the Zephyr Pyramid range hood has dual-level, dimmable LumiLight LED lights.
Q: What is the Perimeter Aspiration System?
A: The Perimeter Aspiration System moves airflow away from the central area and evenly distributes it around the perimeter of the hood to increase air velocity and improve the capture of cooking contaminates.
Q: Can this range hood be vented horizontally?
A: Yes, this hood can be vented either out the top or out the back.
Q: What is the maximum air flow capacity of this range hood?
A: The maximum airflow capacity of this range hood is 400 cubic feet per minute.
Q: How many fan speeds does the Zephyr Pyramid range hood have?
A: The Zephyr Pyramid range hood has 3 fan speeds.
A: Hello, The recirculating kit is not included. The part number is ZRC-00PY. You can find more detailed information on our website https://zephyronline.com/product/pyramid-under-cabinet-vent-hood/. Thank you for your inquiry! - Zephyr
Compare similar products
Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.
Eliminate cooking by-products from the air with this stainless steel Whirlpool range hood. Its under-cabinet mounting style and FIT system makes installation easy, and push-button controls simplify fan and lighting control. Its three-speed fan lets you adjust the ventilation for efficient use. This Whirlpool range hood has LED lights for functional, long-lasting task lighting.
Updated with dual-level LumiLight LED Lighting, the Breeze II’s modern, clean lines provide a perfect complement to any interior. Equipped with 3-speed electronic controls, 400-CFM blower, convenient dishwasher-safe aluminum filters and an auto delay-off feature that clears the air and powers down after 5 minutes. Available in black, white, stainless steel and black stainless finishes.
Tidal I under-cabinet, pro-style hood is the next wave of the future with its optional dual 1300-CFM PowerWave blowers and Zephyr Connect capabilities. Featuring professional baffle filters, LumiLight LED Lighting and 6-Speed Proximity Touch Controls, Tidal I is the ultimate in power and efficiency. Dual blowers available on the 36” model.
| Pros for Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel | |||
|---|---|---|---|
| There were no pros for this product— | Lighting, Appearance, Design, Performance, Ease of use | There were no pros for this product— | There were no pros for this product— |
| Cons for Zephyr - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel | |||
| There were no cons for this product— | Fan Noise, Charcoal Filters, Installation, Suction | There were no cons for this product— | There were no cons for this product— |
Specs
- Samsung - 6.3 cu. ft. Freestanding Electric Range with WiFi, No-Preheat Air Fry & Convection - Stainless Steel$729.99The price was $989.99
- Samsung - 6.0 cu. ft. Freestanding Gas Range with No-Preheat Air Fry & Convection - Stainless Steel$779.99The price was $1,034.99
- Samsung - 6.3 cu. ft. Freestanding Electric Range with WiFi, No-Preheat Air Fry & Convection - Black Stainless Steel$829.99The price was $1,079.99
- Samsung - 6.0 cu. ft. Freestanding Gas Range with No-Preheat Air Fry & Convection - Black Stainless Steel$879.99The price was $1,124.99
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Range Hood

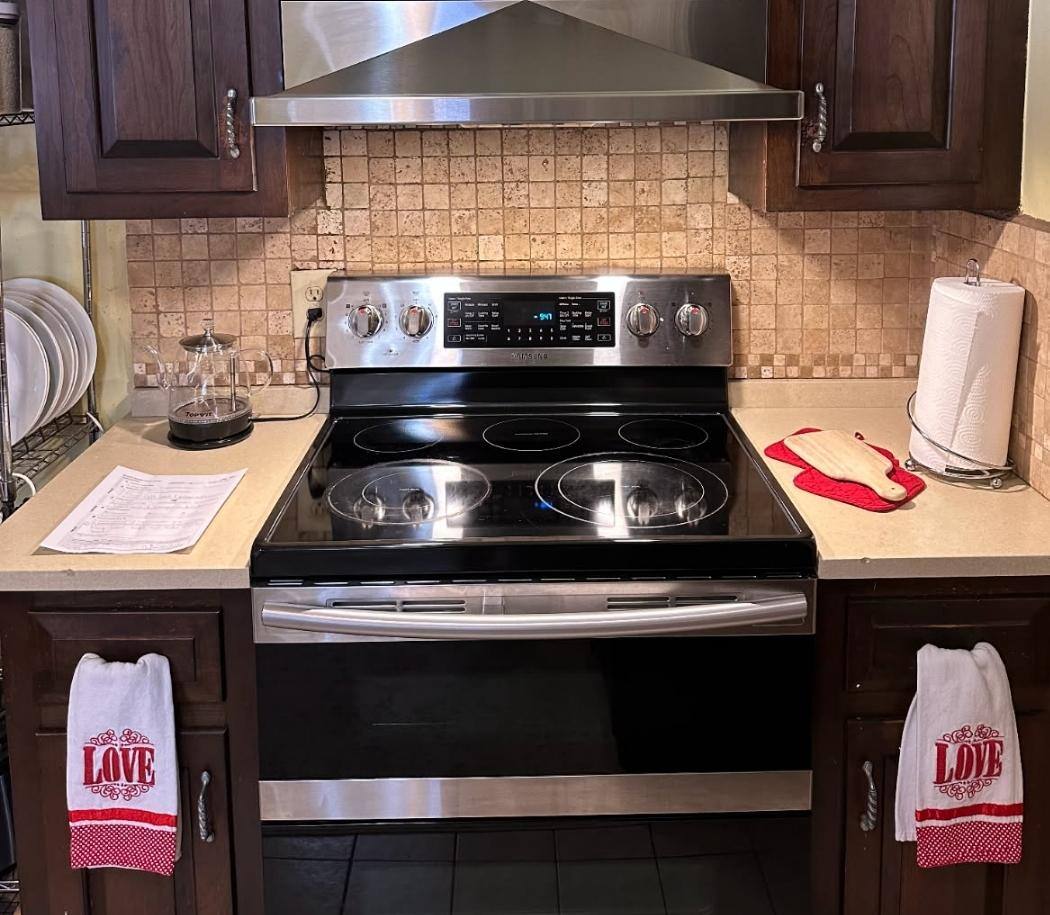

Beautiful addition to our kitchen. The fan is a little louder than expected, that is the only reason I was unable to give a 5 star review.
