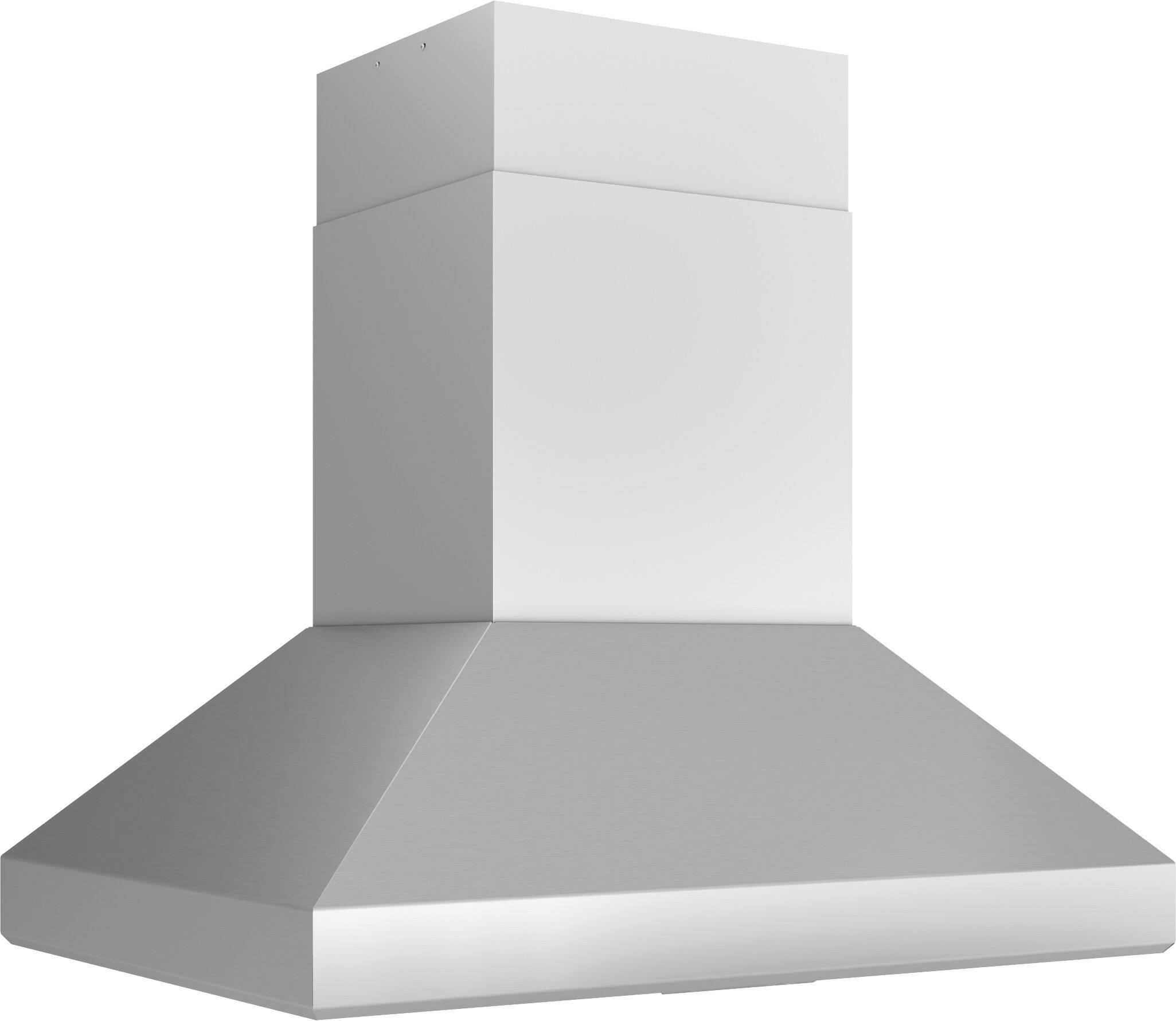

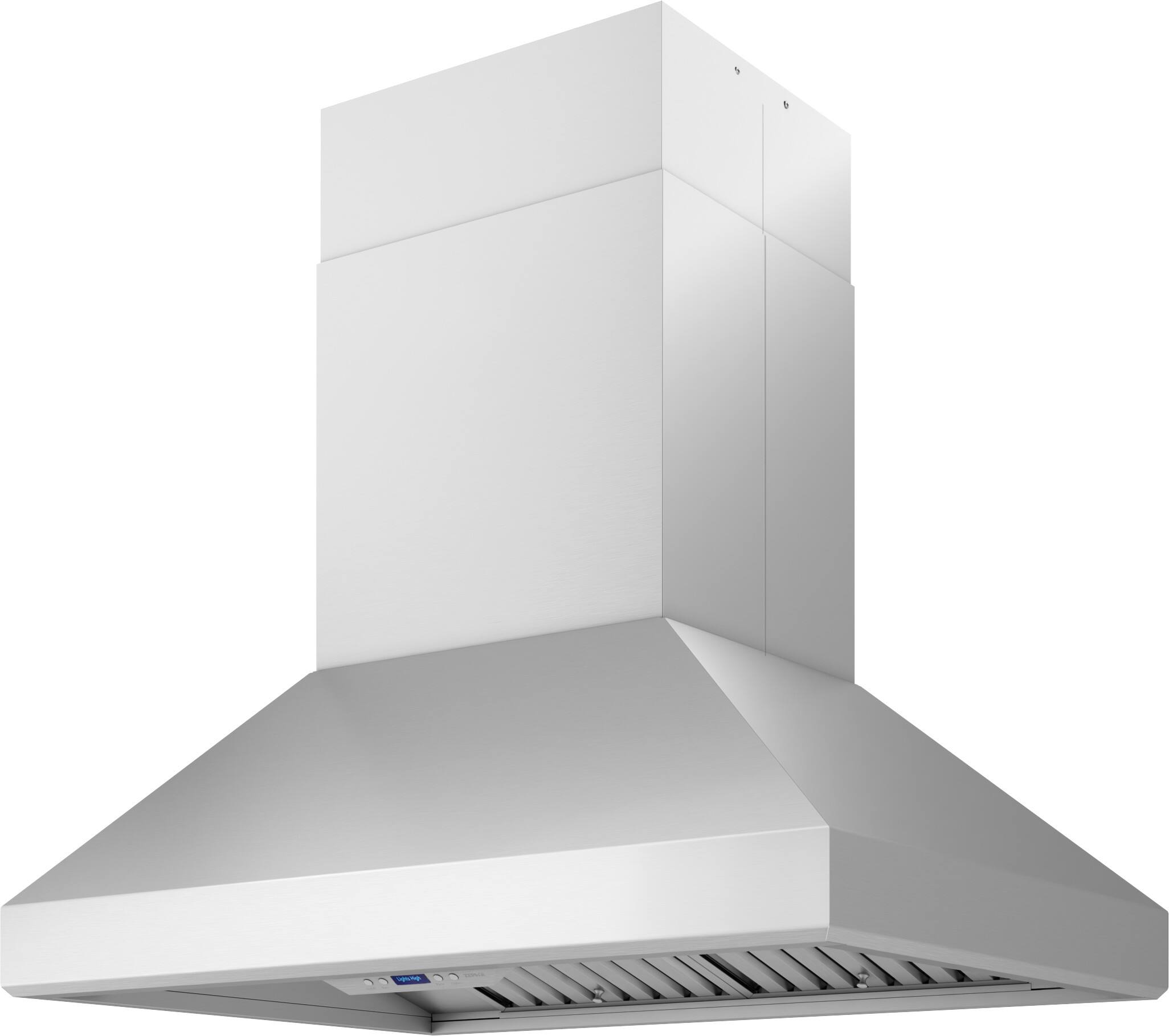

Zephyr - 42 inches - Externally Vented - Island Range Hood - Stainless Steel
Zephyr - 42 inches - Externally Vented - Island Range Hood - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height33 inchesProduct Width41 15/16 inchesProduct Depth31 5/8 inchesExhaust Vent LocationTopVent TypeDuctedVent StyleExternal
- Key Specs
- Product Height: 33 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 41 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK7742BS
- Product Name: Titan 42 in. 750 CFM Island Mount Range Hood with LED Light
- Color: Stainless Steel
- Dimensions
- Product Height: 33 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 41 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 125.6 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Island
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 750 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 4
- Electrical
- Amperage: 8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328010569
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyrs PowerWaveblower technology, Titan includes a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. Titan also includes pro baffle filters, Airflow Control Technology (ACT), and LumiLight LED lighting.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (part # 50210036)
- Tri-Level lighting: Tri-Level lighting illuminates cooking area
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen. (Part # 14000005)
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0077)
Product Manuals
Q: What is the part number for the professional baffle filters?
A: The part number for the professional baffle filters for the Titan 42 in. 750 CFM Island Mount Range Hood with LED Light by Zephyr is Z1C-0077.
Q: What is the product height of this range hood?
A: The product height of the Titan 42 in. 750 CFM Island Mount Range Hood with LED Light by Zephyr is 33 inches. This information can be found in the product specifications section under "Product Height".
Q: Can an extension duct cover kit be purchased separately to accommodate higher ceilings?
A: Yes, an extension duct cover kit can be purchased separately to accommodate higher ceilings. The product specifications mention an "Optional Extension Duct Cover Kit" that can be purchased to accommodate ceiling heights up to 12 feet.
Q: Can the light bulbs be adjusted to direct light over the cooking surface?
A: Yes, the light bulbs can be adjusted to direct light over the cooking surface as per the product features: "Directional Lighting: The light bulbs can be adjusted to direct light over cooking surface where it is needed the most.".
Q: What type of bulb is required for this range hood?
A: This range hood requires LED bulbs. The maximum wattage for each bulb is 6 watts. The range hood comes with two LED bulbs included.
Q: Are the filters dishwasher safe?
A: Yes, the filters are dishwasher safe. The product specifications state that the "Professional Baffle Filters" are "dishwasher safe".
Q: What is the amperage of this range hood?
A: The amperage of the Zephyr Titan 42 in. 750 CFM Island Mount Range Hood with LED Light is 8 amperes. This information can be found in the product specifications section of the provided context.
Q: What is the shape of the duct for this range hood?
A: The duct shape for the Titan 42 in. 750 CFM Island Mount Range Hood with LED Light by Zephyr is round. This information can be found in the product specifications section under "Duct Shape: Round".
