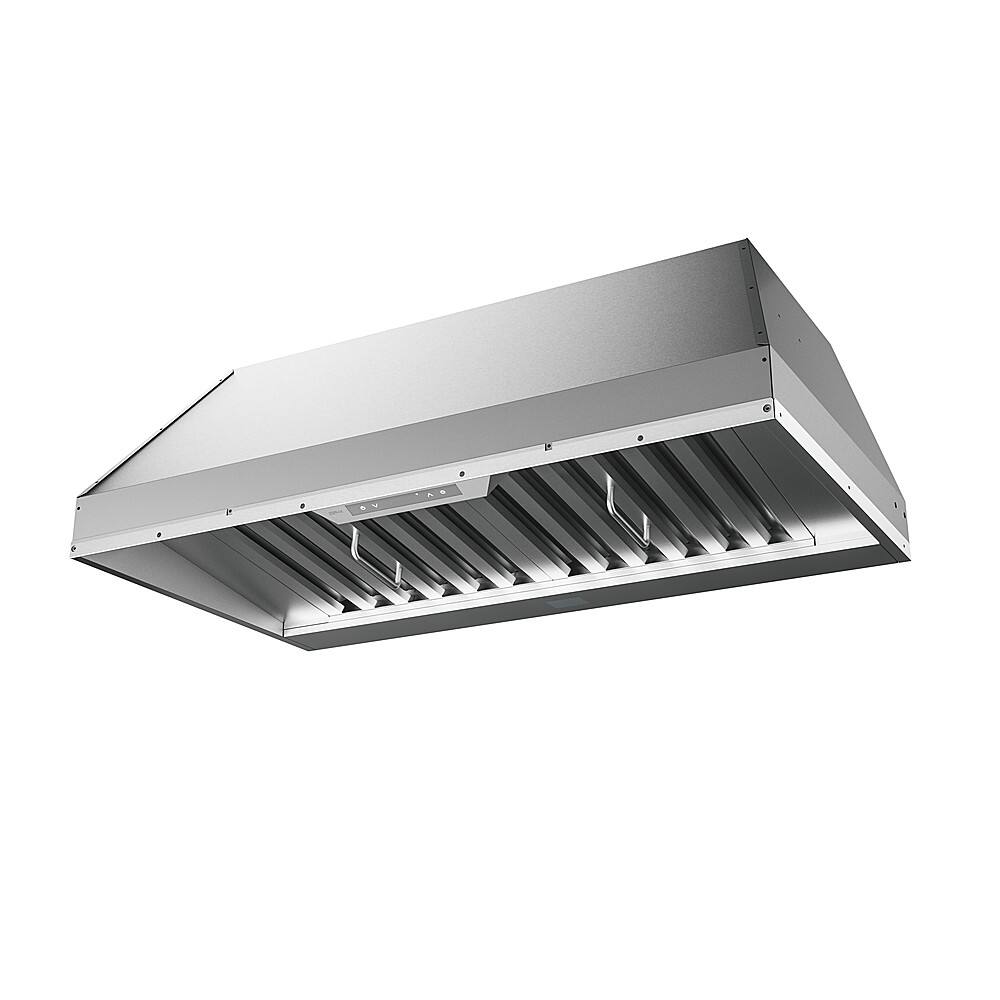

Zephyr - 42 inches - Externally Vented - Range Hood Insert - Stainless Steel
Need-haul away?
Key Accessories:
- 1,300-CFM Motor Dual Internal Blower for Zephyr Range Hoods - Black$499.99
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width40 3/8 inchesProduct Depth19 1/4 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 40 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9440BS
- Product Name: Monsoon Connect 42 in. 700 CFM Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 40 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 42 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 40 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.8 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Pro baffle
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008375
Monsoon Connect is unique in the marketplace. Optional dual 1300-CFM PowerWave blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36, 42 and 48 models.
- Compatible with Zephyr Connect App: The Zephyr Connect app allows customers to remotely control their range hoods from anywhere using a mobile device.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
Product Manuals
Q: How many fan speeds does this Zephyr range hood have?
A: This Zephyr range hood has six fan speeds.
Q: Can the lighting on this range hood be adjusted?
A: Yes, the LumiLight LED lights are tri-level dimmable.
Q: What is the minimum airflow capacity of this range hood?
A: The minimum airflow capacity of this range hood is 200 cubic feet per minute.
Q: Does this range hood have a delay shut-off feature?
A: Yes, this range hood has a delay shut-off feature.
Q: What type of filters does this range hood use?
A: This range hood uses professional baffle filters that are dishwasher safe.
Q: What is the maximum sound level?
A: Hello, Zephyr hoods are measured in sones, This hood has a maximum sone of 6 and a minimum sone of .8. A sone is an internationally recognized measurement of loudness. It is a unit of loudness as perceived by a person with normal hearing. This is the level and quality of noise your range hood will emit in a kitchen environment when properly ducted. Whisper: <1 sone, Refrigerator: 1 – 2 sones, Normal conversation: 3 – 4 sones, Busy restaurant: 5 – 6 sones, Traffic noise: 7 – 10 sones. Thank you for your inquiry! - Zephyr
