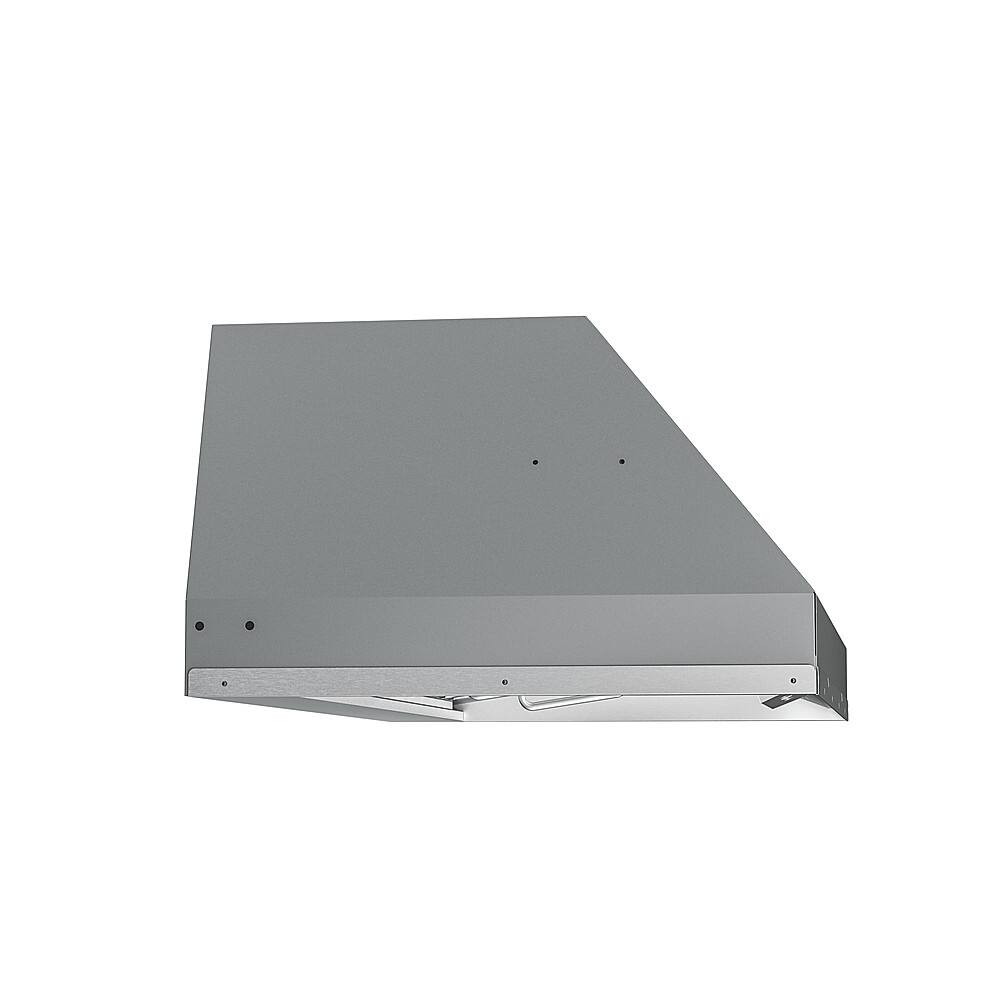

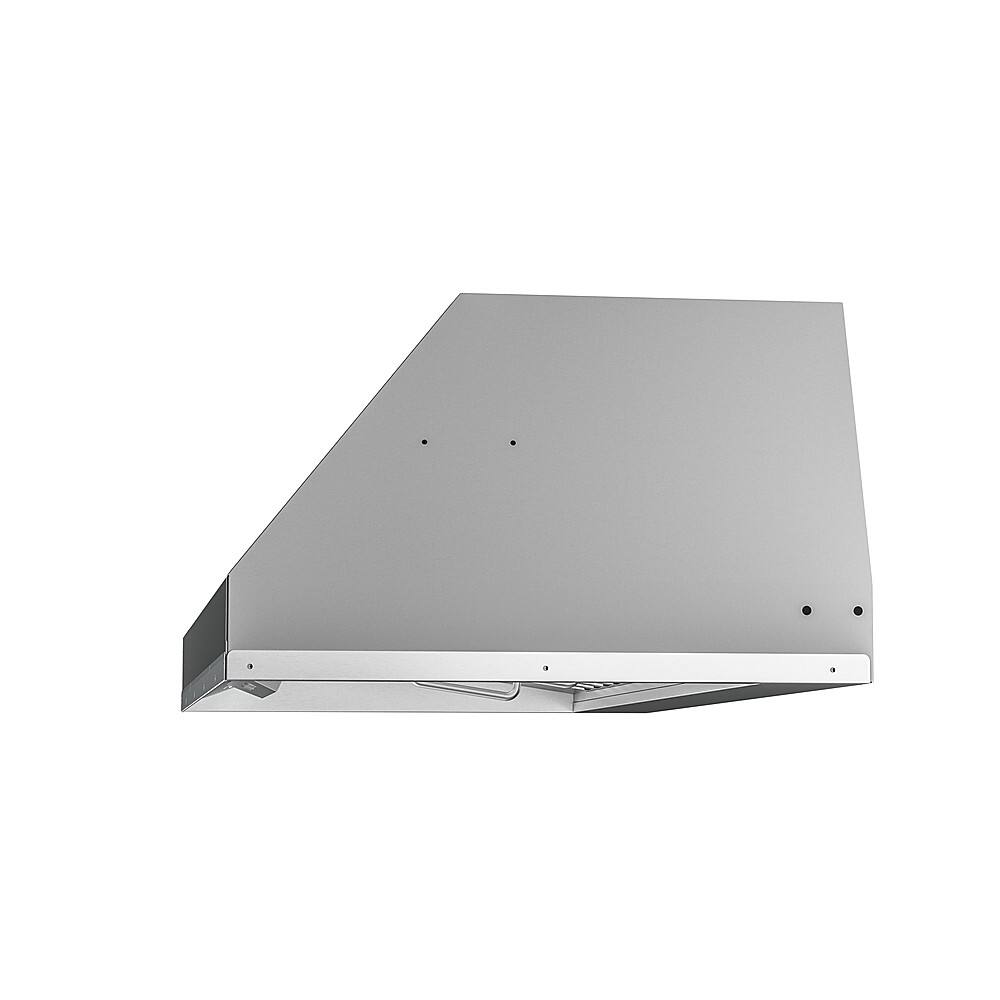

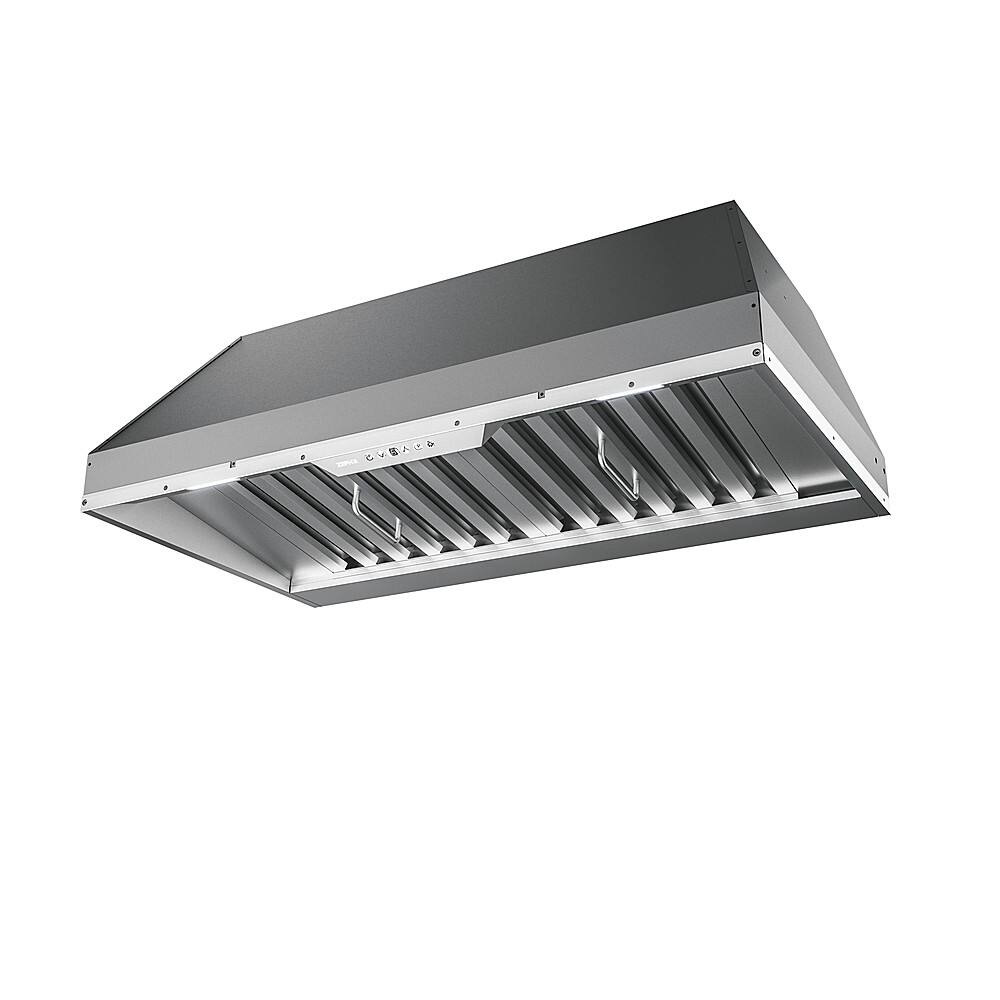

Zephyr - 48 inches - Externally Vented - Range Hood Insert - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9246BS
- Product Name: Monsoon I 48 in. 1200 CFM Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 64.5 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 46 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 450 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 3.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Removable Grease Filter: true
- Electrical
- Amperage: 7 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008306
Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LEDs and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT technology and either a powerful 600-CFM blower (30 and 36 models) or 1,200-CFM blower (42 and 48 models).
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- CleanAir Feature: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (part # 50210039)
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
Q: What is the product subclass of this range hood?
A: The product subclass of the range hood is "SO RANGHOODS BBHD". This information can be found in the product specifications table, under the "product subclass" column.
Q: What is the weight of this range hood?
A: The weight of the Zephyr Monsoon I 48 in. 1200 CFM Insert Mount Range Hood with LED Light is 64.5 pounds.
Q: What are the compatible appliances for this range hood?
A: The compatible appliance for this range hood is MUA010A.
Q: Does this range hood have a delay shut-off feature?
A: Yes, this range hood has a delay shut-off feature. The "Auto Fan Shut-Off" feature is mentioned in the product specifications as "true".
Q: What is the brand of this range hood?
A: The brand of this range hood is Zephyr. The product brand is explicitly stated as "Zephyr" in the product specifications.
Q: What is the purpose of the Clean Air Function?
A: The Clean Air Function automatically turns on the range hood at speed 1 for 10 minutes every four hours to refresh the cooking area and cycle out stale kitchen air. This helps to maintain a clean and fresh environment in the kitchen.
Q: What is the maximum wattage of the bulbs used in this range hood?
A: The maximum wattage of the bulbs used in this range hood is 6 watts. The product specifications clearly state "Maximum Bulb Wattage: 6 watts".
Q: What is the minimum installation height above the cooktop for this range hood?
A: The minimum installation height above the cooktop for the Monsoon I 48 in. 1200 CFM Insert Mount Range Hood with LED Light by Zephyr is 26 inches.
