Zephyr - 60 inches - Externally Vented - Shell Range Hood - Stainless Steel
Need-haul away?
Key Accessories:
- Zephyr - Duct Cover Extension for CTP - Stainless Steel$999.99
Related Item
Specifications
- Color FinishStainless steelProduct Height34 inchesProduct Width60 inchesProduct Depth26 5/8 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 60 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: CTP-E60CSX

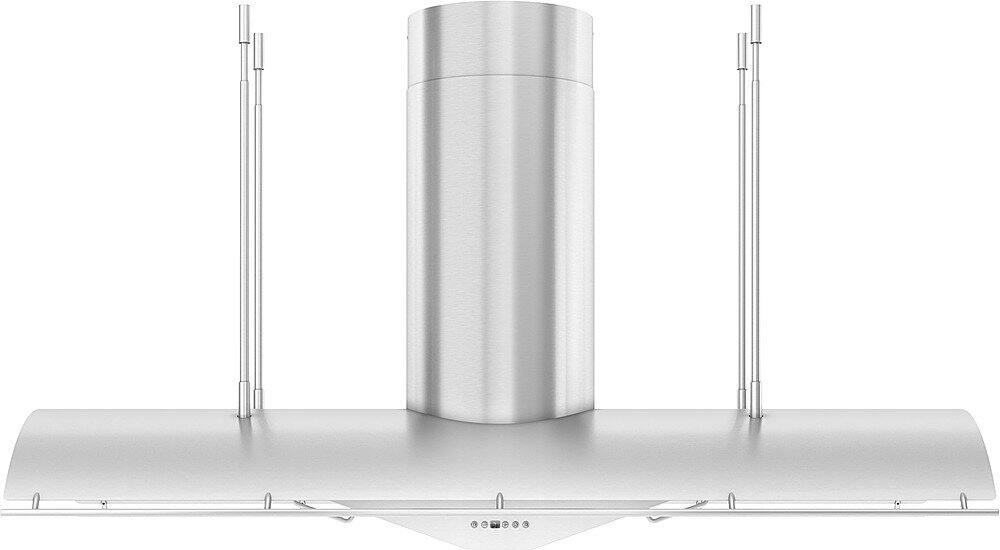

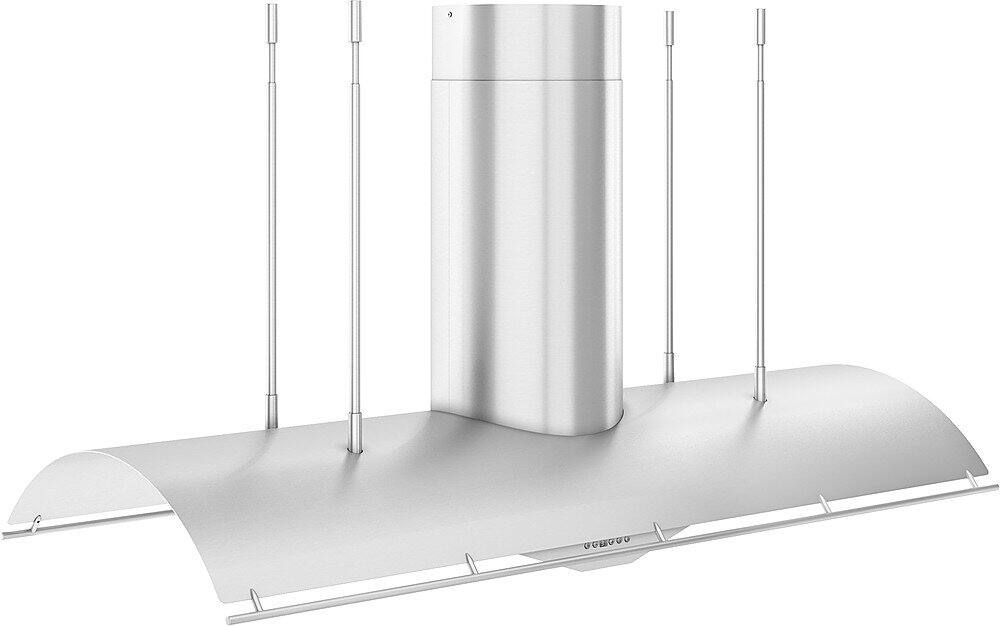

- Product Name: Trapeze 60" Shell Only Island Mount Range Hood with LED Lights
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 60 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 60 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 92 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Shell, Island
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Amperage: 6.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328010446

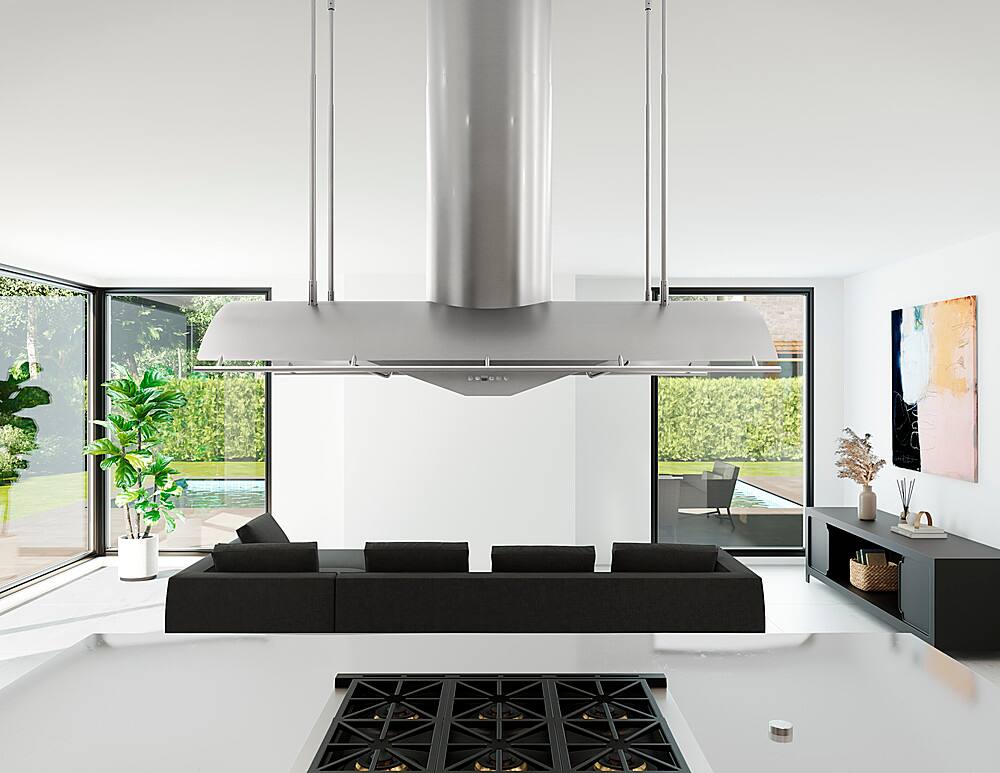

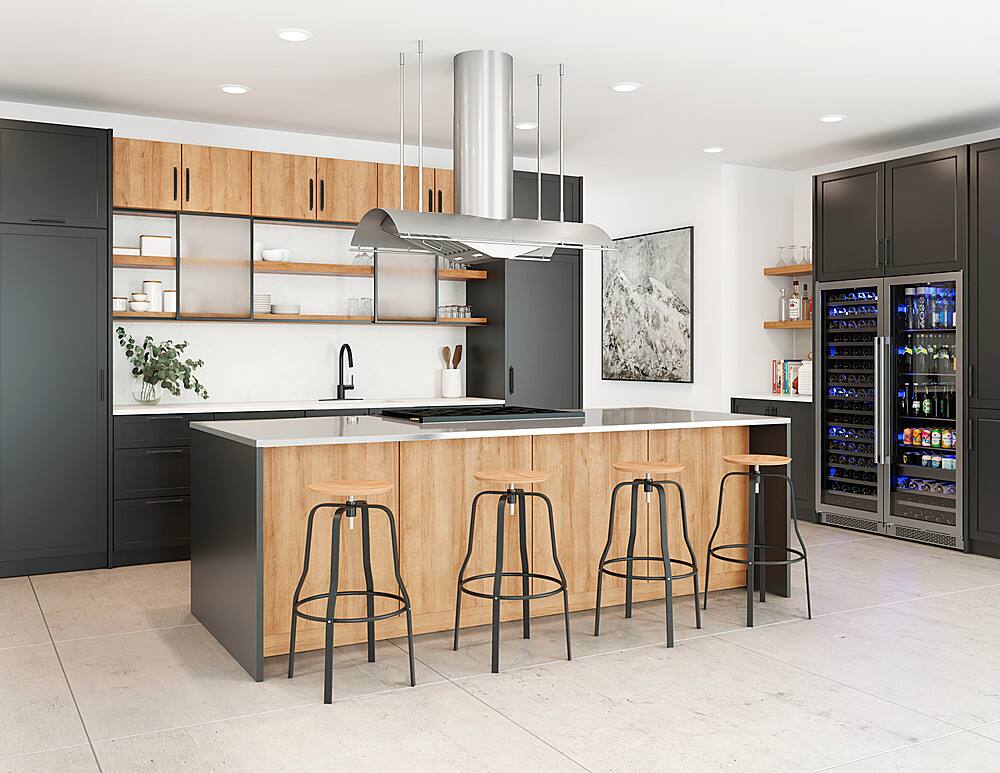

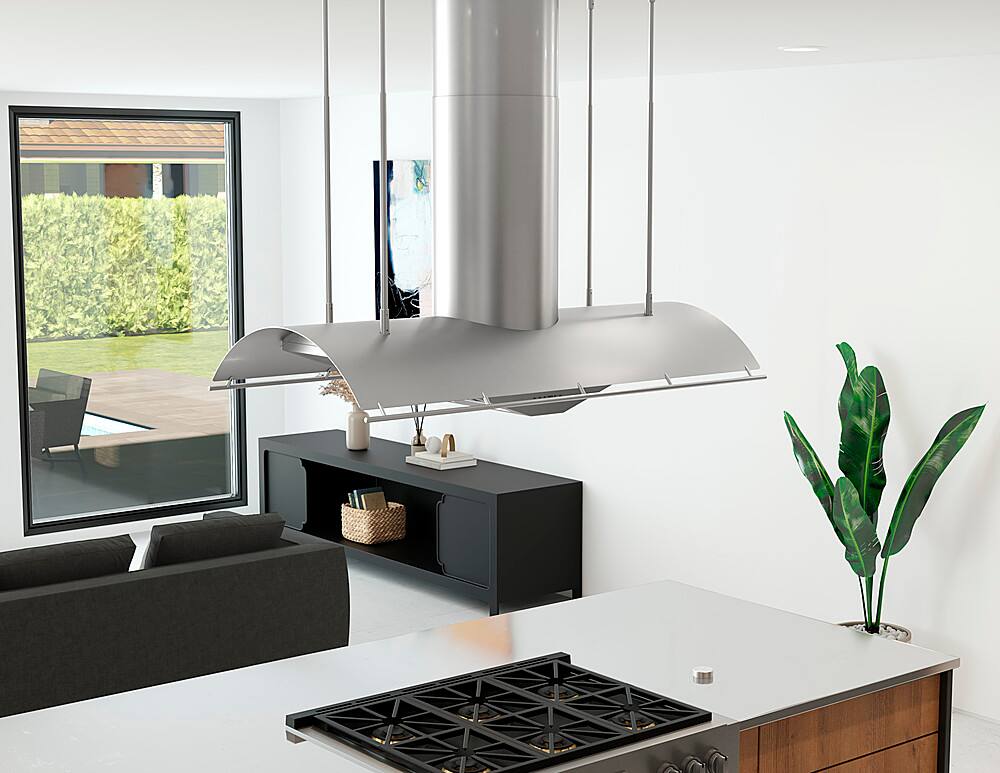

Light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a sleek suspension structure, the Trapeze seems to float in midair. Featuring directional LumiLight LED lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point its a statement.
- Multiple Blower Options: Multiple blower options are available to fit your application: CBI-290C, CBI-390A, CBI-600A, PBN-1000A, CBE-1000
- LumiLight LED Lights: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Directional Lighting: The light bulbs can be adjusted to direct light over cooking surface where it is needed the most.

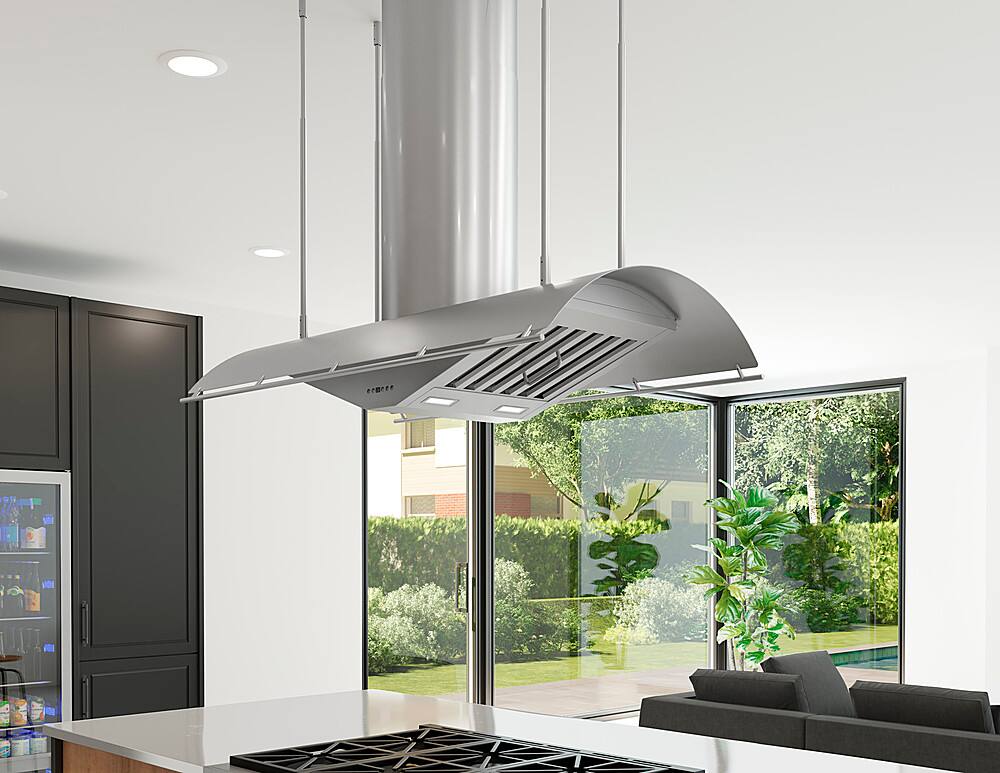

- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Electronic Touch Controls: Electronic touch controls make selecting different settings easy.
- Optional Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).
Product Manuals
Q: How many amps does this range hood use?
A: The Trapeze 60" Shell Only Island Mount Range Hood with LED Lights by Zephyr uses 6.5 amperes.
Q: How long is the manufacturer's warranty on labor for this range hood?
A: The manufacturer's warranty on labor for the Trapeze 60" Shell Only Island Mount Range Hood with LED Lights by Zephyr is 1 year.
Q: What color is this range hood?
A: The Trapeze 60" Shell Only Island Mount Range Hood with LED Lights from Zephyr comes in a stainless steel finish. The color of this range hood is stainless steel.
Q: What voltage does this range hood require?
A: This range hood requires a voltage of 120 volts.
Q: Does this range hood have a sensor to detect temperature?
A: No, this range hood does not have a sensor to detect temperature. The product specifications clearly state that "Temperature Sensor: false".
Q: What is the maximum height above the cooktop that this range hood can be installed?
A: The maximum installation height above the cooktop for this range hood is 36 inches. This information can be found in the context under the ".4 sones, Color Category: Silver, Vent Type: Ducted, Maximum Installation Height Above Cooktop: 36 inches, Maximum Operating Sound Level: 6 sones, Round Duct Diameter: 8 inches, Removable Grease Filter: true, Temperature Sensor: false, Display Type: None, Number Of Lights: 4, Damper Included: false, Duct Shape: Round, Exhaust Vent Location: Top, Mount Type: Island, Remote Control: false, Auto Fan Shut-Off: true, Product Height: 34 inches, Amperage: 6.5 amperes, Dishwasher-Safe Filter: true" section.
Q: Can the filters be cleaned in a dishwasher?
A: Yes, the professional baffle filters of this range hood are dishwasher safe, ensuring exceptional performance and easy maintenance.
Q: What is the minimum height above the cooktop that this range hood can be installed?
A: The minimum height above the cooktop that this range hood can be installed is 26 inches. This information can be found in the context under "Minimum Installation Height Above Cooktop: 26 inches".
