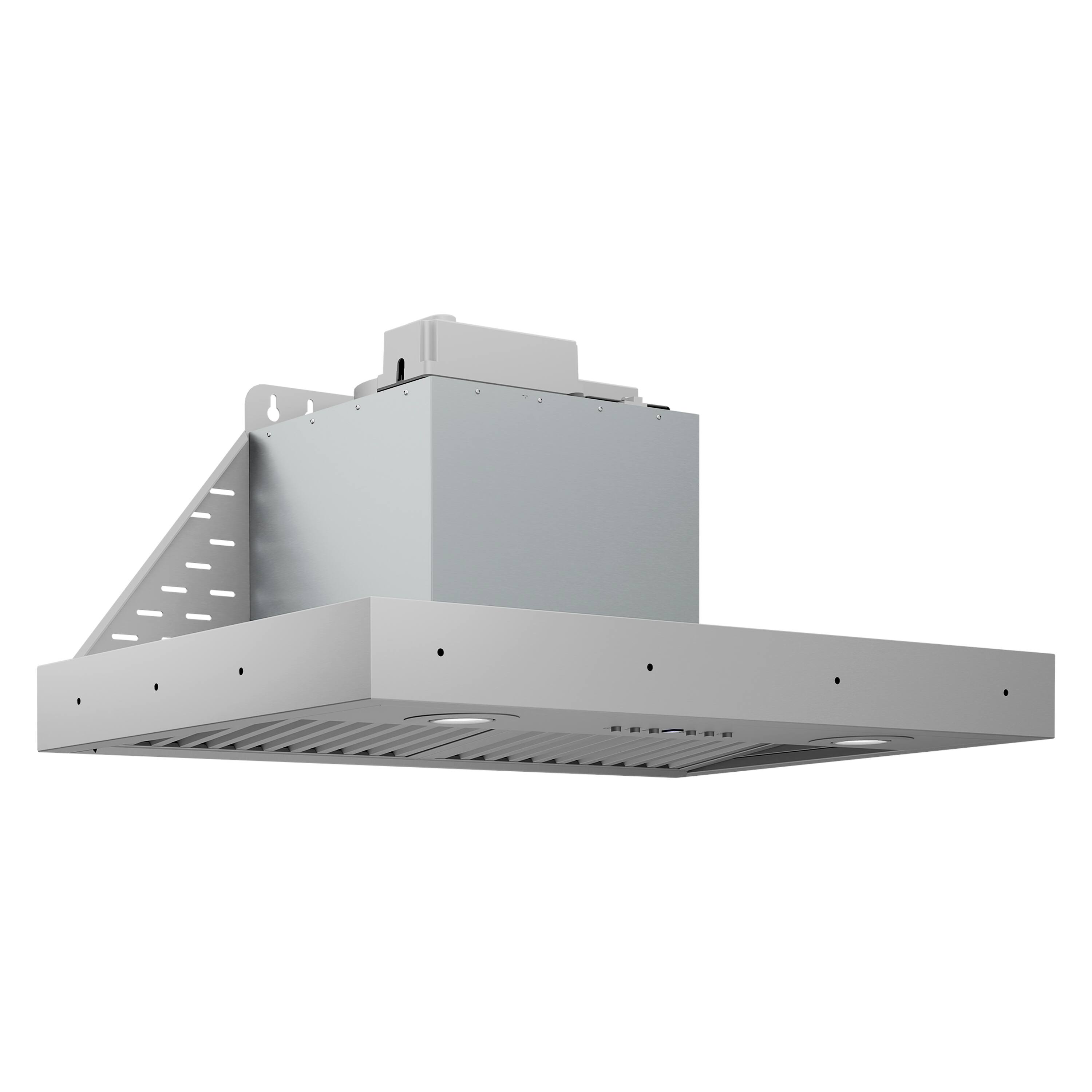

ZLINE - 28 inches - Externally Vented - Range Hood Insert - Stainless Steel
About this product
The ZLINE 28 in. DuraMount Wall Mount Range Hood Insert in Stainless Steel (683-28) combines powerful ventilation with a patented mounting design that brings attainable luxury to any custom kitchen layout. Featuring reinforced triangle supports with staggered, overlapping mounting points, DuraMount™ is purposefully designed to hit studs in standard 16-inch spacing, ensuring a stud-stabilized fit every time—without additional bracing—that delivers precision-engineered alignment and professional performance designed for real homes.
Features

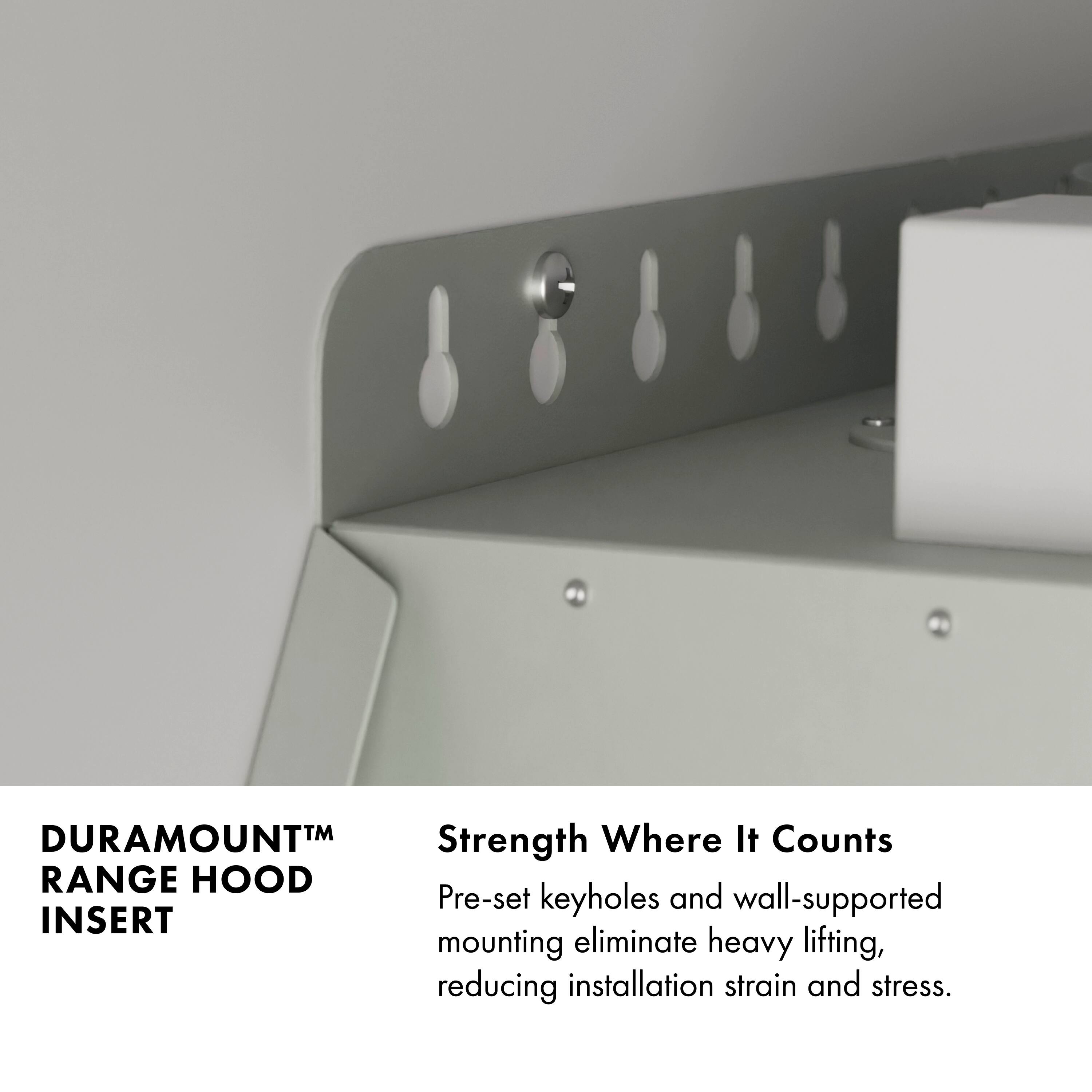

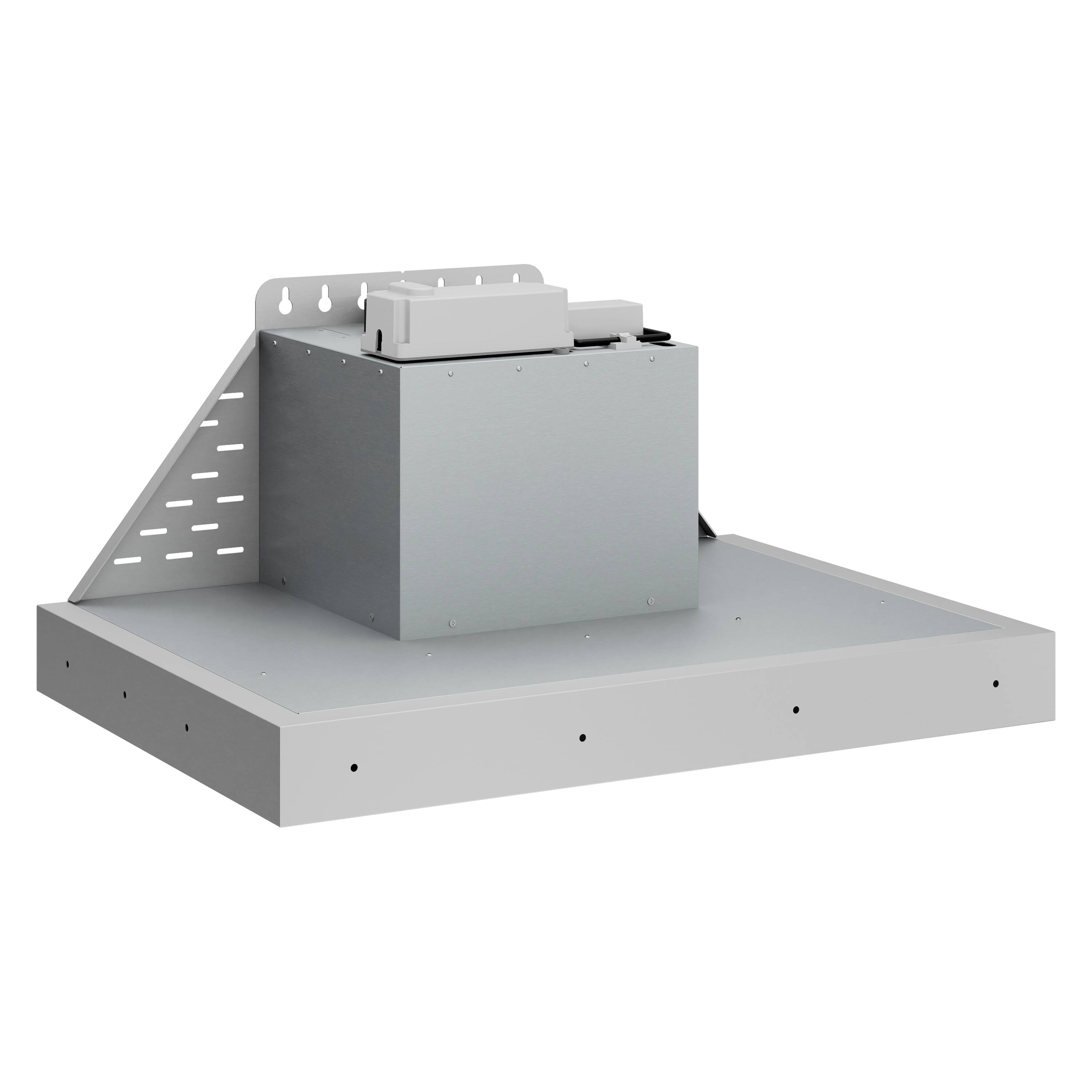

Patented Mounting Design
Mounting screws are leveled first, then the insert hangs directly onto pre-set keyholes, reducing the need for heavy lifting and enabling a straightforward installation process

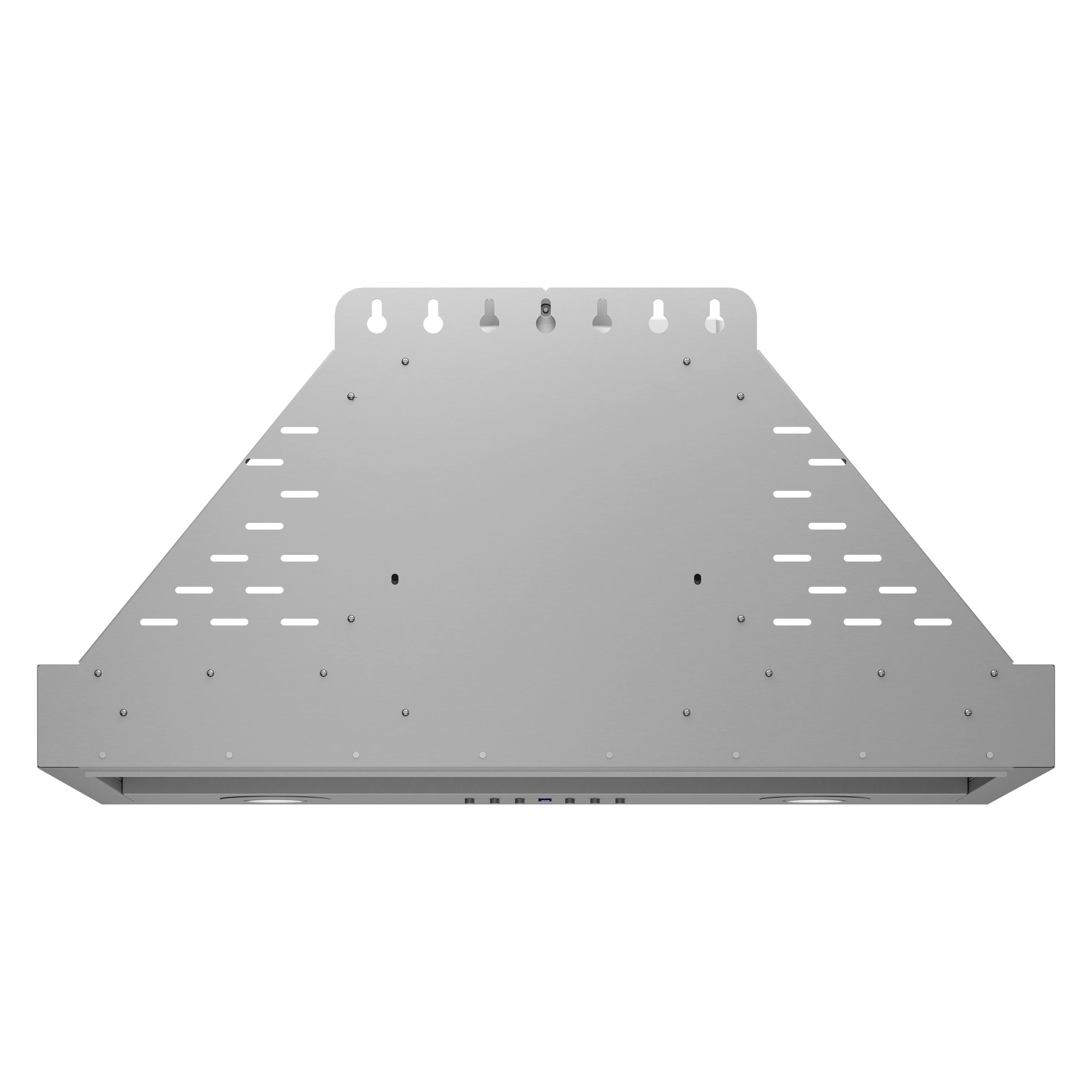

Multi-Point Flexibility
Designed for a 30-inch custom hood, a multi-point perimeter pattern offers numerous options, making it easy to fasten to studs or anchors without complex modifications or additional bracing
Two Decades of Trusted Power
Built on 20 years of ZLINE engineering expertise, the 683-28 DuraMount insert features a high-velocity motor backed by the industry’s first-ever lifetime motor warranty guarantee, bringing a new level of proven performance to custom kitchen ventilation
Full-Frame Support
A rigid, folded-steel DuraMount frame distributes weight across a broad footprint, creating a strong foundation for wood, plaster, or metal custom shells
Remodel-Ready Fit
Manufactured to align with standard 16 in. on-center framing and irregular wall structures, ensuring dependable installs even in remodels or tight retrofit conditions
Anchor-Friendly Installation
When studs aren’t available, the DuraMount system supports secure installation using included anchors or the multi-track side plate for confident off-center mounting
Corrosion-Resistant Stainless Steel
Manufactured with brushed 430-grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come

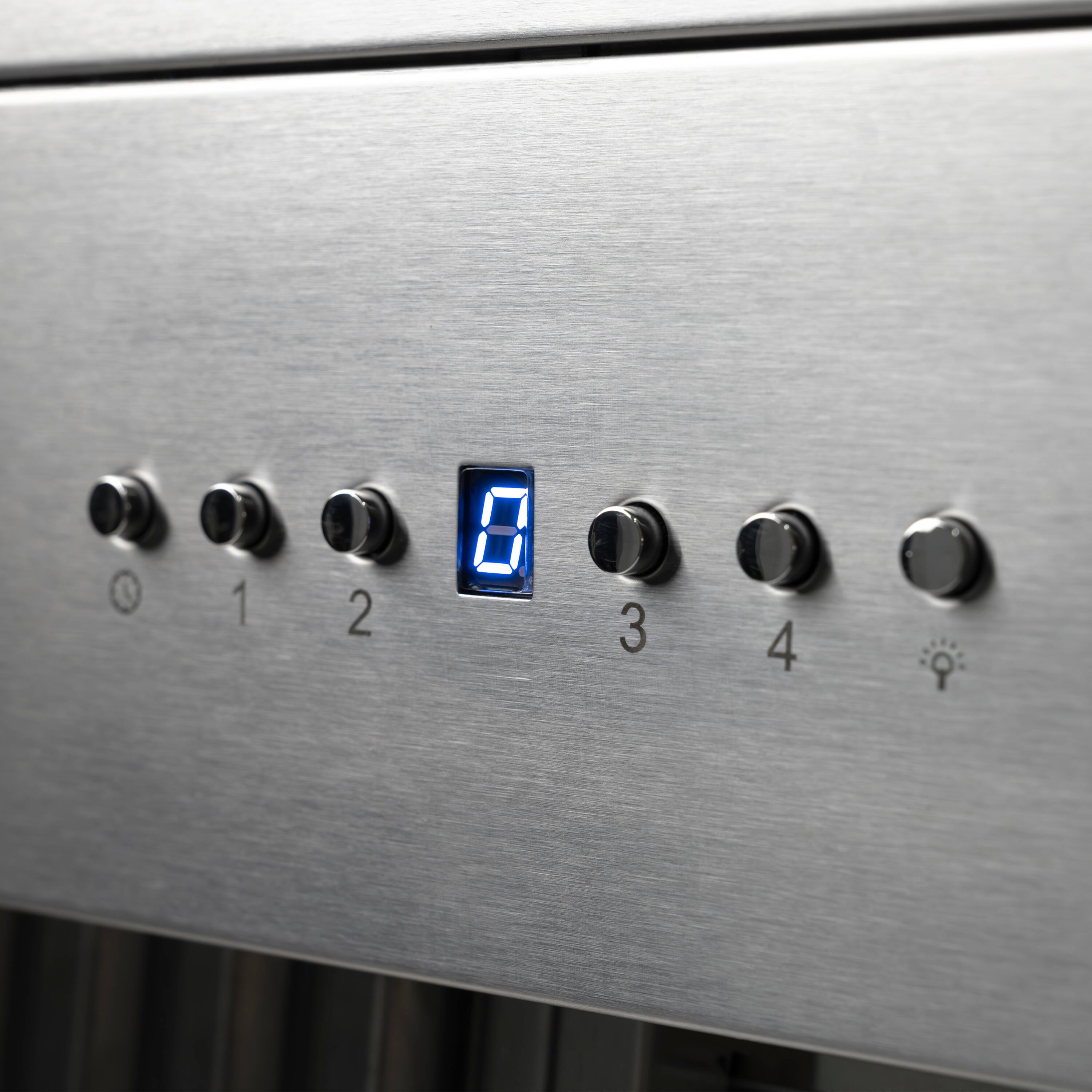

Convenient Control Panel
Easy-to-use push button controls let you easily adjust fan speeds and lighting options
Powerful Ventilation
The highest speed setting of 500 CFM air flow efficiently moves large amounts of air away from your cooking area

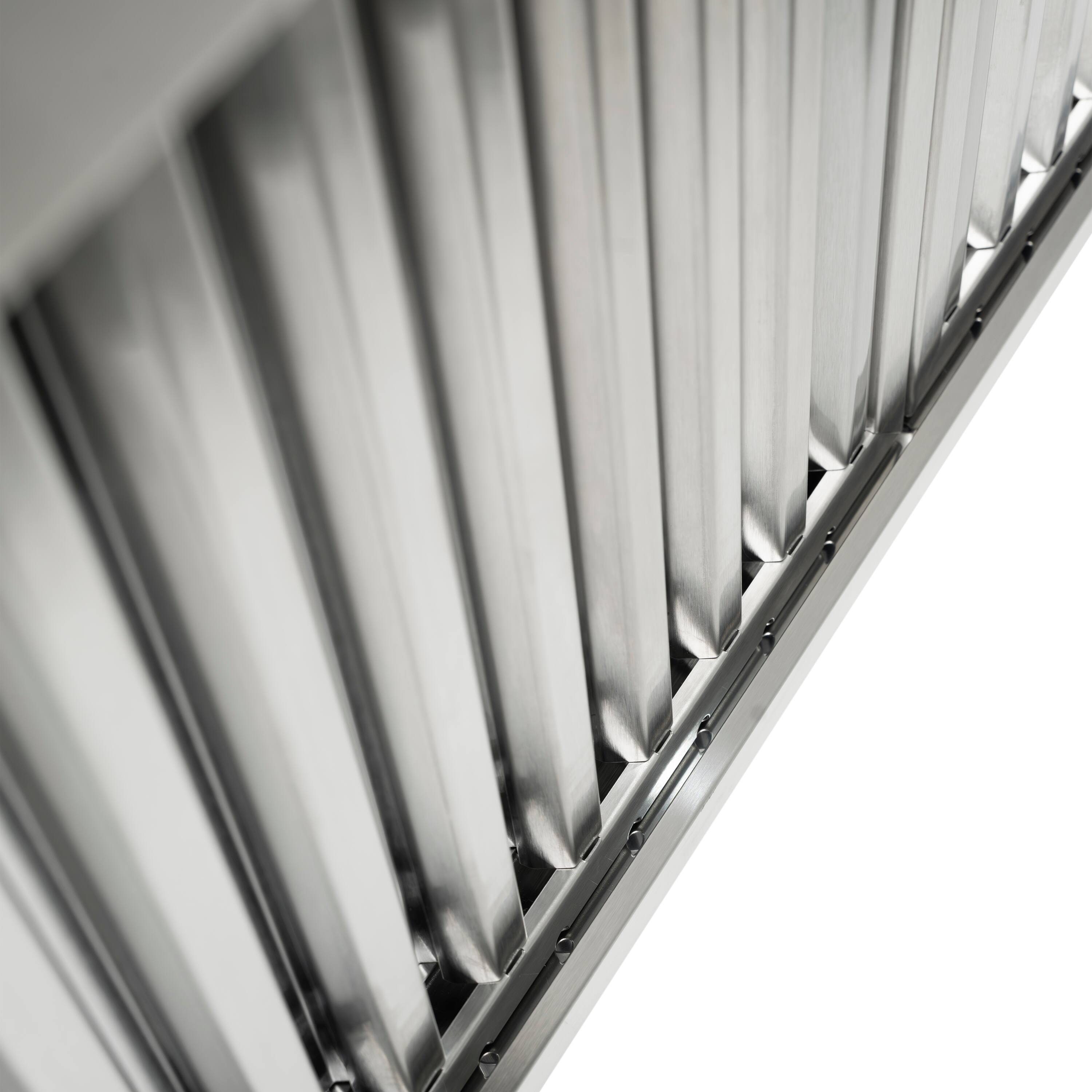

Minimal Cleaning

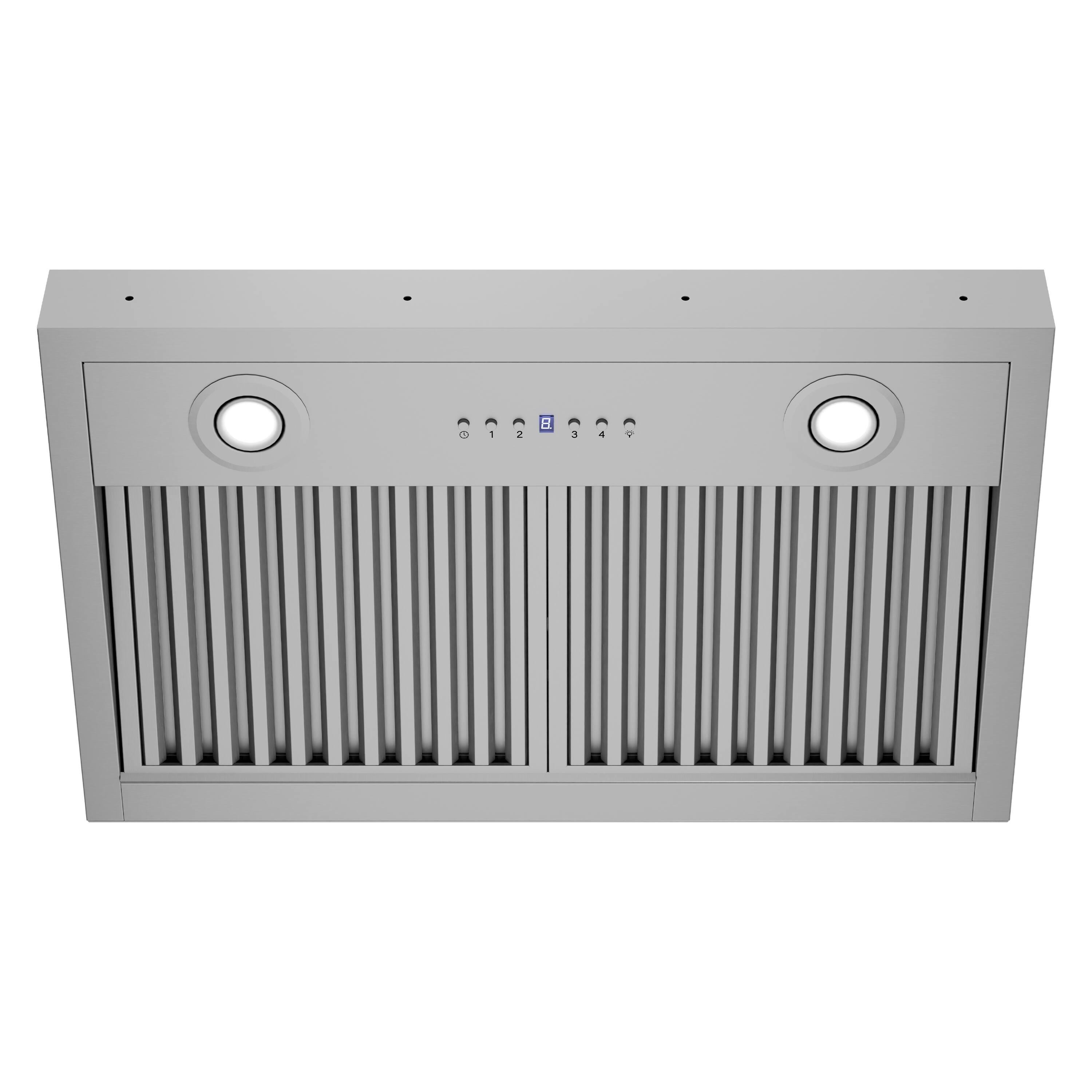

This range hood insert includes dishwasher-safe stainless steel baffle filters that are simple to clean

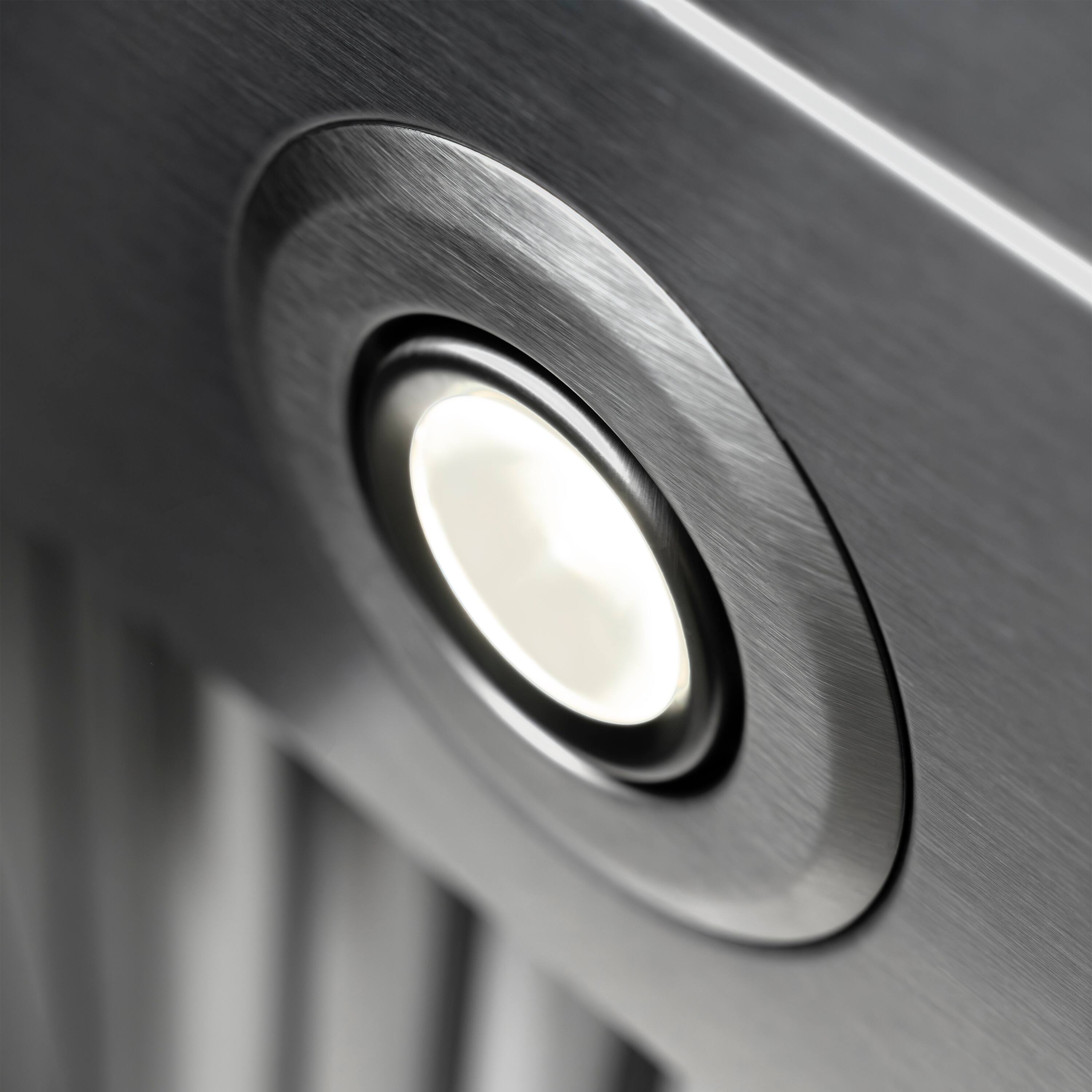

Adjustable LED Lighting
This range hood insert comes equipped with 2 energy-efficient adjustable LED lights to illuminate the cooking surface below
Standard Ducting
ZLINE hood inserts are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
External Damper Required
The included transition piece does not come with a damper; installers must ensure a proper external damper is installed at the exit point of ducting
Electrical Requirements
Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
Manufacturer Warranty
3-year parts-only warranty for the range hood, along with a lifetime warranty for the motor

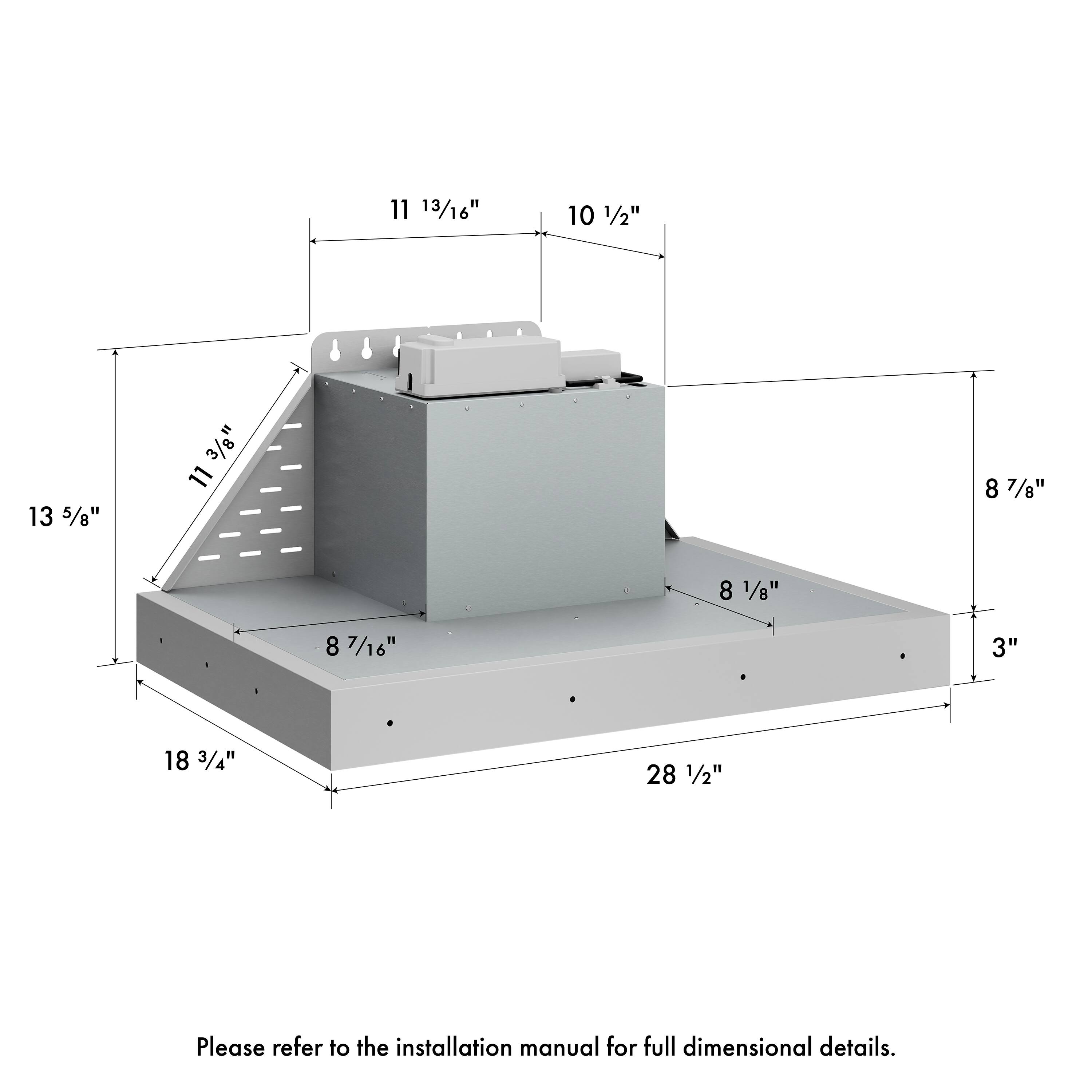

Specifications
- Product Height13.63 inchesProduct Width28.5 inchesProduct Depth18.75 inchesVent TypeDuctedVent StyleExternal
